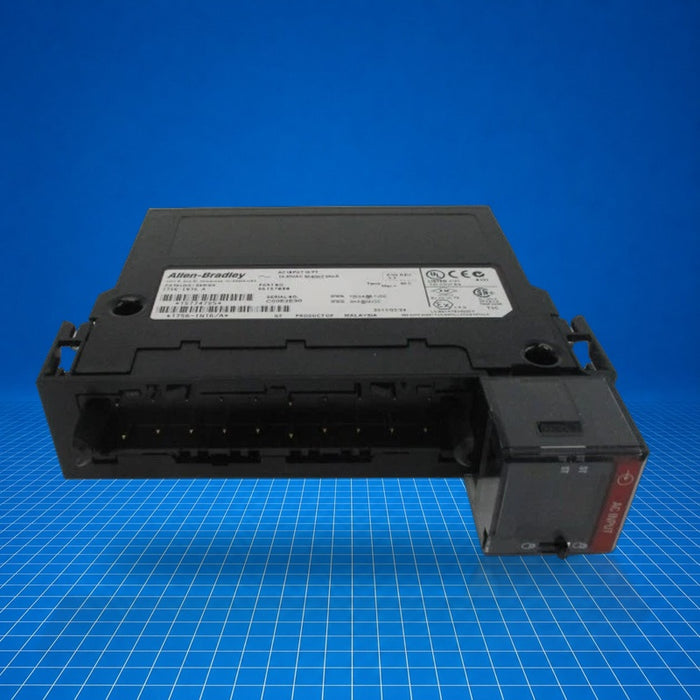

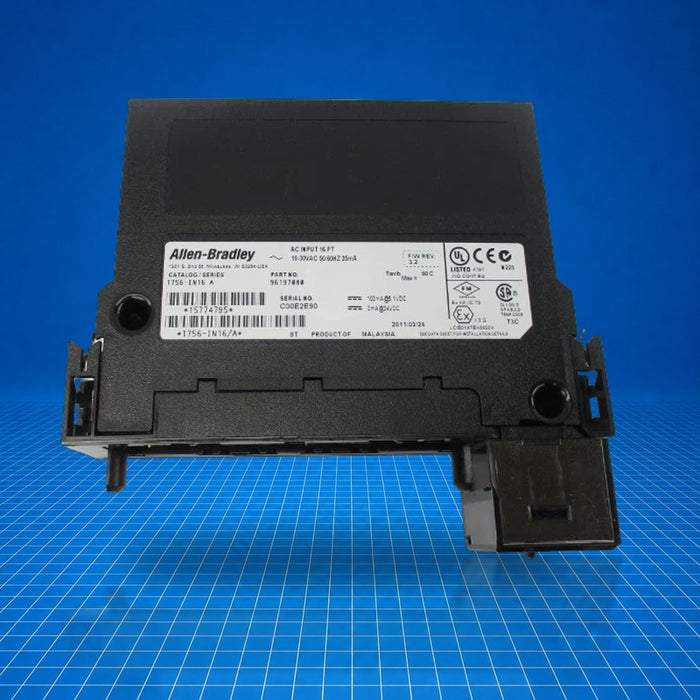

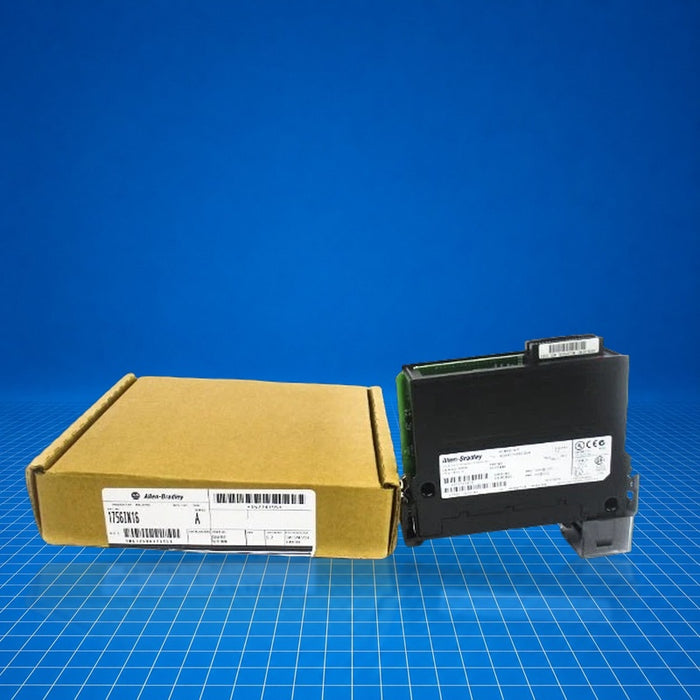

1756-IN16 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IN16 Allen-Bradley

$399.99 - $1,940.40
$399.99
$399.99 - $1,940.40
$399.99
Surplus - Tested (With Warranty)
Need a Specific Revision?
$399.99
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,940.40
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-IN16 is an Allen-Bradley ControlLogix digital AC input module that provides 16 discrete input points (organized in two groups of 8) for processing 10 … 30 V AC signals. It installs in a 1756-series ControlLogix chassis and connects via a removable terminal block. The module isolates inputs by groups and supports configurable filtering and diagnostics. It is typically used in industrial control systems for status monitoring and discrete signal acquisition in machinery, conveyors, packaging, or process control systems. Part number 1756-IN16.

Best Suited For

  • Discrete status input from AC-powered field devices
  • On-machine installation in ControlLogix racks
  • Applications requiring input grouping with isolation
  • Use in environments where configurable input filtering is needed
Channels
16
Input voltage range
10…30 V AC, 47…63 Hz
Isolation
250 V (continuous) between groups of 8 inputs
Total backplane power
0.56 W
Max power dissipation
5.1 W @ 60 °C

Technical Specifications

I/O & Electrical

Number of input points
16 (8 per group)
Operating voltage range
10…30 V AC, 47…63 Hz
Nominal input voltage
24 V AC 50/60 Hz
Isolation voltage
250 V continuous between groups
Input impedance
≤ 2.5 kΩ @ 30 V AC, 60 Hz

Communication & Power

Backplane current @ 5.1 V
135 mA
Backplane current @ 24 V
2 mA
Total backplane power
0.56 W
Power dissipation, max
5.1 W @ 60 °C
Thermal dissipation
17.39 BTU/hr

Physical & Environmental

Input delay time (Off→On)
≤ 10 ms hardware + user filter (0, 1, 2 ms)
Input delay time (On→Off)
≤ 10 ms hardware + user filter (9, 18 ms)
Programmable features
Change-of-state, time stamp ±200 µs
Removable terminal block options
1756-TBNH or 1756-TBSH
Wire size (single)
0.33…2.1 mm² (22…14 AWG) shielded copper
Wire size (double)
0.33…1.3 mm² (22…16 AWG) shielded copper
Terminal torque
1.36 N•m (12 lb-in)
Enclosure type
None (open-style)

Certifications

China CCCCEIECExATEXAustralian RCMUK EXEurasian Economic Community

Certified: China CCC, CE, IECEx, ATEX, Australian RCM, UK EX, Eurasian Economic Community as of May 17, 2026.
