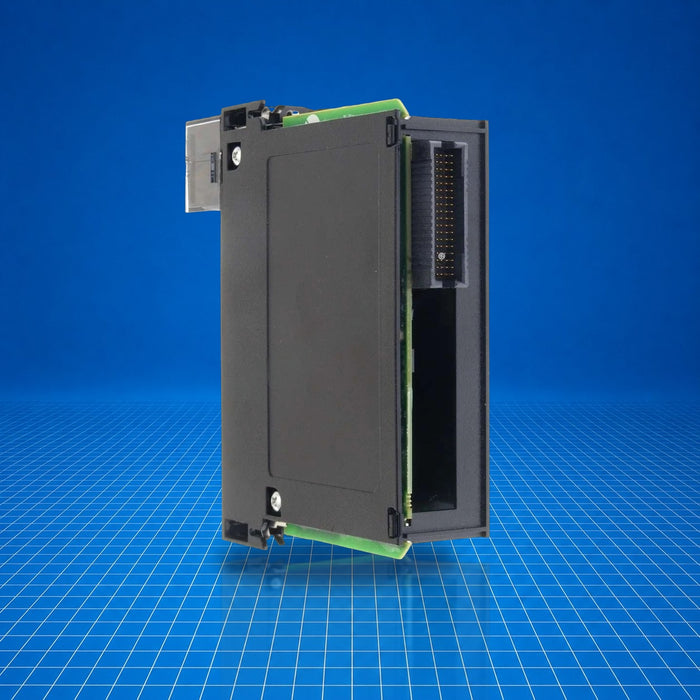

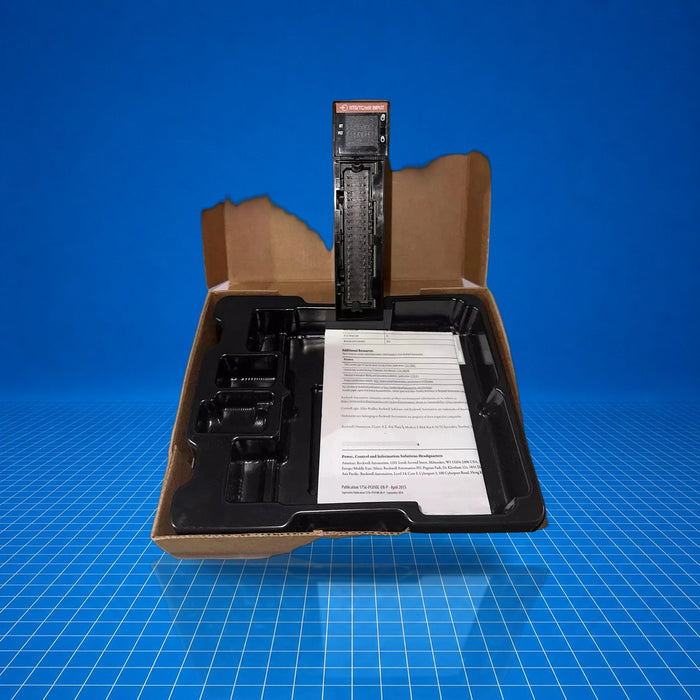

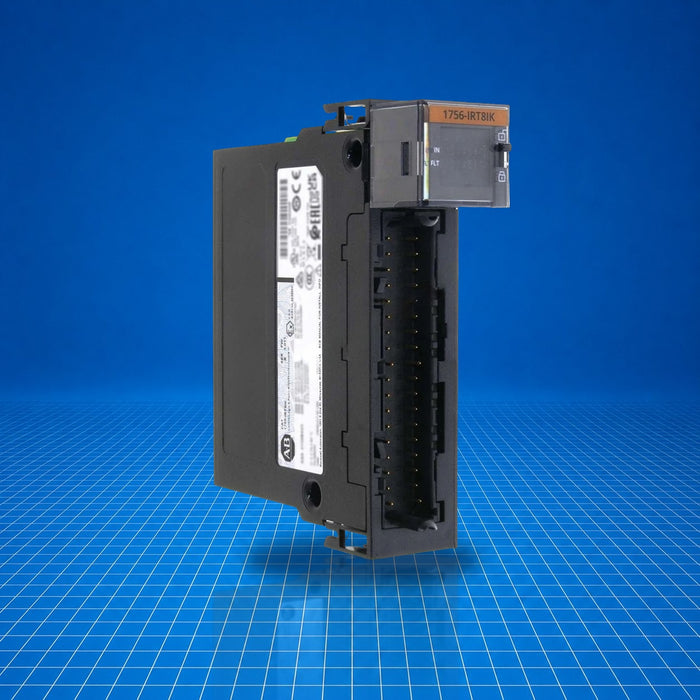

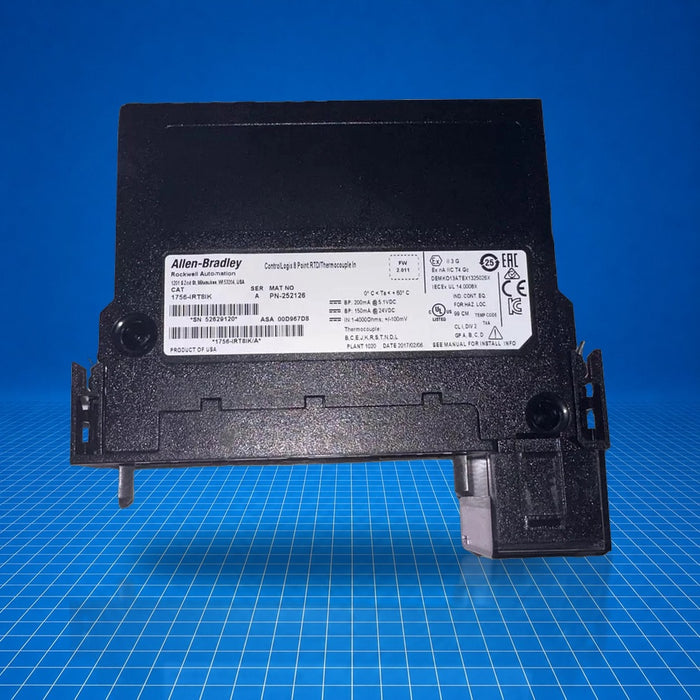

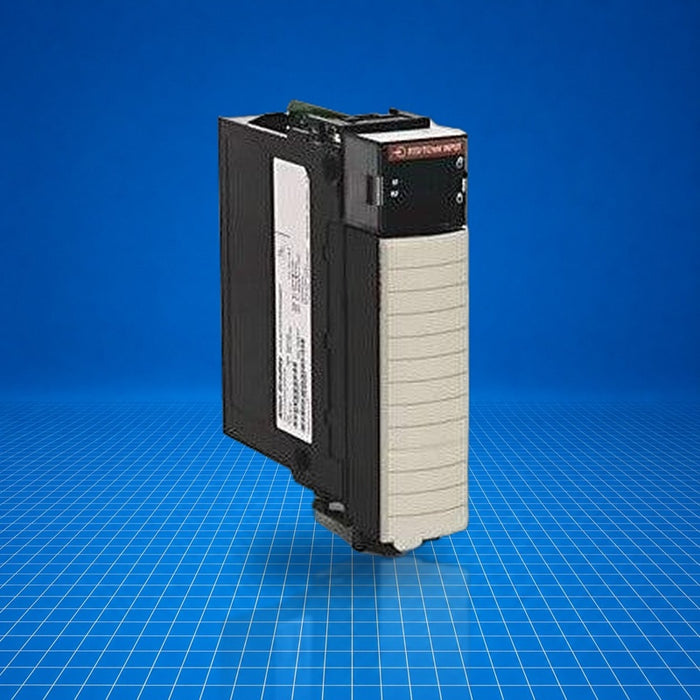

1756-IRT8IK Allen-Bradley

Name: 1756-IRT8IK Allen-Bradley
Brand: Allen Bradley
SKU: 1756-IRT8IK
Price: 3748.5 USD
Availability: InStock

$3,748.50 - $7,179.00

$3,748.50

$3,748.50 - $7,179.00

$3,748.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-IRT8IK is a ControlLogix analog input module by Allen-Bradley designed for acquiring temperature signals via RTD, thermocouple, ohms, or millivolt inputs. It provides eight individually configurable, isolated input points and integrates into ControlLogix backplanes. Typical applications include process temperature monitoring, thermal profiling, and multi-channel sensor integration in industrial automation systems. The module is conformally coated for improved resistance in harsh environments.

Best Suited For

Multi-channel temperature data acquisition
Mixed RTD and thermocouple signal applications
Integration into ControlLogix systems
Environments requiring conformal coating

Configurable isolated inputs

8 points

Input types supported

RTD, thermocouple, ohms, mV

Backplane power dissipation

4.6 Watts

Isolation voltage

250 V

Technical Specifications

I/O & Electrical

Number of inputs

8 isolated channels

Supported input ranges

1 to 500 Ω, 2 to 1000 Ω, 4 to 2000 Ω, 8 to 400 Ω, or -100 to 100 mV (RTD/thermocouple/ohms/mV)

Cold-junction compensation sensors

2

Continuous isolation voltage

250 V

Communication & Power

Backplane current draw @ 5.1 V

200 mA

Backplane current draw @ 24 V

150 mA

Power dissipation

4.6 W

Thermal dissipation

15.7 BTU/hr

Physical & Environmental

Conformal coating

Yes

Certifications

UL ListedcULusCEATEXIECExRCMUKex

Certified per EN 61131-2 LVD/EMC, EN 61000-6-2/-6-4. ATEX II 3 G Ex ec IIC T4 Gc, IECEx II 3 G Ex ec IIC T4 Gc. UL Listed Industrial Control Equipment and Class I, Division 2 Groups A,B,C,D. RCM, UKex.
