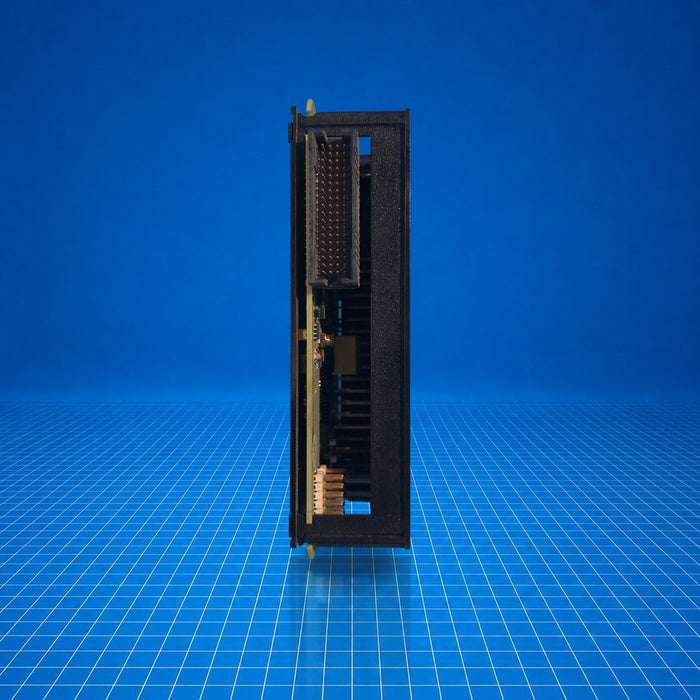

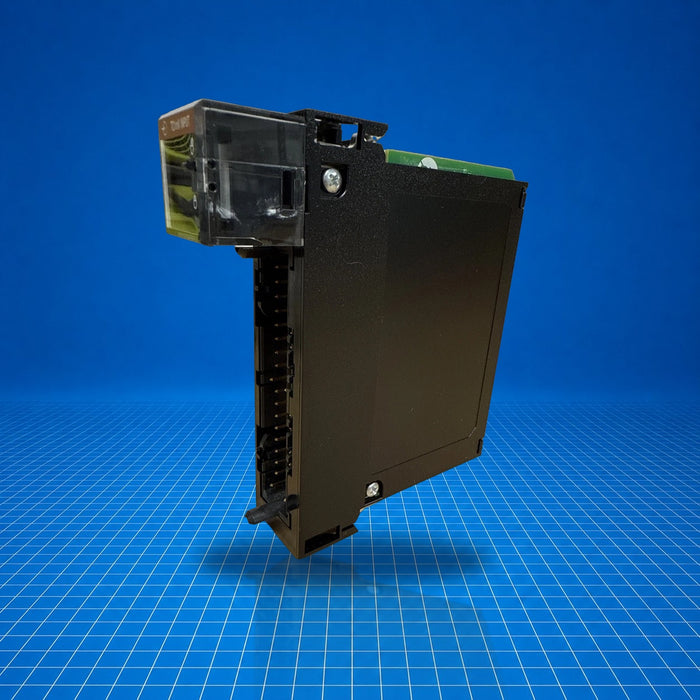

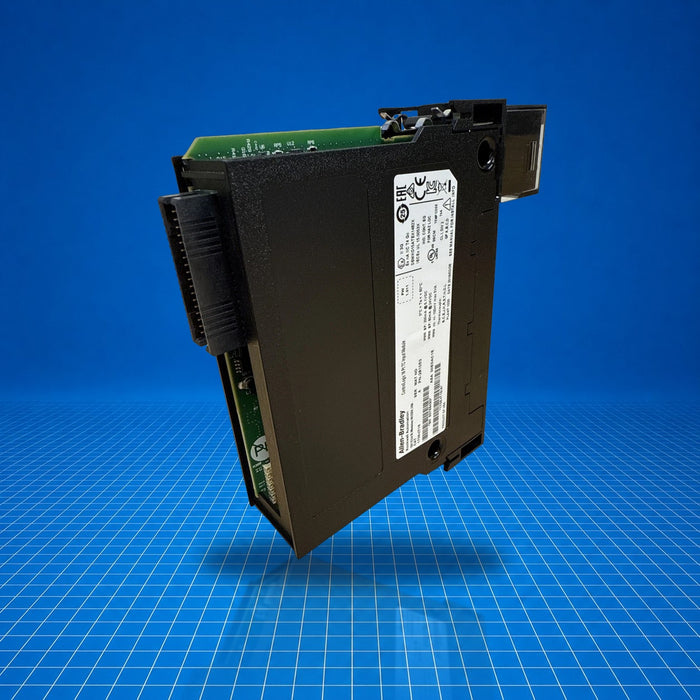

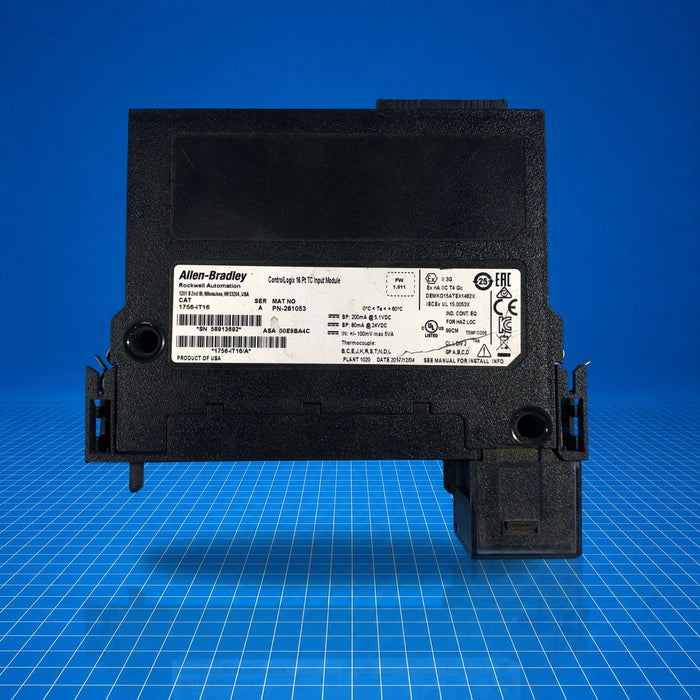

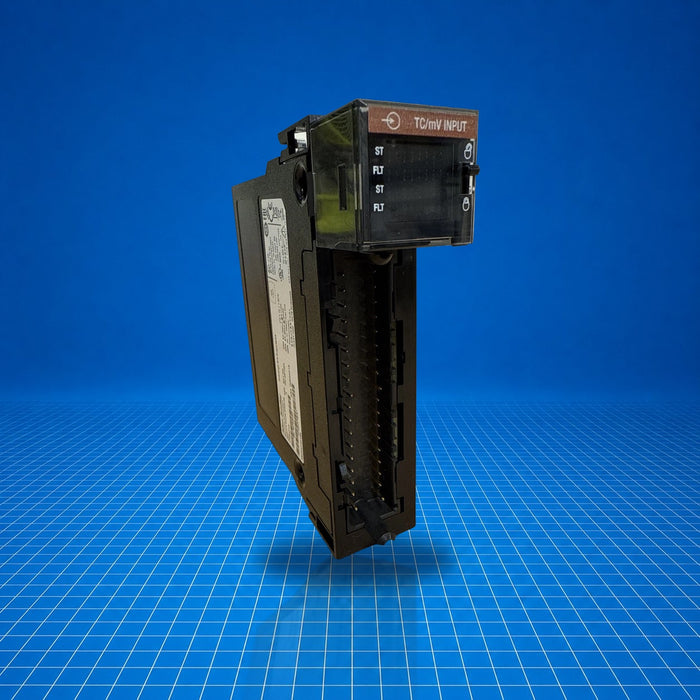

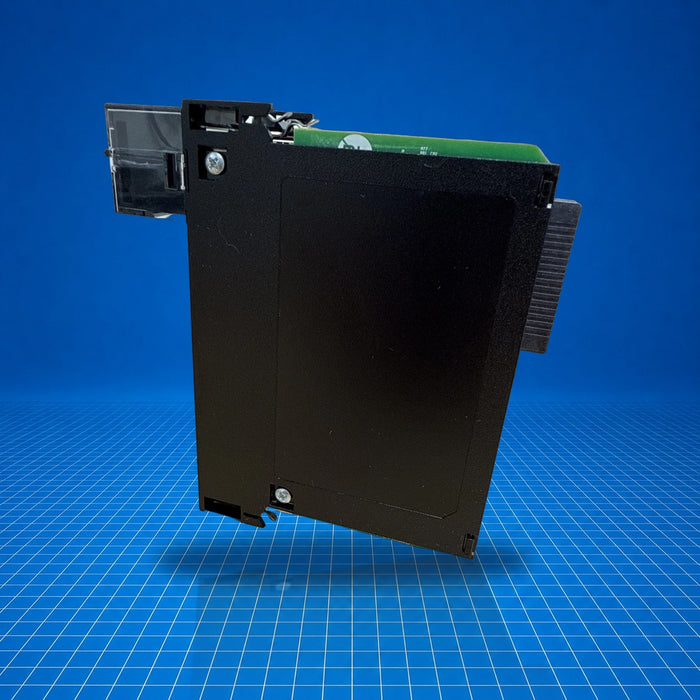

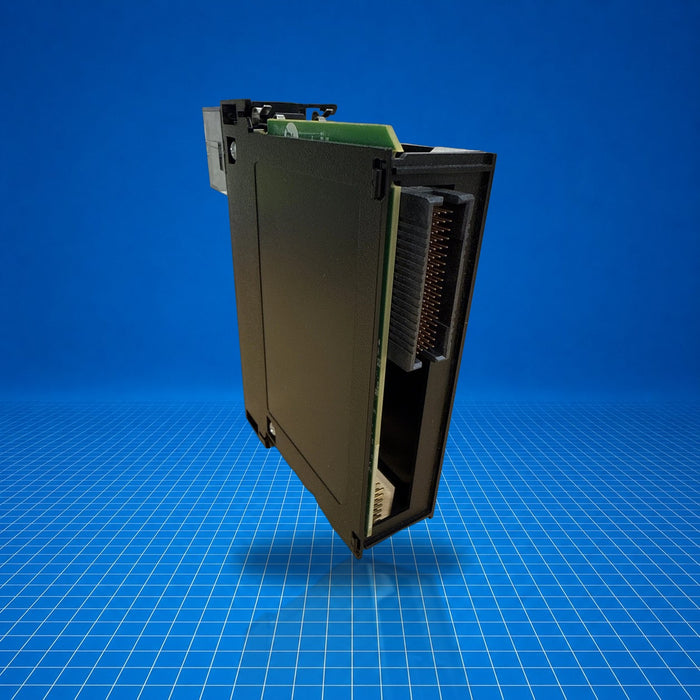

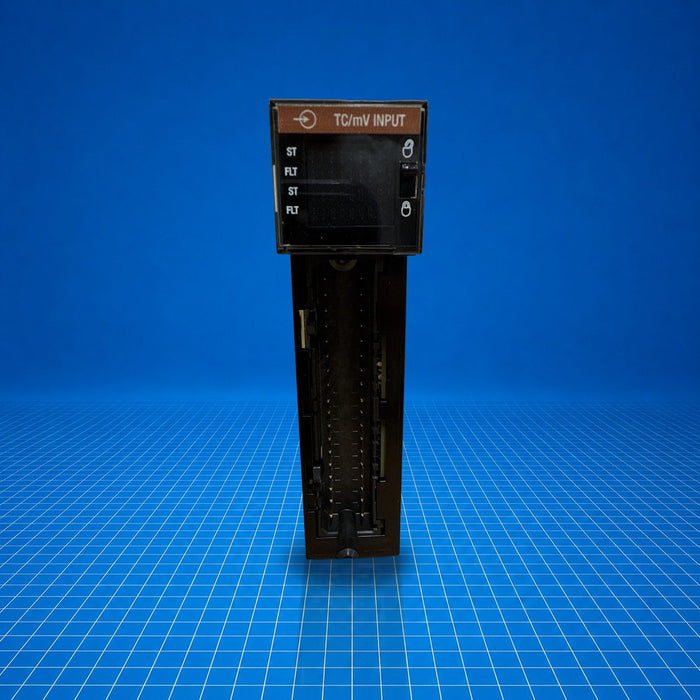

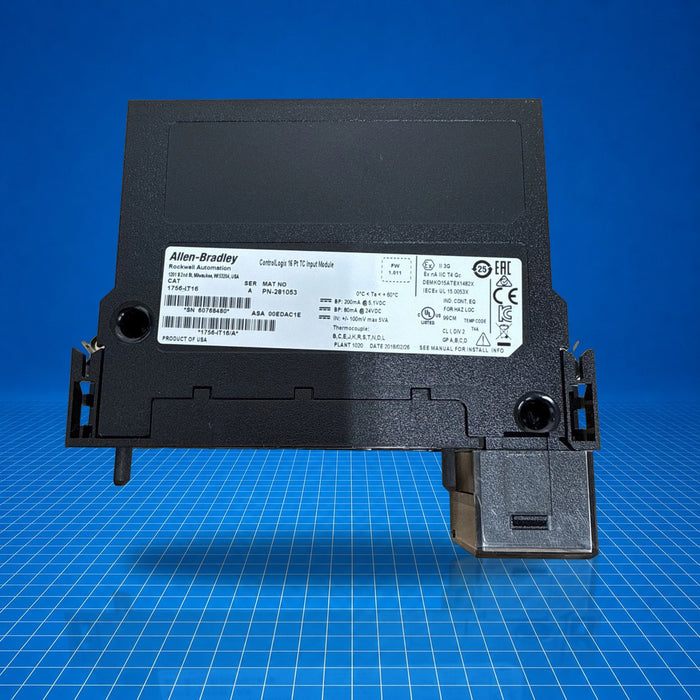

1756-IT16 Allen-Bradley

Name: 1756-IT16 Allen-Bradley
Brand: Allen Bradley
SKU: 1756-IT16
Price: 2450.25 USD
Availability: InStock

$0.00 - $2,450.25

$2,450.25

$0.00 - $2,450.25

$2,450.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1756-IT16 is a ControlLogix analog input module designed for thermocouple temperature measurement. It provides 16 non-isolated thermocouple input channels compatible with types B, C, D, E, J, K, N, R, S, T, TXK/XK (L), with ITS-90 linearization. The module mounts directly into a ControlLogix chassis and communicates via the backplane. Typical applications include industrial temperature monitoring, furnace control, energy systems, and process control involving multiple thermocouples.

Best Suited For

High-density thermocouple acquisition in ControlLogix systems
Multi-point temperature monitoring applications
Furnace or kiln temperature control systems
Process control with diverse thermocouple types

Channels

16 thermocouple inputs

Resolution

24-bit (~0.01 µV/count)

Thermocouple Types

B, C, D, E, J, K, N, R, S, T, TXK/XK (L)

Backplane Power

3 W

Isolation Voltage

±30 V DC overvoltage

Technical Specifications

I/O & Electrical

Input range

-100…+100 mV (max 5 VA)

Thermocouple linearization

ITS-90

Input impedance

1 GΩ (approximate)

Overvoltage protection, max

±30 V DC

Normal-mode noise rejection

75 dB @ 60 Hz

Common-mode noise rejection

120 dB @ 60 Hz, 1000 Ω diff; 100 dB @ 50 Hz, 1000 Ω diff

Communication & Power

Current draw @ 5.1 V DC

Series B 210 mA; Series A 200 mA

Current draw @ 24 V DC

80 mA

Power dissipation (max)

3 W

Thermal dissipation

Series B 10.20 BTU/hr; Series A 9.9 BTU/hr

Physical & Environmental

Operating temperature

0…60 °C (32…140 °F)

Weight

0.75 lbs (0.34 kg)

Enclosure type

Open-style, chassis mount

Certifications

CEChina CCCAustralian RCMKorean KCIECExATEXUL ListedEurasian Economic Community

Certified as of May 26 2026 with CE, China CCC, Australian RCM, Korean KC, IECEx, ATEX, UL Listed, Eurasian Economic Community.
