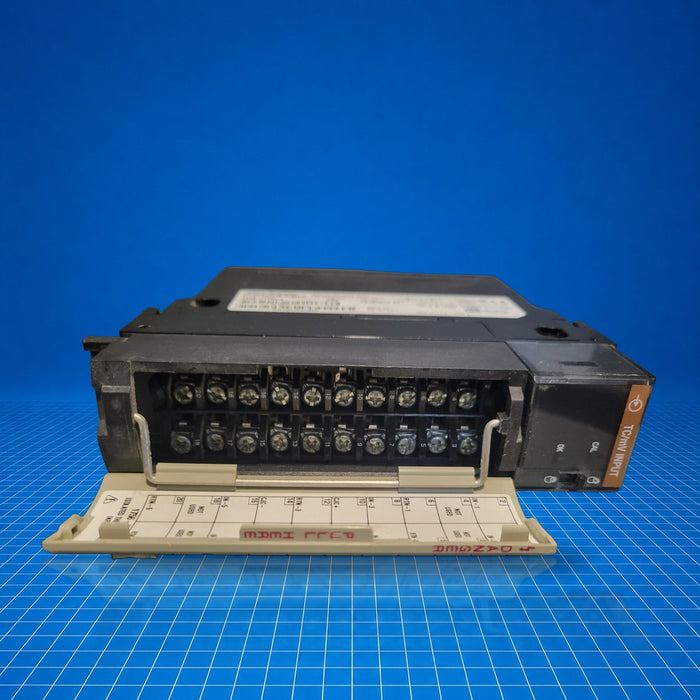

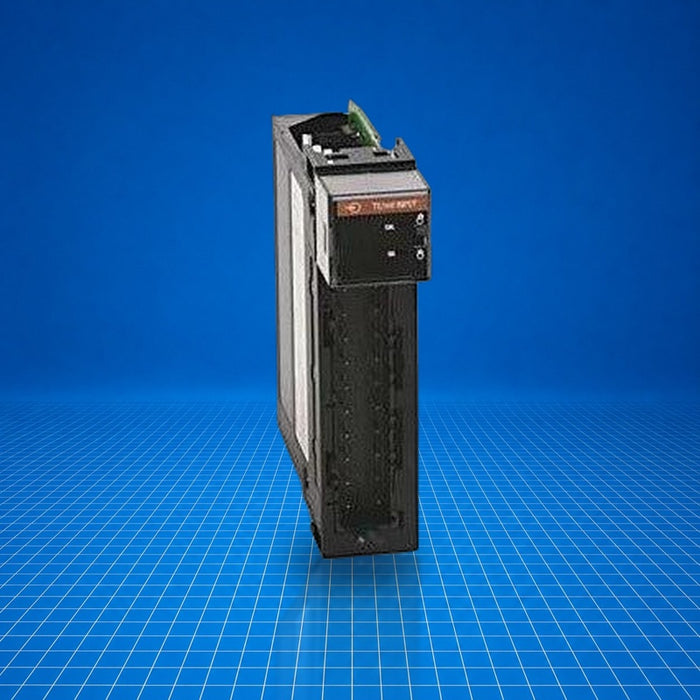

1756-IT6I Allen-Bradley
Original price
$329.97
-
Original price
$551.97
Original price
$329.97
$329.97
-
$551.97
Current price
$329.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-IT6I is an Allen-Bradley ControlLogix isolated thermocouple and millivolt input module, discontinued as of March 31, 2017. It provides six independently isolated input channels for temperature measurement via thermocouples or direct millivolt signals. The module mounts in a ControlLogix chassis using a removable terminal block and communicates with the controller over the I/O backplane. Typical uses include temperature monitoring in industrial process control, batch systems, and thermal profiling applications. 1756-IT6I enables thermocouple linearization and cold-junction compensation.
Best Suited For
- Thermocouple-based temperature measurement
- Millivolt signal acquisition with isolation
- ControlLogix I/O rack integration
- Retrofitting older ControlLogix systems using 6-channel analog inputs
Channels
6 isolated inputs
Input ranges
-12 to 78 mV; -12 to 30 mV high-res
Resolution
16-bit
Backplane power
4.3 W
Scan time (FP, mV)
25 ms min
Technical Specifications
I/O & Electrical
Input ranges
-12 mV to 78 mV; -12 mV to 30 mV (high-resolution)
Resolution
16-bit
Input signal types
Thermocouple (types B, C, E, J, K, N, R, S, T), millivolts
Overvoltage protection (max)
120 V AC/DC
Input impedance
> 10 MΩ
Open-circuit detection time
Positive full-scale within 2 s
Common-mode noise rejection
120 dB @ 60 Hz; 100 dB @ 50 Hz
Normal-mode noise rejection
60 dB @ 60 Hz
Communication & Power
Backplane current @ 5.1 V
250 mA
Backplane current @ 24 V
125 mA
Total backplane power
4.3 W
Power dissipation (max)
4.3 W
Thermal dissipation
14.66 BTU/hr
Module conversion method
Sigma-Delta
Data formats
Integer mode (left-justified, 2's complement); IEEE 32-bit floating point
Module error
0.5 % of range
Calibrated accuracy @ 25 °C
Better than 0.1 % of range
Offset drift
0.5 µV/°C
Gain drift (nom)
65 ppm/°C; max 80 ppm/°C
Physical & Environmental
Isolation voltage
250 V continuous (channel-to-channel and to backplane)
Slot width
1
Enclosure type
None (open-style)
Removable terminal blocks
1756-TBNH, 1756-TBSH
Temperature code (NA)
T4A
Channel bandwidth
15 Hz (-3 dB)
Settling time
<80 ms to 5 % full-scale
