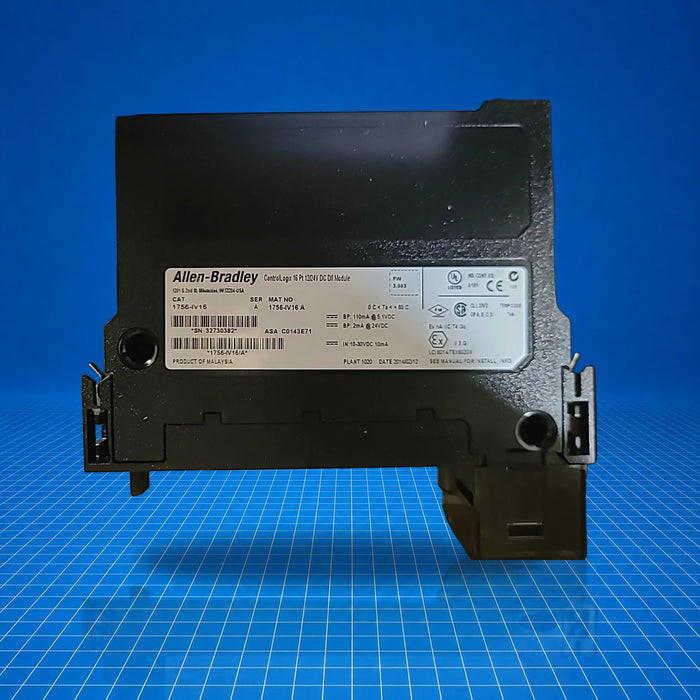

1756-IV16 Allen-Bradley
Original price
$400.00
-
Original price
$423.99
Original price
$400.00
$400.00
-
$423.99
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

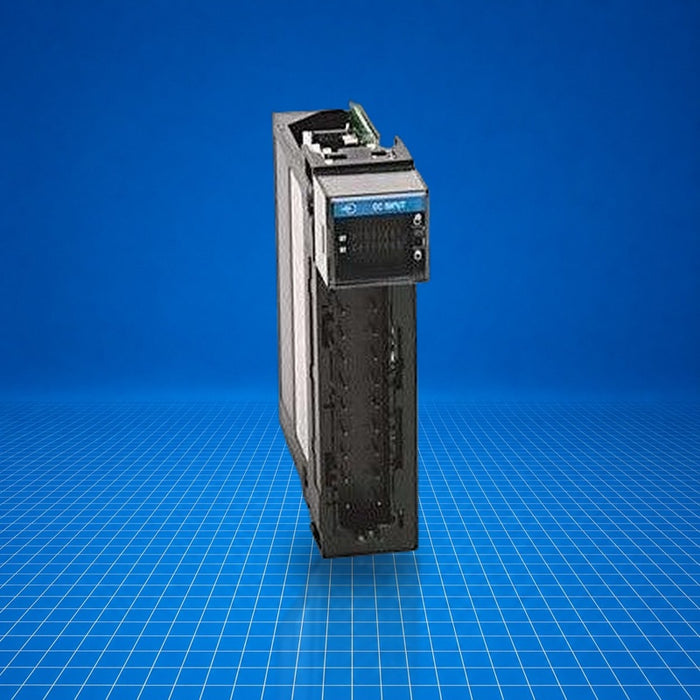

The 1756-IV16 is an Allen-Bradley ControlLogix digital input module providing 16 sourcing DC inputs (8 per group) for standard 12/24 V DC control signals. It installs into a 1756 chassis with a compatible removable terminal block (1756-TBNH or 1756-TBSH) and integrates with ControlLogix I/O scanning. Typical applications include discrete signal monitoring from sensors or pushbuttons in factory automation, safety interlocks, and industrial process control systems.
Best Suited For
- ControlLogix chassis installations
- Sourcing input signal collection (24 V DC)
- Discrete sensor and pushbutton monitoring
- Grouped-input wiring schemes (8-point groups)
Inputs
16
Voltage range
10 … 30 V DC
Isolation voltage
250 V continuous (between input groups)
Backplane power
0.61 W
Power dissipation (max)
5.41 W @ 60 °C
Technical Specifications
I/O & Electrical
Number of channels
16 (8 points per group)
Voltage category
12/24 V DC source
Nominal input voltage
24 V DC
Operating voltage range
10…30 V DC
On-state current
2 mA @ 10 V DC (min), 10 mA @ 30 V DC (max)
Off-state current
≤ 1.5 mA
Off-state voltage
≤ 5 V DC
Input impedance (max)
3.2 kΩ @ 30 V DC
Inrush current (max)
250 mA
Input delay time
Off→On: 280 µs nom / 1 ms max + filter (0/1/2 ms); On→Off: 540 µs nom / 2 ms max + filter (0/1/2/9/18 ms)
Cyclic update time
200 µs … 750 ms
Timestamp resolution
±200 µs
Communication & Power
Backplane current @ 5.1 V
110 mA
Backplane current @ 24 V
2 mA
Total backplane power
0.61 W
Max power dissipation
5.41 W @ 60 °C
Thermal dissipation
18.47 BTU/hr
Physical & Environmental
Terminal block housing
1756-TBNH or 1756-TBSH
Slot width
1
Module keying
Electronic, software configurable
Isolation (inputs-to-backplane / input group-to-group)
250 V continuous, basic insulation; no isolation between individual group inputs
Enclosure type
Open-style (no enclosure)
Wire category
1
Temperature code
T4
Reverse-polarity protection
Yes
Certifications
CEcULusATEXIECExUKexUKCARCMFMCCCMorocco
Certified for CE, cULus (Class I, Division 2 A,B,C,D), ATEX II 3 G Ex ec IIC T4 Gc, IECEx, UKex, RCM, Morocco, CCC, UKCA, FM.
