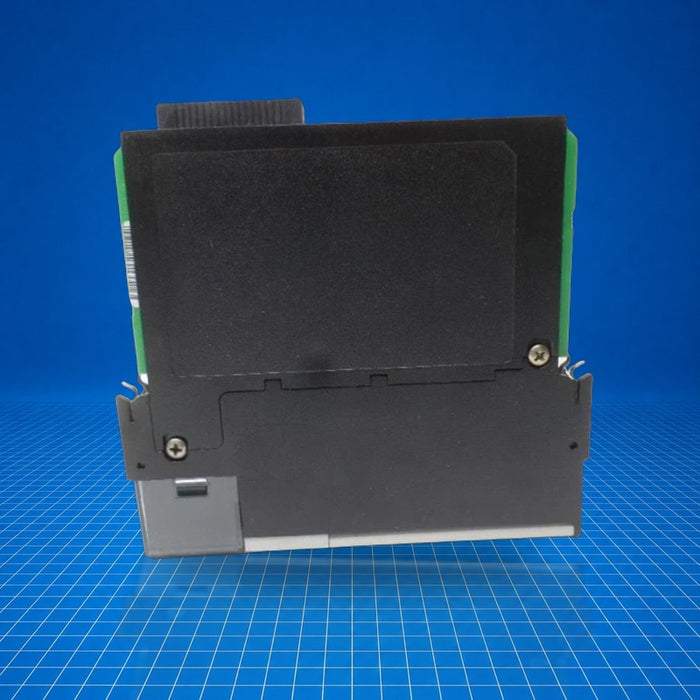

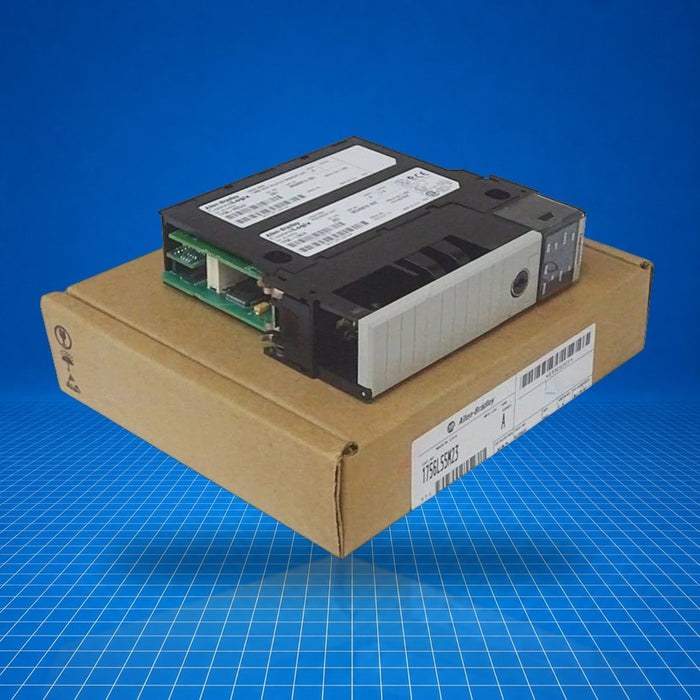

1756-L55M23 Allen-Bradley
Original price
$644.08
-
Original price
$3,184.20
Original price
$644.08
$644.08
-
$3,184.20
Current price
$644.08
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-L55M23 is a Series A ControlLogix processor module by Allen-Bradley (Rockwell Automation). It combines data and logic memory in a single package and serves as the central CPU in a Logix5000 control system. It executes logic, handles I/O, and manages program scan tasks. Typical applications include medium-scale industrial control installations requiring precise logic execution and I/O management in manufacturing, processing, or machine control environments. The 1756-L55M23 is designed for integration in standard ControlLogix chassis.
Best Suited For
- ControlLogix chassis-based systems
- Mid-range I/O count applications (up to ~128 000 I/O points)
- Applications requiring modest data and logic memory (1.5 MB)
- Systems with standard environmental requirements (0 °C to 60 °C)
Data & logic memory
1.5 MB
Maximum I/O capacity
128 000 points
Backplane current (5 V)
1.23 A
Operating temperature range
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Maximum I/O
128 000 points
Communication & Power
Backplane current @ 5 V DC
1.23 A
Backplane current @ 24 V DC
14 mA
RAM (data & logic)
1.5 MB
Non-volatile memory
1.5 MB
Program scan time
0.08 ms
Physical & Environmental
Weight
0.78 lb (0.35 kg)
Vibration tolerance
10-500 Hz
Relative humidity
5-95 % (non-condensing)
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C
