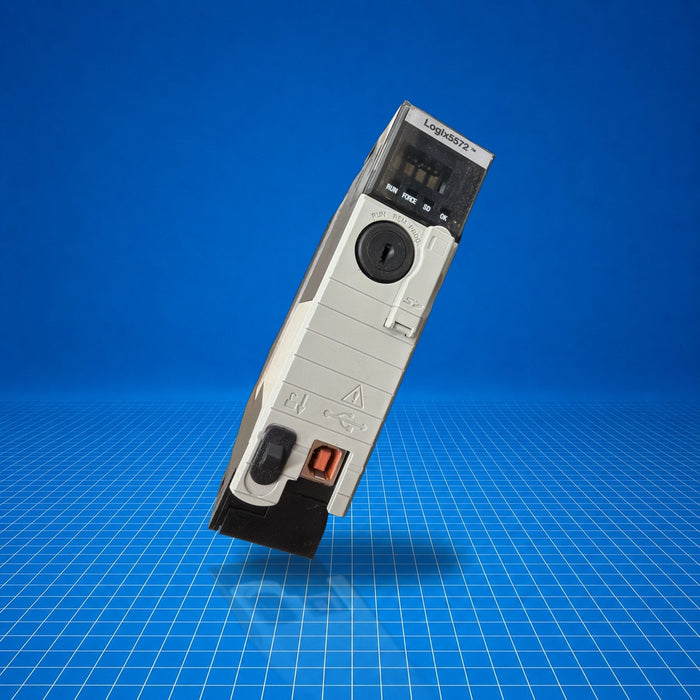

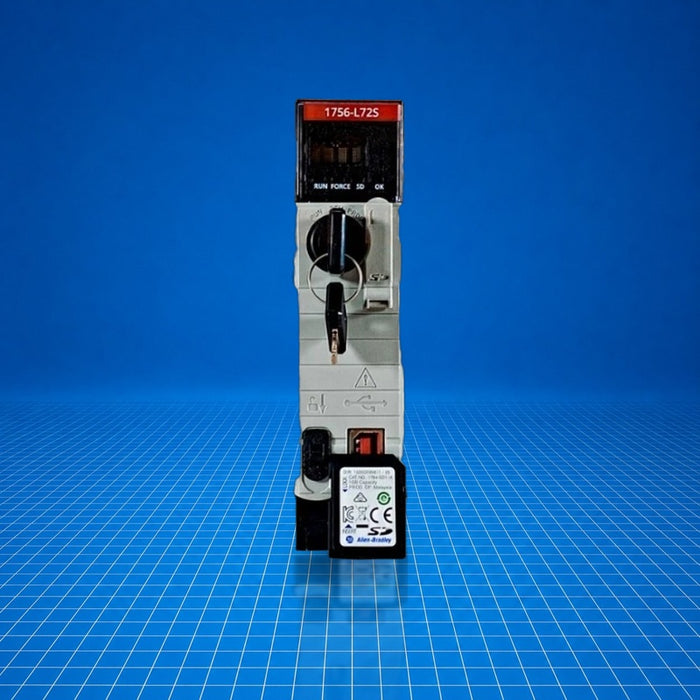

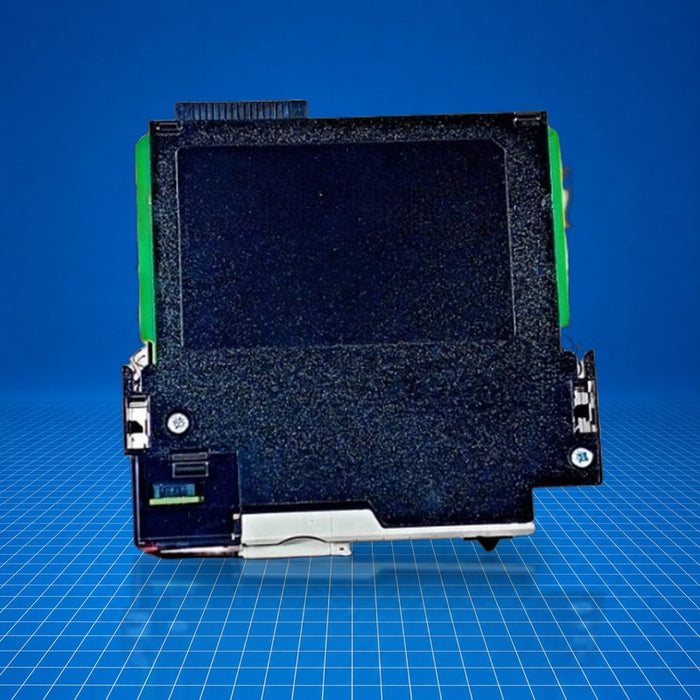

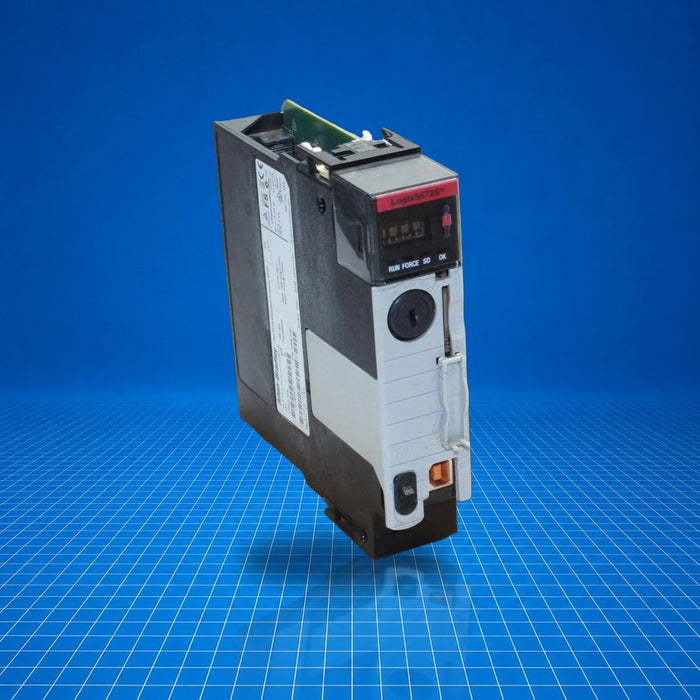

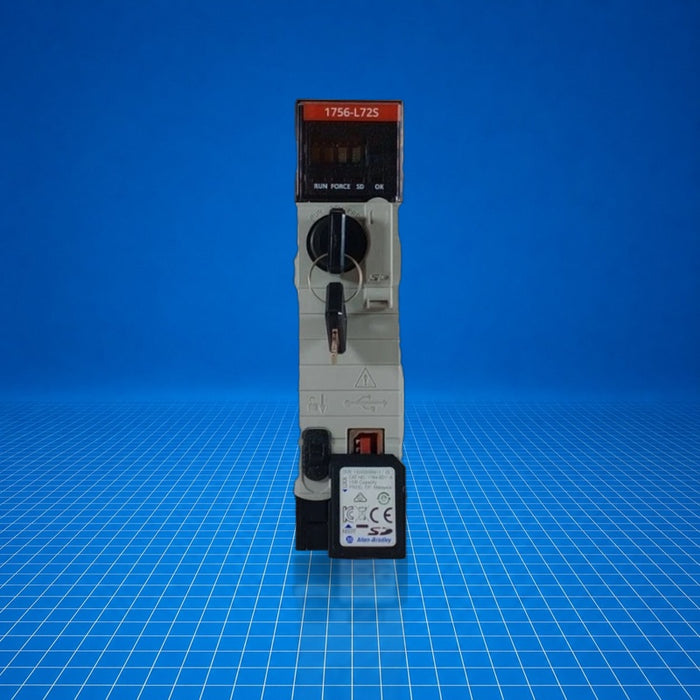

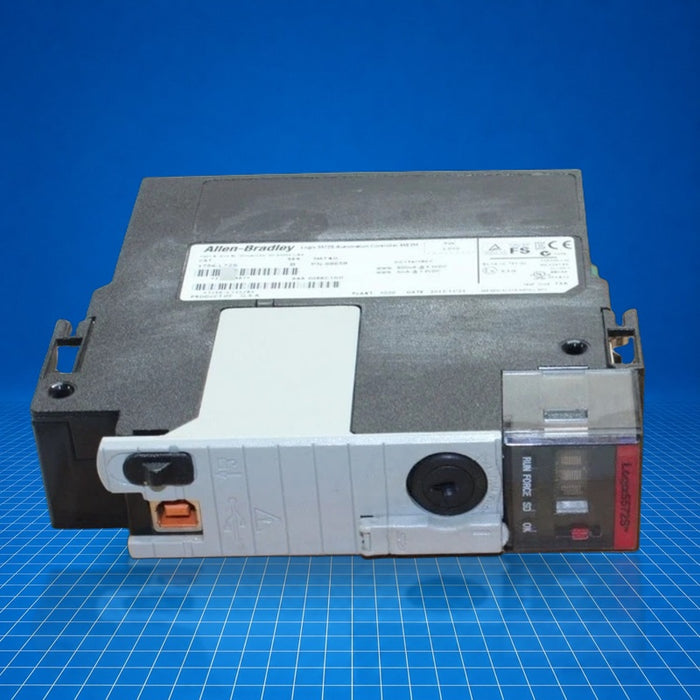

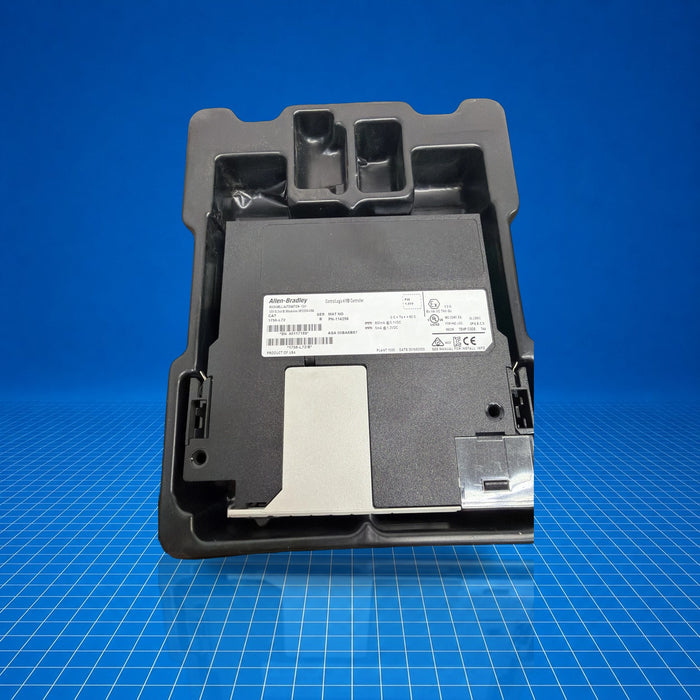

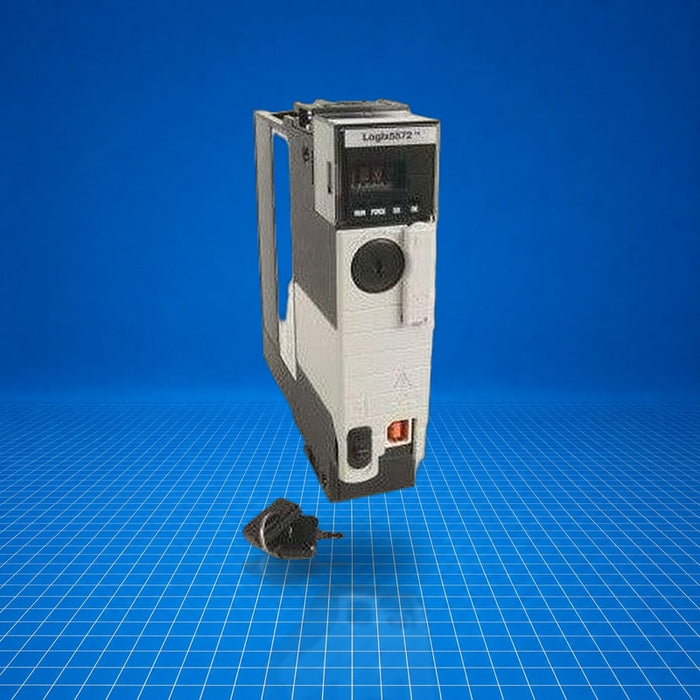

1756-L72 Allen-Bradley
Original price
$1,549.88
-
Original price
$1,625.00
Original price
$1,549.88
$1,549.88
-
$1,625.00
Current price
$1,549.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-L72 is a ControlLogix standard controller (processor module) in the Logix5000 family from Allen-Bradley. It executes up to 32 tasks with up to 100 programs per task, providing deterministic control sequencing. The module holds 4 MB of user memory and 0.98 MB of I/O memory, and supports full redundancy, Ethernet/IP, ControlNet, DeviceNet, DH+, Remote I/O, and SynchLink communications. It integrates via a USB port and is suited for mid- to large-scale industrial automation applications. (Part number: 1756-L72)
Best Suited For
- ControlLogix architectures requiring multiple concurrent tasks
- Systems needing high program count per task
- Redundant controller configurations
- Networks using Ethernet/IP, ControlNet, DeviceNet, DH+, Remote I/O, or SynchLink
User memory
4 MB
I/O memory
0.98 MB
Tasks / programs
32 tasks / 100 programs per task
Communication support
EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O, SynchLink
USB port
1
Technical Specifications
I/O & Electrical
Current draw (1.2 V DC)
5 mA
Current draw (5.1 V DC)
800 mA
Power dissipation
2.5 W
Thermal dissipation
8.5 BTU per hour
Isolation voltage
30 V continuous
Communication & Power
Built-in communication
1 USB port
Supported networks
EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O, SynchLink
Controller redundancy
Fully supported
Physical & Environmental
Enclosure requirement
None (open-style)
