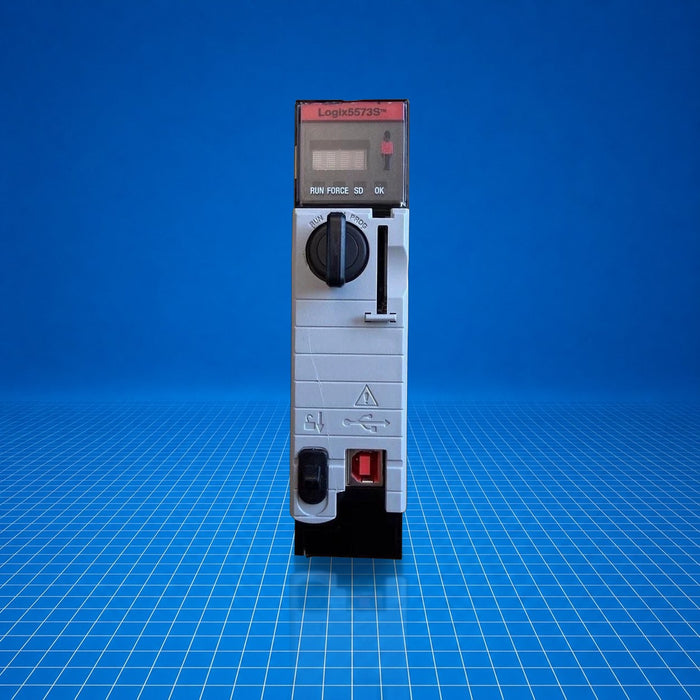

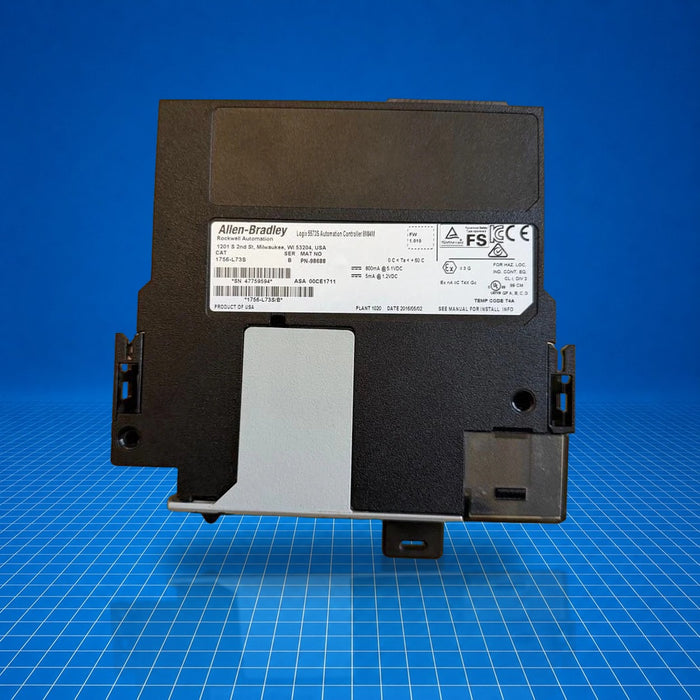

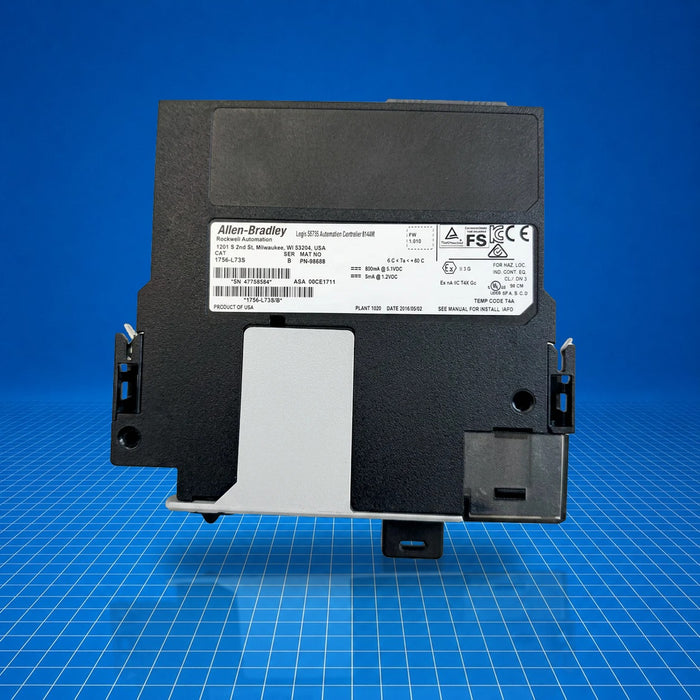

1756-L73 Allen-Bradley
Original price
$1,597.50
-
Original price
$2,315.32
Original price
$1,597.50
$1,597.50
-
$2,315.32
Current price
$1,597.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-L73 is an Allen-Bradley ControlLogix 5570 standard controller module. It provides application program execution, communication handling, and I/O data exchange in a ControlLogix system. With 8 MB user memory and 0.98 MB I/O memory, it supports up to 32 tasks and 100 programs per task. It integrates easily via USB and multiple network protocols. It is used in batch processing, discrete machine control, and supervisory control applications requiring modular PAC architecture. Part number 1756-L73.
Best Suited For
- Modular ControlLogix system installations
- Multi-task logic processing (up to 32 tasks)
- Systems requiring numerous programs (100 per task)
- Integrating mixed-protocol networks (EtherNet/IP, ControlNet, etc.)
- Applications needing processor module redundancy
User memory
8 MB
I/O memory
0.98 MB
Tasks supported
32
Programs per task
100
Power dissipation
2.5 W
Technical Specifications
I/O & Electrical
Current draw @1.2 V DC
5 mA
Current draw @5.1 V DC
800 mA
Isolation voltage
30 V continuous
Communication & Power
Communication ports
1 USB (client)
Supported networks
EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, third-party networks
Power dissipation
2.5 W
Physical & Environmental
Enclosure
None (open-style)
Weight
0.26 kg (0.56 lb)
Certifications
UL ListedCEATEXIECExRCMEurAsian Economic CommunityChina CCC
