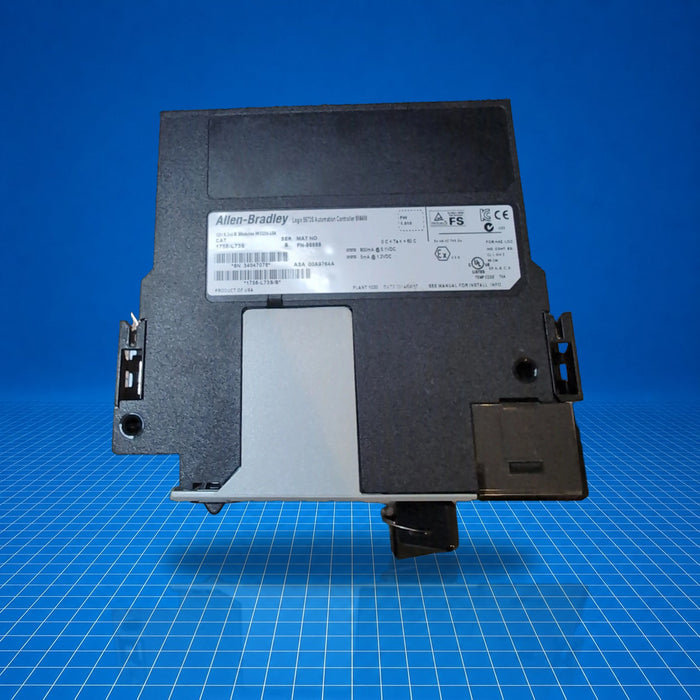

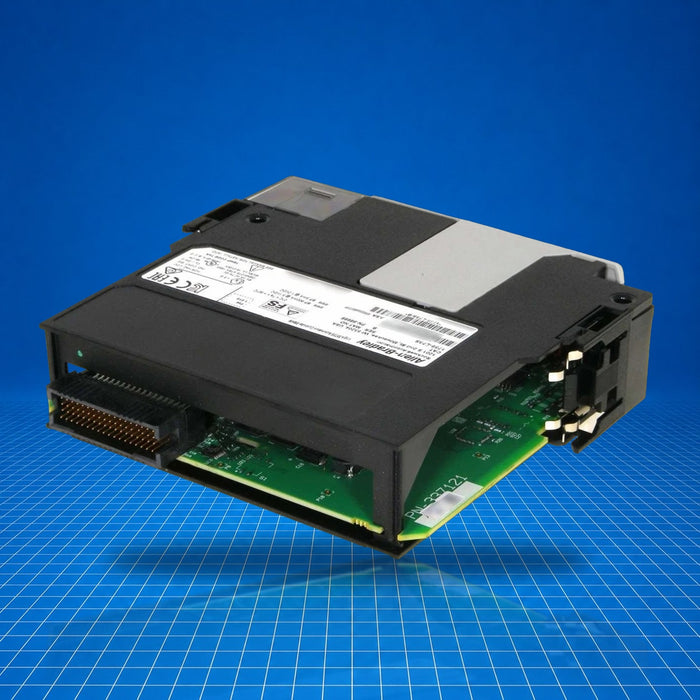

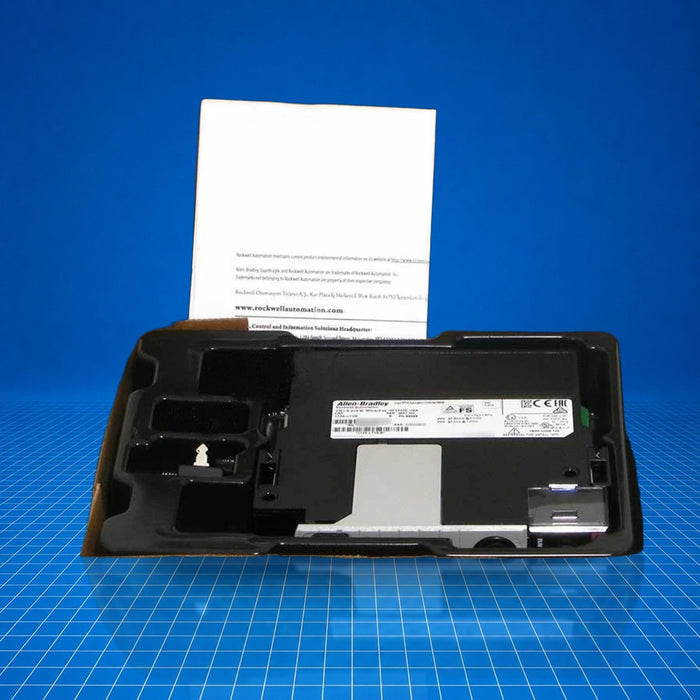

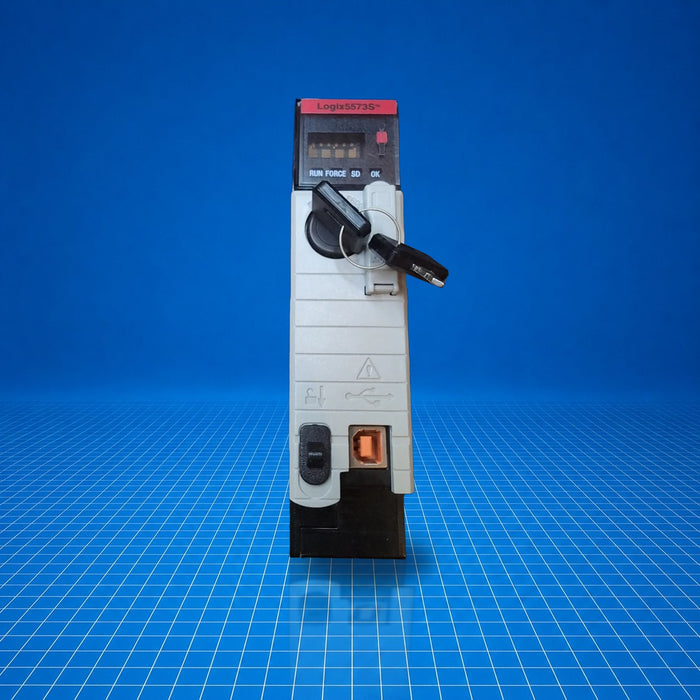

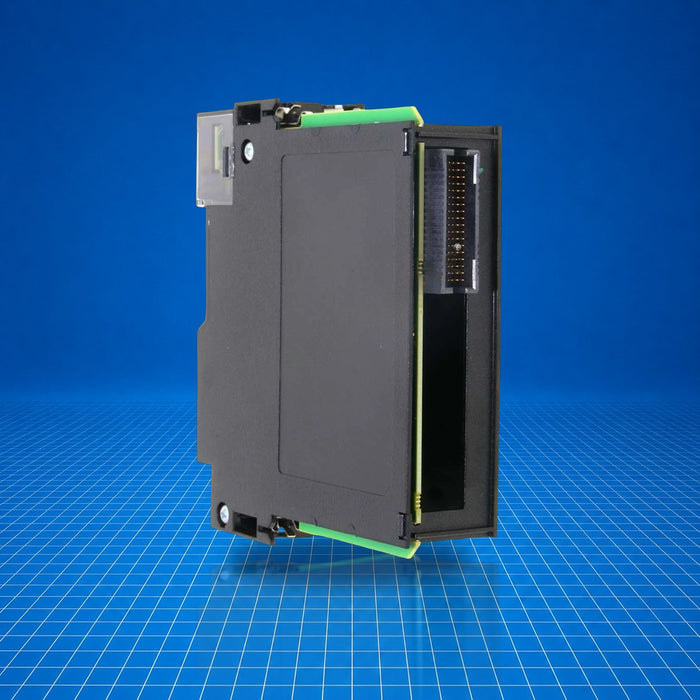

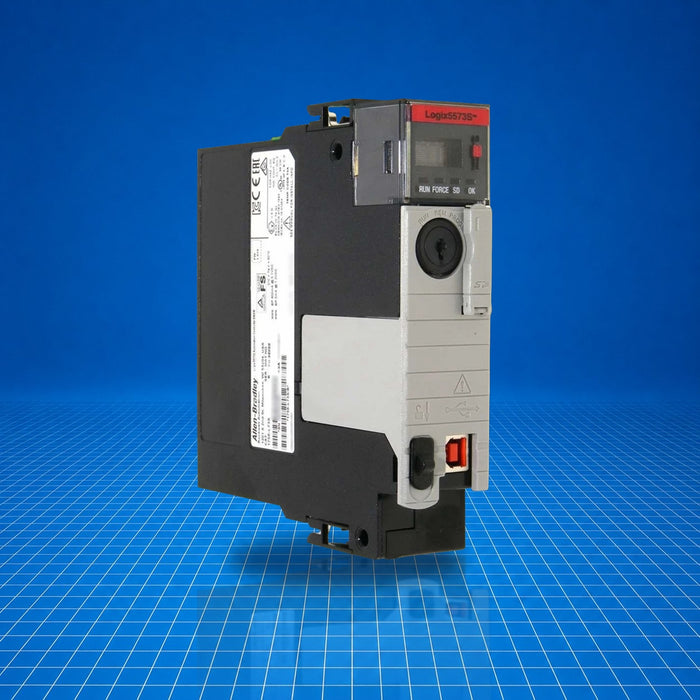

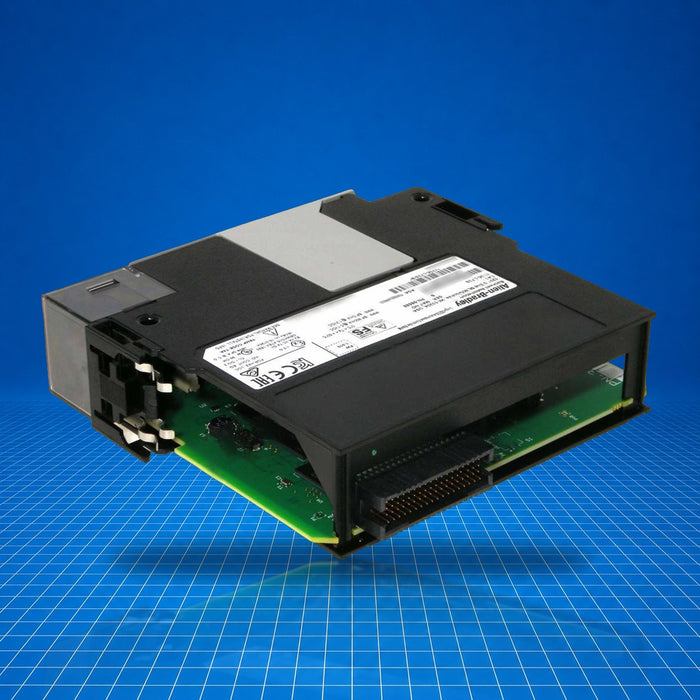

1756-L73S Allen-Bradley
Original price
$1,597.50
-
Original price
$2,315.32
Original price
$1,597.50
$1,597.50
-
$2,315.32
Current price
$1,597.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-L73S is an Allen-Bradley GuardLogix 5570 series programmable automation controller (PAC) offering both standard and safety control in a single module. It provides 8 MB of user memory and 4 MB of dedicated safety memory, with 0.98 MB of I/O memory and 1 GB of non-volatile storage via SD card. Installed in a 1756 chassis, the 1756-L73S executes standard logic and communicates with a safety partner for SIL 3 / PLe functional safety applications-commonly used in safety-integrated machine and process control systems.
Best Suited For
- Safety-integrated machinery requiring SIL 3 / PLe compliance
- ControlLogix applications needing combined standard and safety logic
- Systems with high I/O point counts (up to 128 000 digital, 4 000 analog)
- Installations requiring onboard non-volatile memory for program retention
- Use in environments with energy storage module (no lithium battery)
User memory
8 MB
Safety memory
4 MB
Non-volatile storage
1 GB (SD card)
Maximum I/O points
128 000 digital / 4 000 analog
Current draw (5.1 V DC)
800 mA
Technical Specifications
I/O & Electrical
I/O memory
0.98 MB
Maximum digital I/O
128 000
Maximum analog I/O
4 000
Communication & Power
Built-in communication port
1 USB (programming/configuration)
Current draw (1.2 V DC)
5 mA
Current draw (5.1 V DC)
800 mA
Power dissipation
2.5 W
Thermal dissipation
8.5 BTU/hr
Physical & Environmental
Enclosure
None (open-style)
Isolation voltage
30 V continuous, basic insulation
Operating temperature
0 °C to +60 °C (32 °F to 140 °F)
Corrosive atmosphere rating
ANSI/ISA 71.04 G3; IEC 60721-3-3 CX
Certifications
UL ListedCEATEXIECEx SchemeChina CCCAustralian RCMEurasion Economic Community
