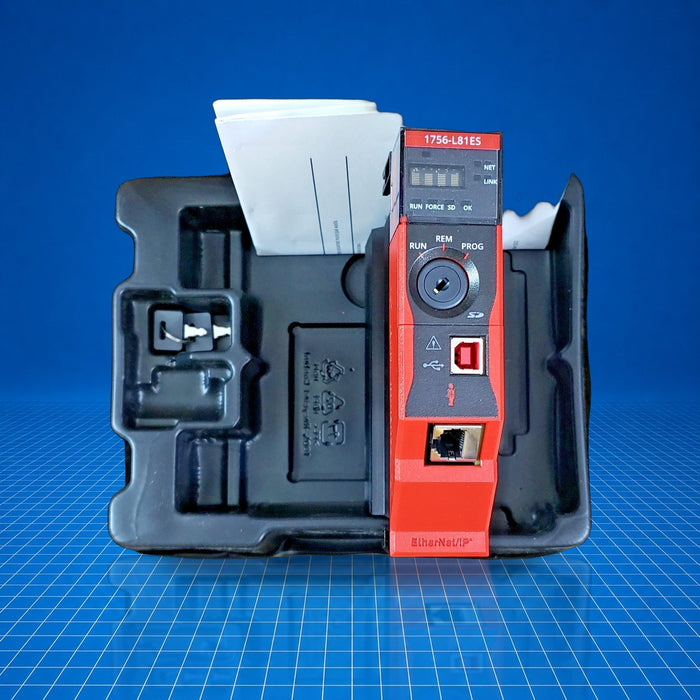

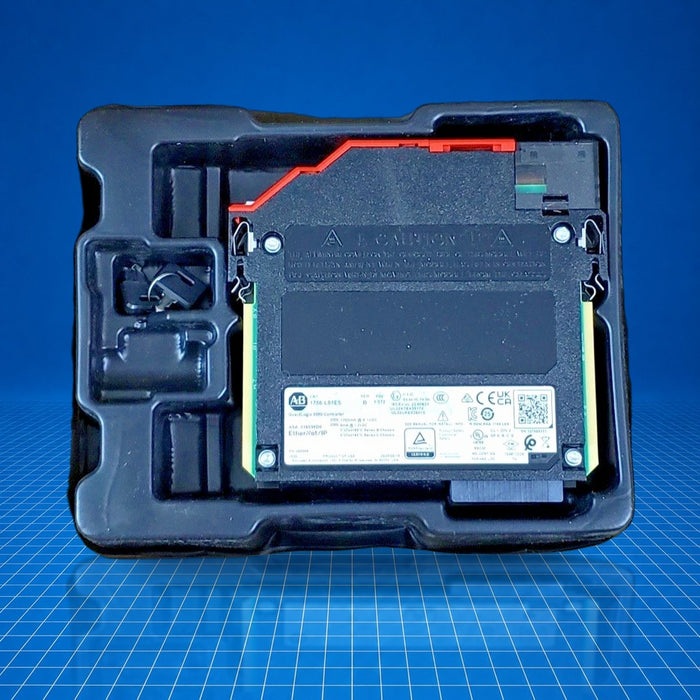

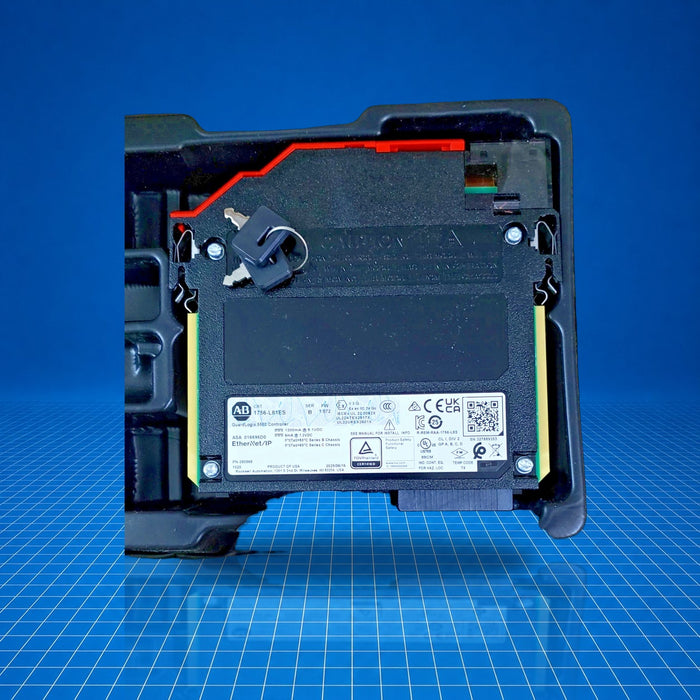

1756-L81ES Allen-Bradley

Name: 1756-L81ES Allen-Bradley
Brand: Allen Bradley
SKU: 1756-L81ES
Price: 3060.0 USD
Availability: InStock

$3,060.00 - $3,411.00

$3,060.00

$3,060.00 - $3,411.00

$3,060.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-L81ES is an Allen-Bradley GuardLogix 5580 safety-rated programmable controller within the ControlLogix® 5580 family. It provides both standard and safety tasks in a single controller, including integrated safety tag handling over EtherNet/IP. Typical uses include safety interlocks, machine guarding, and safety-critical control where consolidation of standard and safety logic is required. 1756-L81ES supports both standard control and safety programming in environments demanding IEC/UL compliance.

Best Suited For

Safety interlock and guard control systems
Machine guarding applications with safety and standard logic
Integrated control and safety over EtherNet/IP
Control systems in hazardous or safety-critical environments

Standard / Safety Memory

3 MB / 1.5 MB

EtherNet/IP Nodes Supported

100

Built-in Ports

USB-2.0 + 1 Gb Ethernet

Power Dissipation

6.2 W

Weight

0.394 kg

Technical Specifications

I/O & Electrical

Standard memory

3 MB

Safety memory

1.5 MB

Total I/O, max

128 000

Communication & Power

Built-in ports

1 USB 2.0, 1 EtherNet/IP (10/100/1000 Mbps)

Supported networks

EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O

Current draw @ 1.2 V DC

5.0 mA

Current draw @ 5.1 V DC

1.20 A

Power dissipation

6.2 W (21.2 BTU/hr)

Physical & Environmental

Weight

0.394 kg

Slot width

1

Module location

Chassis slot immediately to the right of primary controller

Enclosure rating

Open-style (none)

Certifications

ATEXCECSACULEACIECExMarineRCMTÜV IEC 62443-4-2UL

Compliant and tested to IEC/UL 61010-1; certified for ATEX, CE, CSA, CUL, CULH, EAC, IECEx, Marine, RCM, TÜV Rheinland IEC 62443-4-2, UL; certified as of June 16 2026.
