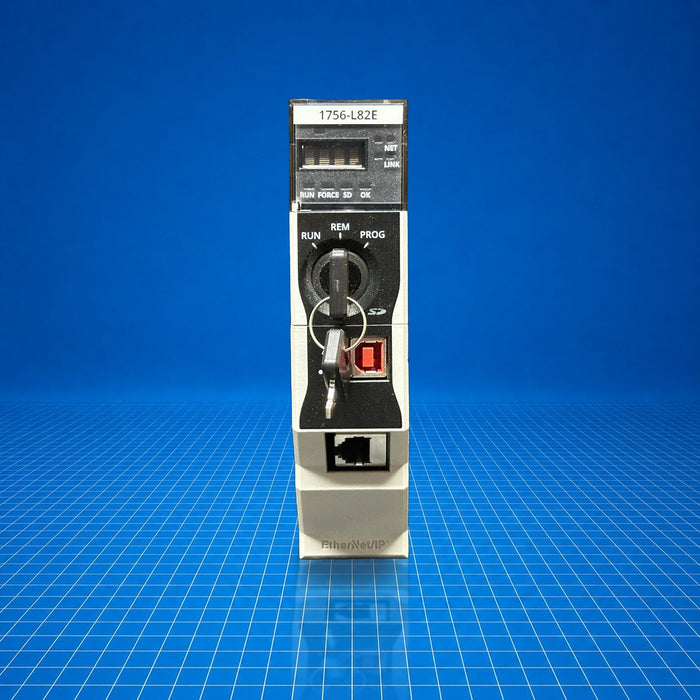

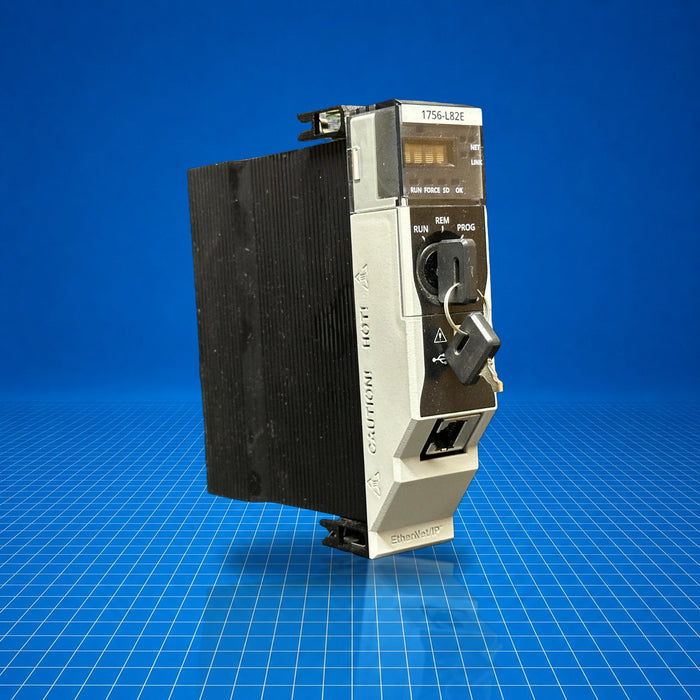

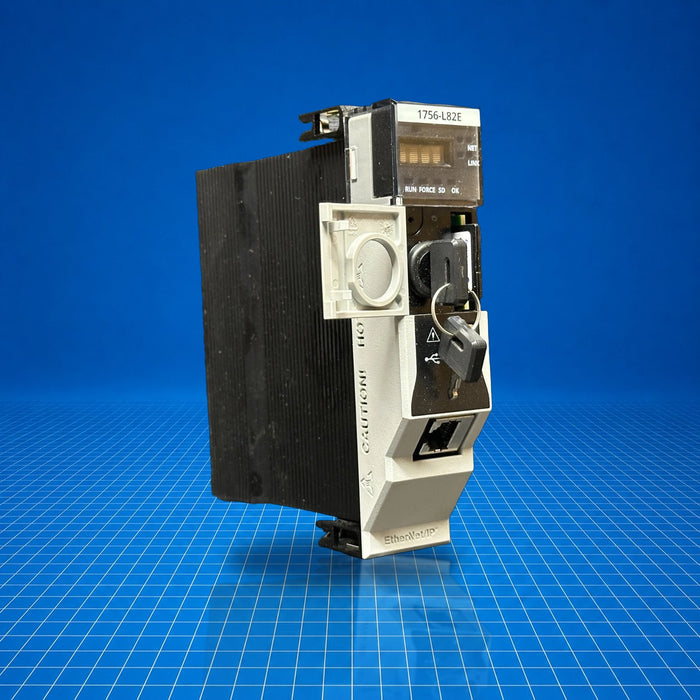

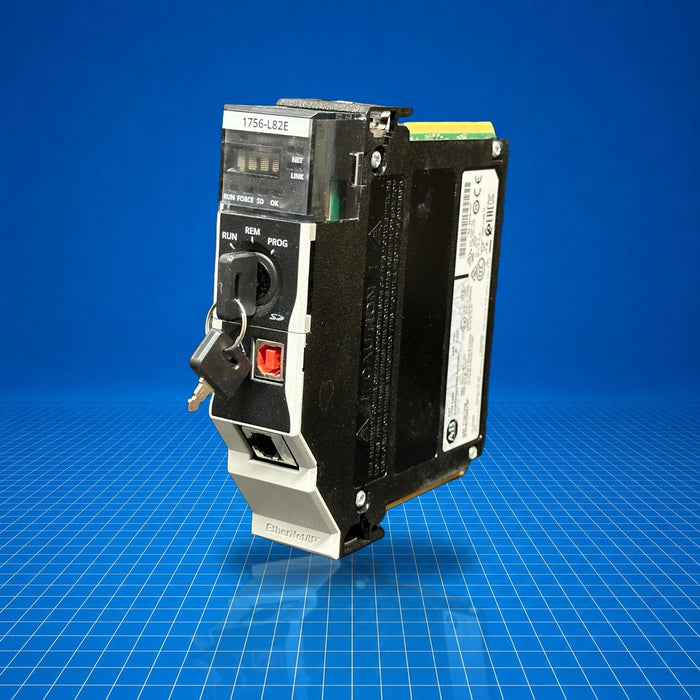

1756-L82E Allen-Bradley
Original price
$2,989.78
-
Original price
$3,726.47
Original price
$3,726.47
$2,989.78
-
$3,726.47
Current price
$3,726.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| User Memory | 5 MB |
| Local Programming Port | 1 USB (USB 2.0, 12 Mbps, full speed) |
| Embedded Ethernet Port | 1 gigabit (10/100/1000 Mbps) Ethernet (EtherNet/IP) |
| Max EtherNet/IP Devices (nodes) | 175 |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Maximum Total I/O | 128,000 |
| Power Supply (current draw) | 5.0 mA @ 1.2 V DC; 1.20 A @ 5.1 V DC |
| Power Dissipation | 6.2 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Isolation Voltage | 50 V continuous (basic insulation), tested at 1000 V AC for 60 s |
| Weight | ≈ 0.394 kg |
| Enclosure Type Rating | None (open‑style) |
The 1756‑L82E is a ControlLogix 5580 programmable automation controller by Allen‑Bradley, offering 5 MB of user memory, an onboard gigabit EtherNet/IP port, and support for up to 175 EtherNet/IP devices. Designed for seamless integration with the Studio 5000 Automation Engineering & Design Environment, this controller suits high-performance applications in discrete manufacturing, process control, and motion systems. Compact yet powerful, the 1756‑L82E enables efficient I/O expansion, fast communication, and reliable operation in complex industrial automation environments.
