1756-L84EK Allen-Bradley

Original price $0.00 - Original price $5,099.98
Original price
$5,099.98
$0.00 - $5,099.98
Current price $5,099.98
Surplus - Tested (With Warranty)
Need a Specific Revision?
$5,099.98
4 in stock
New / Open-Box Surplus
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

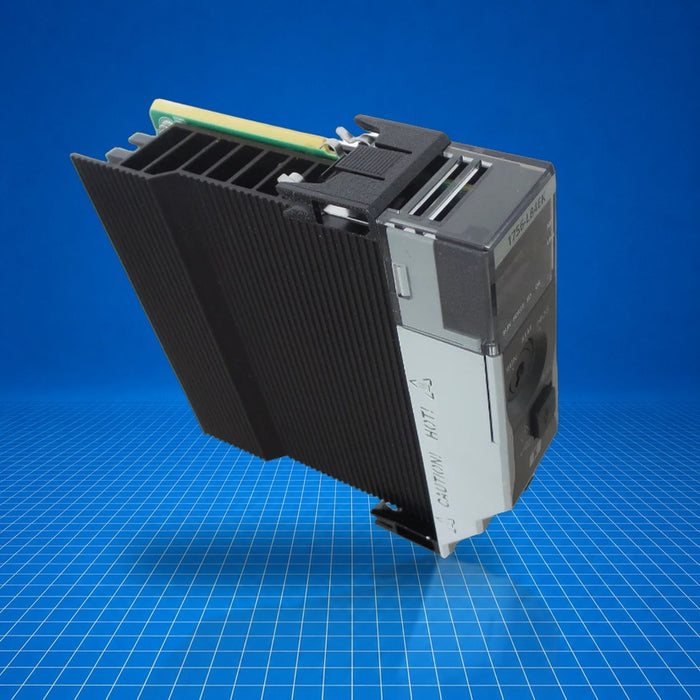

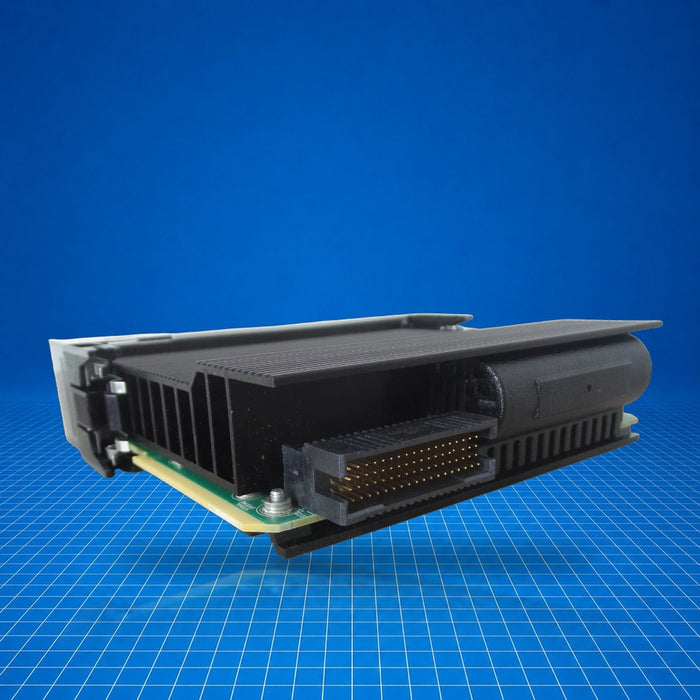

The 1756-L84EK is an Allen-Bradley ControlLogix 5580 series programmable automation controller featuring 20 MB of user memory, an embedded USB programming port, and a 1 Gb Ethernet interface. Provided with conformal coating, it is designed for installation in environments requiring protective treatment. It supports up to 150 EtherNet/IP nodes (250 with newer firmware revisions) and manages up to 256 motion axes. Typical applications include machine level control, high-device-count Ethernet networks, and installations in mildly harsh environments.

Best Suited For

  • ControlLogix 5580 applications requiring conformal coating
  • EtherNet/IP-based high-node count installations
  • Motion axis programs up to 256 axes
  • Industrial environments requiring embedded USB programming
User Memory
20 MB
EtherNet/IP nodes (max)
150 (250 with updated firmware)
USB port
1 (USB 2.0 full-speed)
Motion axes supported
256
Conformal coated
True

Technical Specifications

I/O & Electrical

Power supply
5 mA @ 1.2 V DC; 1.20 A @ 5.1 V DC

Communication & Power

Embedded Ethernet port
1 Gb
Local programming port
1 USB (USB 2.0 full-speed, 12 Mbps)

Physical & Environmental

Operating temperature (chassis series C)
0 °C to +60 °C (+32 °F to +140 °F)
Non-operating temperature
-40 °C to +85 °C (-40 °F to +185 °F)
Humidity (non-condensing)
5 % to 95 %
Vibration, operating
2 g @ 10-500 Hz
Shock, operating
30 g
EMC emissions standard
IEC 61000-6-4
ESD immunity
6 kV contact; 8 kV air
Radiated RF immunity
10 V/m (80-2000 MHz, 1 kHz sine-wave 80 % AM), 10 V/m at 900 MHz (200 Hz 50 % pulse 100 % AM), 10 V/m at 1890 MHz (200 Hz 50 % pulse 100 % AM), 3 V/m (2000-2700 MHz 1 kHz sine-wave 80 % AM)
EFT/B immunity
±2 kV at 5 kHz on Ethernet ports
Surge immunity
±2 kV line-earth on Ethernet ports
Conducted RF immunity
10 V rms, 150 kHz-80 MHz, 1 kHz sine-wave 80 % AM
