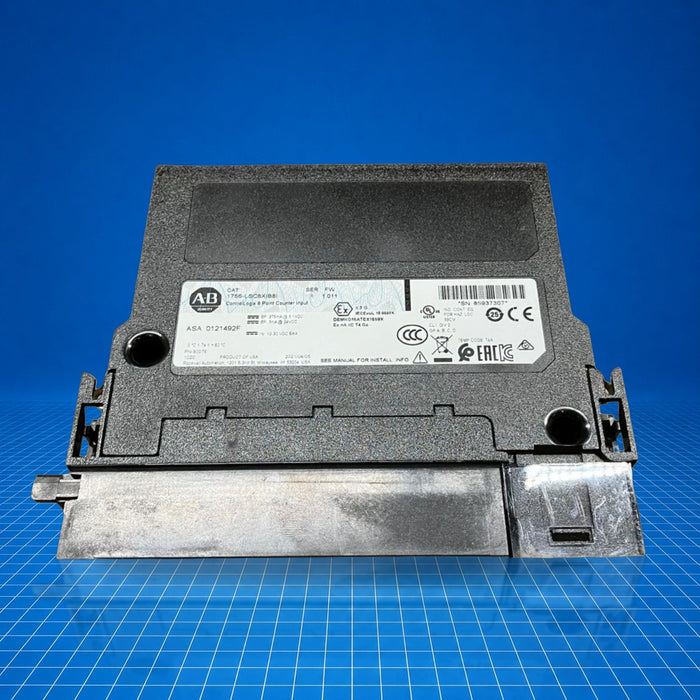

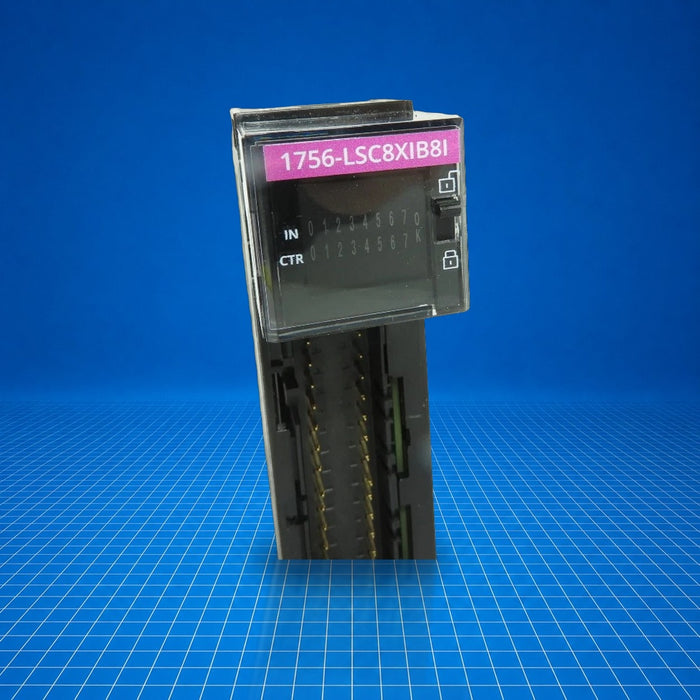

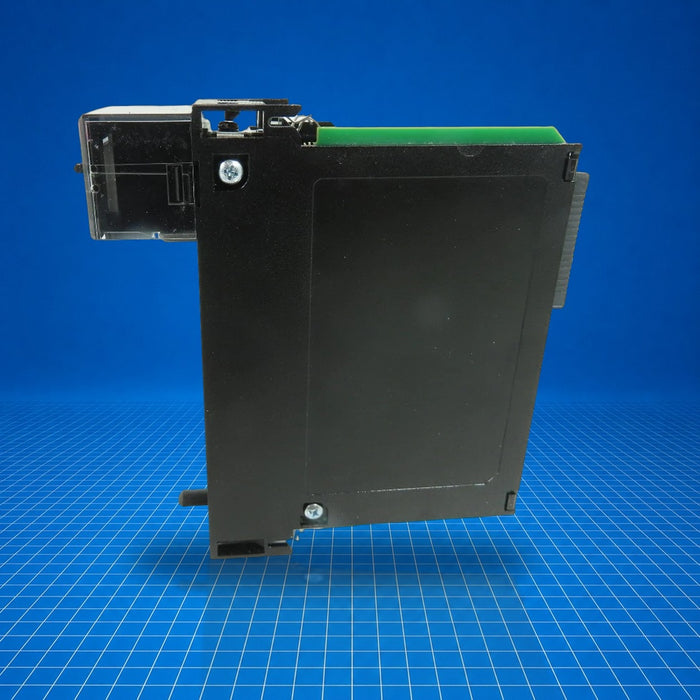

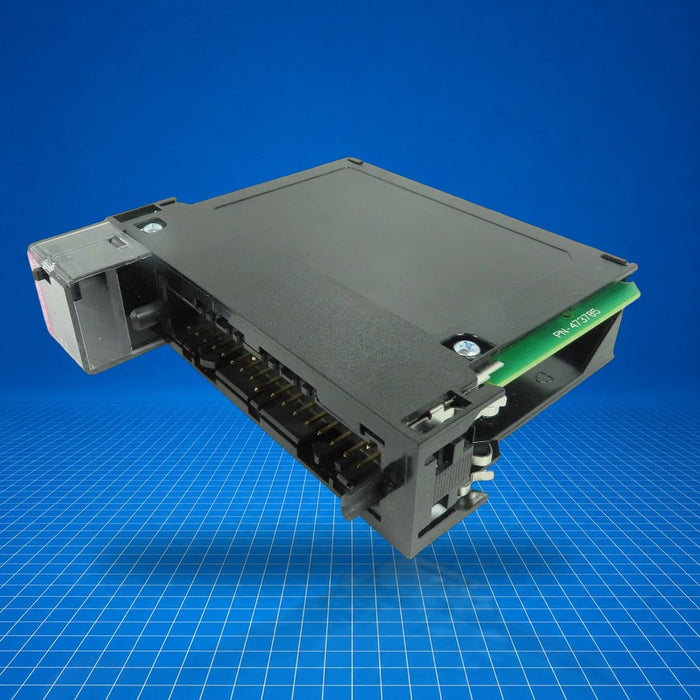

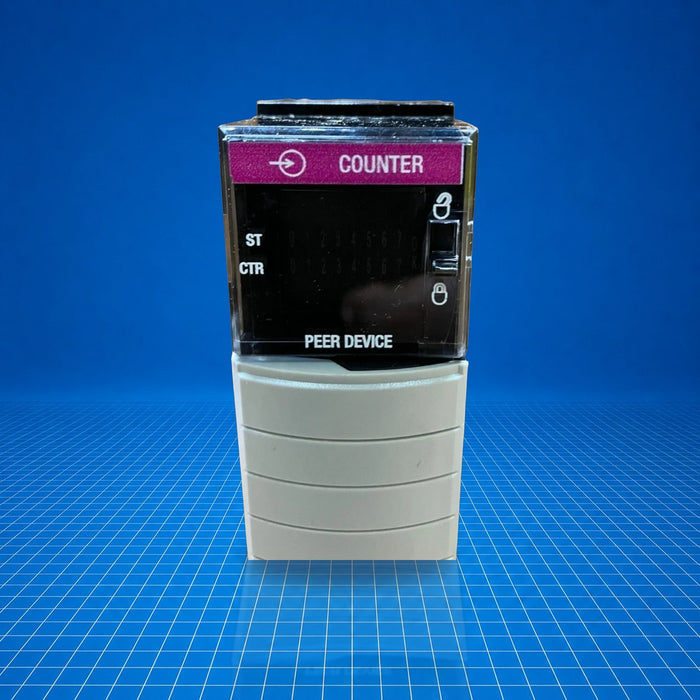

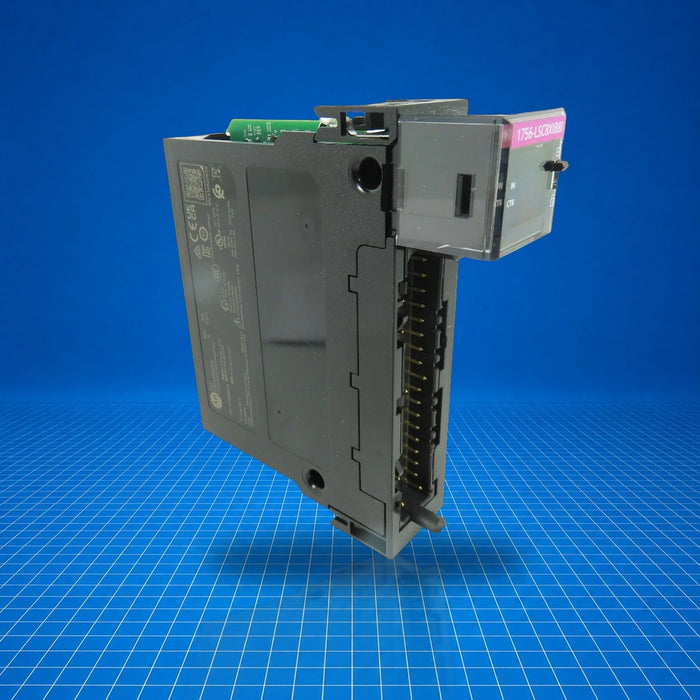

1756-LSC8XIB8I Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-LSC8XIB8I Allen-Bradley

$0.00 - $1,637.50
$1,637.50
$0.00 - $1,637.50
$1,637.50
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Need a Specific Revision?
$1,637.50
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-LSC8XIB8I is an Allen-Bradley ControlLogix low-speed counter input module. It provides eight individually isolated DC input channels, each configurable for standard digital input or counter functionality, with counting capability up to 40 kHz per channel. The module operates on 10 … 30 V DC via screw terminal connection, occupying a single slot in a ControlLogix chassis. Typical applications include on-machine counter capture, position monitoring, and peer-to-peer interlocks in industrial automation systems. This description applies to part number 1756-LSC8XIB8I.

Best Suited For

  • On-machine counting and frequency monitoring
  • ControlLogix peer-to-peer input peer applications
  • Position or event accumulation in motion systems
  • Control systems requiring 31-bit counting per channel
Channels / Counters
8 individually isolated
Supply voltage
10 … 30 V DC
Max count frequency
40 kHz
Backplane power
1.47 W
Power dissipation
3.8 W @ 60 °C (12.97 BTU/h)

Technical Specifications

I/O & Electrical

Operating voltage
10 … 30 V DC
Nominal input voltage
24 V DC
Current draw
275 mA @ 5.1 V; 3 mA @ 24 V
On-state current
2 mA @ 10 V DC (min); 5 mA @ 30 V DC (max)
Off-state current, max
1.5 mA
Input impedance, max
6 k Ω @ 30 V DC
Off-state voltage, max
5 V
Isolation voltage
250 V continuous, inputs-to-backplane (reinforced); input-to-input (basic)
Counting frequency, max
40 kHz
Count range
0…2 147 483 648 (31-bit counter)

Communication & Power

Total backplane power
1.47 W
Power dissipation
3.8 W @ 60 °C (12.97 BTU/h)

Physical & Environmental

Operating temperature
0 °C to 60 °C
Non-operating temperature
-40 °C to (not specified)
Surrounding air temperature, max
60 °C
Shock
30 G operating; 50 G non-operating
Vibration
2 G @ 10…500 Hz
Enclosure
None (open-style)
Slot width
1

Certifications

China CCCCEATEXIECExAustralian RCM

Certified to: China CCC, CE, ATEX, IECEx Scheme, Australian RCM (as of 2026-04-29).
