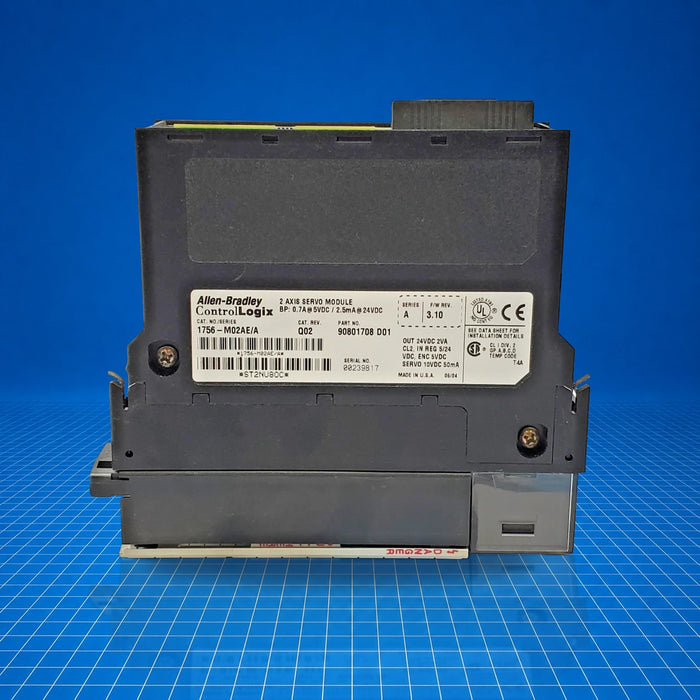

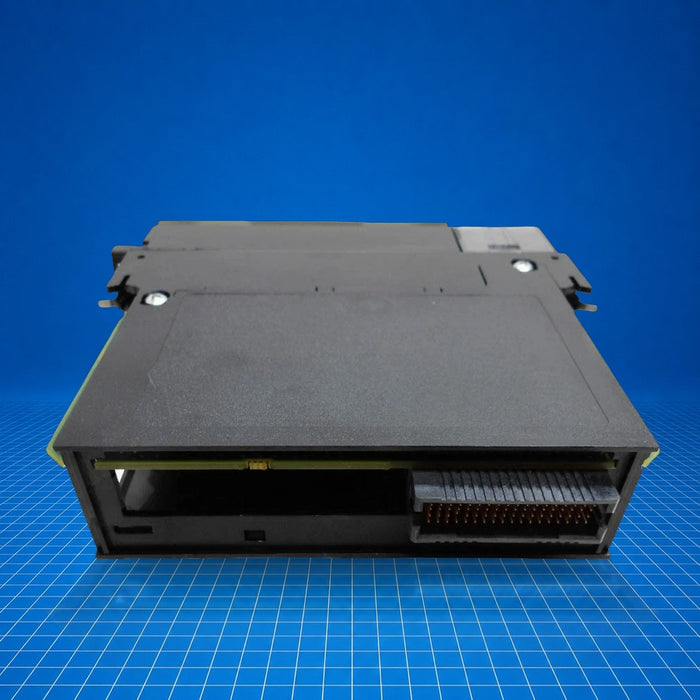

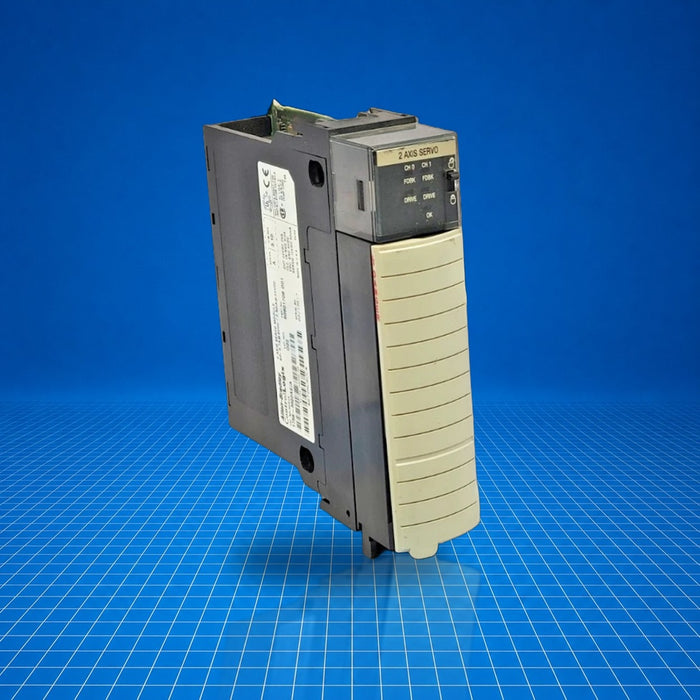

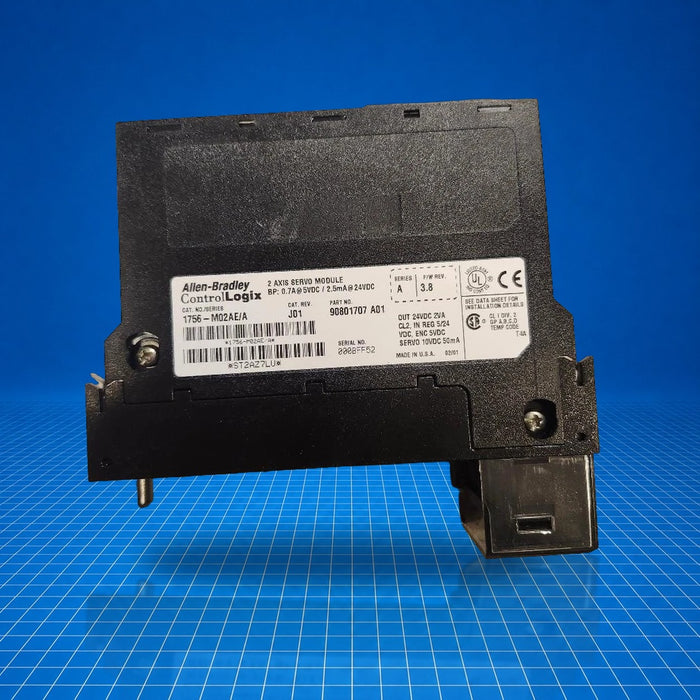

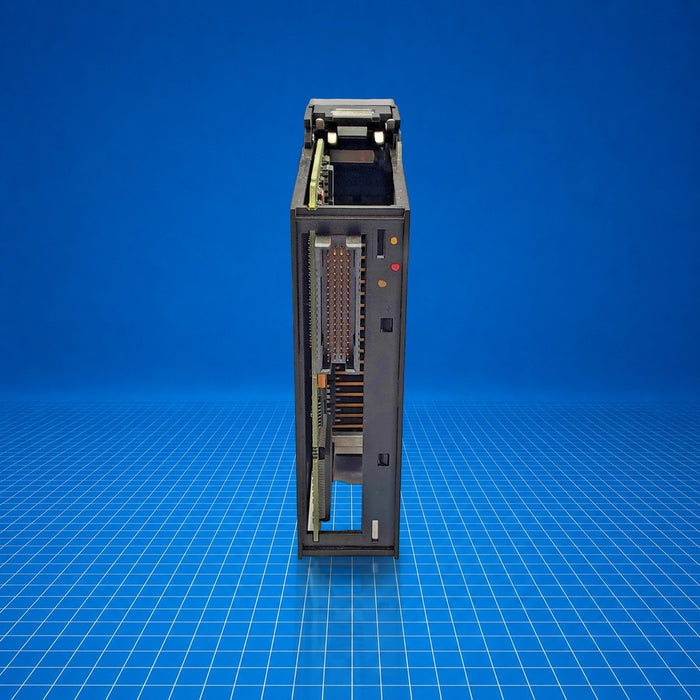

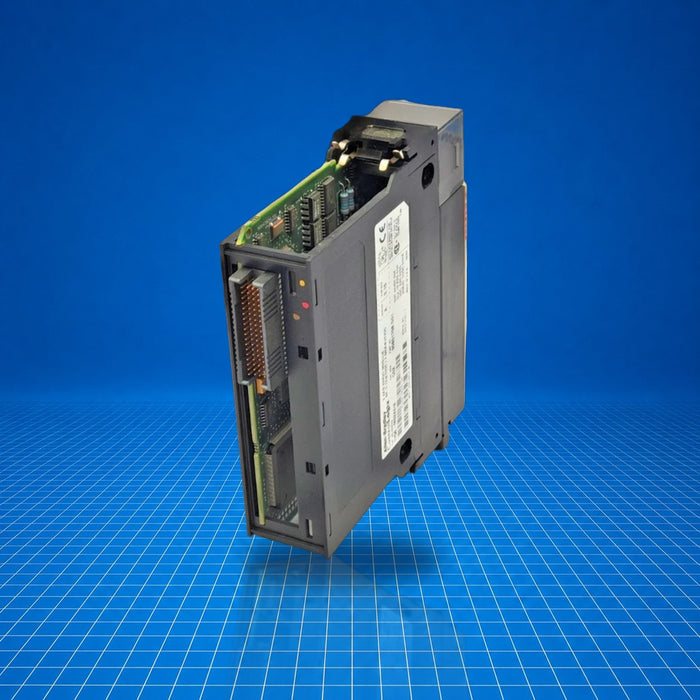

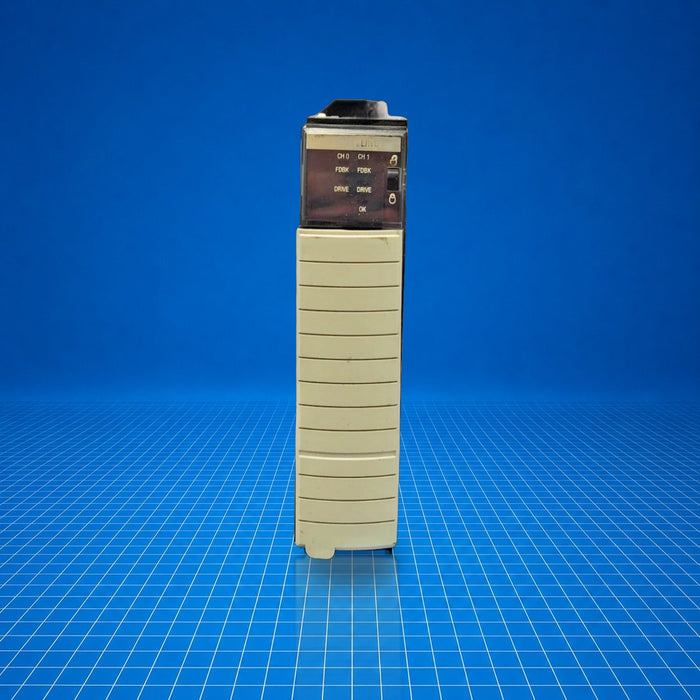

1756-M02AE Allen-Bradley
Original price
$389.91
-
Original price
$1,375.00
Original price
$389.91
$389.91
-
$1,375.00
Current price
$389.91
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

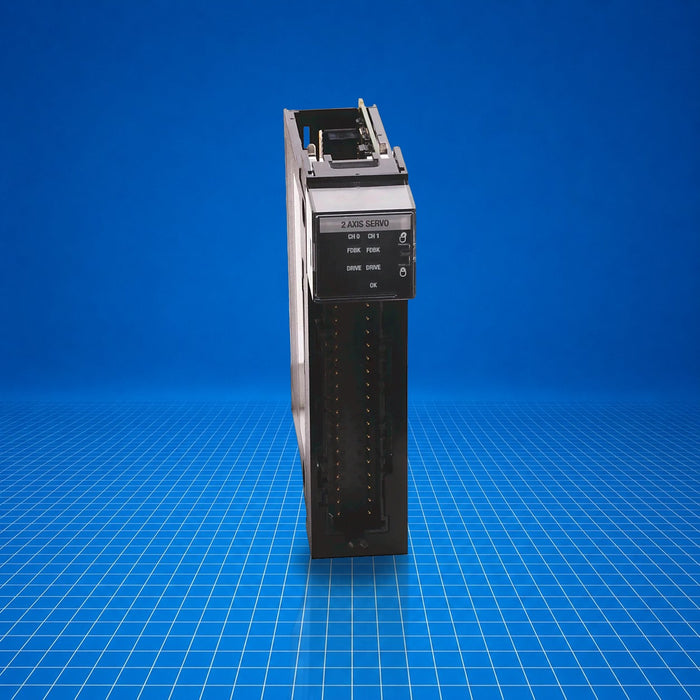

The 1756-M02AE is a ControlLogix 2-Axis Analog Servo Module from Allen-Bradley, designed to provide dual analog and encoder feedback motion control within a ControlLogix chassis. It issues ±10 VDC velocity and torque reference signals and includes home/limit inputs, drive fault inputs, enable outputs, and position registration inputs. Typically applied in machine motion, servo control loops, and integrated motion systems. The 1756-M02AE integrates tightly into Kinetix/ControlLogix motion architectures.
Best Suited For
- Dual-axis analog servo control
- Systems requiring ±10 VDC velocity/torque references
- Integrated ControlLogix motion applications
- Applications needing home/limit and fault input interface
Axes per module
2
Backplane current (5 V)
700 mA
Backplane current (24 V)
2.5 mA
Power dissipation
5.5 W
Technical Specifications
I/O & Electrical
Axes per module
2
Velocity/torque output
±10 V DC analog

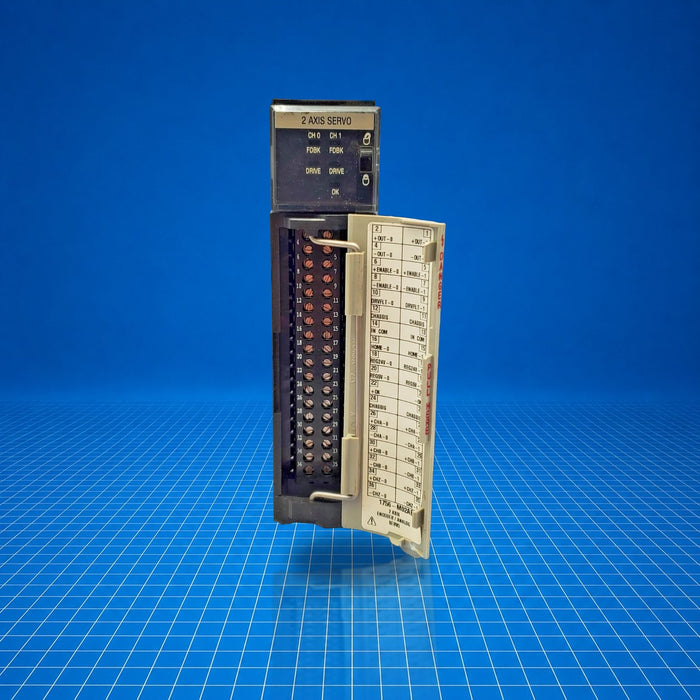

Home/limit inputs; drive fault inputs; enable outputs; position registration inputs
Communication & Power
Backplane current (5 V DC)
700 mA
Backplane current (24 V DC)
2.5 mA
Power dissipation
5.5 W
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Storage temperature
-40…85 °C (-40…185 °F)
Enclosure type
None (open-style, must be mounted in enclosure)
Certifications
CEAustralian RCMUL Listed Hazardous
Certified CE, Australian RCM, UL Listed Hazardous (as of 2025-12-19).
