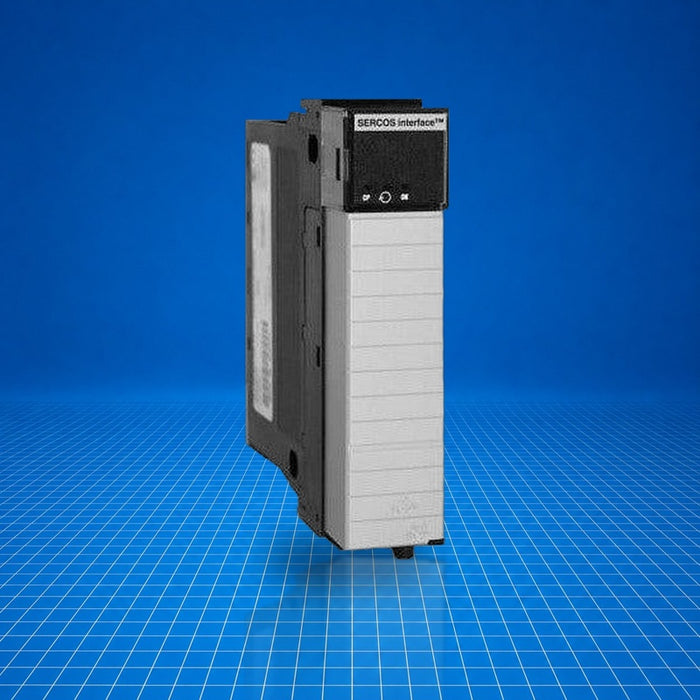

Product image is representative; revision or series may vary.
Contact us to request a specific version.

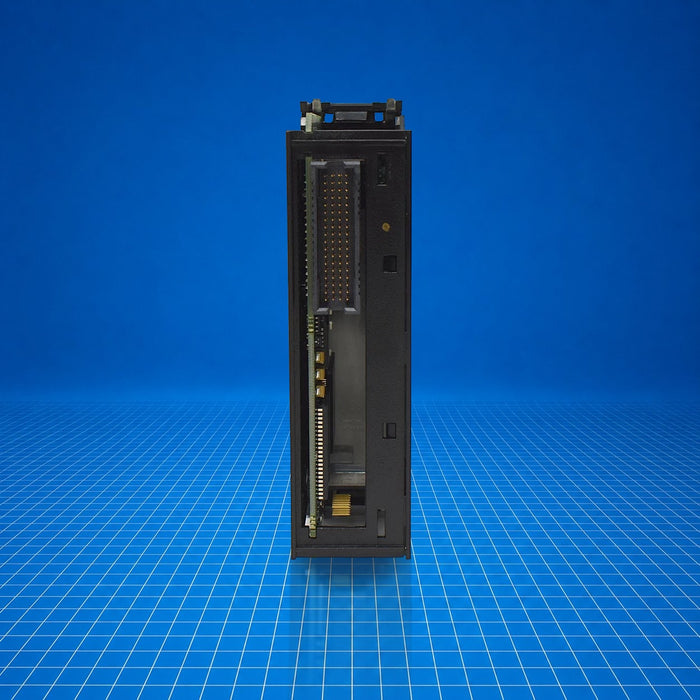

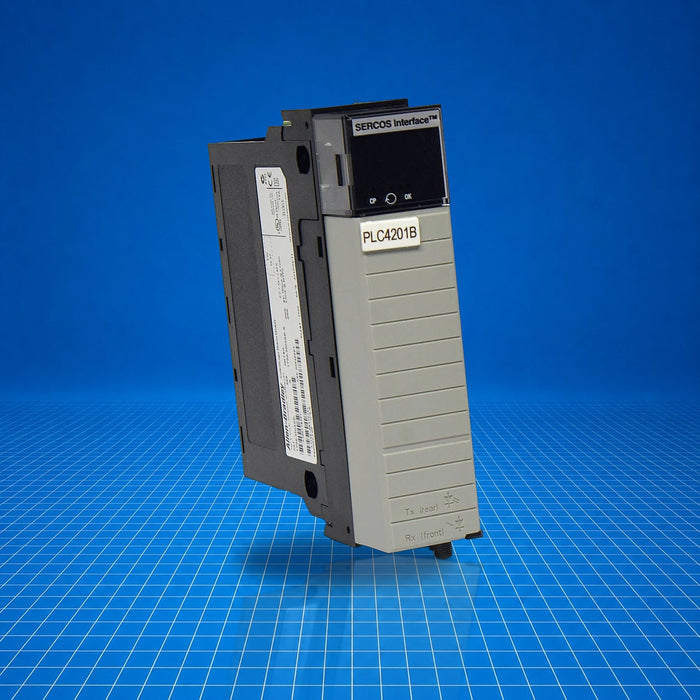

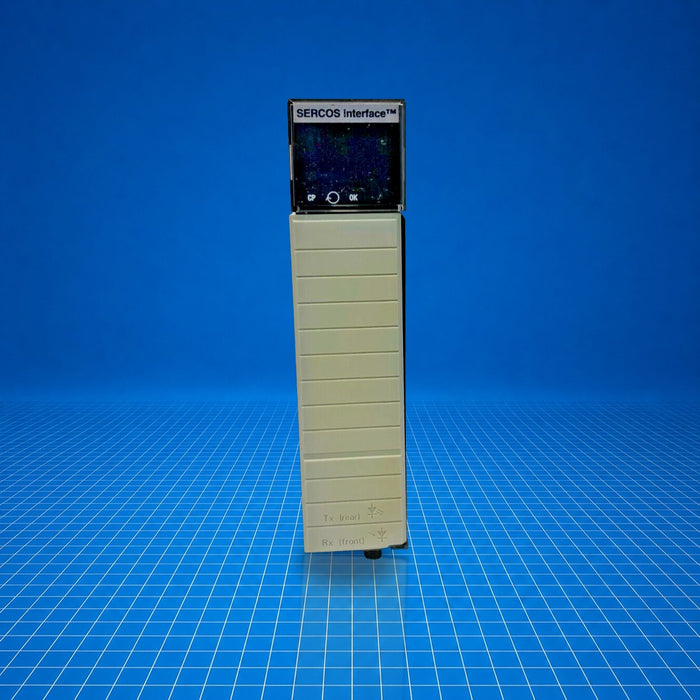

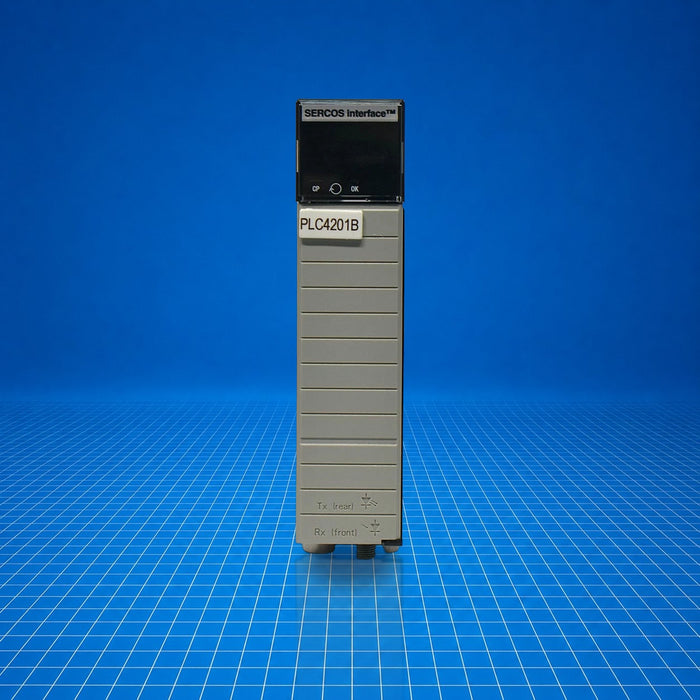

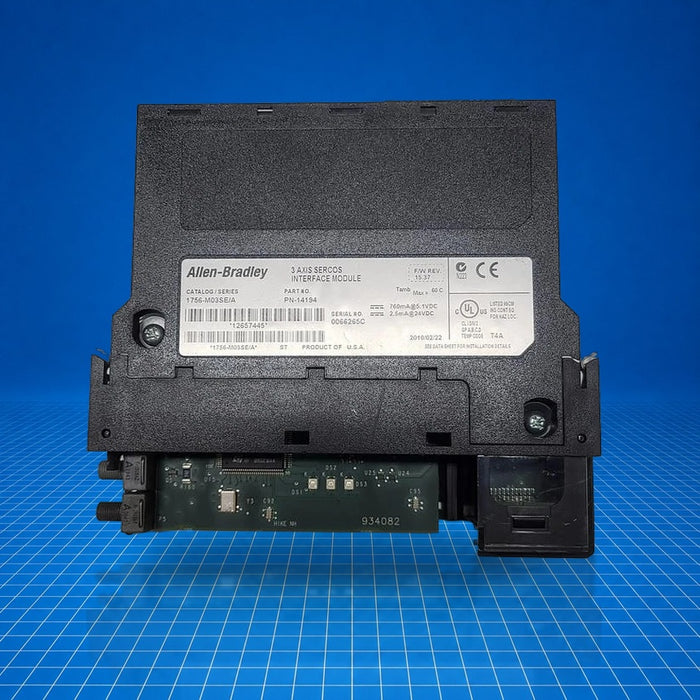

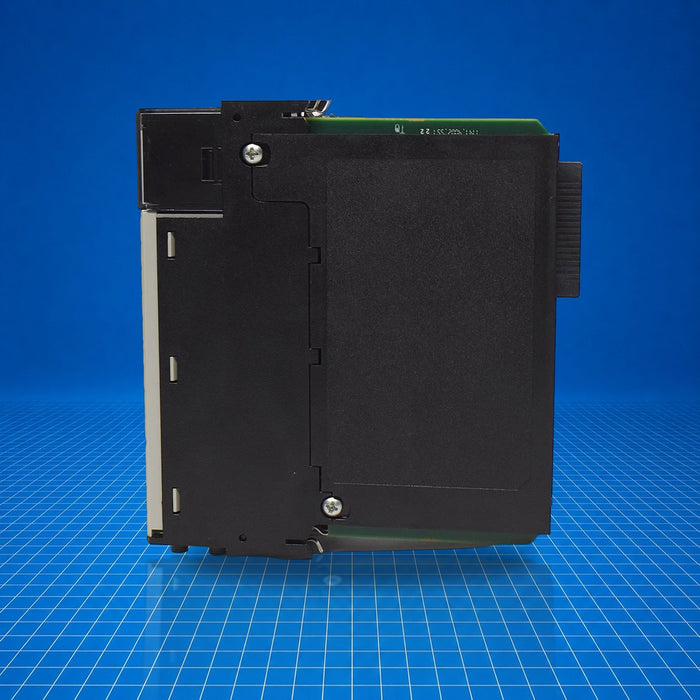

1756-M03SE Allen-Bradley

Name: 1756-M03SE Allen-Bradley
Brand: Allen Bradley
SKU: 1756-M03SE
Price: 400.0 USD
Availability: InStock

$400.00 - $599.97

$400.00

$400.00 - $599.97

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-M03SE is an Allen-Bradley ControlLogix 3-axis SERCOS interface servo module. It enables serial real-time communication between a ControlLogix controller and up to three Kinetix SERCOS drives, using fiber-optic link to reduce copper wiring. Installed in a standard ControlLogix chassis, the 1756-M03SE provides position, velocity, and torque control over SERCOS networks at 4 or 8 Mbps rates. It is typically used in motion control applications such as multi-drive synchronization in machine tooling, packaging, or handling systems.

Best Suited For

Integration with Kinetix 2000/6000/7000 SERCOS servo drives
ControlLogix chassis installations requiring fiber-optic motion link
Applications needing up to 3 axes per module
Position, velocity, or torque-based motion control

Axes per module

3

Communication

SERCOS (4 or 8 Mbps)

Backplane current (5 V)

760 mA

Power dissipation

5.0 W

Technical Specifications

I/O & Electrical

Axes per module

3

SERCOS data rate

4 Mbps; 8 Mbps

Backplane current (5 V)

760 mA

Backplane current (24 V)

2.5 mA

Power dissipation

5.0 W

Thermal dissipation

21.2 BTU/hour

Isolation voltage

50 V continuous

Communication & Power

Communication protocol

SERCOS

Physical & Environmental

Weight

0.56 lbs (0.26 kg)

Certifications

CEAustralian RCMUKCA
