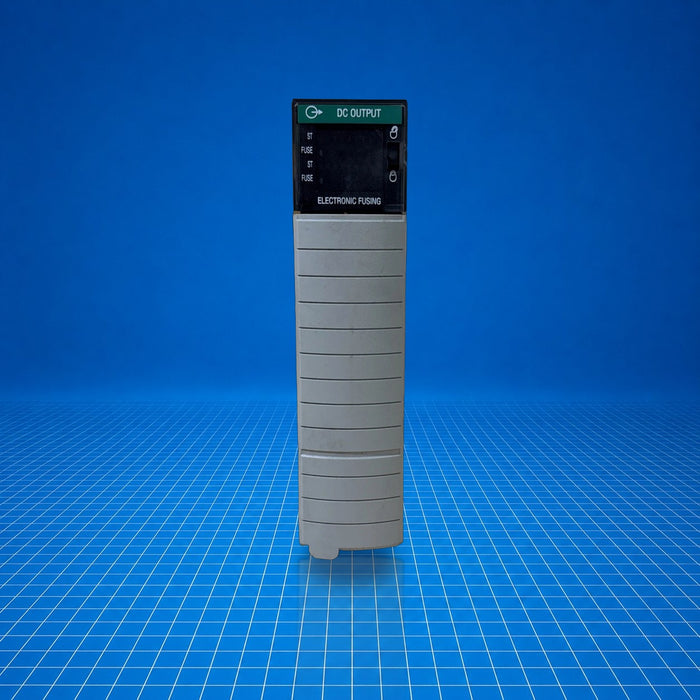

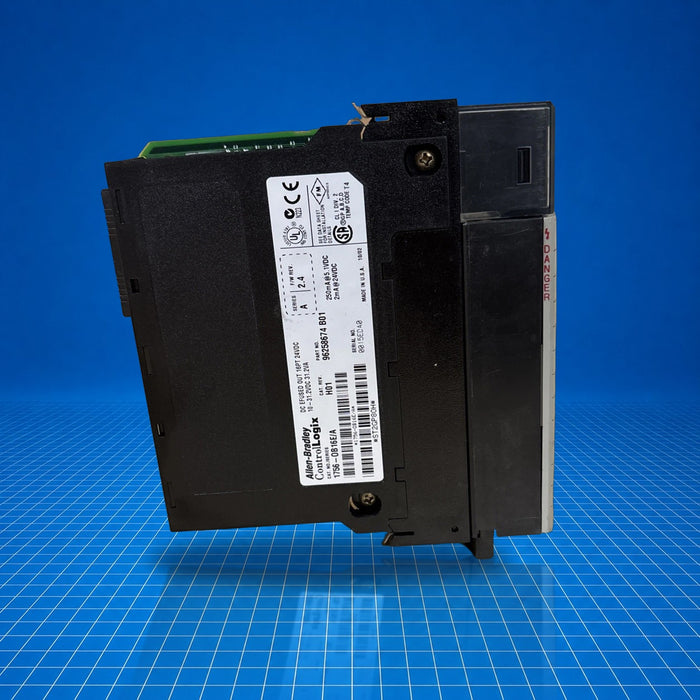

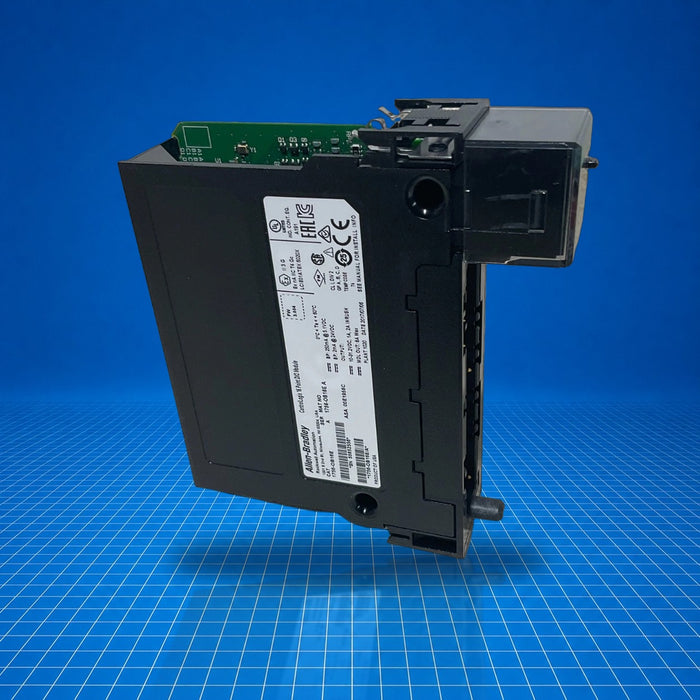

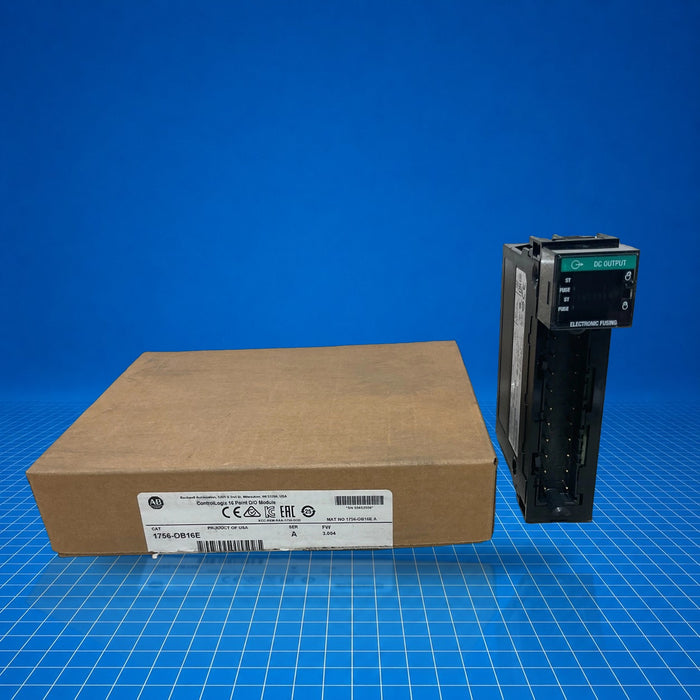

1756-OB16E Allen-Bradley
Original price
$360.00
-
Original price
$400.00
Original price
$400.00
$360.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-OB16E is an Allen-Bradley ControlLogix digitally fused DC output module providing 16 outputs (organized as two electronically fused groups of 8). It mounts in the ControlLogix chassis and supplies 10-31.2 V DC to field loads. It is typically used for driving DC loads such as solenoids, discrete indicators, or valves in industrial control systems within manufacturing, material handling, or packaging applications. The 1756-OB16E integrates into Logix-based automation platforms and supports standard output functionality with fault mode output behavior.
Best Suited For
- Discrete DC load switching in ControlLogix systems
- Integration with Logix-based control architectures
- Applications requiring per-group electronic output protection
- Field devices such as solenoids, lamps, or valves
Outputs
16 (electronically fused, in 2 × 8 outputs)
Operating voltage range
10…31.2 V DC
Maximum current per point
1 A @ 60 °C
Power dissipation (max)
4.1 W @ 60 °C
Isolation voltage
250 V (continuous, between groups)
Technical Specifications
I/O & Electrical
Number of outputs
16 (electronically fused, groups of 8)
Operating voltage range
10…31.2 V DC
On-state voltage drop (max)
400 mV DC @ 1 A
Off-state leakage current (max)
1 mA per point
Current per point (max)
1 A @ 60 °C
Current per module (max)
8 A @ 60 °C
Surge current per point (typical)
2 A for 10 ms, repeatable every 2 s @ 0 °C, 24 V DC
Communication & Power
Current draw @ 5.1 V (backplane)
250 mA
Current draw @ 24 V (backplane)
2 mA
Total backplane power
1.32 W
Power dissipation (max)
4.1 W @ 60 °C
Physical & Environmental
Isolation voltage
250 V continuous (between output groups and backplane)
Output delay time (Off-to-On / On-to-Off)
70 µs nominal / 1 ms max ; 360 µs nominal / 1 ms max
Thermal dissipation
13.98 BTU/hr
Enclosure
None (open-style)
Slot width
1
Certifications
UL ListedCSA CertifiedCERCMATEXFMKCEAC
