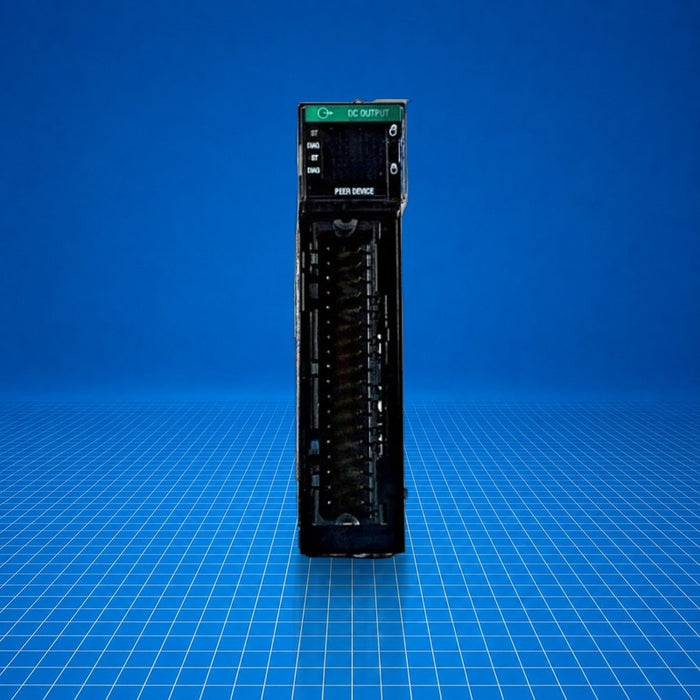

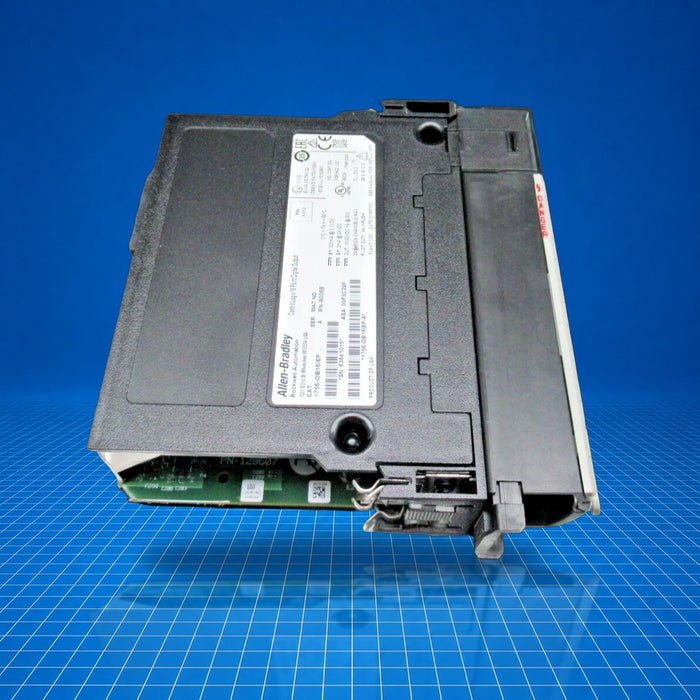

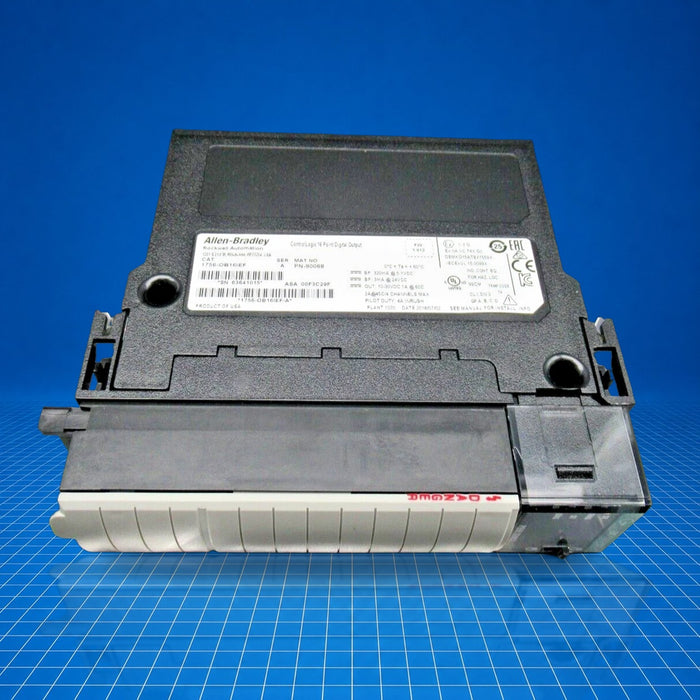

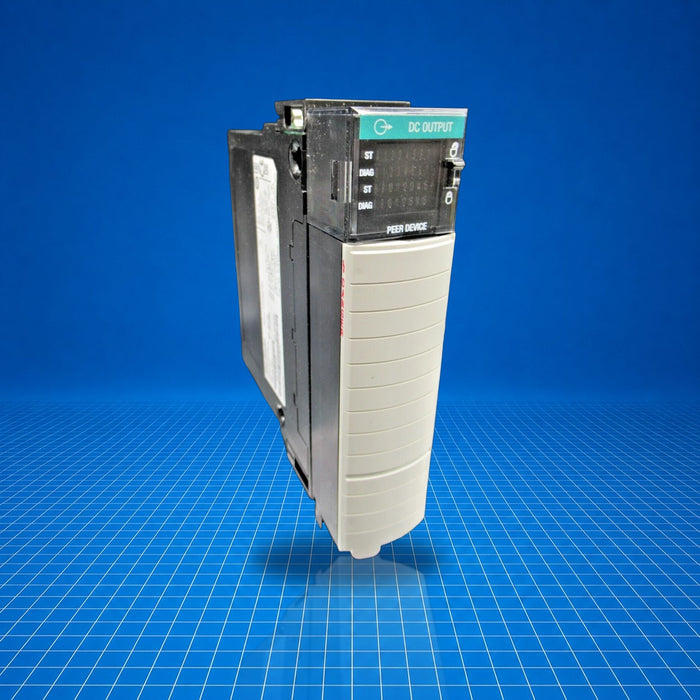

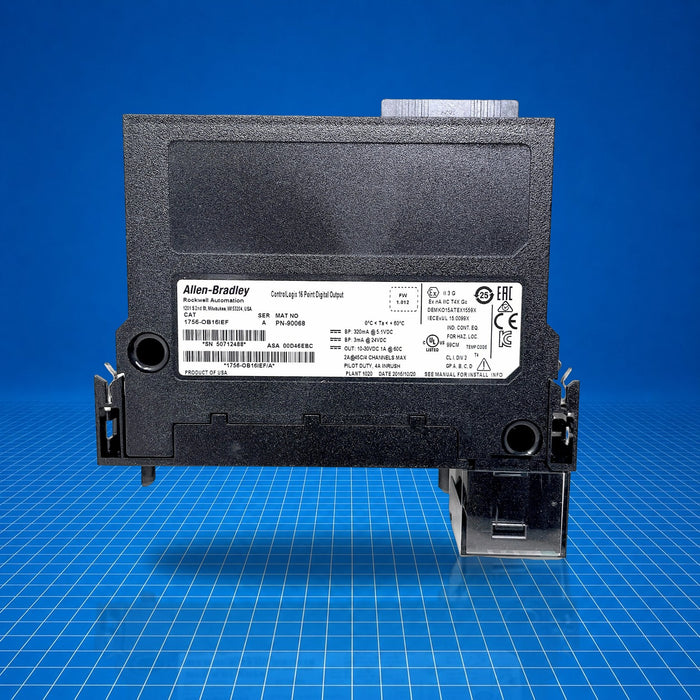

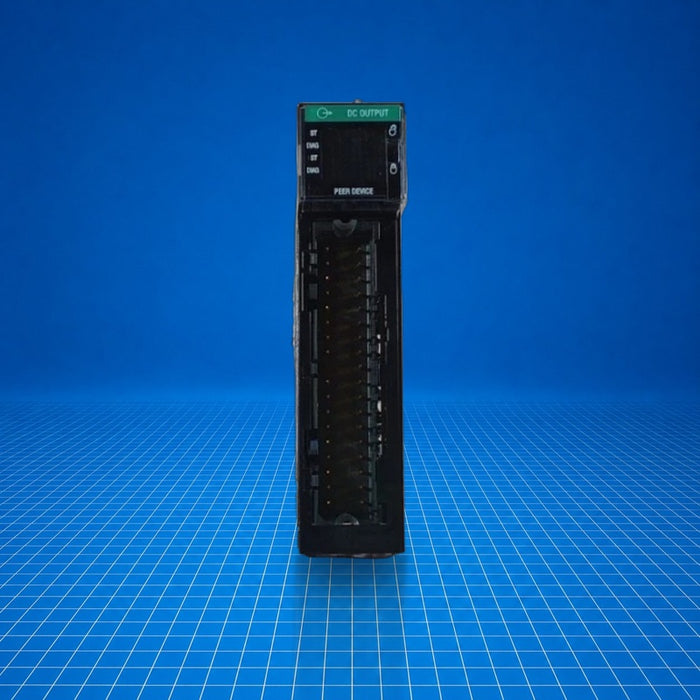

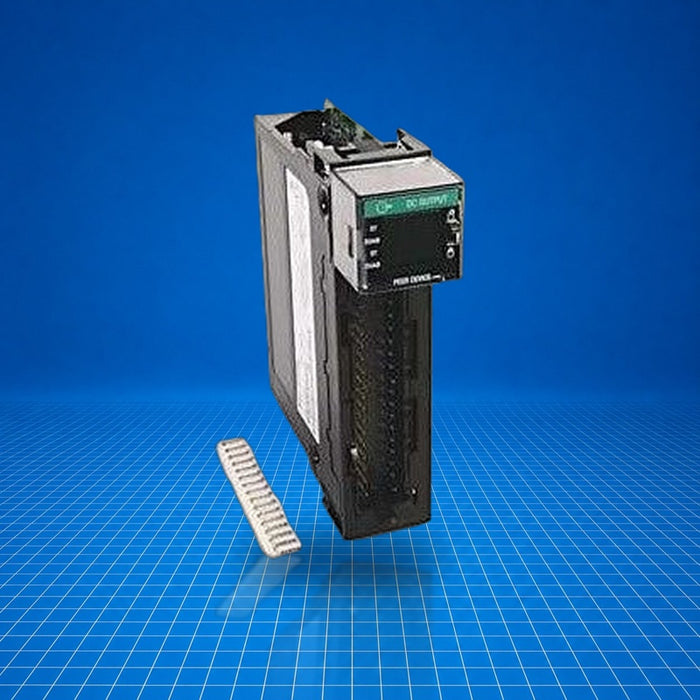

1756-OB16IEF Allen-Bradley
Original price
$1,031.22
-
Original price
$1,374.86
Original price
$1,031.22
$1,031.22
-
$1,374.86
Current price
$1,031.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-OB16IEF is an Allen-Bradley ControlLogix digital output module providing 16 individually isolated DC outputs (10-30 V DC). It functions within peer-to-peer and CIP Sync architectures to deliver fast, PWM-capable switching and fault-mode control within ControlLogix systems. Typical applications include machine control, discrete device actuation, and timed output sequencing in industrial automation environments. Part number 1756-OB16IEF integrates isolated output channels with configurable fault behavior and precise output timing.
Best Suited For
- ControlLogix systems requiring digitally isolated fast PWM outputs
- Peer-to-peer motion or device synchronization
- Timed output sequencing using CIP Sync
- Fault-mode output control (Hold, Last State, On, Off)
Outputs
16 isolated DC outputs
Operating voltage
10-30 V DC
Max per-point current
2 A @ 30 °C; 1 A @ 60 °C
PWM capability
PWM cycle-time 1 ms-1 h, On-time 200 µs-1 h
Fault mode options
Hold, Last State, On, Off (timed and default settings)
Technical Specifications
I/O & Electrical
Operating voltage range
10-30 V DC
Maximum output current per point
2 A @ 30 °C; 1 A @ 60 °C
Maximum output current per module
8 A @ 30 °C; 4 A @ 60 °C
Minimum load current
1 mA per point
Surge current
4 A for 10 ms per point, repeatable every 2 s
On-state voltage drop
0.2 V @ 1 A; 0.4 V @ 2 A
Off-state leakage current
< 0.1 mA per point
Isolation voltage
250 V continuous
Backplane current
350 mA @ 5 V; 3 mA @ 24 V
Power dissipation (max)
3.6 W @ 60 °C
Communication & Power
Communication
Ultra fast On/Off times, < 25 µs system transition
PWM specifications
Cycle-time: 1 ms-1 h; On-time: 200 µs-1 h; Accuracy: ± 20 µs
Peer sync
CIP Sync slave-only device
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Non-operating temperature
-40…85 °C (-40…185 °F)
Relative humidity
5…95 % non-condensing
Vibration (operating)
2 g @ 10-500 Hz
Shock (operating)
30 g
Shock (non-operating)
50 g
ESD immunity
6 kV contact; 8 kV air
Radiated RF immunity
10 V/m (80-2000 MHz), 3 V/m (2000-2700 MHz)
EFT/B immunity
± 4 kV at 5 kHz on signal ports
Surge transient immunity
± 1 kV line-line; ± 2 kV line-earth
Conducted RF immunity
10 V rms (150 kHz-80 MHz)
