1756-OB16IEFS Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-OB16IEFS Allen-Bradley

$1,100.00 - $1,840.88
$1,100.00
$1,100.00 - $1,840.88
$1,100.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,100.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,840.88
7 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

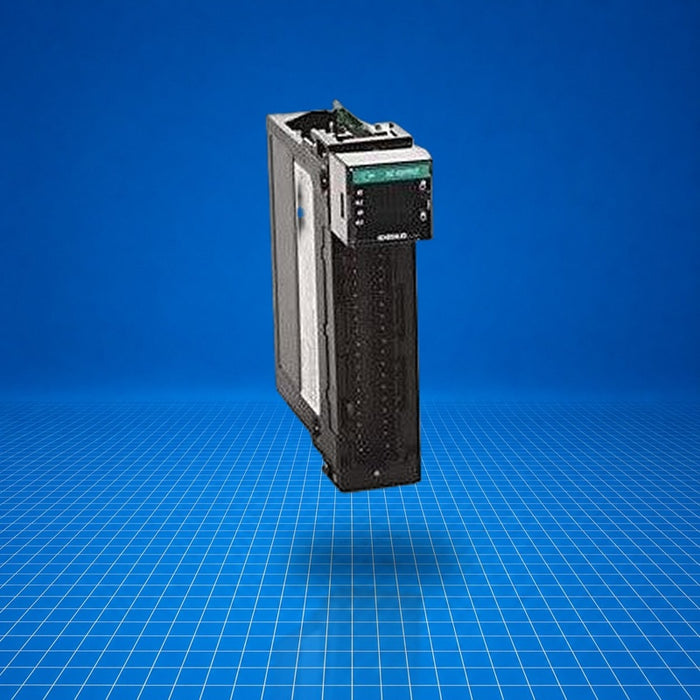

The 1756-OB16IEFS from Allen-Bradley is a ControlLogix rack-mounted digital output module featuring 16 independently isolated, sinking/sourcing outputs. It supports scheduled outputs via CIP Sync and is electronically protected per point. The module interfaces with 12/24 V DC control circuits and integrates into ControlLogix systems to drive discrete loads such as valves, relays, or indicators in industrial control and automation applications. 1756-OB16IEFS provides deterministic output timing with programmable fault-mode response.

Best Suited For

  • Scheduled output control in CIP-Sync environments
  • Individually isolated sinking/sourcing digital outputs
  • Applications requiring fast output timing (PWM control)
  • Hardwired output control in ControlLogix chassis
Outputs
16 scheduled, individually isolated
Operating voltage range
10…30 V DC
Max current per channel
2 A @ 45 °C (1 A @ 60 °C)
Backplane power
1.7 W
Power dissipation max
4.9 W

Technical Specifications

I/O & Electrical

Operating voltage range
10…30 V DC
Voltage category
12/24 V DC sink/source
Outputs
16 scheduled, individually isolated
Max current per channel
2 A @ 45 °C; 1 A @ 60 °C
Max current per module
8 A @ 45 °C; 16 A @ 60 °C
Surge current per point
4 A for 10 ms (repeatable every 2 s)
Off-state leakage current per point
< 0.1 mA
Min load current
1 mA per point
On-state voltage drop
0.2 V DC @ 1 A; 0.4 V DC @ 2 A
Scheduled outputs
CIP Sync only
Unscheduled output delay
14 µs nom / 23 µs max
PWM cycle time
1 ms min / 1 h max
PWM on-time
200 µs min / 1 h max

Communication & Power

Current draw @ 5.1 V (backplane)
320 mA
Current draw @ 24 V (backplane)
3 mA
Total backplane power
1.7 W
Power dissipation
4.9 W max
Thermal dissipation
16.71 BTU/hr

Physical & Environmental

Isolation voltage (outputs-to-backplane)
250 V continuous (reinforced)
Isolation voltage (output-to-output)
250 V continuous (basic)
Enclosure type
None (open-style)
Slot width
1
Removable terminal blocks
1756-TBCH, 1756-TBS6H
RTB keying
User-defined mechanical
Module keying
Electronic, software configurable
Pilot duty
4 A inrush

Certifications

ATEXIECExChina CCCAustralian RCMCEEur-EAC

Certified to ATEX, IECEx, China CCC, Australian RCM, CE, Eurasian Economic Community as of April 29, 2026.

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns
