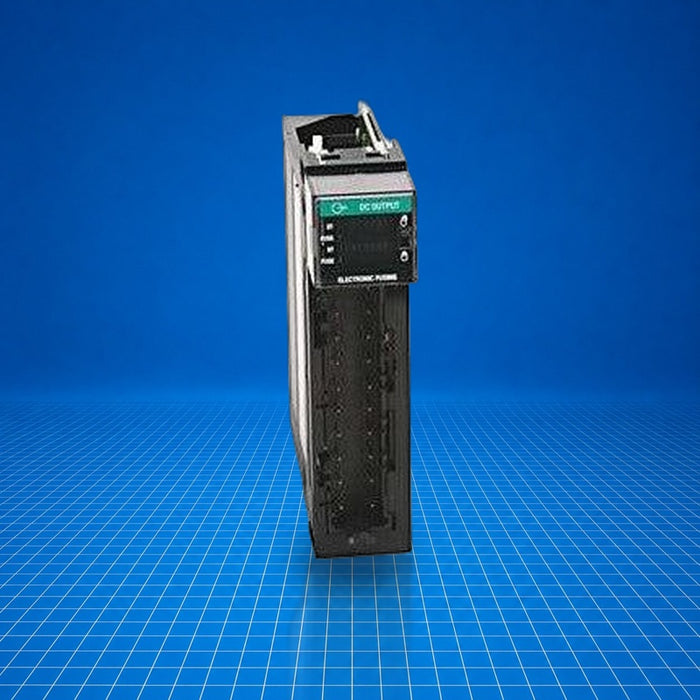

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-OC8 Allen-Bradley

Name: 1756-OC8 Allen-Bradley
Brand: Allen Bradley
SKU: 1756-OC8
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-OC8 is a ControlLogix DC output module from Allen-Bradley, providing eight discrete output channels (configured as two groups of four). It operates on a 48 V DC source with an allowable input range of 30…60 V DC. It belongs to the ControlLogix I/O family and is typically used in discrete control applications-such as actuator control or motor relay switching-in industrial automation systems.

Best Suited For

Discrete DC output switching in ControlLogix systems
Actuator or relay drive applications
Modular I/O expansion on ControlLogix backplane
Applications requiring grouped output control (4-point groups)

Output points

8 (4-point groups)

Voltage category

48 V DC source

Operating voltage range

30…60 V DC

Max current per point

2 A @ 60 °C

Power dissipation (max)

4.9 W @ 60 °C

Technical Specifications

I/O & Electrical

Output points

8 (4-point groups)

Voltage category

48 V DC source

Operating voltage range

30…60 V DC

Current per point, max

2 A @ 60 °C

Current per module, max

8 A @ 60 °C

Off-state leakage current, max

1 mA per point

On-state voltage drop, max

2 V DC @ 2 A

Surge current per point

4 A for 10 ms, repeatable every 1 s @ 60 °C

Load current, min

2 mA per point

Communication & Power

Current draw @ 5.1 V

165 mA

Current draw @ 24 V

2 mA

Total backplane power

0.89 W

Physical & Environmental

Power dissipation, max

4.9 W @ 60 °C

Thermal dissipation

16.71 BTU/hr

Module keying

Electronic, software configurable

Removable terminal block

1756-TBNH, 1756-TBSH

Slot width

1

Enclosure type

None (open-style)

Temperature code

T4

Certifications

Industrial control equipment certified per UL, CSA; meets EMC/EMI standards EN 61000-6-2, EN 61000-6-4, EN 61131-2; hazardous location ratings including ATEX II 3 G Ex nA IIC T4 X, FM Class I Division 2 Groups A-D, RCM, KC, EAC.
