1756-OF4 Allen-Bradley

Name: 1756-OF4 Allen-Bradley
Brand: Allen Bradley
SKU: 1756-OF4
Price: 330.0 USD
Availability: InStock

$330.00 - $673.75

$330.00

$330.00 - $673.75

$330.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

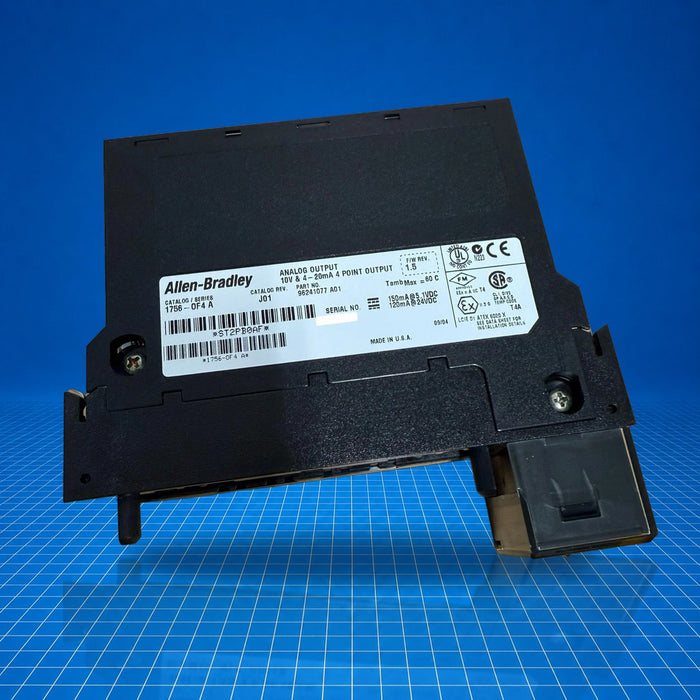

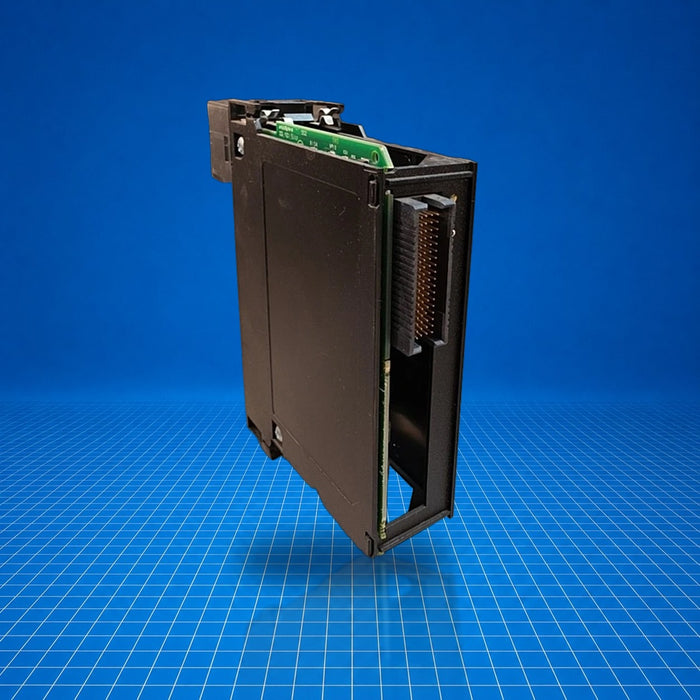

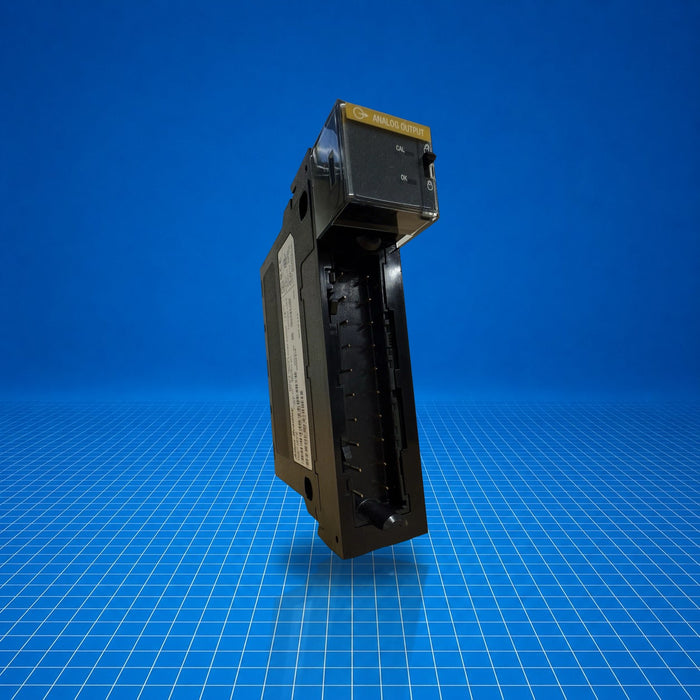

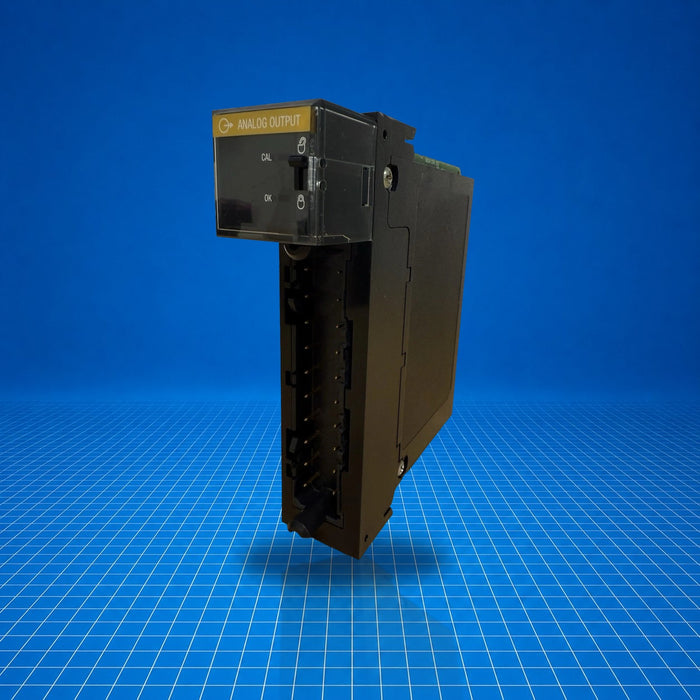

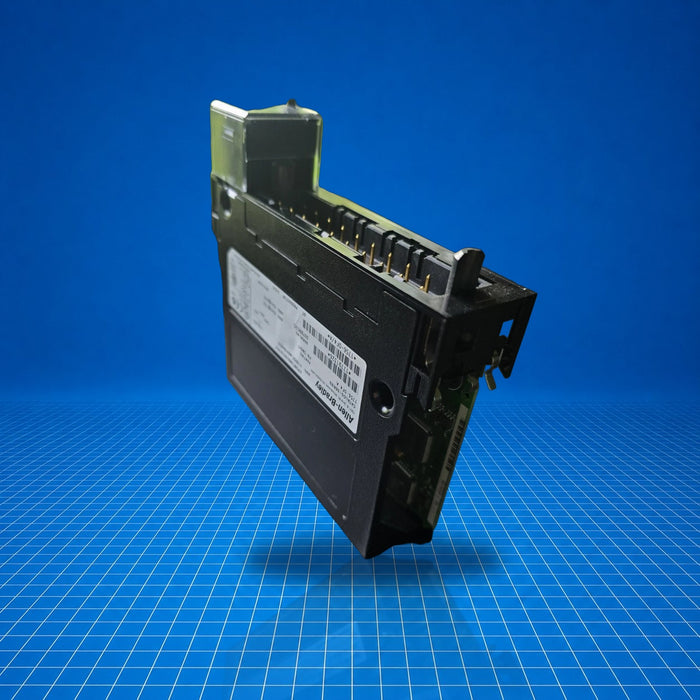

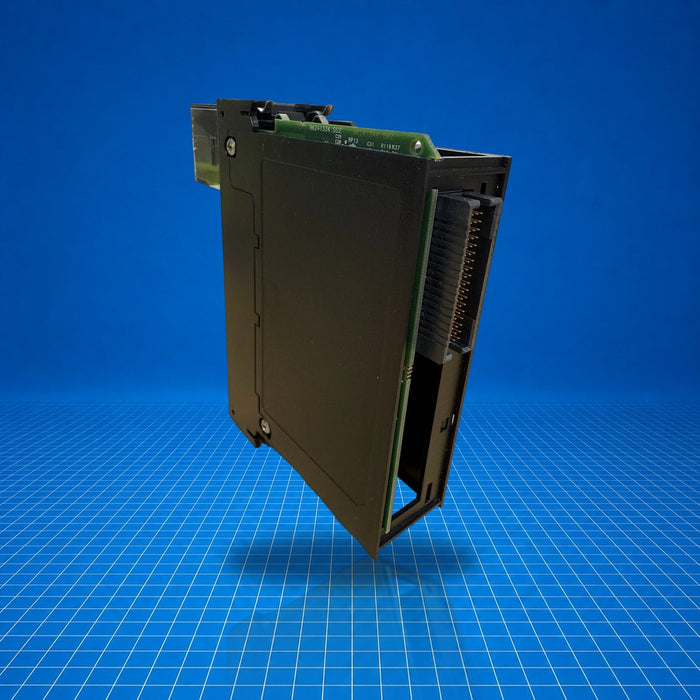

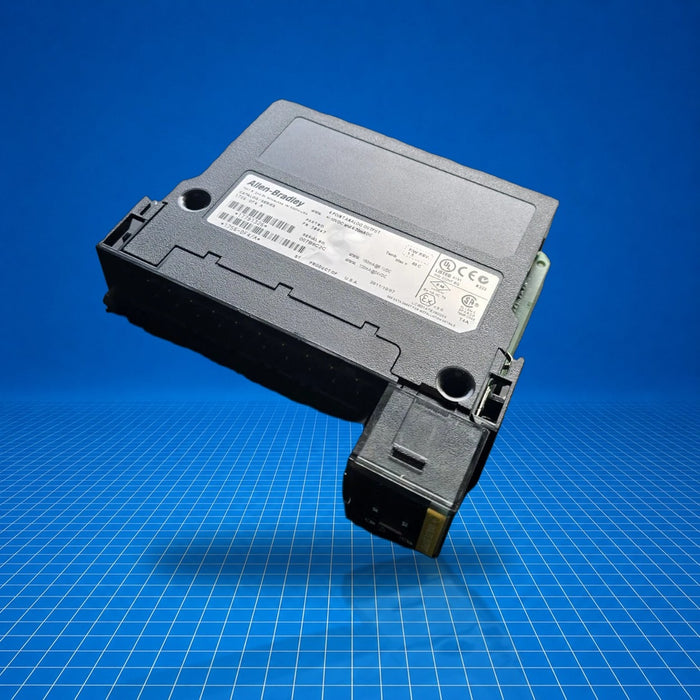

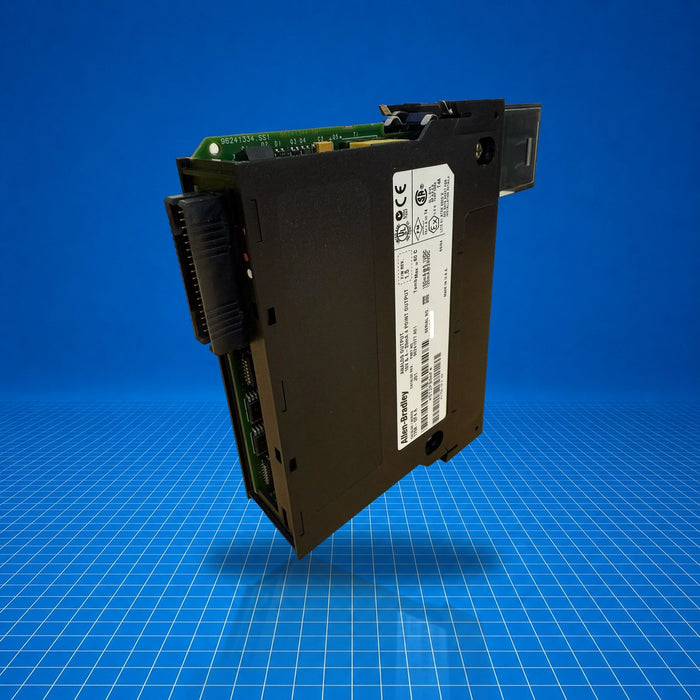

The 1756-OF4 module is an Allen-Bradley ControlLogix analog output module providing four single-ended outputs capable of sourcing either current (4…20 mA) or voltage (-10…+10 V) signals. It installs in a ControlLogix chassis and is used to drive field devices such as actuators, valves, or analog-signal instruments. It supports both integer and IEEE 32-bit floating point data formats with configurable ramping and is suitable for applications requiring mixed current and voltage outputs with precise control and diagnostics. Part number 1756-OF4.

Best Suited For

ControlLogix chassis output expansion
Mixed current (4-20 mA) and voltage (±10 V) analog control
Process control actuator or valve control
Applications needing electronic keying and RTB wiring
Embedded ramping and signal fault detection

Outputs

4 (current or voltage)

Output range

-10…+10 V; 4…20 mA

Resolution

15 bits (320 µV/bit voltage; 650 nA/bit current)

Backplane power

5.8 W (150 mA @ 5.1 V; 120 mA @ 24 V)

Thermal dissipation

10.91 BTU/hr

Technical Specifications

I/O & Electrical

Outputs

4 single-ended analog channels

Output voltage range

-10…+10 V

Output current range

4…20 mA

Resolution

15 bits (320 µV/bit voltage; 650 nA/bit current)

Calibrated accuracy

≤ 0.05 % of range

Drive capability

Voltage: > 2000 Ω; Current: 0…750 Ω

Settling time

< 2 ms to 95 %

Short-circuit protection

Electronically limited to ≤ 21 mA

Overvoltage protection

24 V DC

Open-circuit detection

Current output only (>0.1 mA)

Communication & Power

Backplane current draw @ 5.1 V

150 mA

Backplane current draw @ 24 V

120 mA

Total backplane power

5.8 W

Module power consumption

3.7 W

Thermal dissipation

10.91 BTU/hr

Physical & Environmental

Operating temperature

0 °C to 60 °C (Series C); 0 °C to 55 °C (Series B)

Enclosure rating

open-style (none)

Isolation voltage

250 V continuous, basic insulation, no channel-to-channel isolation

RTB wiring

1756-TBNH or 1756-TBSH, 20-pin, torque 1.36 N·m, 22…14 AWG

Certifications

CEFMIECExATEXRCMABSEAC

Certified to CE, FM, IECEx, ATEX, Australian RCM, American Bureau of Shipping, Eurasian Economic Community as of May 17 2026.

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns

Hassle-free RMA. If the part is not right for your application, send it back within 30 days.

Reseller Options →

Resellers welcome. Reach out for volume pricing and we will get you set up.

Talk to a Real Person

Fast answers on stock, revisions, and shipping. (833) 800-7748 or live chat.
