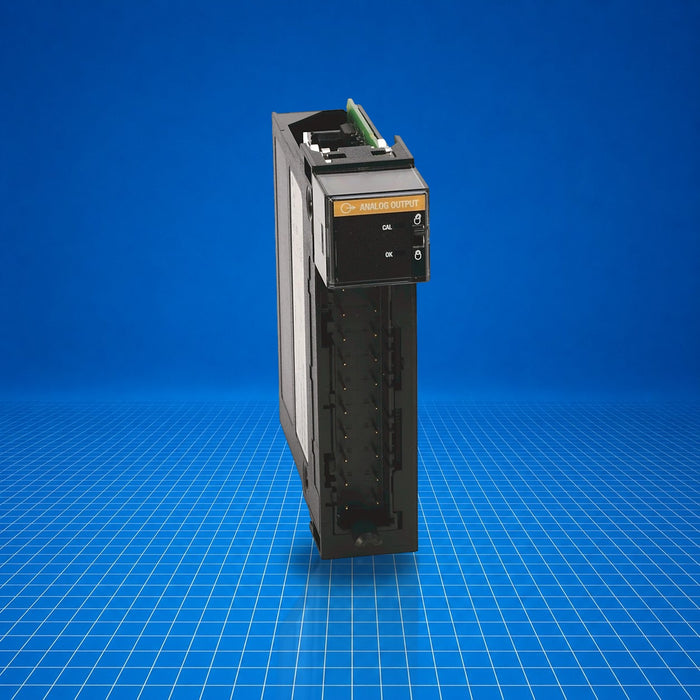

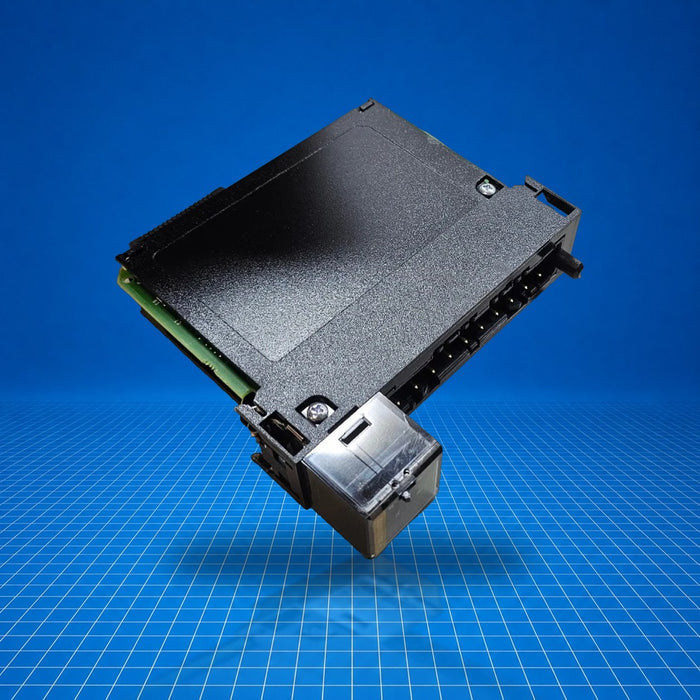

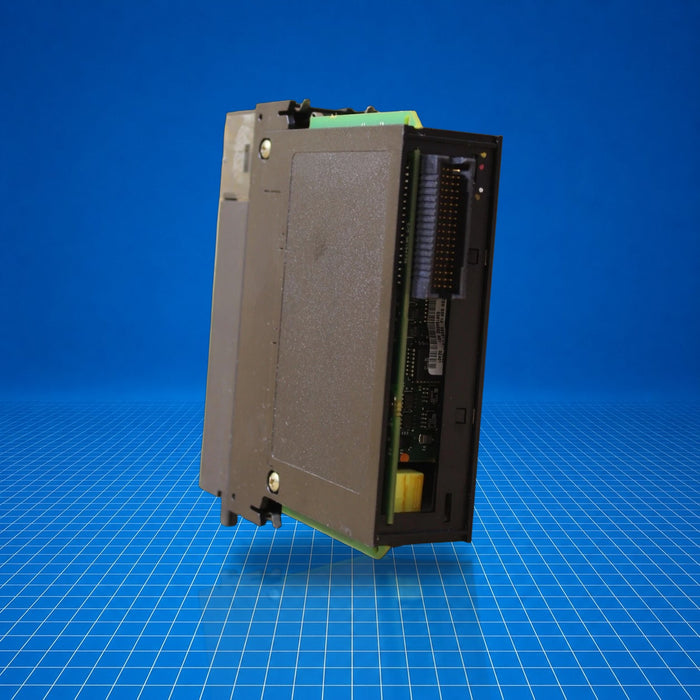

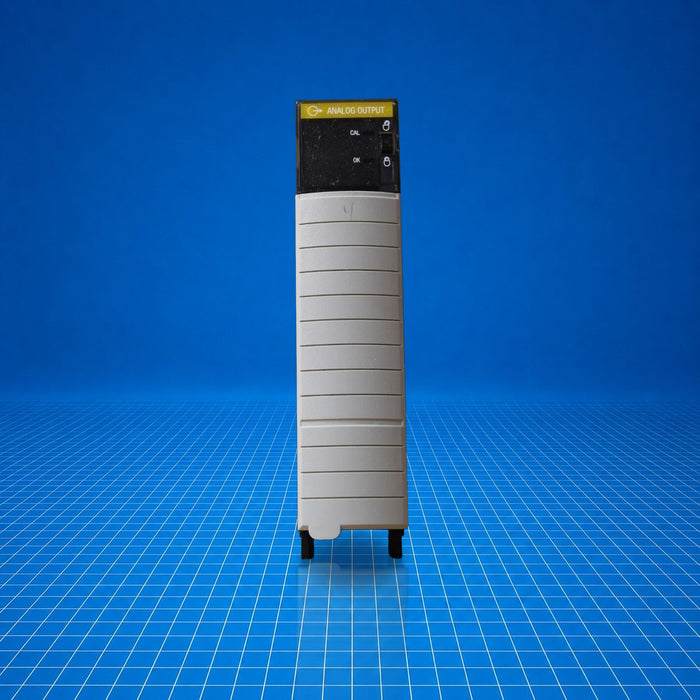

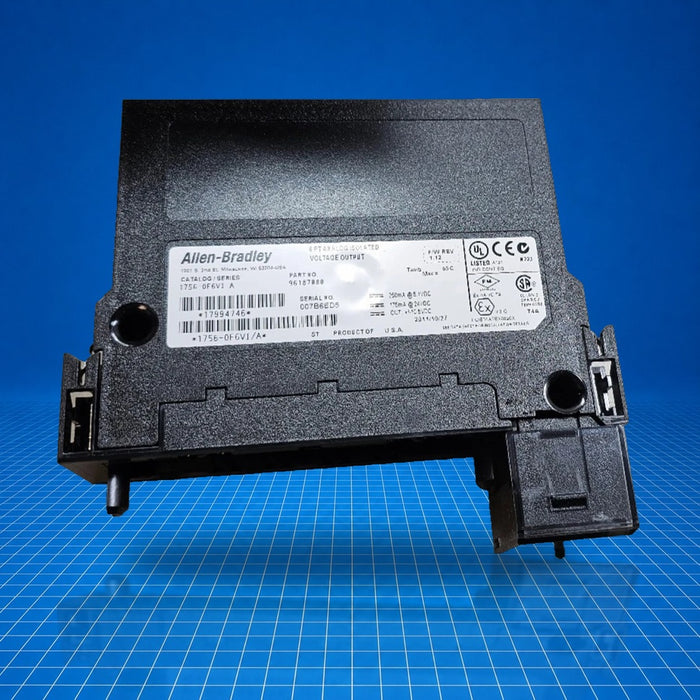

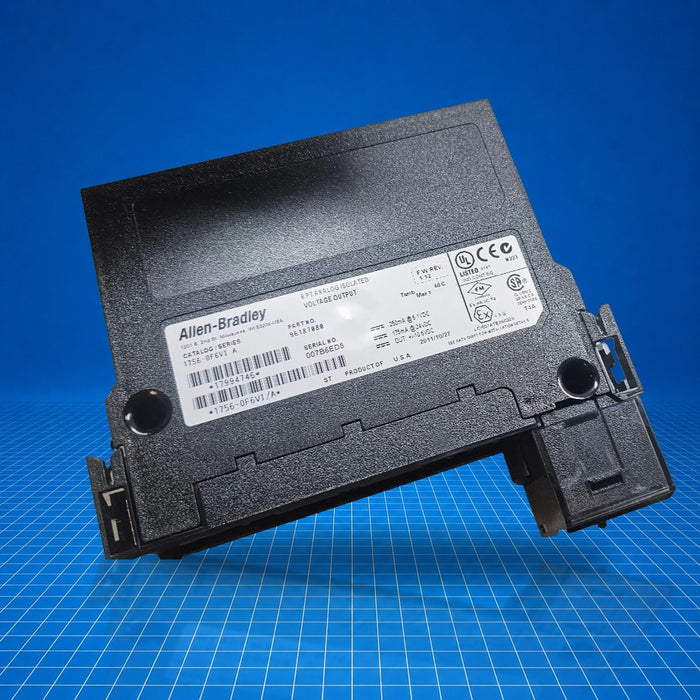

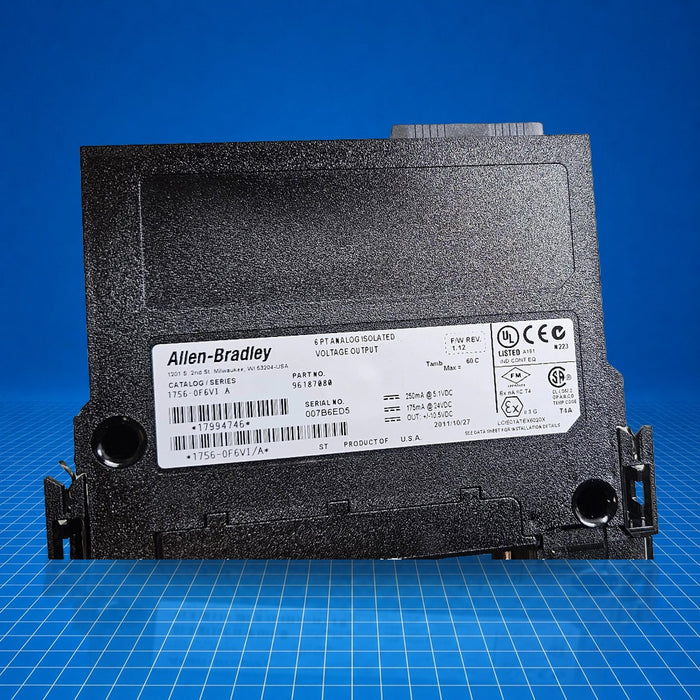

1756-OF6VI Allen-Bradley
Original price
$371.97
-
Original price
$604.97
Original price
$371.97
$371.97
-
$604.97
Current price
$371.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-OF6VI is a ControlLogix 6-point isolated analog output voltage module manufactured by Allen-Bradley. It provides six independent voltage outputs of ±10.5 V with per-point isolation, suitable for delivering precise analog control signals in industrial automation systems. Designed for use with ControlLogix chassis, this module converts controller command data into analog voltage outputs for I/O devices such as actuators, transducers, or control valves. Typical applications include process control, motion control, and instrumentation signal interfacing. This module is designated 1756-OF6VI.
Best Suited For
- ControlLogix chassis-based analog loop output
- Signal interfacing to ±10 V actuators or instruments
- Applications requiring per-point isolation
- Process control or motion systems needing multiple analog outputs
Channels
6
Output signal
±10.5 V
Isolation voltage
250 V continuous
Discontinued
March 31 2017
Technical Specifications
I/O & Electrical
Number of channels
6
Output signal
±10.5 V
Isolation voltage
250 V continuous between outputs and backplane
Physical & Environmental
Settling time
< 2 ms to 95 % of final value (resistive load)
Calibrated accuracy @ 25 °C
Better than 0.1 % of range
Calibration interval
6 months typical
Offset drift
60 µV/°C typical
Gain drift with temperature (nominal)
50 ppm/°C
Gain drift with temperature (max)
80 ppm/°C
Module error
0.5 % of range
Module scan time, max
25 ms (floating point), 10 ms (integer)
Data format
Integer (left-justified, two's complement) and IEEE 32-bit floating point
Module conversion method
R-Ladder DAC, monotonic, no missing codes
Slot width
1
Enclosure
None (open-style)
Operating temperature
0…60 °C (32…140 °F)
Non-operating temperature
-40…85 °C (-40…185 °F)
Relative humidity
5…95 % non-condensing
Vibration (operating)
2 g @ 10…500 Hz
Shock (operating)
30 g
Shock (non-operating)
50 g
Emissions
IEC 61000-6-4
