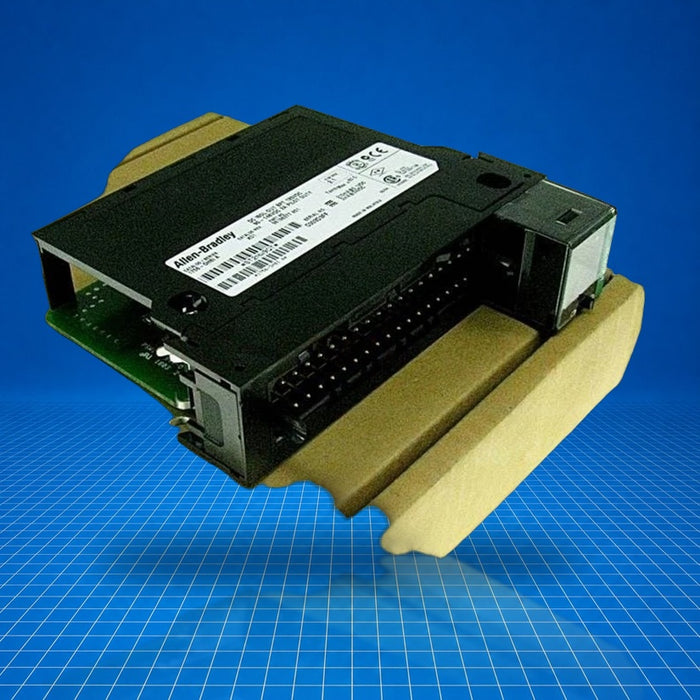

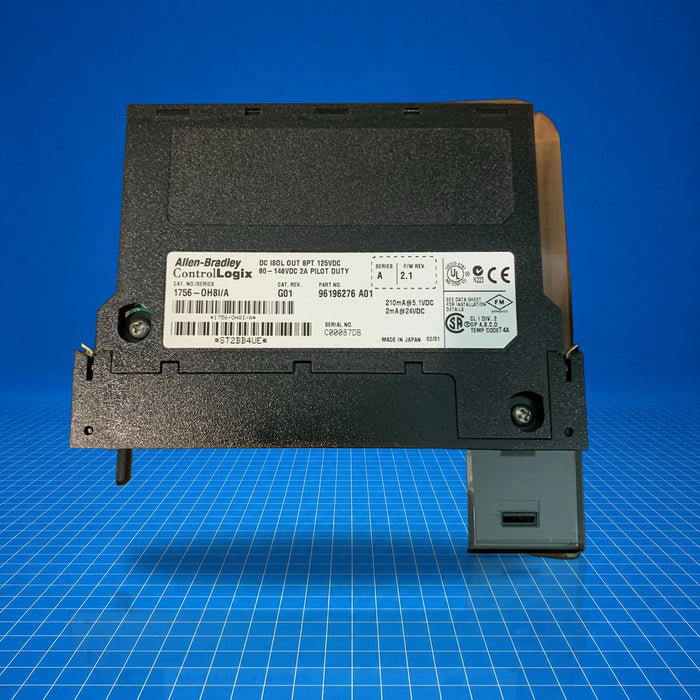

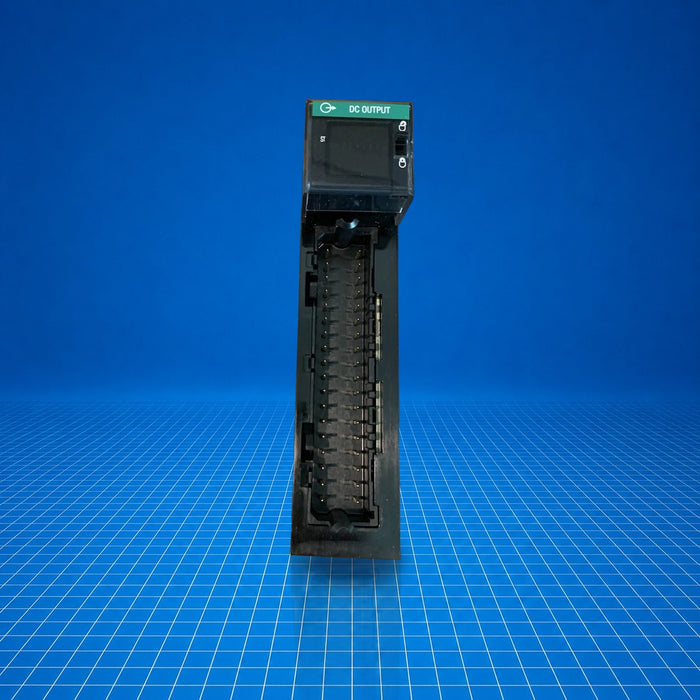

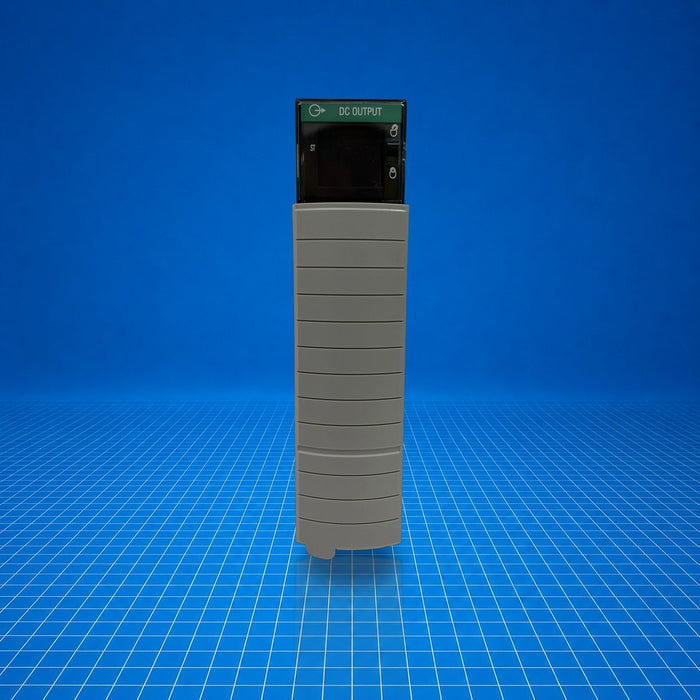

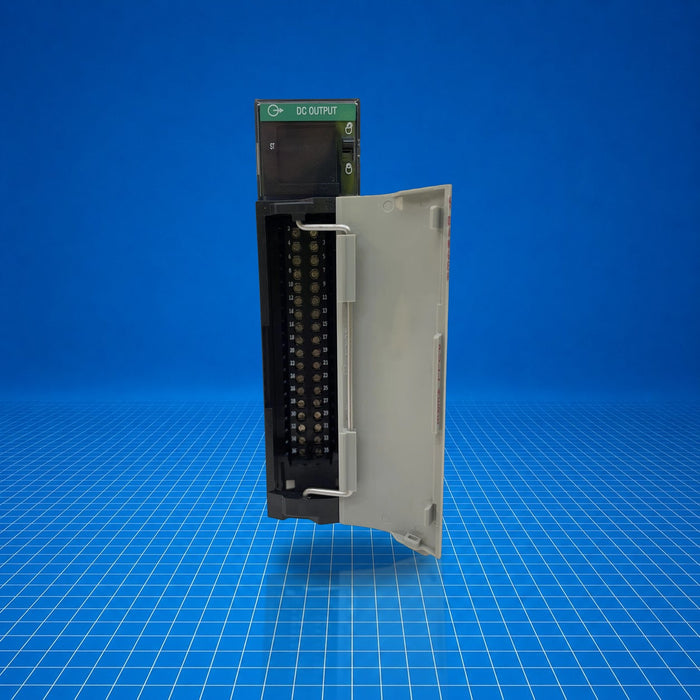

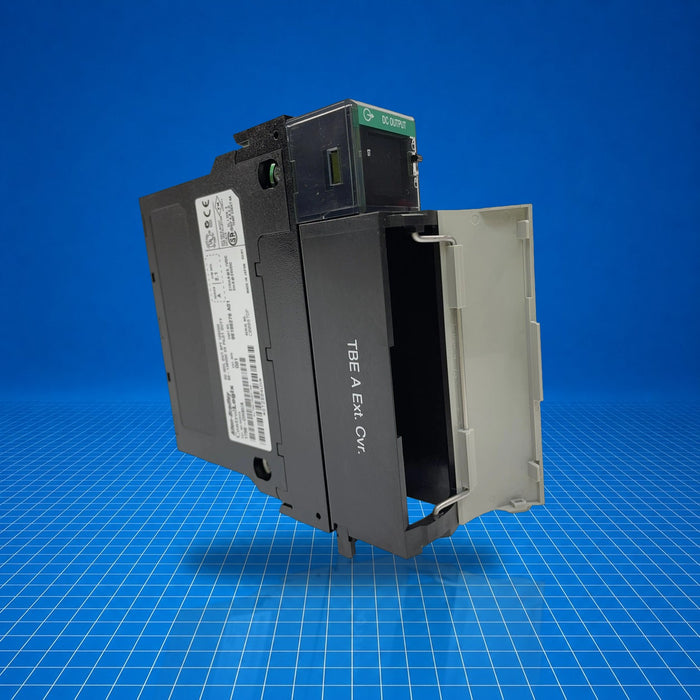

1756-OH8I Allen-Bradley
Original price
$731.06
-
Original price
$825.00
Original price
$731.06
$731.06
-
$825.00
Current price
$731.06
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-OH8I is a ControlLogix® module within the Allen-Bradley 1756 platform. It provides eight individually isolated digital DC outputs (sink/source) rated at 125 V DC, typically used in automated control systems to switch DC loads such as solenoids, lamps, or contactors. The module installs in a ControlLogix chassis, interfaces via the backplane, and is common in industrial applications requiring channel isolation and high output current capacity. 1756-OH8I facilitates coordinated digital output control in manufacturing, material handling, or process systems.
Best Suited For
- ControlLogix racks requiring 125 V DC isolated switching
- Applications needing individual channel isolation
- High-current DC load switching (up to 2 A per channel)
- Systems requiring flexible fault-mode behavior per point
Output points
8 individually isolated
Voltage range
90-146 V DC
Max current per point
2 A @ 60 °C
Total backplane power
1.11 W
Technical Specifications
I/O & Electrical
Input voltage range
90…146 V DC
Voltage category
125 V DC sink/source
Max current per point
2 A @ 60 °C
Max current per module
8 A @ 60 °C
Surge current per point
4 A for 10 ms, repeatable every 1 s @ 60 °C
Off-state leakage current, max
1 mA per point
On-state voltage drop, max
2 V DC @ 2 A
Load current, min
2 mA per point
Communication & Power
Backplane current draw @ 5.1 V
210 mA
Backplane current draw @ 24 V
2 mA
Total backplane power
1.11 W
Power dissipation, max
3.3 W @ 60 °C
Thermal dissipation
11.25 BTU/hr
Physical & Environmental
Slot width
1
Enclosure type
None (open-style)
North American temperature code
T4A
Module keying
Electronic, software configurable
RTB keying
User-defined mechanical
Certifications
CEAustralian RCMUKCAEurasian Economic CommunityUnited Kingdom Safety CertificateAmerican Bureau of Shipping
