1756-ON8 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

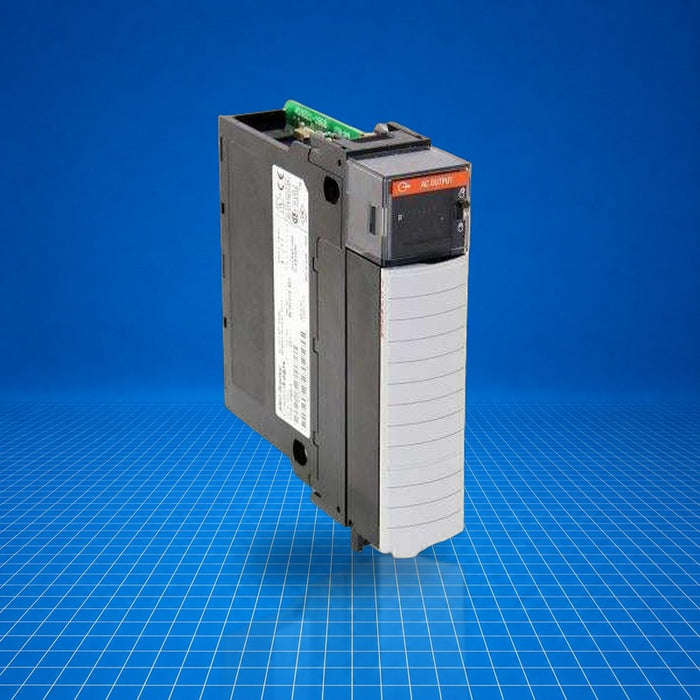

The Allen-Bradley 1756-ON8 is a ControlLogix series discrete digital output module providing eight AC output points (configured as two groups of four) for on/off control in automated systems. It accepts 10-30 V AC input and delivers up to 2 A per point for pilot-duty loads. Installed in a ControlLogix chassis, it enables distributed control of actuators such as solenoids, relays, contactors, or pilot valves in manufacturing, process, or infrastructure applications. 1756-ON8 operates under the 1756-ON8 publication.
Best Suited For
- Control of AC pilot-duty loads in ControlLogix systems
- On-machine actuator switching (solenoids, valves, relays)
- Applications requiring grouped output control (2 groups of 4)
- Retrofits or expansions in existing ControlLogix racks
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Certified: China CCC; CE; ATEX; IECEx; Australian RCM; UL Listed Hazardous; Eurasian Economic Community (as of 17 May 2026).
