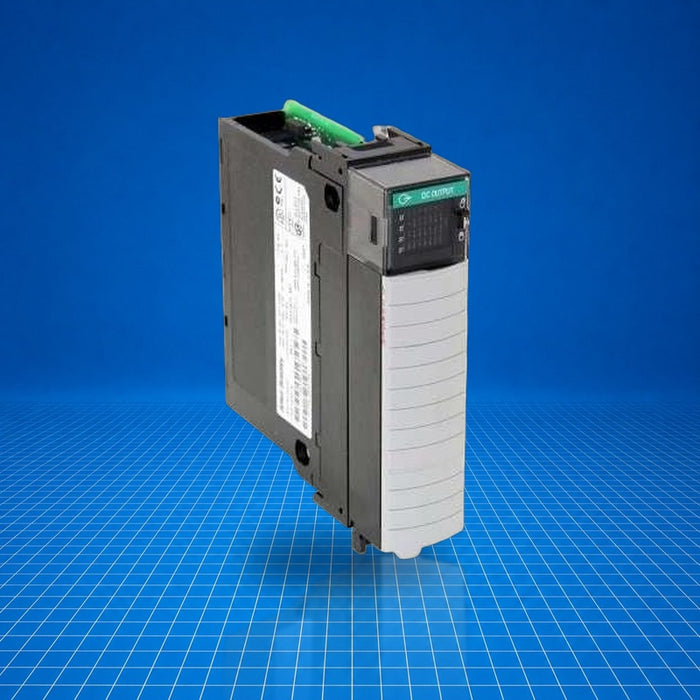

1756-OV32E Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-OV32E Allen-Bradley

$333.60 - $948.75
$333.60
$333.60 - $948.75
$333.60
Surplus - Tested (With Warranty)
Need a Specific Revision?
$333.60
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$948.75
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-OV32E is an Allen-Bradley ControlLogix electronically fused sinking digital output module. It provides 32 sinking outputs in two groups of 16, each group electronically fused for fault isolation. Installed in a ControlLogix chassis, it is used to drive DC loads such as valves, indicators, and relays in process, packaging, and machine-control systems. The part number 1756-OV32E is supported with detailed technical specifications and is intended for applications requiring grouped output protection and precise electrical control.

Best Suited For

  • ControlLogix chassis-based DC output expansion
  • Grouped short-circuit protected output circuits
  • Applications requiring sinking DC switching of up to 0.5 A per point
  • Installation in industrial systems such as material handling or packaging
  • Replacement or spare module in maintenance inventories
Outputs (sinking)
32 points
Operating voltage range
10…30 V DC
Maximum current per point
0.5 A @ 50 °C (0.35 A @ 60 °C)
Backplane power draw
2.04 W
Power dissipation max
5.88 W @ 60 °C

Technical Specifications

I/O & Electrical

Voltage category
12/24 V DC sink
Operating voltage range
10…30 V DC
Outputs
32 electronically fused (16 points/group)
Current per point, max
0.5 A @ 50 °C; 0.35 A @ 60 °C
Current per group, max
8 A @ 50 °C; 5 A @ 60 °C
Current per module, max
16 A @ 50 °C; 10 A @ 60 °C
Surge current per point
2 A for 10 ms, repeatable every 2 s @ 60 °C
Minimum load current per output
2 mA
Off-state leakage current per point, max
1 mA
On-state voltage drop, max
350 mV DC @ 0.5 A
Isolation voltage
250 V continuous (outputs-to-backplane and between groups)
Fusing
Electronically fused per group

Communication & Power

Current draw at 5.1 V backplane
390 mA
Current draw at 24 V backplane
2 mA
Total backplane power
2.04 W
Power dissipation, max
5.88 W @ 60 °C
Thermal dissipation
20.1 BTU/hr

Physical & Environmental

Output delay time off→on
75 µs nominal/300 µs max
Output delay time on→off
230 µs nominal/1 ms max
Scheduled outputs synchronization
Within 16.7 s reference to Coordinated System Time
Removable terminal block
1756-TBCH, 1756-TBS6H
Enclosure type
None (open-style)
Temperature code
T4 North America/IEC
Operating temperature range
0…60 °C
Humidity
5…95 % non-condensing

Certifications

CEIECExATEXUL Listed Hazardous

Certified CE, IECEx, ATEX, UL Listed Hazardous, and others as of May 20, 2026 (consult product label for specific unit certification) and marked Ex ec IIC T4 Gc for hazardous locations.
