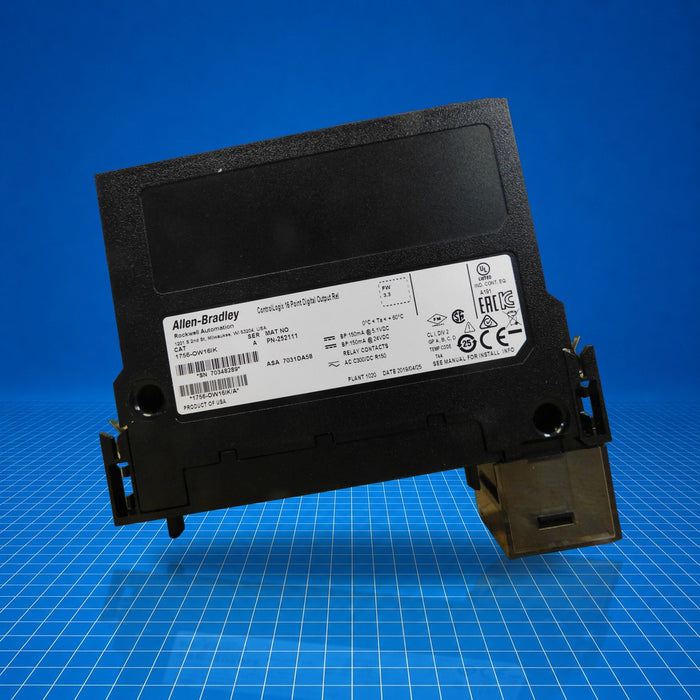

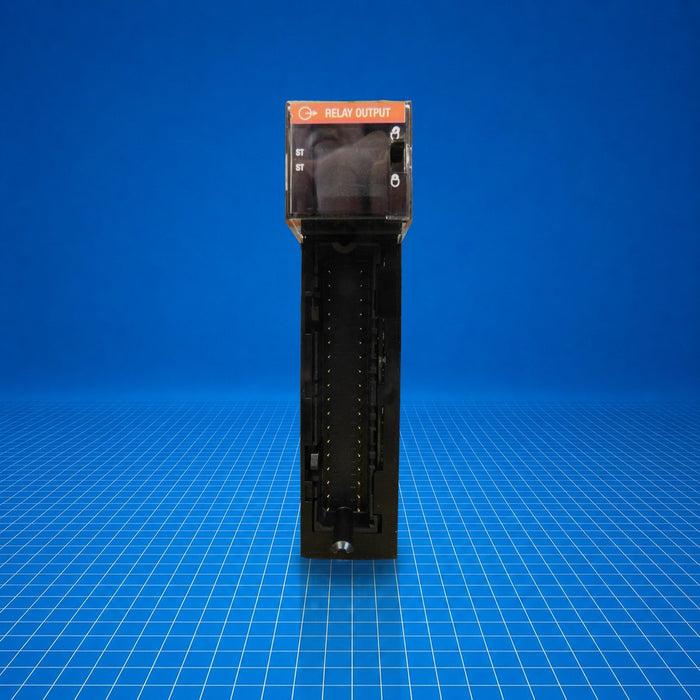

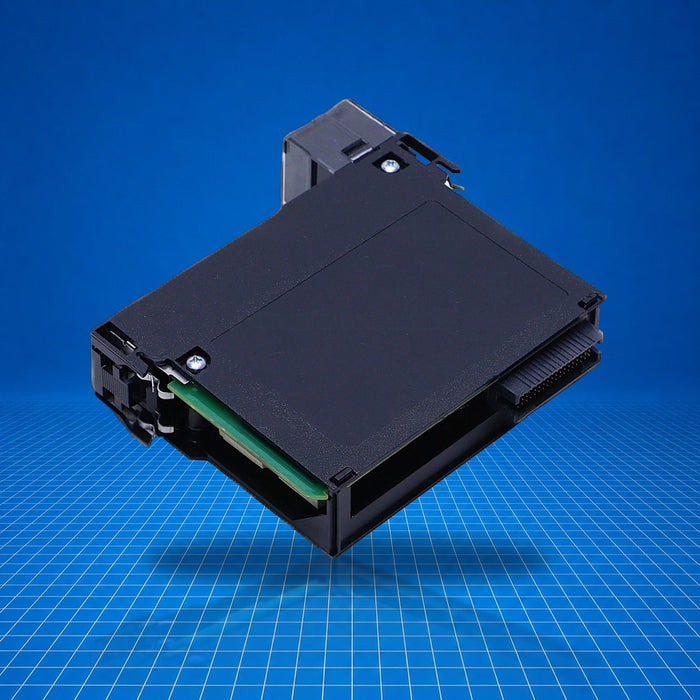

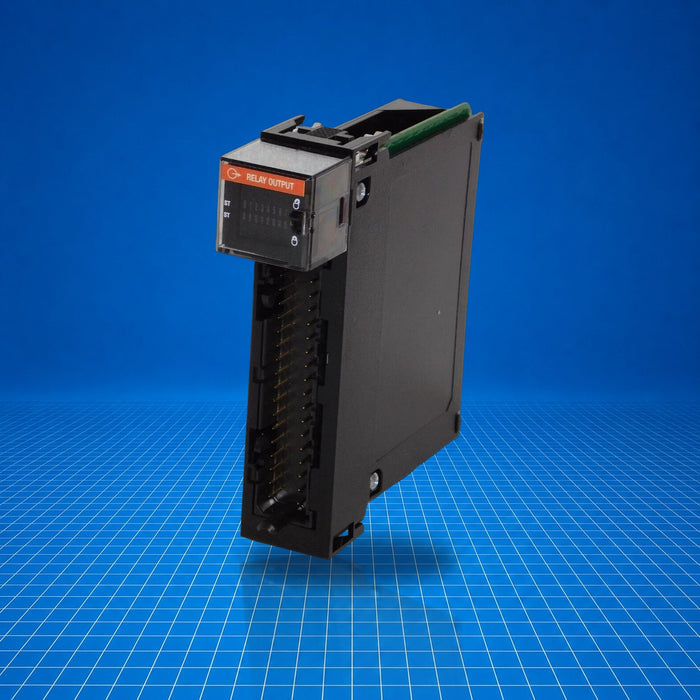

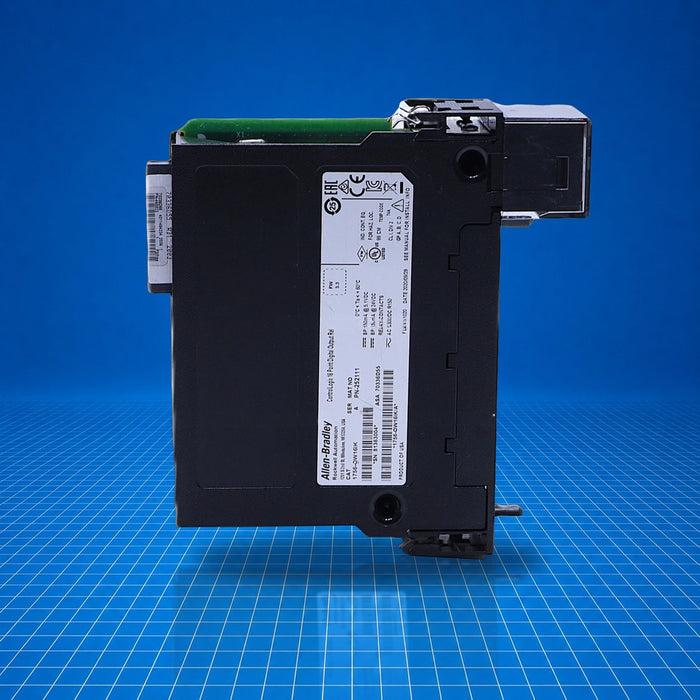

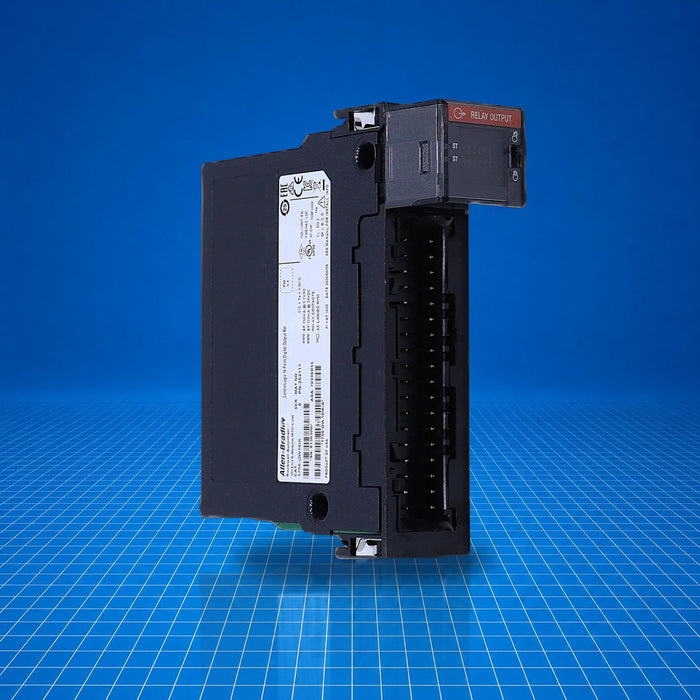

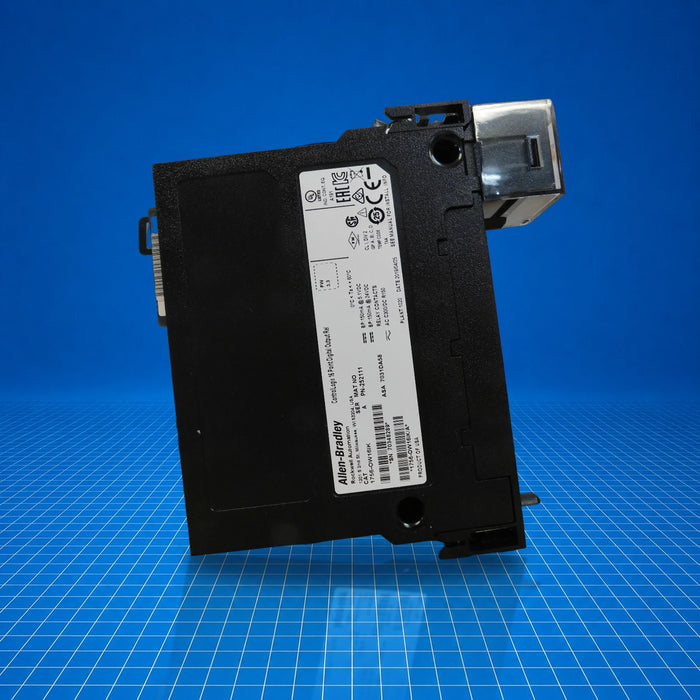

1756-OW16IK Allen-Bradley
Original price
$844.25
-
Original price
$1,234.75
Original price
$844.25
$844.25
-
$1,234.75
Current price
$844.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
The 1756-OW16IK is a ControlLogix family module providing sixteen isolated normally-open relay outputs via a 36-pin interface. Designed for integration into Allen-Bradley ControlLogix systems, it handles both DC and AC loads across a wide voltage range and supports time-synchronized operations. Controls engineers and maintenance professionals use this module for switching discrete loads in industrial applications such as motor control, signal-driven valves or lighting systems, and applications requiring isolation between PLC backplane and field circuits.
Technical Specifications
Series/Family
ControlLogix
I/O count & type
16 N.O. (normally open) isolated relay outputs
Operating voltage range
5…125V DC; 10…240V AC
Output voltage/load dependent current
1 A @ 5…30V DC; 0.5 A @ 48V DC; 0.22 A @ 125V DC; 1.5 A @ 120V AC (50/60 Hz); 0.75 A @ 240V AC (50/60 Hz)
Output delay time
Off-to-On: 10 ms max; On-to-Off: 10 ms max
Current draw
150 mA @ 5.1 V; 150 mA @ 24 V
Total backplane power
4.4 W
Power dissipation, max
4.5 W @ 60 °C (140 °F)
Thermal dissipation
15.35 BTU/hr
Off-state leakage current (per point), max
1.5 mA
Minimum load current (per point)
10 mA
Initial contact resistance, max
100 mΩ @ 6 V, 1 A
Switching frequency, max
1 operation / 3 s (0.3 Hz at rated load)
Bounce time, mean
1.2 ms
Expected contact life
300,000 cycles resistive; 100,000 cycles inductive
Scheduled outputs
Synchronization within 16.7 s max, reference to Coordinated System Time
States in Fault mode (per point)
Hold last state, On or Off (Off is default)
States in Program mode (per point)
Hold last state, On or Off (Off is default)
Isolation voltage
250 V (continuous), basic insulation-outputs to backplane and output-to-output
Module keying
Electronic, software configurable
Slot width
1
Wire category
1
Enclosure type
None (open-style)
Operating temperature
0 to 60 °C
North American temperature code
T4A
Certifications
CE, Australian RCM, American Bureau of Shipping, United Kingdom Safety Certificate, Eurasian Economic Community (as of 2026-04-28)
