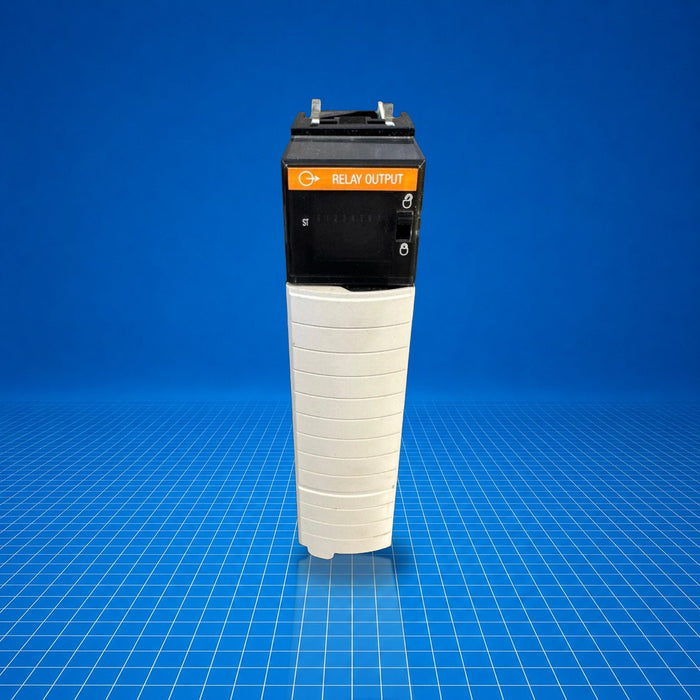

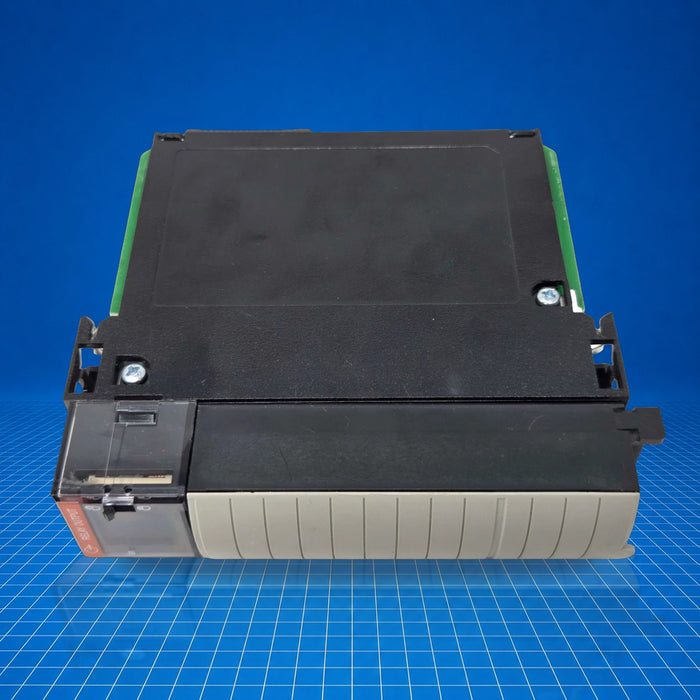

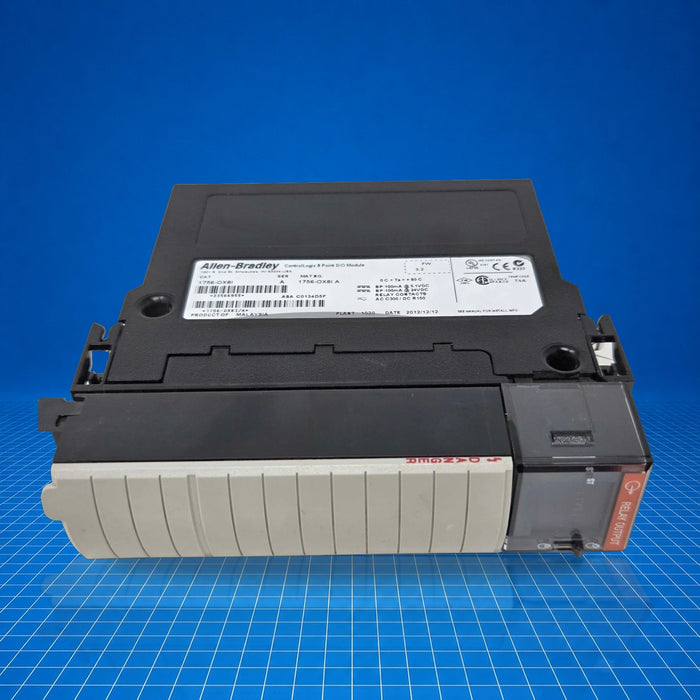

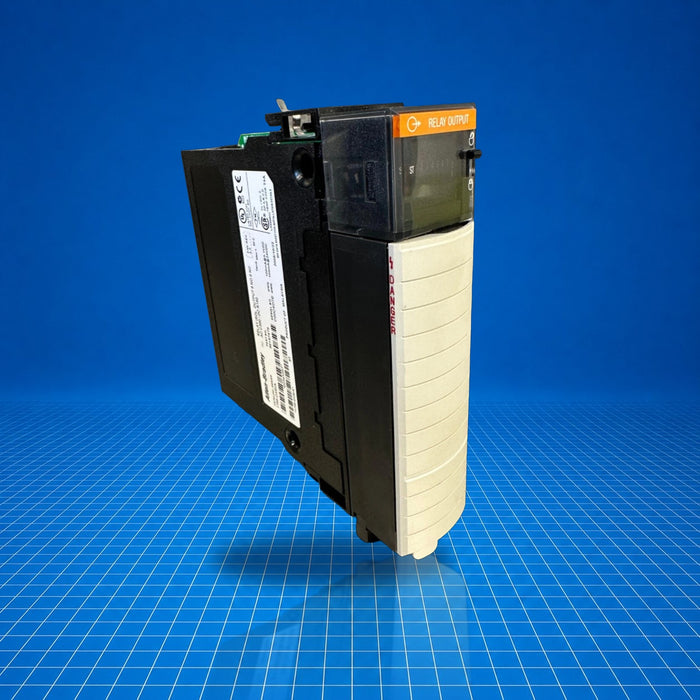

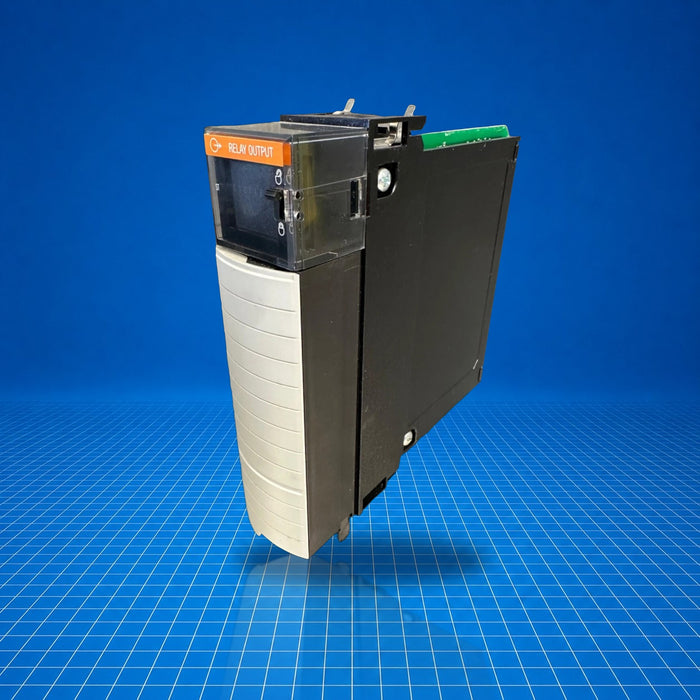

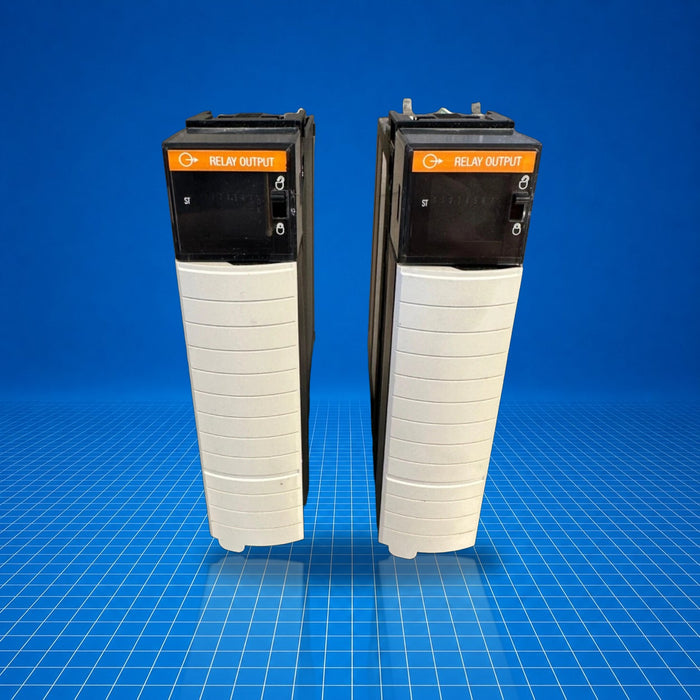

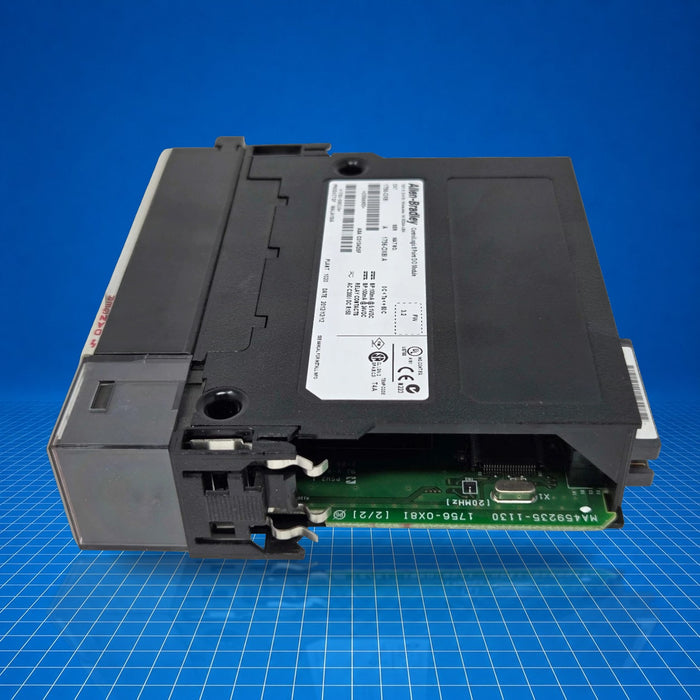

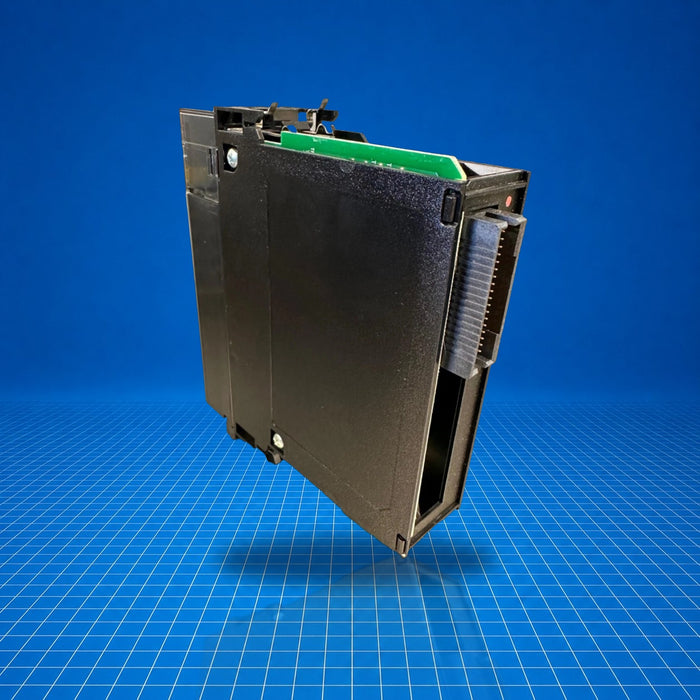

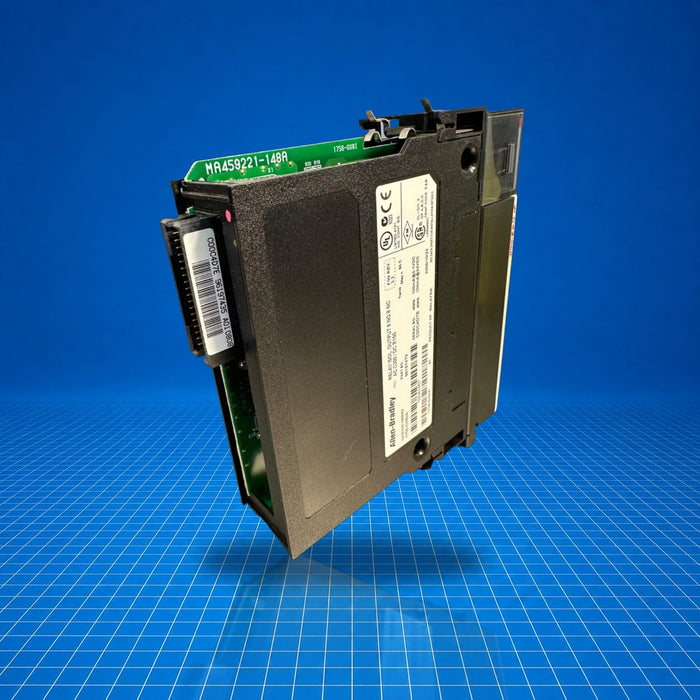

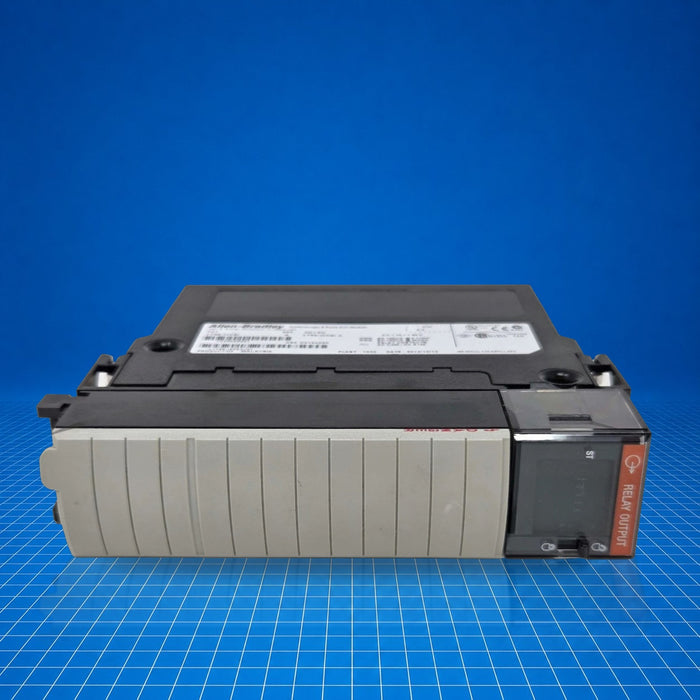

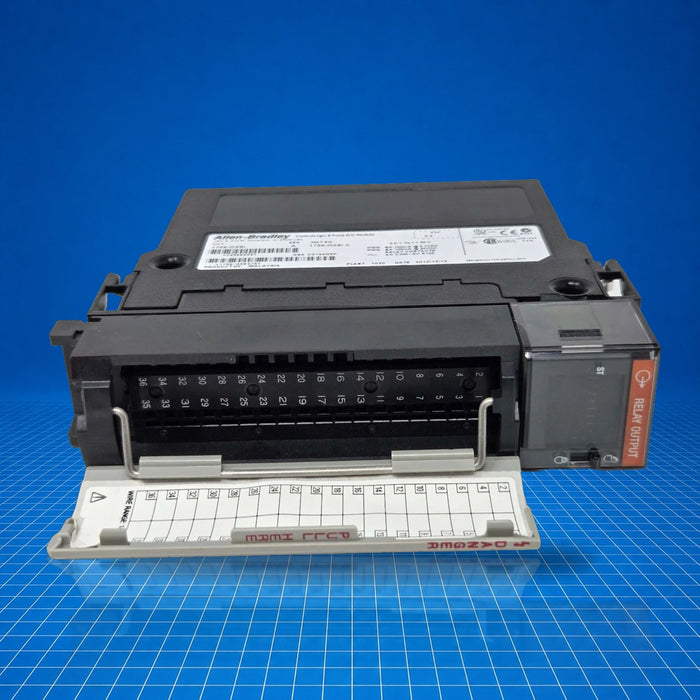

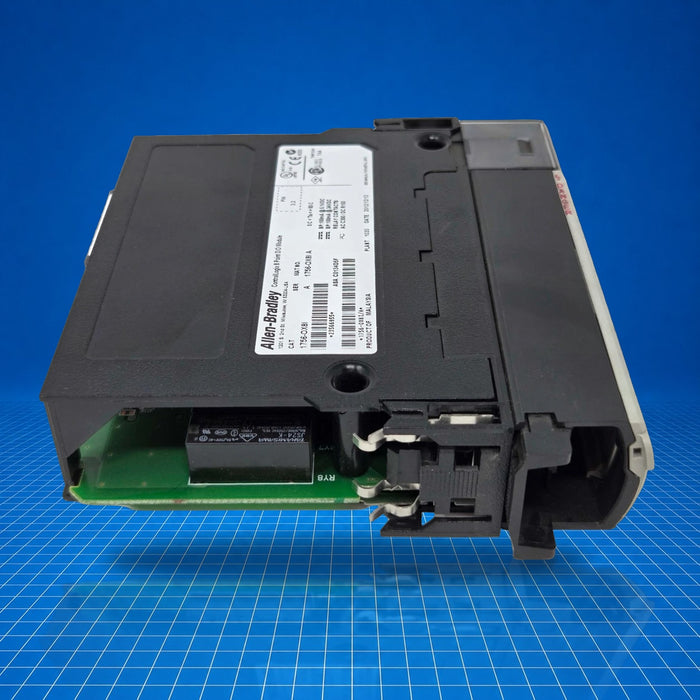

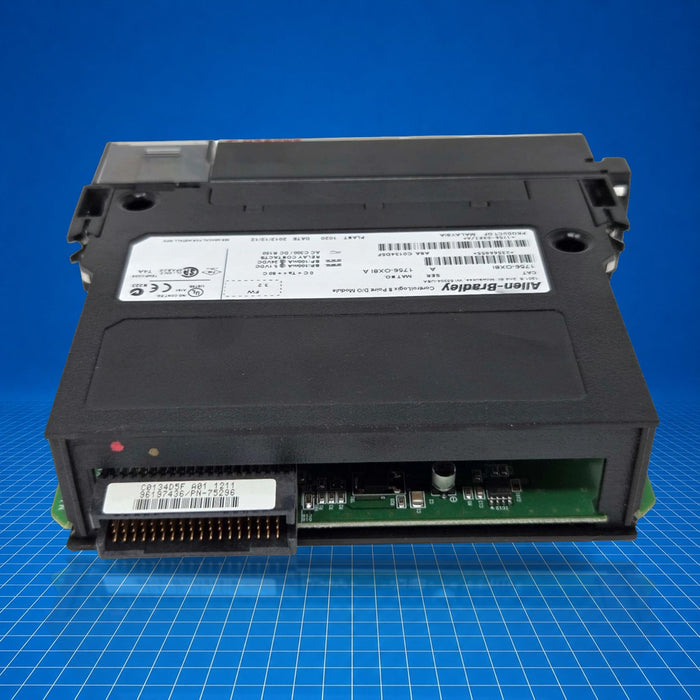

1756-OX8I Allen-Bradley
Original price
$400.00
-
Original price
$449.97
Original price
$400.00
$400.00
-
$449.97
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-OX8I is an Allen-Bradley ControlLogix discrete relay output module featuring eight individually isolated relay outputs. It installs into a standard ControlLogix chassis to drive field devices such as contactors, indicator lamps, solenoids, and alarms. It supports both DC and AC output voltages and integrates with redundancy and timing functions in industrial automation systems. Part number 1756-OX8I provides relay-based switching within distributed or localized control architectures.
Best Suited For
- ControlLogix chassis in manufacturing and process control
- Driving contactors, pilot lamps, solenoids, and alarms
- Applications requiring both Normally Open and Normally Closed outputs
- Scenarios with mixed DC/AC field device voltages
Outputs (isolated relay)
8 N.O., 8 N.C.
Output voltage range
5…125 V DC; 10…240 V AC
Contact current rating
1 A @ 5-30 V DC; 0.5 A @ 48 V DC; 0.22 A @ 125 V DC; 1.5 A @ 120 V AC; 0.75 A @ 240 V AC
Backplane power / current draw
2.9 W; 100 mA @ 5.1 V and 100 mA @ 24 V
Technical Specifications
I/O & Electrical
Number of channels
8 individually isolated relay outputs (N.O. + N.C.)
Output voltage range
5…125 V DC; 10…240 V AC
Contact current rating
1 A @ 5-30 V DC; 0.5 A @ 48 V DC; 0.22 A @ 125 V DC; 1.5 A @ 120 V AC; 0.75 A @ 240 V AC
Off-state leakage current per point, max
0 mA
Minimum load current per point
10 mA
Initial contact resistance, max
100 mΩ @ 6 V 1 A
Switching frequency, max
1 operation every 3 s (0.3 Hz)
Bounce time, mean
1.2 ms
Expected contact life
300 000 cycles resistive; 100 000 cycles inductive
Communication & Power
Total backplane power
2.9 W
Current draw @ 5.1 V
100 mA
Current draw @ 24 V
100 mA
Output delay time
13 ms max (Off → On and On → Off)
Power dissipation, max
3.1 W @ 60 °C (140 °F)
Thermal dissipation
10.57 BTU/hr
Physical & Environmental
Operating temperature
0 to 60 °C (32 to 140 °F)
Non-operating temperature
-40 °C
Enclosure type
None (open-style)
Slot width
1
RTB keying
User-defined mechanical; Electronic, software configurable
Wire category
1
Shock
Operating: 30 G; Non-operating: 50 G
Vibration
2 G @ 10-500 Hz
North American temperature code
T4A
Certifications
SafetyCEAustralian RCMEurasion Economic CommunityAmerican Bureau of ShippingUnited Kingdom Safety Certificate
