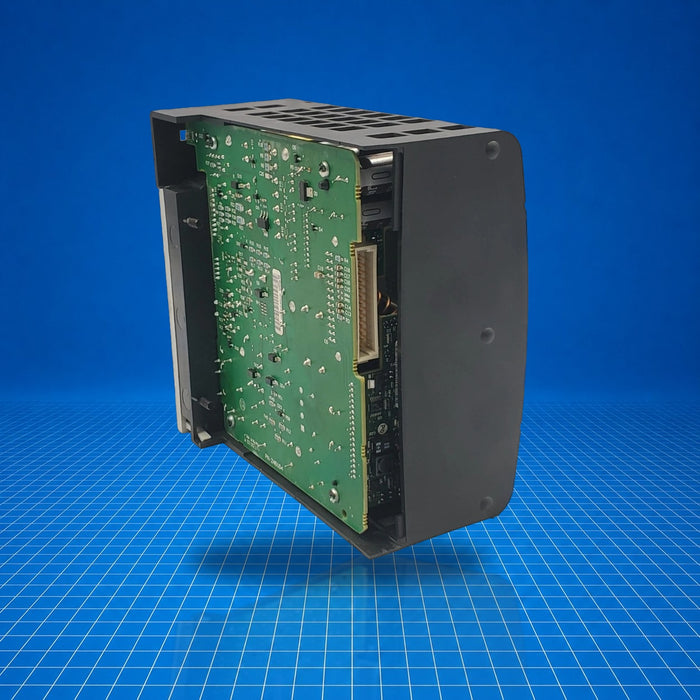

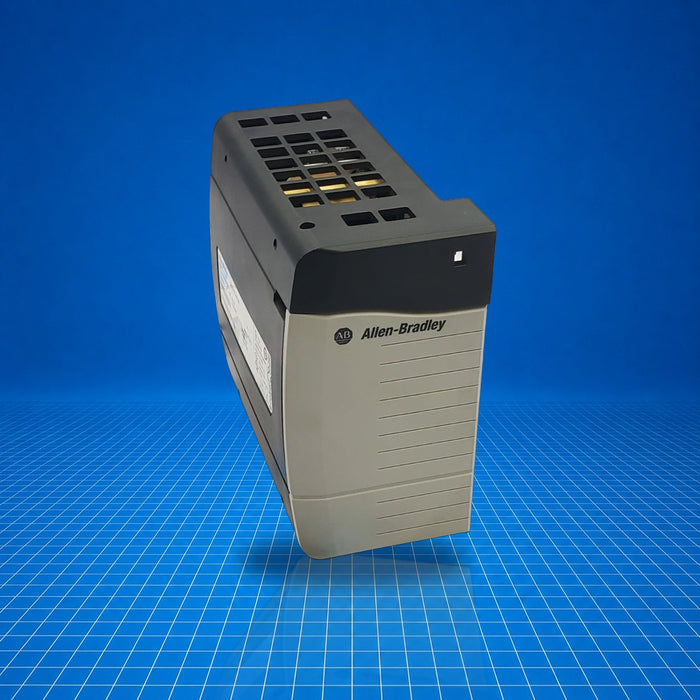

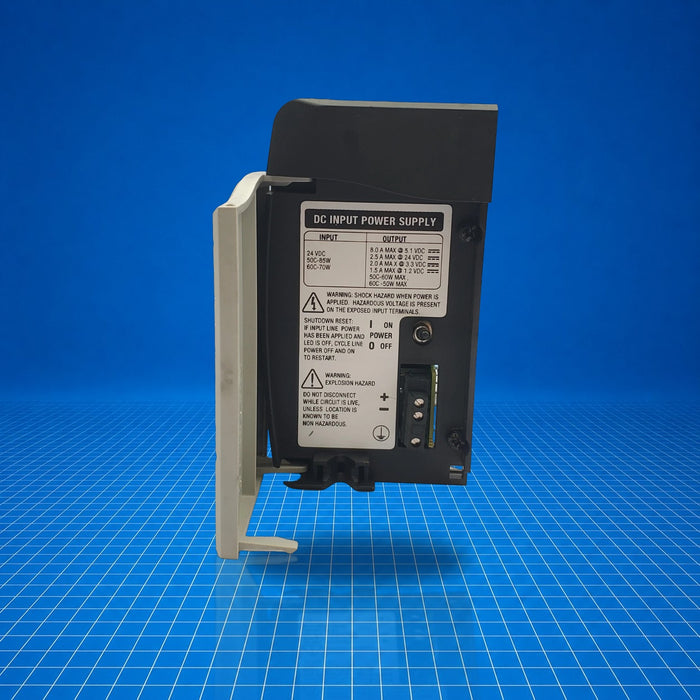

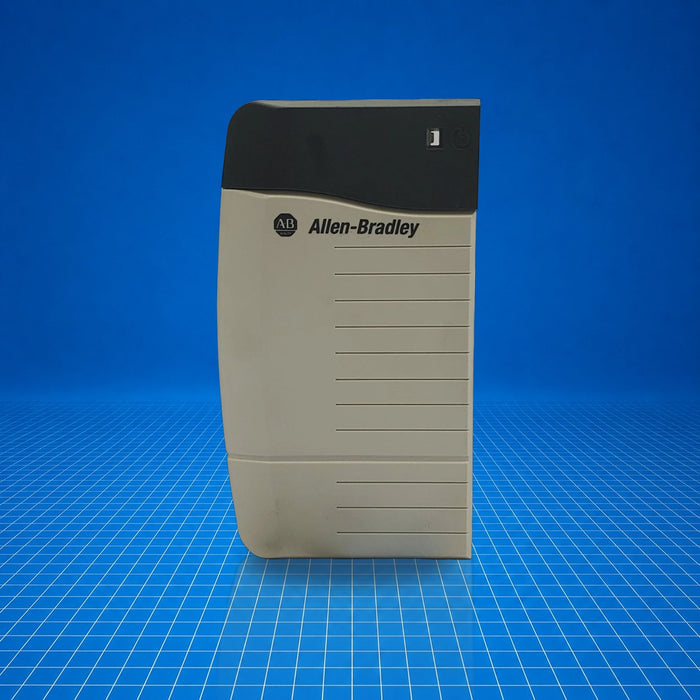

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

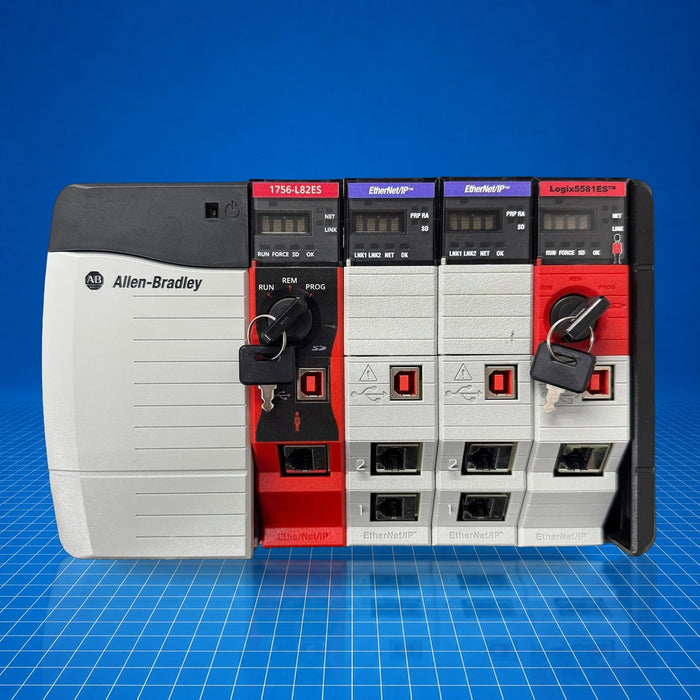

1756-PB50 Allen-Bradley
Original price
$0.00
-
Original price
$3,189.89
Original price
$3,189.89
$0.00
-
$3,189.89
Current price
$3,189.89
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-PB50 is a ControlLogix chassis DC power-supply module accepting 18-32 V DC input. It provides multiple DC output voltages to power backplane and modules in ControlLogix systems, supporting standard slim-style architecture. This module mounts in the chassis power-supply slot and supplies 5.1 V DC, 3.3 V DC, 1.2 V DC and 24 V DC outputs. It is used in industrial control applications requiring integrated power distribution within ControlLogix racks, such as machine control, discrete and process I/O systems. 1756-PB50 is part of the ControlLogix 1756 family of power-supply modules.
Best Suited For
- Chassis-based ControlLogix systems with DC input
- Environments requiring multiple supply voltages (5.1 V, 3.3 V, 1.2 V, 24 V)
- Slim DC power-supply requirement in automation racks

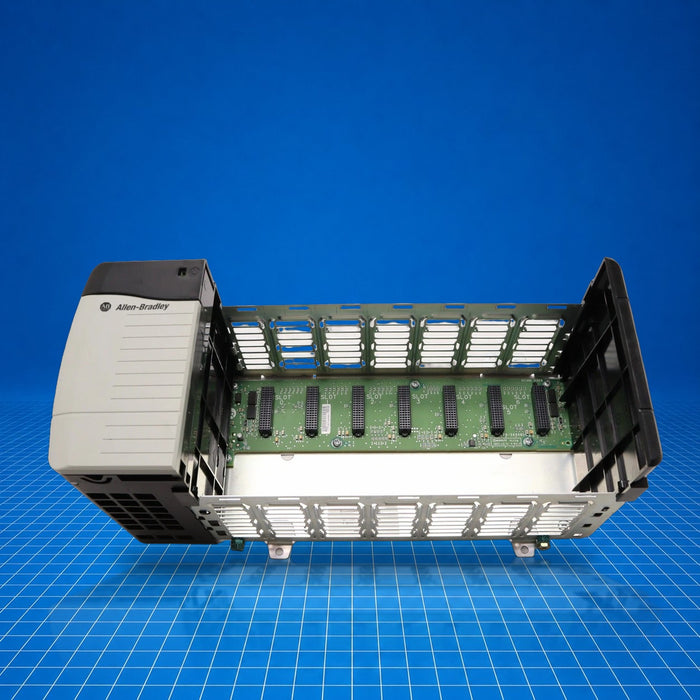

- Leftmost slot installation in 1756 chassis
Input voltage
18 … 32 V DC
Maximum output power
60 W @ 0 … 50 °C; 50 W @ 0 … 60 °C
Inrush current
30 A max
Weight
0.77 kg
Technical Specifications
I/O & Electrical
Input voltage range
18 … 32 V DC
Inrush current (max)
30 A
Hold-up time
30 ms @ 60 W; 40 ms @ 50 W
Communication & Power
Output voltages and currents
5 V DC @ 8 A; 3.3 V DC @ 2 A; 1.2 V DC @ 1.5 A; 24 V DC @ 2.5 A
Power output
60 W @ 0 … 50 °C; 50 W @ 0 … 60 °C
Input power, max
85 W @ 50 °C; 70 W @ 60 °C
Physical & Environmental
Dimensions (W × H × D)
78 mm × 140 mm × 145 mm
Weight
0.77 kg
Operating temperature
0 °C < Ta < +60 °C
Relative humidity
5 … 95 % noncondensing
Shock and vibration
Shock: 30 G; Vibration: 2 G @ 10-500 Hz
Enclosure type
None (open-style)
Certifications
China CCCCEATEXAustralian RCMIECEx SchemeEurasian Economic Community
