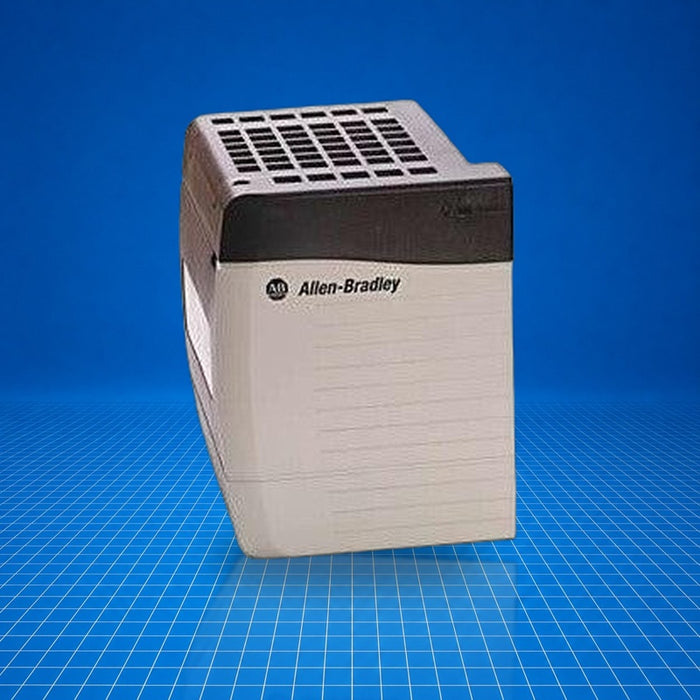

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

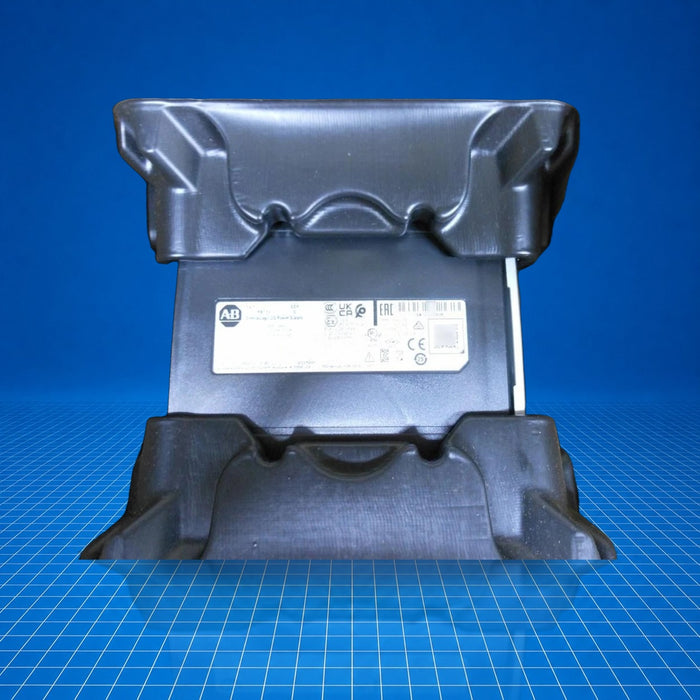

1756-PB72K Allen-Bradley
Original price
$1,689.95
-
Original price
$1,859.23
Original price
$1,859.23
$1,689.95
-
$1,859.23
Current price
$1,859.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-PB72K is an Allen-Bradley ControlLogix conformally coated DC power supply module. It accepts 24 V DC and provides multiple auxiliary voltages (5 V, 3.3 V, 1.2 V, and 24 V) to power ControlLogix modules. It delivers up to 75 W of power and is suited for use in industrial control systems operating in environments requiring conformal coating, such as manufacturing, process control, or other applications where humidity or particulates may be present. The 1756-PB72K provides reliable auxiliary power within a ControlLogix rack.
Best Suited For
- ControlLogix systems requiring conformally coated power supplies
- Environments with moisture, dust, or condensate exposure
- Applications needing multiple auxiliary voltage outputs (5 V, 3.3 V, 1.2 V, 24 V)
- Standard DC-powered control cabinets
Input voltage
24 V DC
Maximum output power
75 W
5.1 V output current
10 A
24 V output current
2.8 A
Inrush current
30 A
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Maximum input power
95 W
5.1 V output current
10 A
3.3 V output current
4 A
1.2 V output current
1.5 A
24 V output current
2.8 A
Maximum output power
75 W
Inrush current (max)
30 A
Physical & Environmental
Conformal coating
Yes
