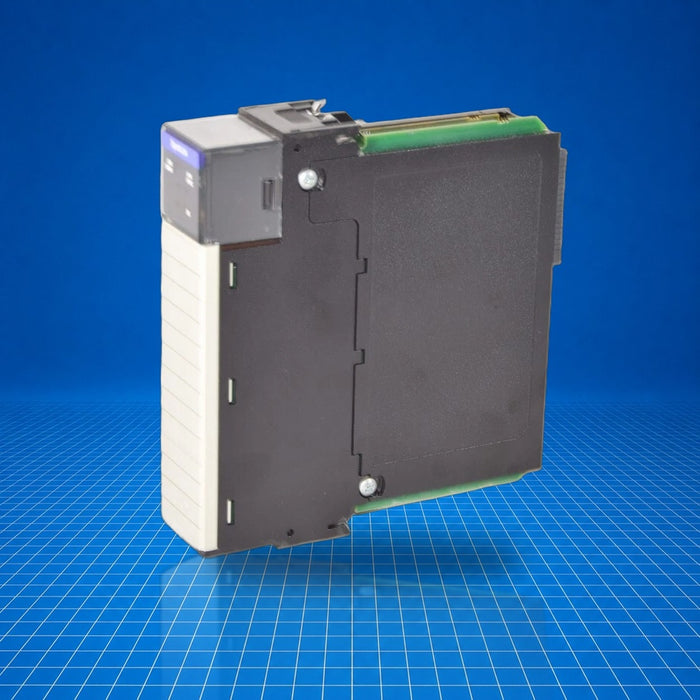

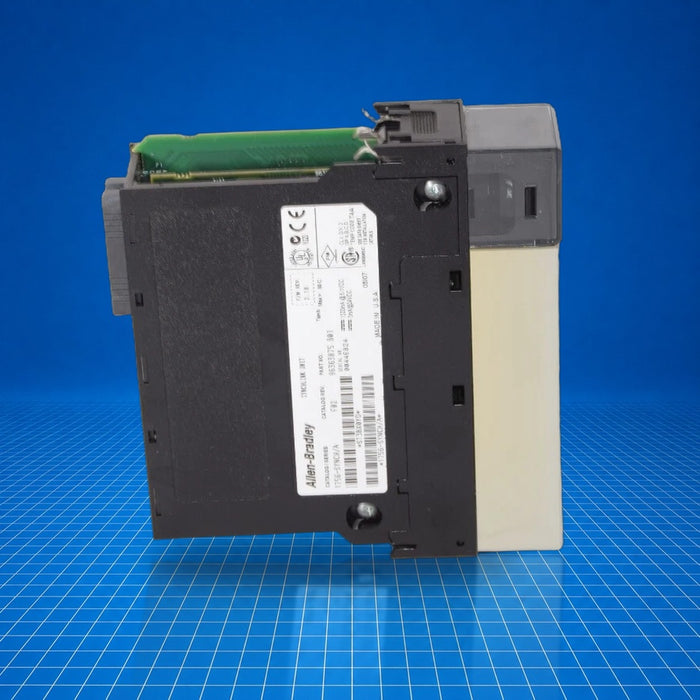

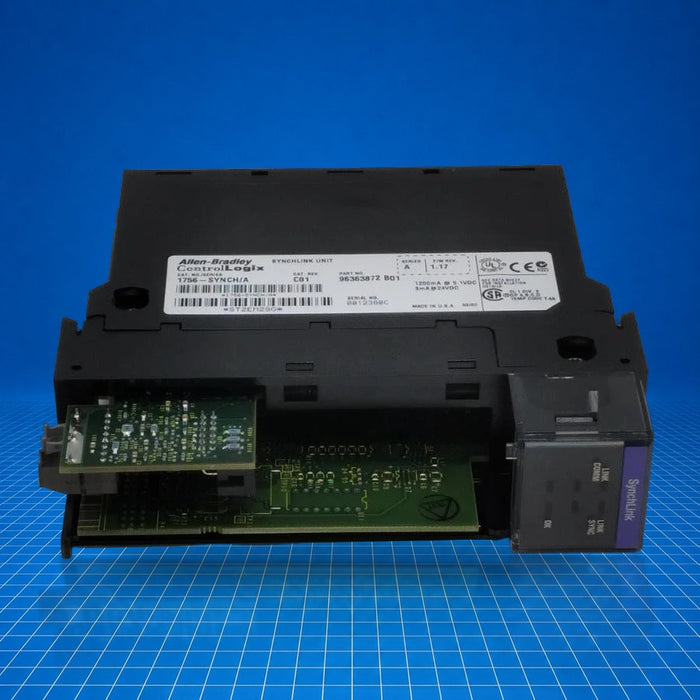

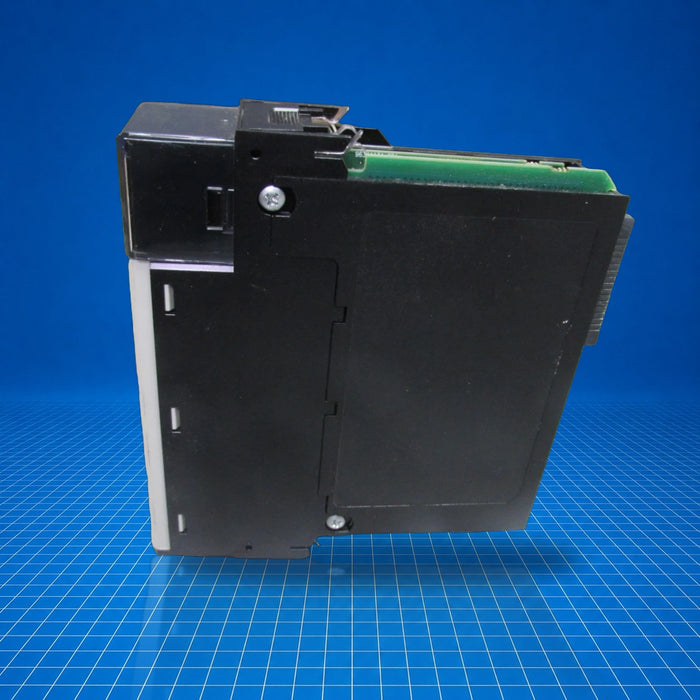

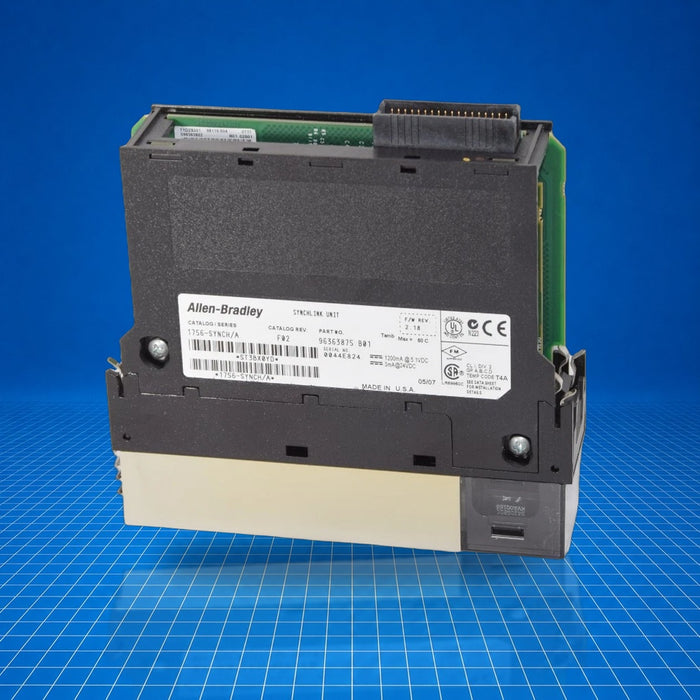

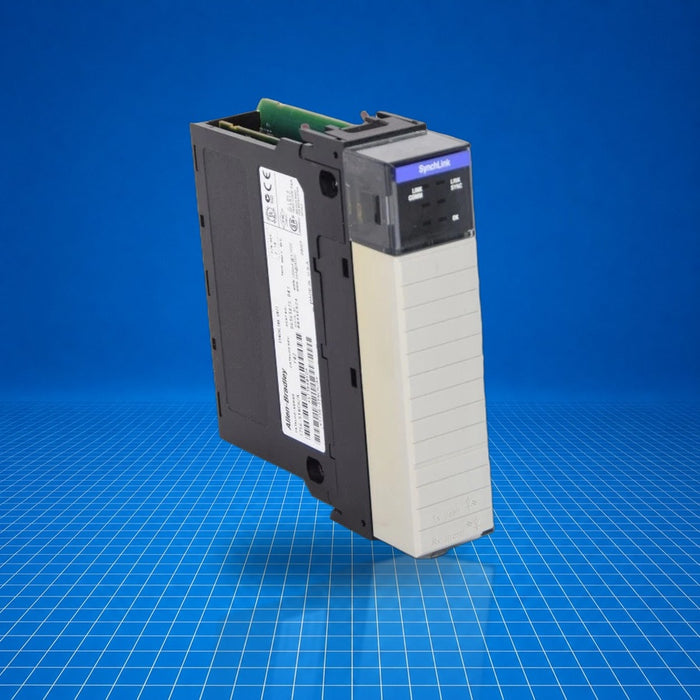

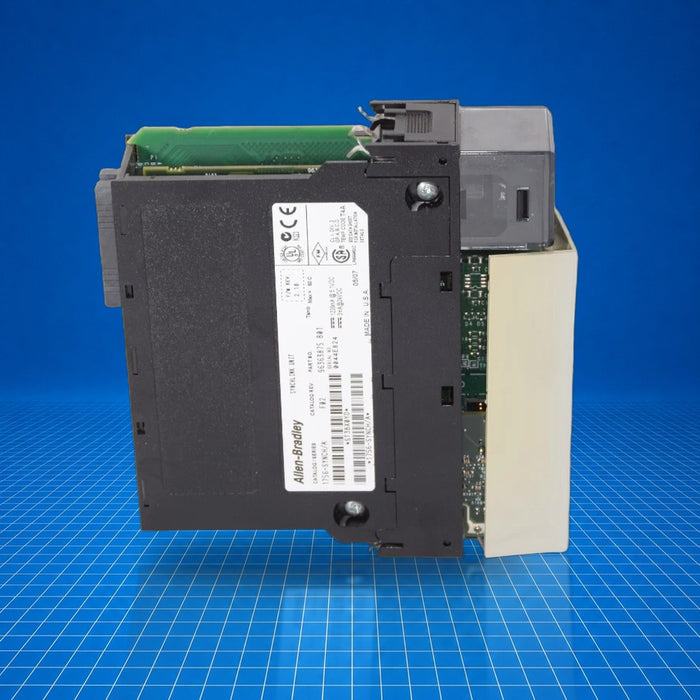

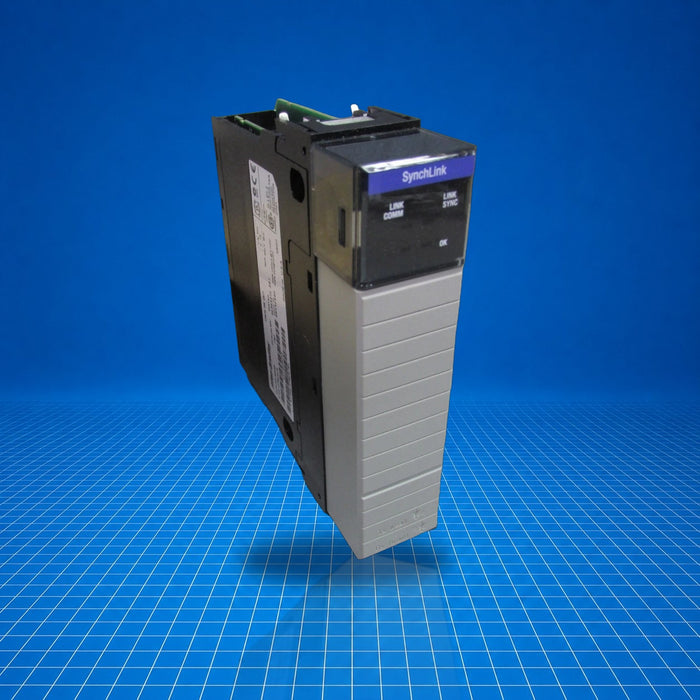

1756-SYNCH Allen-Bradley
Original price
$384.00
-
Original price
$907.47
Original price
$384.00
$384.00
-
$907.47
Current price
$384.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-SYNCH is an Allen-Bradley ControlLogix SynchLink communications module providing synchronous fiber-optic time synchronization and limited high-speed data broadcasting between distributed motion or drive control chassis. The module installs in any ControlLogix chassis slot and enables coordinated motion or data exchange across multiple chassis platforms in industrial automation systems. 1756-SYNCH supports networked synchronized control architectures requiring time alignment and cross-chassis data sharing.
Best Suited For
- Distributed motion systems with coordinated drives
- Time synchronization across ControlLogix chassis
- Cross-chassis data exchange in modular automation setups
- Fiber-optic based communication networks
Communication type
Synchronous (SynchLink)
Data rate
5 Mbps
Ports
2 fiber-optic
Power dissipation
6.2 W
Current draw @ 5.1 V DC
1200 mA
Technical Specifications
I/O & Electrical
Data rate
5 Mbps
Operating wavelength
650 nm (red)
Frame period
50 µs
Frame parameters
3 Flags (3 bytes); Control field (1 byte); Data field (24 bytes); CRC field (2 bytes)
Communication & Power
Ports
2 fiber-optic
Cable fiber type
200/230 μm HCS (Hard Clad Silica)
Cable fiber termination type
VersaLink V-System
Cable length
1…300 m (3.28…984.2 ft)
Current draw @ 5.1 V DC
1200 mA
Current draw @ 24 V DC
3 mA
Power dissipation
6.2 W
Thermal dissipation
21.2 BTU/hr
Physical & Environmental
Slot width
1
Module location
Chassis-based, any slot
Supported chassis
1756-A4, -A7, -A10, -A13, -A17
Operating temperature
0…60 °C (32…140 °F)
Storage temperature
-40…+85 °C (-40…+185 °F)
Relative humidity
5…95 % noncondensing
Vibration, operating
2 g @ 10…500 Hz
Shock, operating
30 g
Shock, non-operating
50 g
Enclosure type rating
None (open-style)
Certifications
SafetyCEAustralian RCM
Certified: Safety, CE, Australian RCM (as of April 28, 2026) per Rockwell Automation documentation.
