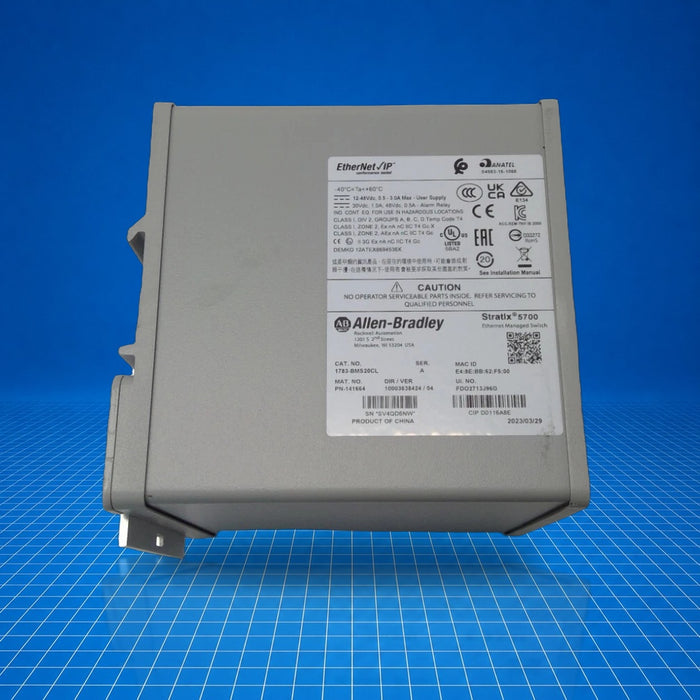

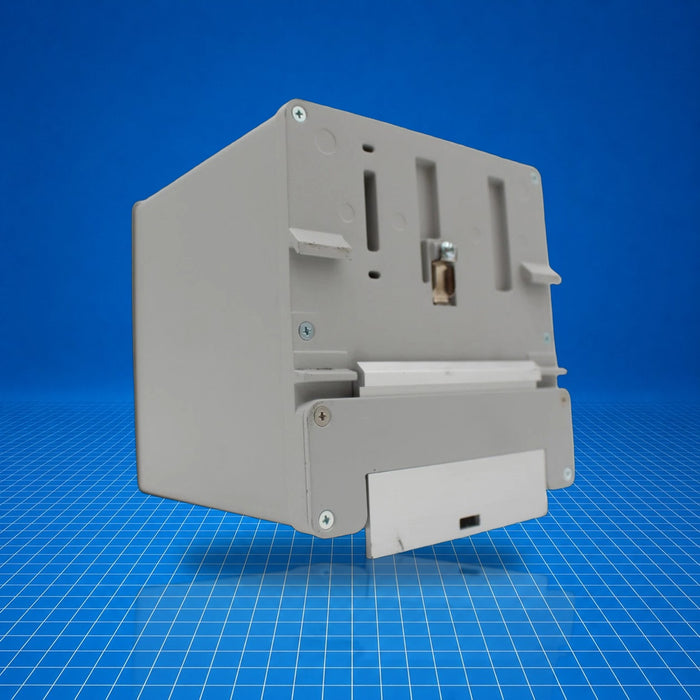

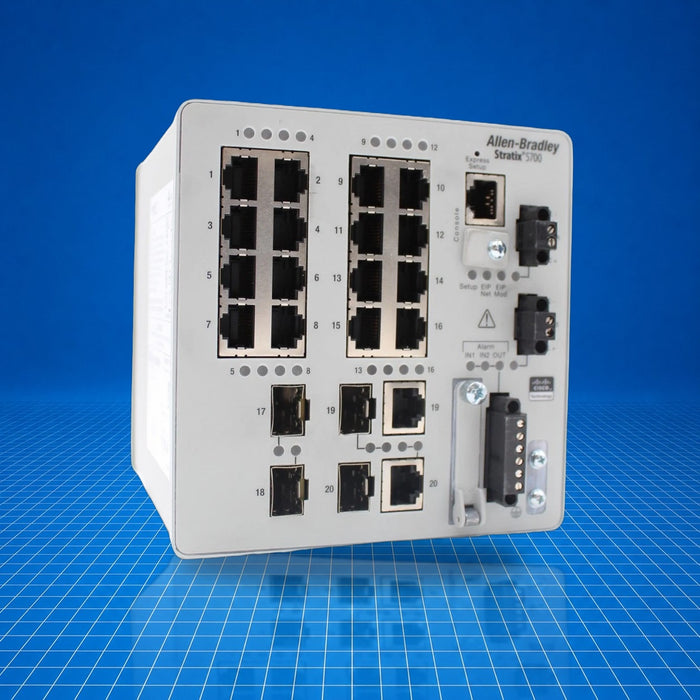

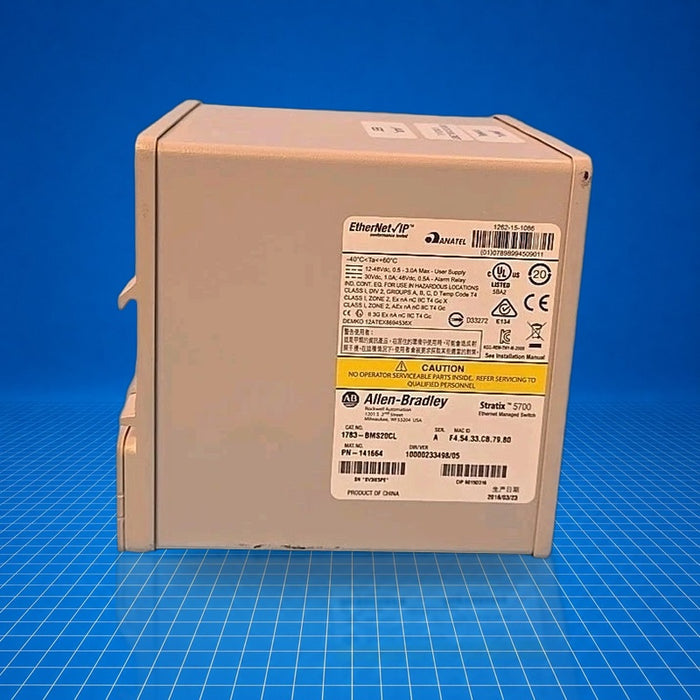

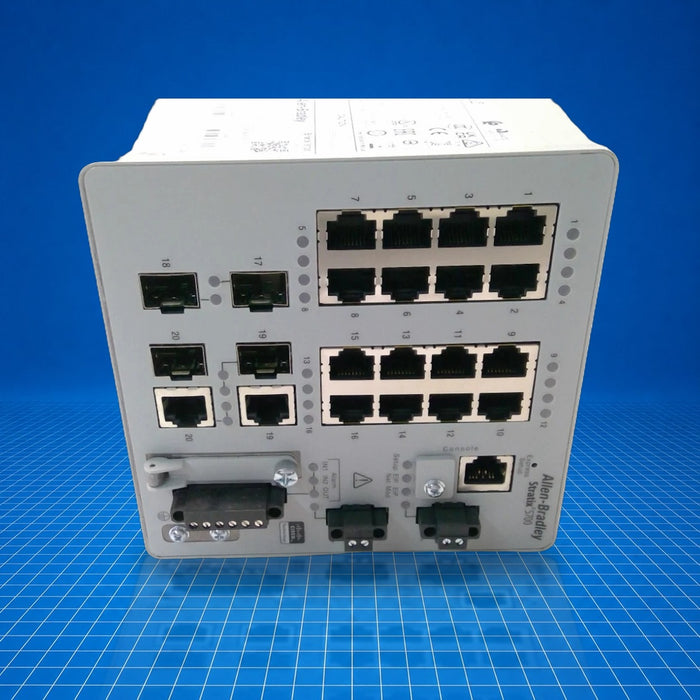

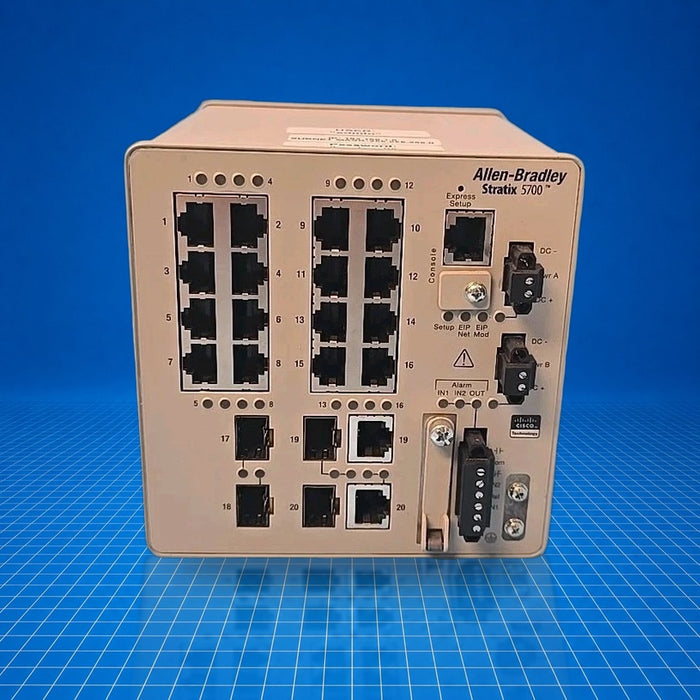

1783-BMS20CL Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1783-BMS20CL Allen-Bradley

$682.00 - $2,293.49
$682.00
$682.00 - $2,293.49
$682.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$682.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,293.49
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1783-BMS20CL is an Allen-Bradley Stratix 5700 managed Ethernet switch designed for industrial control networks. It provides 20 ports-including 16 Fast Ethernet RJ45 ports and 2 combination (RJ45/SFP) ports, plus 2 Fast Ethernet SFP-only ports-providing Layer 2 management (Lite firmware) and support for Device Level Ring (DLR). Typically used for Ethernet/IP and managed network segments, it serves in machine-level and control-panel installations where deterministic network paths and redundancy are required. Refer to part number 1783-BMS20CL for specifications.

Best Suited For

  • EtherNet/IP managed network segments
  • Redundant network topologies using Device Level Ring (DLR)
  • DIN-rail mount machine-level installations
  • Stratix 5700 family network infrastructure
Total ports
20
RJ45 ports (Fast Ethernet)
16
Combo RJ45/SFP ports
2
SFP slots (FE)
2
Power consumption (max)
30 W

Technical Specifications

I/O & Electrical

Alarm relay rating
1 A @ 30 V DC; 0.5 A @ 48 V DC
Power input
12-48 V DC
Power consumption (max)
30 W
Power consumption @24 V DC, 40 °C
21 W
Power dissipation
30 W

Communication & Power

Firmware type
Lite
Device Level Ring (DLR)
Yes
Network type
Ethernet, 10/100 Mbps

Physical & Environmental

Mounting method
DIN rail (top-hat rail)
Dimensions (W×H×D)
12.7 × 12.95 × 13.58 cm
Weight
2.04 kg (approx.)
Operating temperature
-40 °C to 60 °C
Degree of protection
IP30

Certifications

China CCCMorocco DOCUKCAUK EX

Certified as of April 28, 2026: China CCC, Morocco DOC, UKCA, UK EX Certificate.
