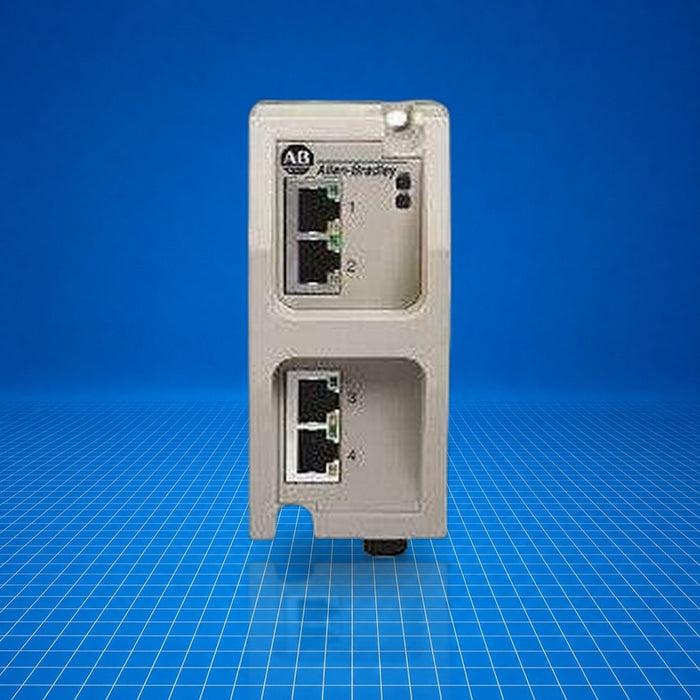

1783-EMS04T Allen-Bradley
Original price
$357.00
-
Original price
$525.00
Original price
$357.00
$357.00
-
$525.00
Current price
$357.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1783-EMS04T is an Allen-Bradley Stratix 6000 fixed managed Ethernet switch platform with four 10/100 Mbps RJ45 ports. It serves as a managed network infrastructure component within control systems, providing managed switching functions such as IGMP snooping, DHCP/BOOTP, and CIP-enabled diagnostics. Typical use includes industrial Ethernet/IP network segmentation, machine-level switch management, and integration with Logix controllers and FactoryTalk environments. The part number 1783-EMS04T identifies this specific 4-port managed switch variant.
Best Suited For
- EtherNet/IP control network segmentation
- Integration with Logix controllers via RSLogix 5000 AOP
- Machine-level managed switching on the plant floor
- IGMP multicast filtering for improved network performance
Copper Ethernet Ports
4 (10/100 RJ45)
Input Voltage
12…48 V DC (100 mA @ 24 V DC)
Power Dissipation
2.6 W (60 °C) max
Operating Temperature
0 … 60 °C
Enclosure Type
Open-style (no enclosure rating)
Technical Specifications
I/O & Electrical
Copper ports
4 × 10/100 Mbps RJ45
Input voltage
12…48 V DC (Class 2/SELV)
Input current
100 mA @ 24 V DC
Inrush current, max
2.2 A
Power dissipation
2.6 W @ 60 °C
Communication & Power
Protocols supported
IGMP snooping, DHCP, BOOTP, HTTP, Telnet, SMTP, TCP/IP
Diagnostics support
EtherNet/IP Add-On Profile (AOP) via RSLogix 5000
Physical & Environmental
Operating temperature
0 … 60 °C (+32 … +140 °F)
Storage temperature
-40 … +85 °C
Wire size, DC power
0.33…3.3 mm² (22-12 AWG)
Wire size, Ethernet
2- or 4-pair Cat 5e minimum
Wire size, ground
3.3 mm² (12 AWG)
Terminal torque, power/ground
1.36 N·m (12 lb-in)
