1783-HMS4C4CGN Allen-Bradley
Original price
$1,307.05
-
Original price
$2,384.46
Original price
$1,307.05
$1,307.05
-
$2,384.46
Current price
$1,307.05
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

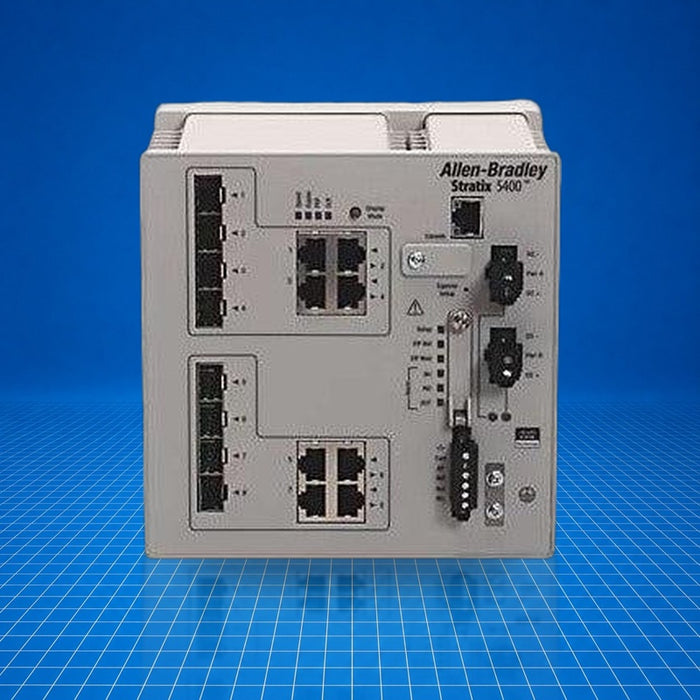

The 1783-HMS4C4CGN is a Stratix 5400 managed industrial Ethernet switch from Allen-Bradley. It provides Layer 2 Ethernet switching with four 10/100 Mbps combo ports and four 10/100/1000 Mbps combo ports. The unit supports CIP Sync (IEEE 1588), Device Level Ring (DLR), and Network Address Translation (NAT). Typically installed on DIN-rail within control cabinets, it is used in distributed Ethernet networks to support managed traffic flows in machine-level and facility-level automation systems.
Best Suited For
- DIN-rail installation in control panels
- Managed Layer 2 Ethernet networks with CIP Sync requirements
- Device-Level Ring (DLR) network topologies
- Industrial environments requiring NAT functionality
Total ports
8 (4 FE + 4 GE combo)
Layer support
Layer 2 only
Synchronization
CIP Sync (IEEE 1588)
Power consumption
40 W @ 24 V DC @ 40 °C
Power input
4.3 A max @ 12-54 V DC
Technical Specifications
I/O & Electrical
Power input
4.3 A max @ 12-54 V DC
Power consumption
40 W @ 24 V DC @ 40 °C
Power dissipation
40 W
Communication & Power
Total Ethernet ports
8 combo ports (4 FE + 4 GE)
Layer
Layer 2
CIP Sync
Yes (IEEE 1588)
NAT
Yes
DLR
Yes
Physical & Environmental
Mounting
DIN-rail (top-hat rail)
Operating temperature
-40 °C to +70 °C
Dimensions (W × H × D)
15.54 cm × 16.45 cm × 14.67 cm
Weight
2.88 kg
