1783-MX08F Allen-Bradley

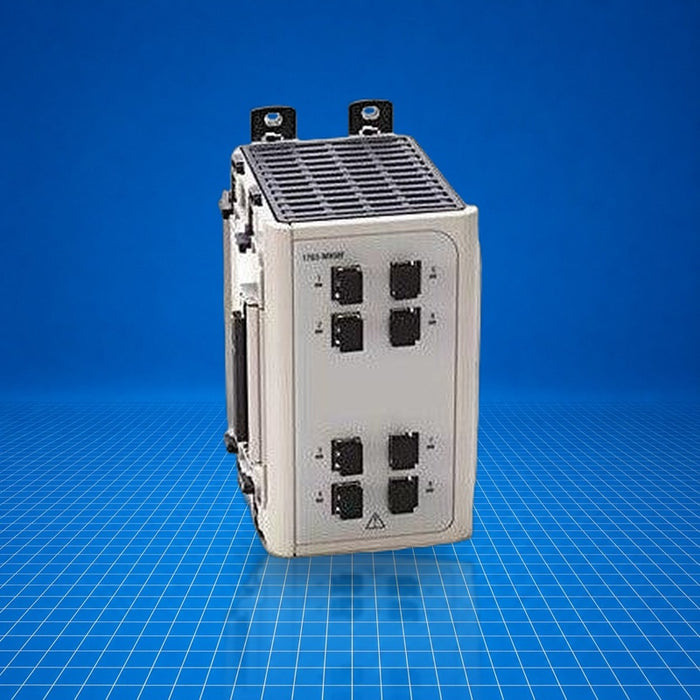

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1783-MX08F Allen-Bradley

$498.12 - $660.00
$498.12
$498.12 - $660.00
$498.12
Surplus - Tested (With Warranty)
Need a Specific Revision?
$498.12
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$660.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1783-MX08F is an expansion module from the Allen-Bradley Stratix 8000 series, providing eight 100 Base-F fiber-optic Ethernet ports for managed switch systems. It attaches to Stratix 8000/8300 base switch modules, enabling extended fiber connectivity in industrial Ethernet networks. The module supports multimode fiber communications up to 2000 m and integrates into control systems requiring isolated, managed fiber links. Part number 1783-MX08F is intended for expanding managed switch networks via fiber interfaces.

Best Suited For

  • Expanding Stratix 8000/8300 managed switch fiber capacity
  • Long-distance multimode fiber links (up to 2000 m)
  • Industrial Ethernet networks with managed switch architecture
  • Remote fiber-optic expansion in control enclosures
Fiber ports (100 Base-F)
8
Ethernet data rate
100 Mbps
Power consumption
10.1 W
Backplane power
3.3 V DC @ 3.6 A

Technical Specifications

I/O & Electrical

Ethernet data rate
100 Mbps
Connecting mode
Full-duplex
Connector type
IEC 61754-20 LC
Optical wavelength
1310 nm
Optical cable length, graded-index multimode fiber, max
2000 m
Optical link budget, 50/125 µm multimode
4 dB
Optical link budget, 62.5/125 µm multimode
8 dB

Communication & Power

Power consumption, maximum
10.1 W
Power dissipation
10.1 W
Backplane power, maximum
3.3 V DC @ 3.6 A

Physical & Environmental

Width
9.81 cm
Height
14.8 cm
Depth
11.75 cm
Operating temperature, surrounding air, max
60 °C
Operating temperature, cold-dry heat
-40 °C to 60 °C
Shock, operating (IEC 60068-2-27)
20 g
Shock, non-operating
30 g
Vibration, operating (10-500 Hz)
2 g
Relative humidity, non-condensing
5 % (as tested)

Certifications

ATEX (Category 3)MOROCCO DOC

Included in DEMKO ATEX Type Examination Certificate for Category 3 equipment; also subject to MOROCCO DOC certification. Consult specific unit labeling for exact certification set.
