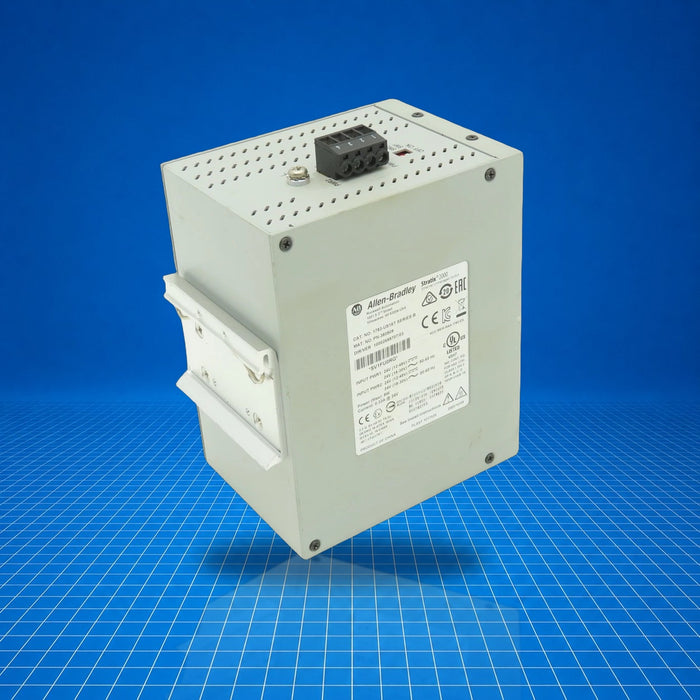

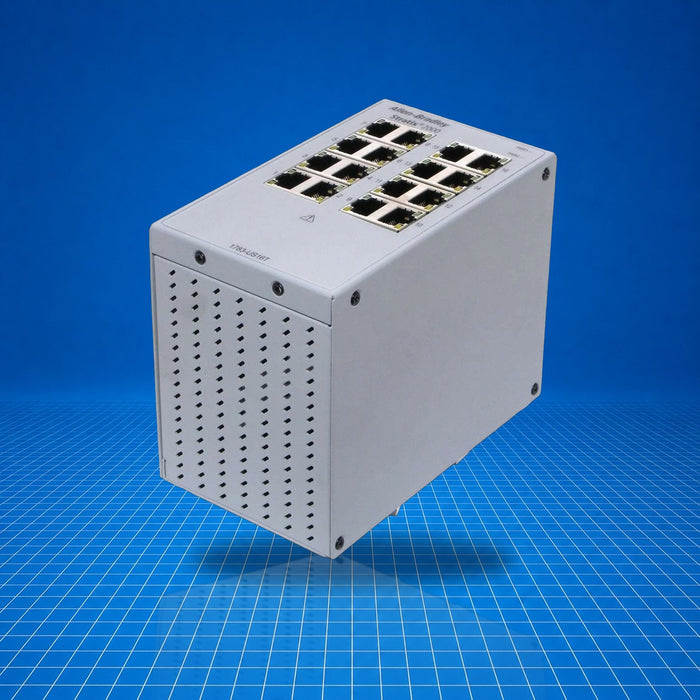

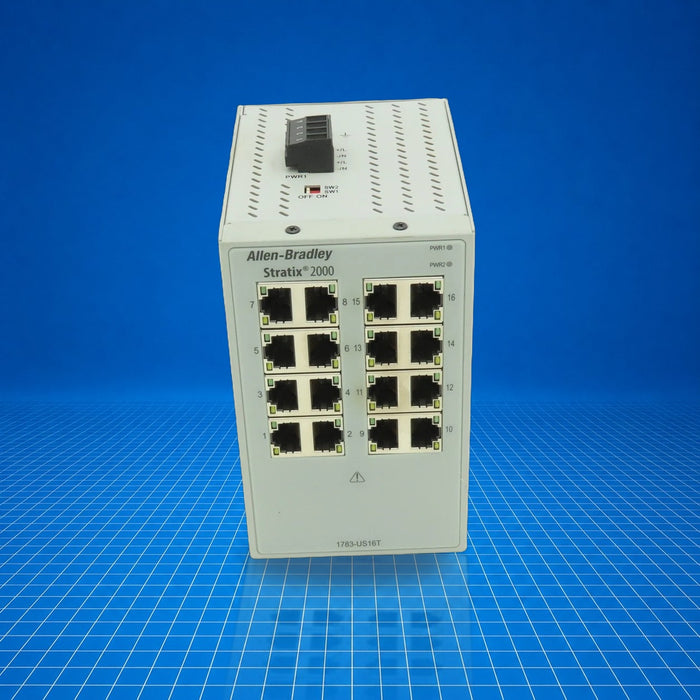

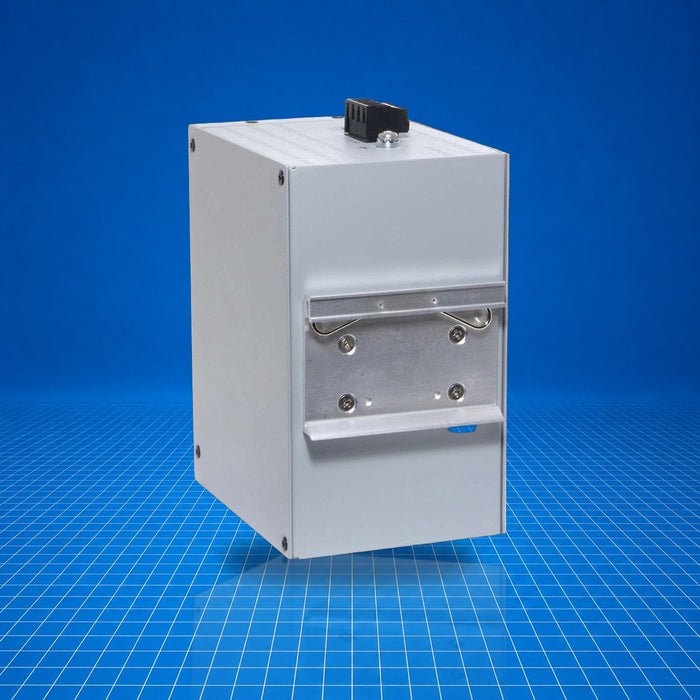

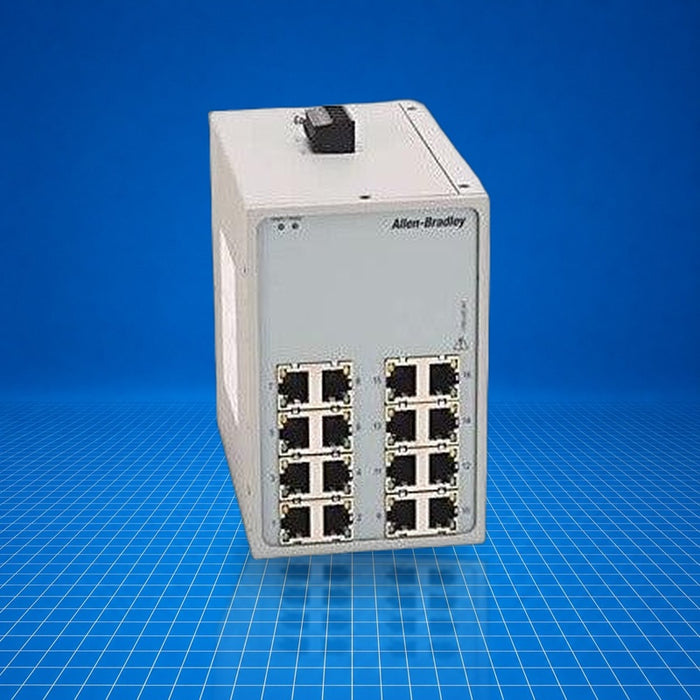

1783-US16T Allen-Bradley

Original price $599.97 - Original price $1,042.25
Original price
$599.97
$599.97 - $1,042.25
Current price $599.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$599.97
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,042.25
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

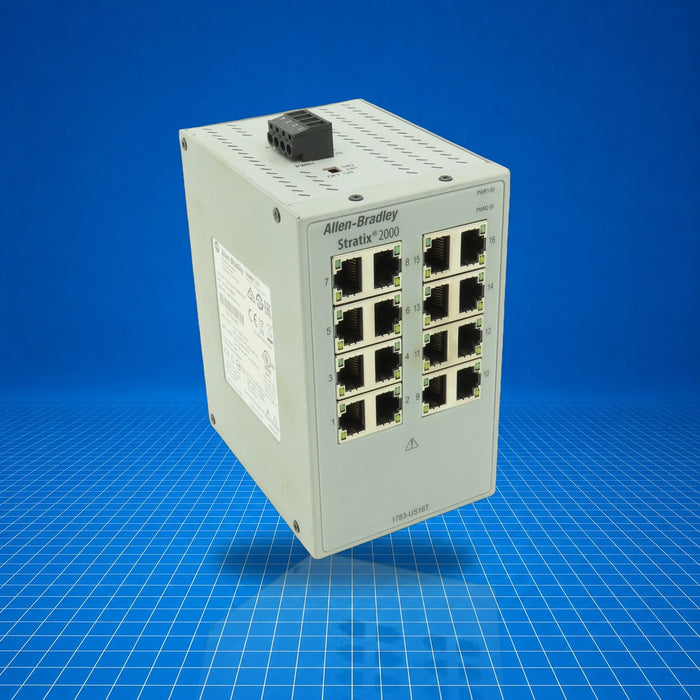

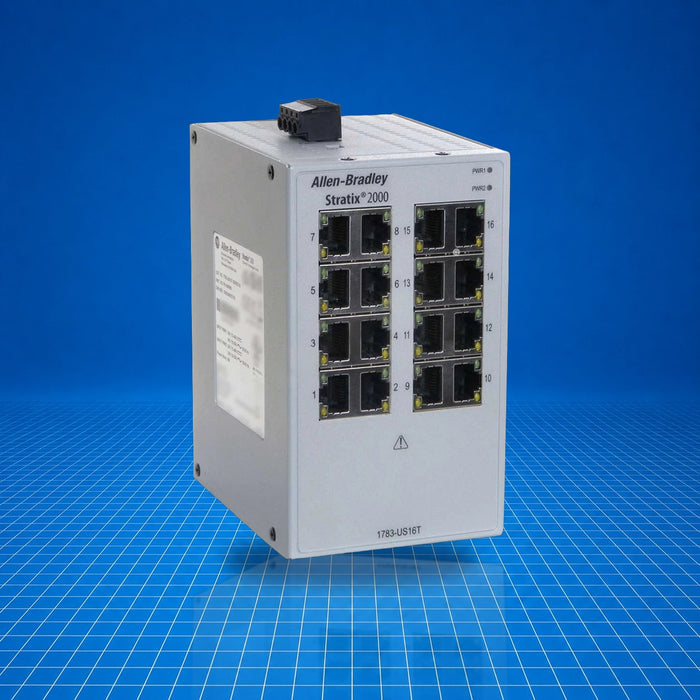

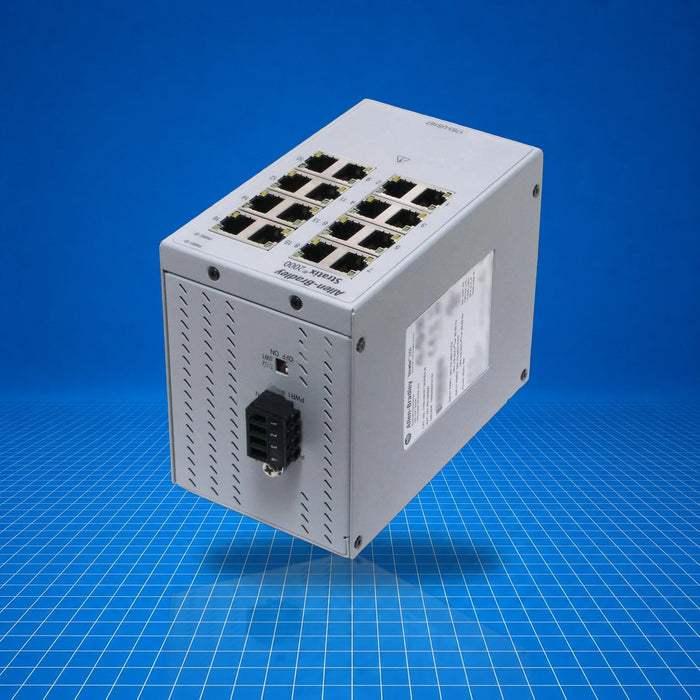

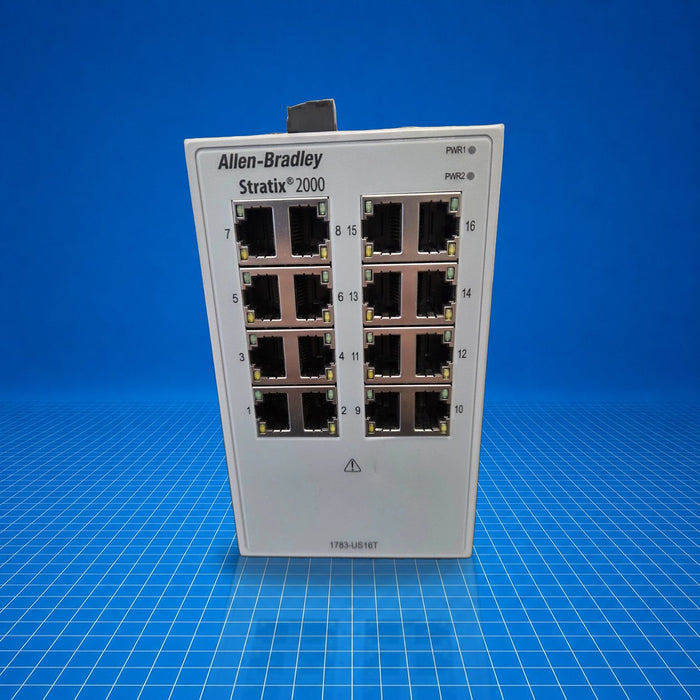

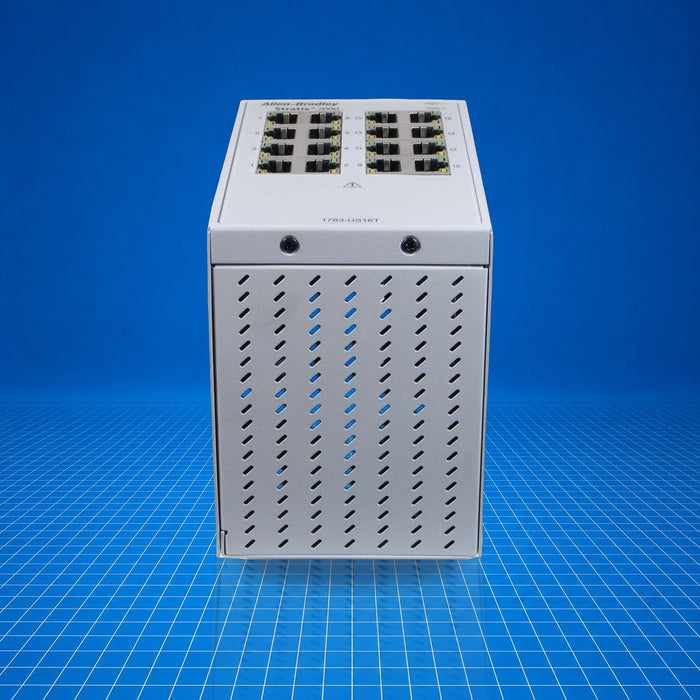

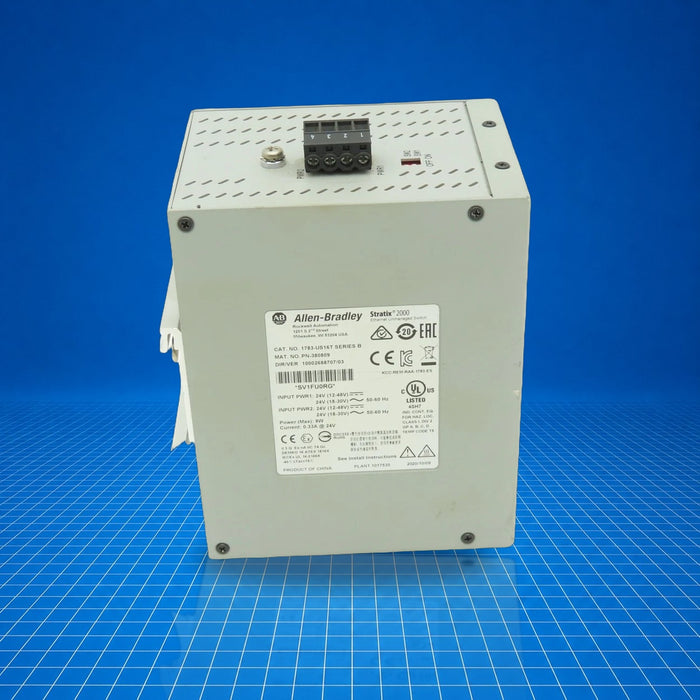

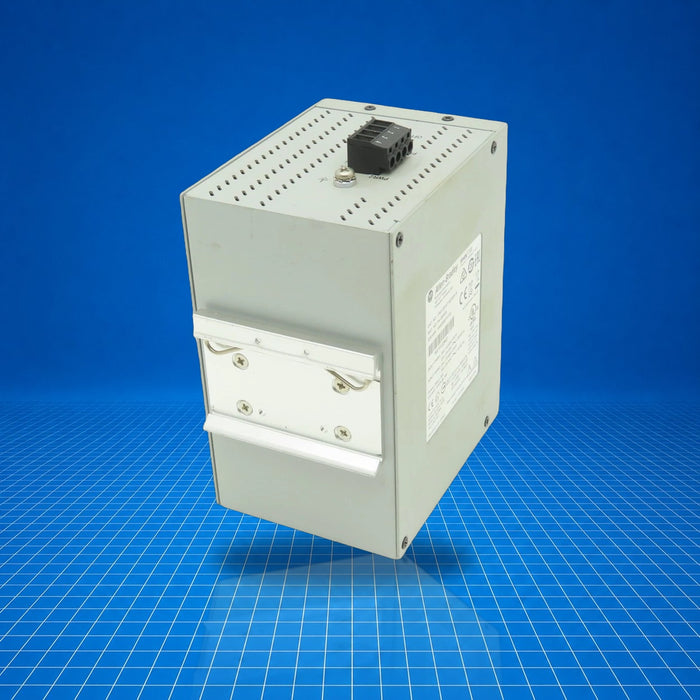

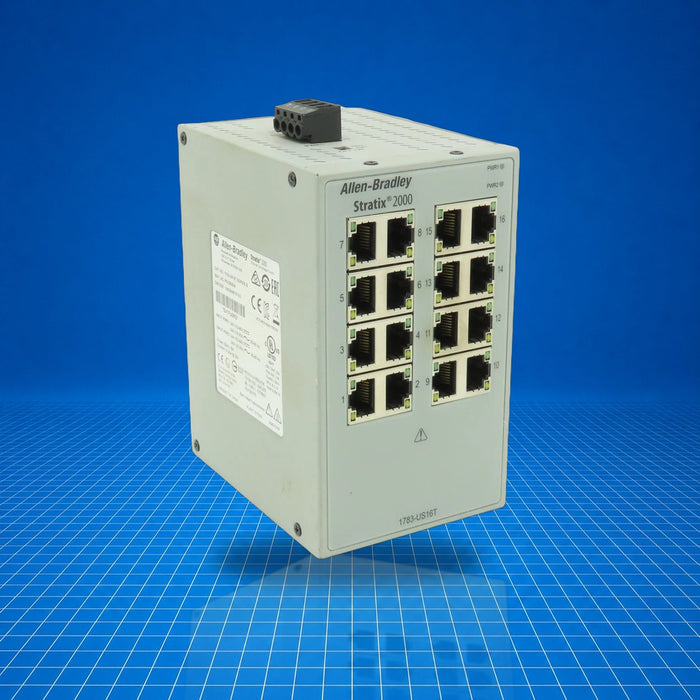

The Allen-Bradley 1783-US16T is a Stratix 2000 unmanaged Ethernet switch offering sixteen 10/100 Mbps RJ-45 ports for industrial control networks. As a fixed-port unmanaged layer-2 device, it enables basic Ethernet connectivity within control cabinets or machine environments without requiring configuration. It supports both AC and DC power inputs with broad voltage tolerance, DIP switch-controlled broadcast storm protection, and DIN-rail mounting. The 1783-US16T is typically used to extend or segment Ethernet networks in mid-sized industrial systems where simple, reliable port expansion is needed. 1783-US16T.

Best Suited For

  • DIN-rail mounted control panels
  • Segmenting mid-sized industrial Ethernet networks
  • Adding unmanaged port expansion to Logix-based systems
  • Harsh environments requiring wide-temperature industrial switches
Ports
16 Fast Ethernet RJ-45
Power input range
12-48 V DC, 18-30 V AC
Nominal/current
430 mA DC; 860 mA AC
Operating temperature
-40 to 70 °C
Mounting
DIN-rail

Technical Specifications

I/O & Electrical

Power input
12-48 V DC; 18-30 V AC
Nominal current
430 mA DC; 860 mA AC
Maximum current
900 mA DC; 1800 mA AC
Max inrush current
0.47 A
Max power consumption
8.0 W

Communication & Power

Ports
16 Fast Ethernet RJ-45
Broadcast storm threshold
10 Mbps per port
Broadcast storm protection
DIP-switch controlled

Physical & Environmental

Dimensions
5.27 × 4.52 × 3.13 in (134 × 115 × 79.6 mm)
Weight
1.56 lb (0.71 kg)
Operating temperature
-40 to 70 °C
Wire size (ground)
14 AWG copper
Mounting
DIN-rail

Certifications

c-UL-usCEKCRCMEx

c-UL-us, CE, KC, RCM, Ex certified as per distributor listing.
