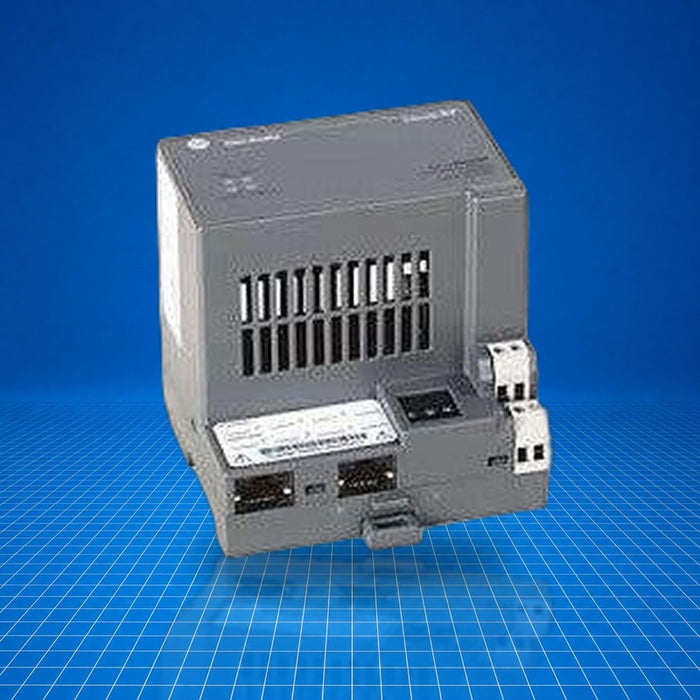

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1794-AENTRXT Allen-Bradley
Original price
$1,737.50
-
Original price
$1,898.75
Original price
$1,898.75
$1,737.50
-
$1,898.75
Current price
$1,898.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1794-AENTRXT is a Flex XT dual-port EtherNet/IP adapter module in the FLEX I/O 1794 family. It functions as the communication interface between FLEX I/O modules and an EtherNet/IP network, providing two RJ-45 Ethernet ports for redundant or dual-path connectivity. Equipped with conformal coating and an extended operating temperature rating, it is suited for installations requiring extended ambient conditions and hazardous-location compliance. Part number 1794-AENTRXT.
Best Suited For
- Hazardous or noxious environments requiring Ex nA IIC T4 Gc compliance
- Installations with extended temperature range (-25 °C to 70 °C)
- Systems needing dual Ethernet ports for redundancy
- Flex I/O XT expansions in remote or harsh areas
Operating Temp Range
-25 to 70 °C
Power Dissipation
6.1 W @ 19.2 V DC
I/O Module Capacity
8 I/O modules
Ethernet Ports
2 RJ-45
Input Voltage Range
19.2 to 31.2 V DC
Technical Specifications
I/O & Electrical
Input voltage range
19.2 to 31.2 V DC
Nominal input voltage
24 V DC
Typical current draw
400 mA @ 24 V DC
Peak current draw
500 mA @ 24 V DC
Communication & Power
EtherNet/IP ports
2 RJ-45 Cat-5
Ethernet data rate
10/100 Mbps
Power dissipation
6.1 W @ 19.2 V DC
Thermal dissipation
20.8 BTU/hr
Physical & Environmental
Operating temperature
-25 to 70 °C
Enclosure type
Open-style
Weight
227 g
Dimensions (H×W×D)
87.4 × 94 × 92 mm
Certifications
UL ListedCEATEXIECExChina CCCRCMKorean KCRegistro Italiano Navale
Conformal coating per ISA/ANSI-71.04-1985; North American hazardous-location rating Ex nA IIC T4 Gc.
