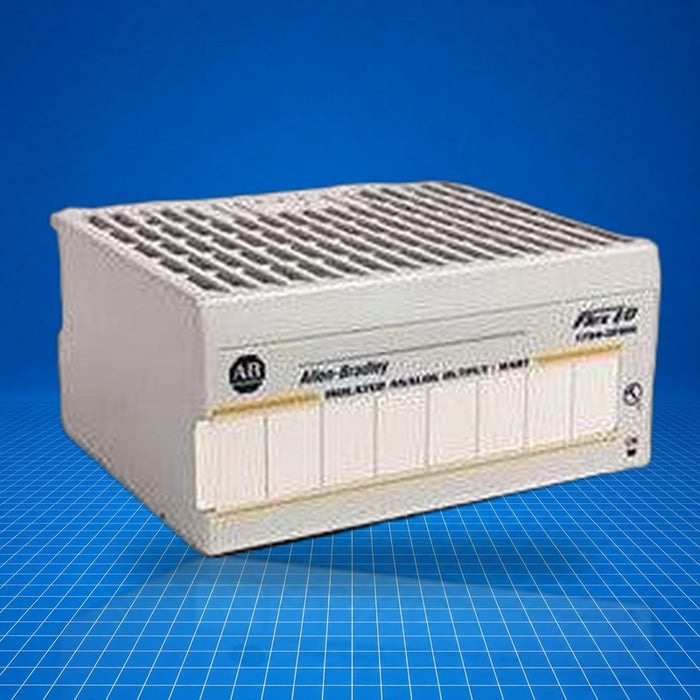

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1794-OE4 Allen-Bradley

Name: 1794-OE4 Allen-Bradley
Brand: Allen Bradley
SKU: 1794-OE4
Price: 450.0 USD
Availability: InStock

$450.00 - $600.00

$450.00

$450.00 - $600.00

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1794-OE4 is a Flex I/O 4-point analog output module, part of the Flex I/O platform. It provides four single-ended outputs, configurable for voltage or current, and communicates over the Flexbus through a terminal base. It is typically used in control systems to drive analog field devices such as actuators, valves, or instruments. The module integrates into industrial automation applications requiring mixed I/O, modular expansion, and analog output capability. 1794-OE4 integrates with Flex I/O assemblies and is widely applied in machine-level control, process systems, and distributed I/O architectures.

Best Suited For

Distributed analog output in Flex I/O systems
Field device control: valves, actuators, instrumentation
Modular expansions in machine-level control cabinets
Mixed analog and digital I/O panels

Outputs

4 single-ended

Output types

±10 V or 0…20 mA (user-configurable)

Resolution

12 bit + sign

Power supply

24 V DC (19.2-31.2 V DC)

Operating temperature

-20…+55 °C

Technical Specifications

I/O & Electrical

Output channels

4 single-ended

Voltage output ranges

±10 V or 0…10 V

Current output ranges

4…20 mA or 0…20 mA

Output resolution

12 bit + sign (2.56 mV/cnt, 5.13 µA/cnt)

Output conversion type

Pulse-width modulation

Output conversion rate

1.024 ms (all channels)

Voltage output load max

3 mA

Current output load (resistive)

15…750 Ω

Accuracy

Current: 0.425 % FS; Voltage: 0.133 % FS @ 25 °C

Drift with temperature

Current: 0.0069 % FS/°C; Voltage: 0.0045 % FS/°C

Flexbus current

20 mA

Communication & Power

Supply voltage

24 V DC nominal (19.2…31.2 V DC)

Supply current (module only)

70 mA @ 24 V DC

Power dissipation

4.5 W @ 31.2 V DC

Thermal dissipation

15.3 BTU/h @ 31.2 V DC

Physical & Environmental

Dimensions (HxWxD)

46 × 94 × 53 mm (1.8 × 3.7 × 2.1 in)

Operating temperature

-20…+55 °C (-4…+131 °F)

Storage temperature

-40…+85 °C (-40…+185 °F)

Humidity, operating

5…95 % non-condensing

Humidity, non-operating

5…80 % non-condensing

Shock, operating

30 g, 11 ms pulse

Shock, non-operating

50 g, 11 ms pulse

Vibration

5 g @ 10-500 Hz per IEC 68-2-6

Wire size

0.34…2.5 mm² (22…2 AWG)

Wire insulation max

1.2 mm (3/64 in)

Wire category

Category 2 (signal & power ports)

Certifications

UL listedCSA certifiedCSA Class I, Division 2, Groups A-DCEc-UL-us
