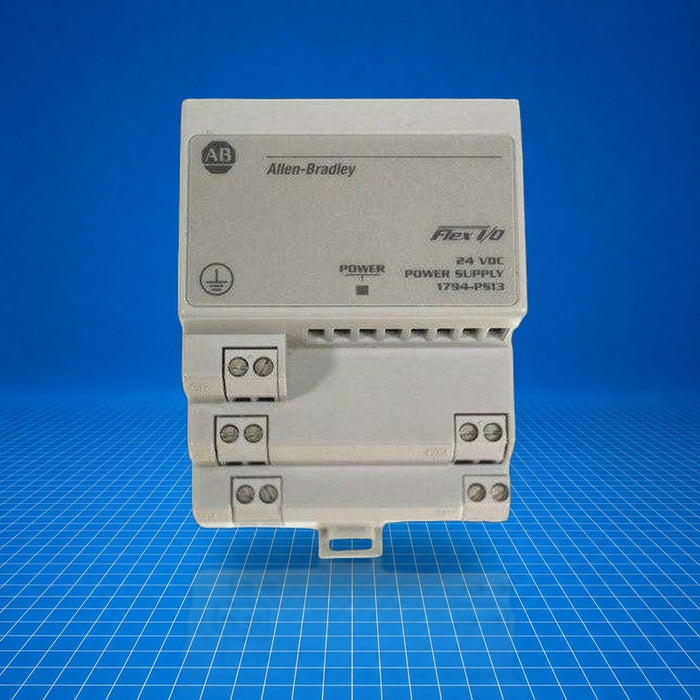

1794-PS13 Allen-Bradley
Original price
$450.00
-
Original price
$450.00
Original price
$450.00
$450.00
-
$450.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-PS13 is a Flex™ I/O power supply module from Allen-Bradley, designed to convert 85-264 VAC input to 24 V DC at up to 1.3 A. It powers Flex I/O systems including Flex, Flex-Ex, or Flex-XT modules. Installed at the start of a Flex I/O chain, it provides regulated DC power for distributed I/O on machinery, conveyors, process skids, or safety systems. 1794-PS13 ensures proper voltage regulation and transient tolerance for typical industrial automation deployments.
Best Suited For
- Flex I/O power bus in machinery control systems
- Applications requiring 24 V DC for I/O modules from AC mains
- Environments with input voltage variability (85-264 VAC)
- Compact panel and on-machine installations
Input voltage range
85-264 VAC
Nominal output
24 V DC @ 1.3 A
Output power
31.2 W
Inrush current (typical)
40 A, 1 AC cycle @ 265 VAC, 55 °C
Dimensions (H×W×D)
87 × 69 × 69 mm
Technical Specifications
I/O & Electrical
Nominal supply voltage
120 VAC, 50/60 Hz; 0.62 A & 230 VAC, 50/60 Hz; 0.42 A
Input current, max
0.7 A
Input frequency range
47-63 Hz
Nominal output voltage
+24 V DC
Output voltage range
20.4-27.6 V DC (±15 %, includes noise and 5 % AC ripple)
Output current, max
1.3 A
Output power
31.2 W
Output ripple, max
1200 mV peak-to-peak (±5 %)
Minimum load
0 mA
Output surge
Drives up to 4 adapters
Overvoltage protection
Output internally limited to 35 V DC; cycle power to re-energize
Overcurrent protection
1.4 A
Leakage current, max
0.5 mA rms @ rated input/output
Isolation voltage
2500 V DC for 1 s
Thermal dissipation
23.9 BTU/hr
Power dissipation, max
7 W
Physical & Environmental
Enclosure type rating
None (open-style)
Wire size
0.34-2.5 mm² (22-12 AWG) solid/stranded copper, 75 °C min, insulation max 1.2 mm
Terminal screw torque
0.8 N·m (7 lb·in)
Operating temperature
0 °C to +55 °C
Non-operating temperature
-40 °C to +85 °C
Relative humidity
5-95 % (non-condensing)
Vibration, operating
5 g @ 10-500 Hz
Shock, operating
30 g
Shock, non-operating
50 g
Certifications
UL ListedRegistro Italiano NavaleAmerican Bureau of ShippingMOROCCO DOCUKCAUK Safety Certificate
Certified: UL Listed, Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC, UKCA, United Kingdom Safety Certificate (as of 19 May 2026)
