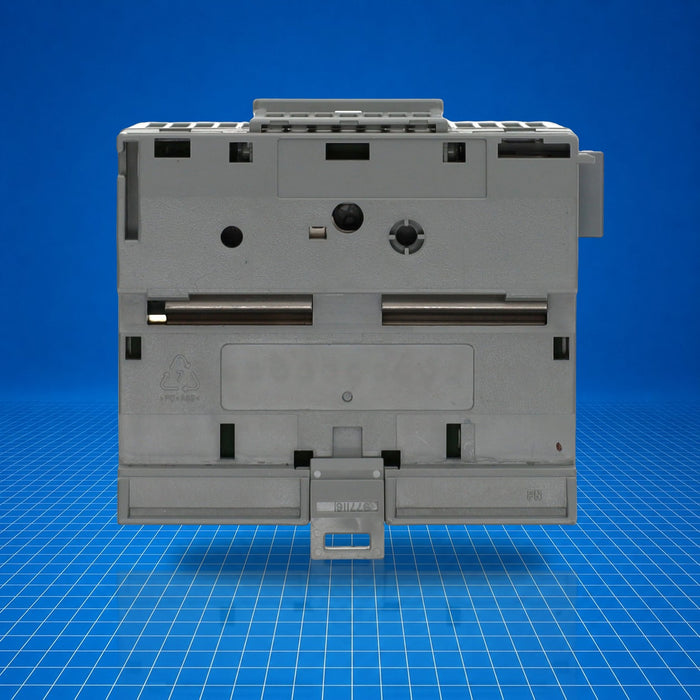

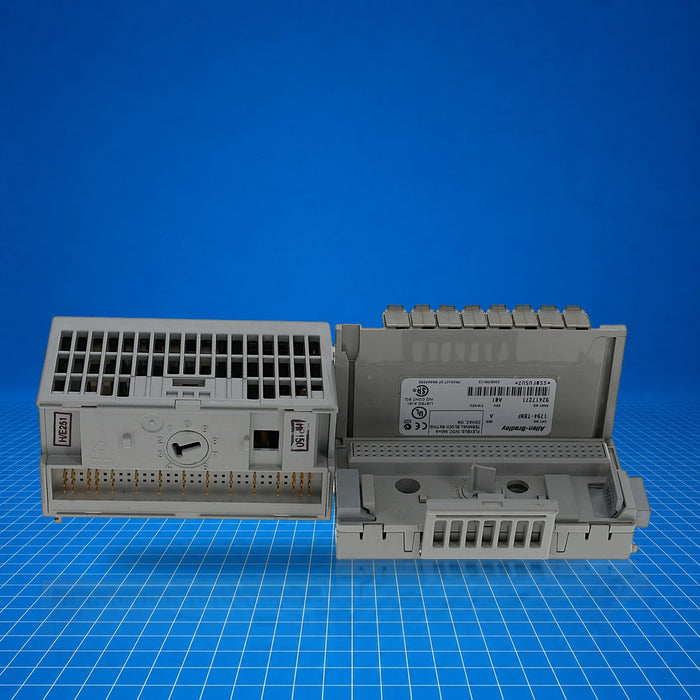

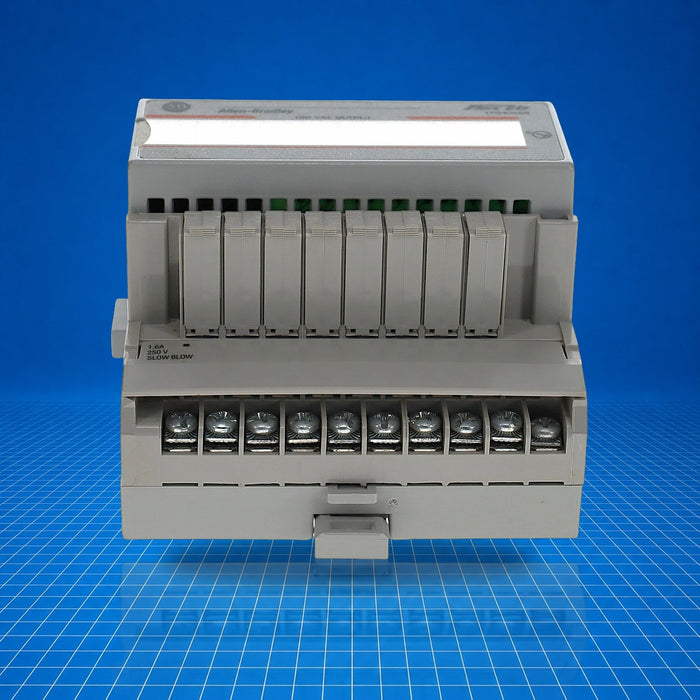

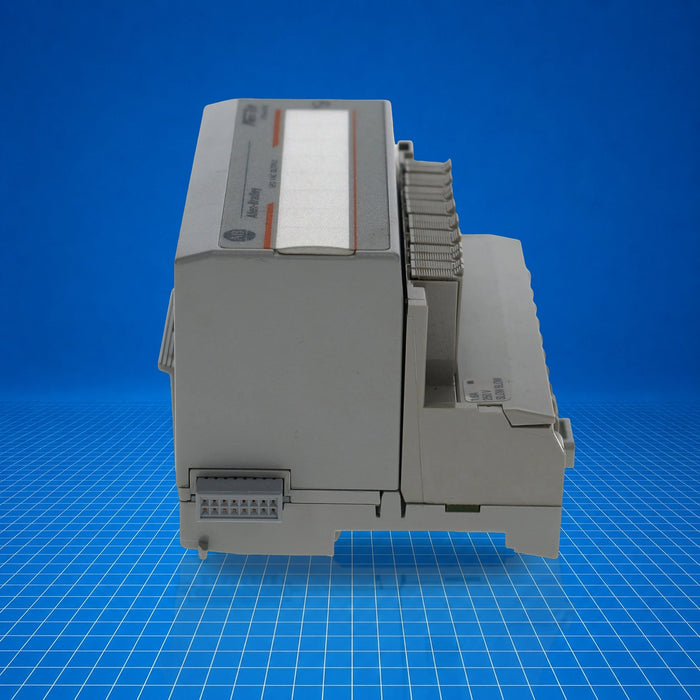

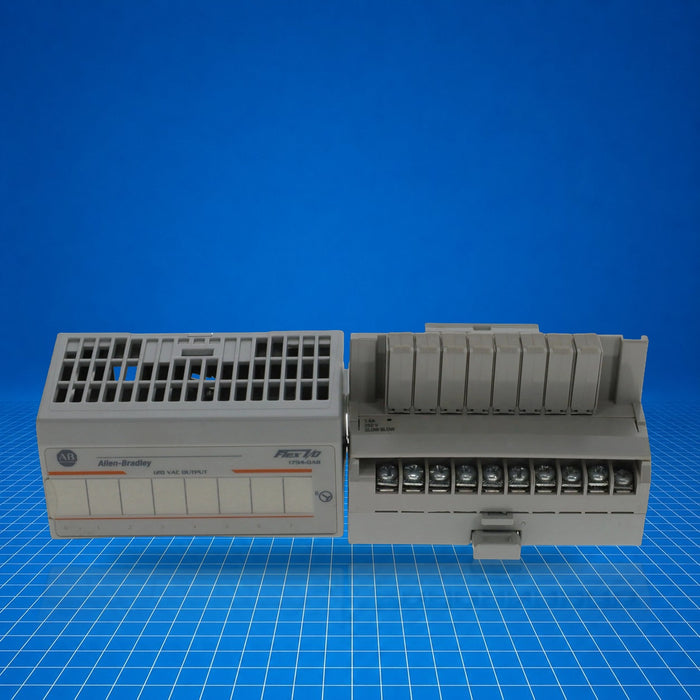

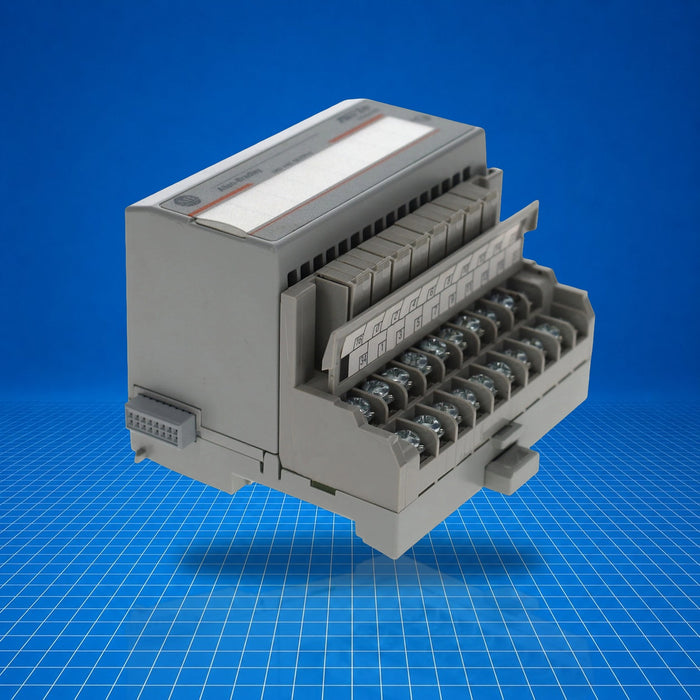

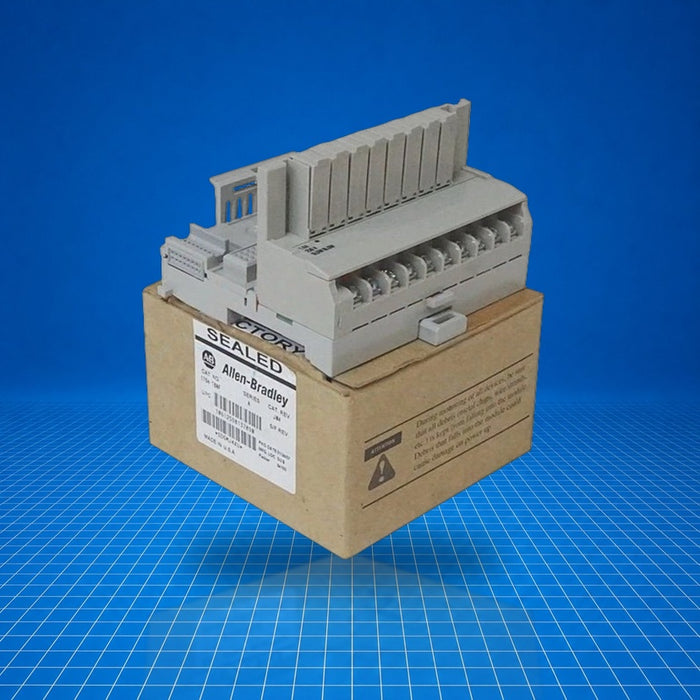

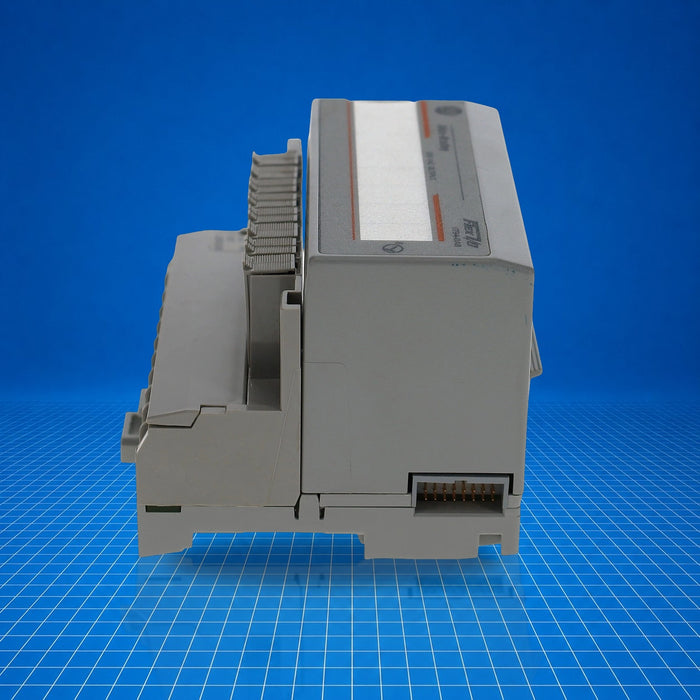

1794-TBNF Allen-Bradley

Name: 1794-TBNF Allen-Bradley
Brand: Allen Bradley
SKU: 1794-TBNF
Price: 450.0 USD
Availability: InStock

$407.88 - $450.00

$450.00

$407.88 - $450.00

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1794-TBNF is an Allen-Bradley Flex™ I/O fused terminal base unit used within the Flex I/O 1794 modular platform. It serves as both the mechanical and electrical interface between Flex I/O modules and field wiring, incorporating internal fusing for overload protection. Typical installations include distributed I/O architectures in manufacturing, process control, and machine automation where fused isolation at the terminal level is required. 1794-TBNF supports screw-clamp wiring and integrates into standard DIN-rail mounted Flex I/O assemblies.

Best Suited For

Distributed I/O systems requiring fused protection
Flex I/O systems with AC or DC modules
Applications requiring screw-clamp wire termination
Installation in ambient -20…55 °C environments
Control panels with modular I/O layouts

I/O termination

16 terminals

Supply rating

250 V AC/DC, 10 A

Backplane load

640 mA @ 5 V DC

Wire size

0.34-3.3 mm² (22-12 AWG)

Operating temp

-20…55 °C

Technical Specifications

I/O & Electrical

I/O terminals

16

Common terminals

2

+V terminals

2

Supply voltage rating

24 V DC/AC, 120 V DC/AC, 230 V DC/AC

Current rating

10 A

Communication & Power

Flexbus current draw

640 mA @ 5 V DC

Isolation voltage

250 V continuous (field wiring to Flexbus)

Physical & Environmental

Wire size

0.34-3.3 mm² (22-12 AWG)

Terminal screw torque

1.4 Nm (12 lb-in)

Dimensions (H×W×D)

94×94×69 mm

Operating temperature

-20…55 °C

Non-operating temperature

-40…85 °C

Relative humidity

5-95 % non-condensing

Vibration

5 g @ 10-500 Hz

Shock, operating

30 g

Certifications

Australian RCMABSMOROCCO DOCUKCAUK-Safety

Certified as of May 26 2026 for Australian RCM, Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC, UKCA, UK Safety Certificate (see product label for specific certifications)
