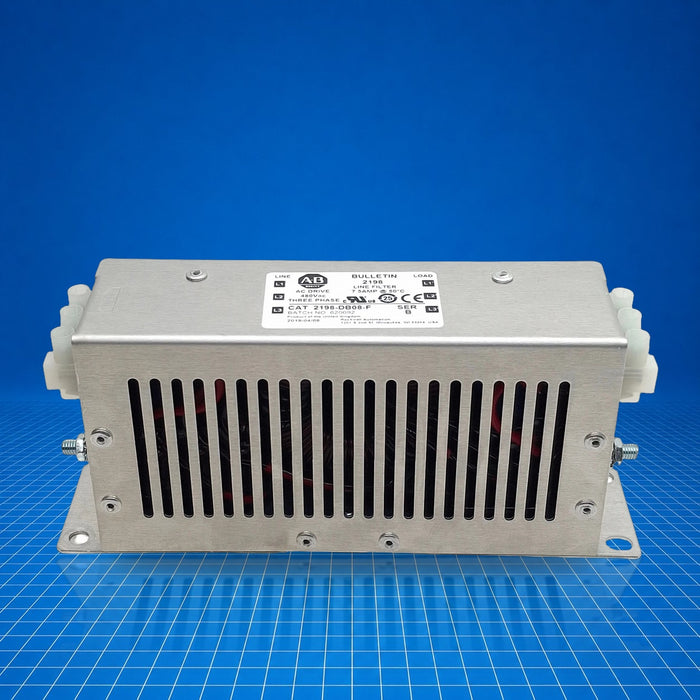

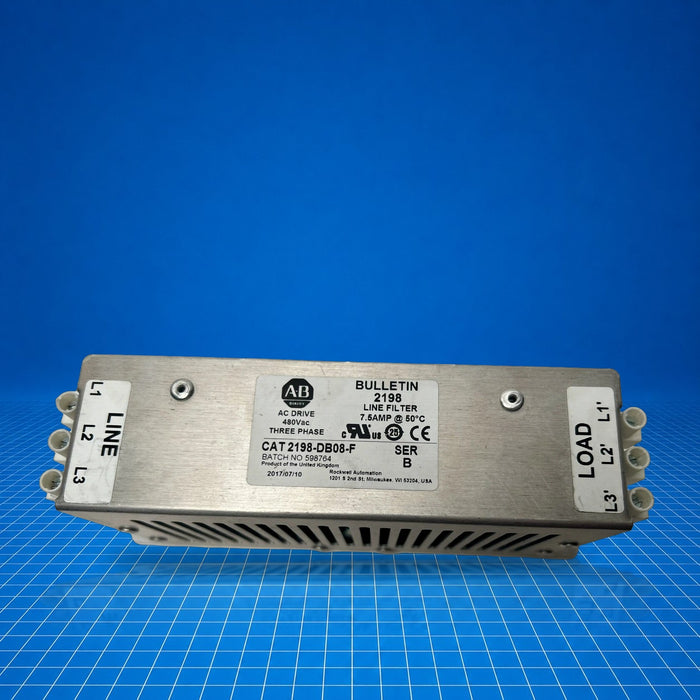

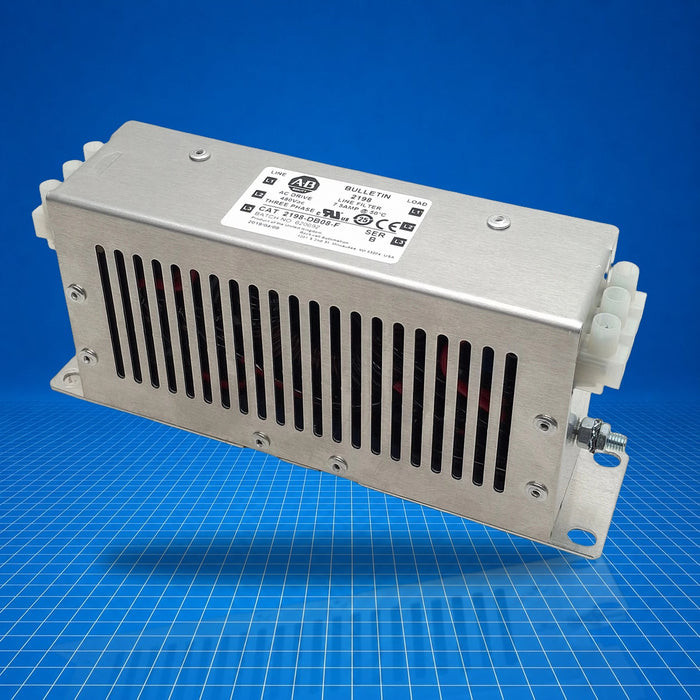

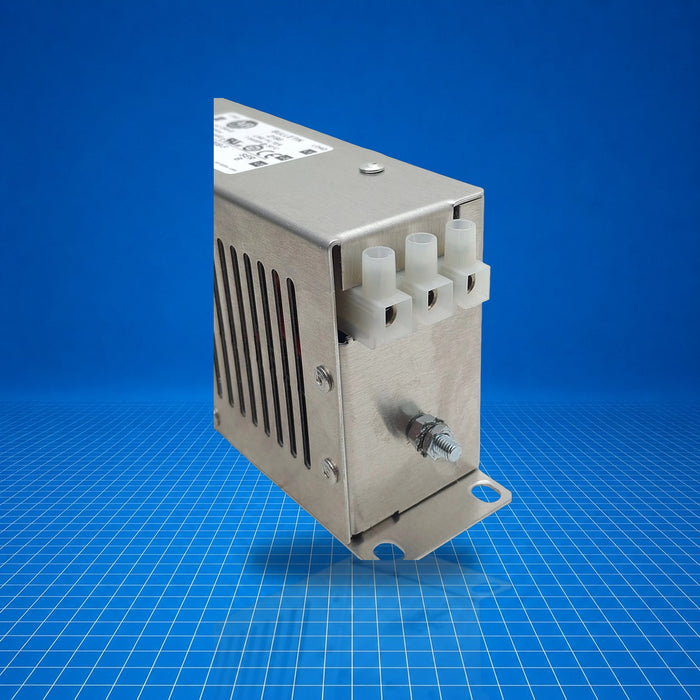

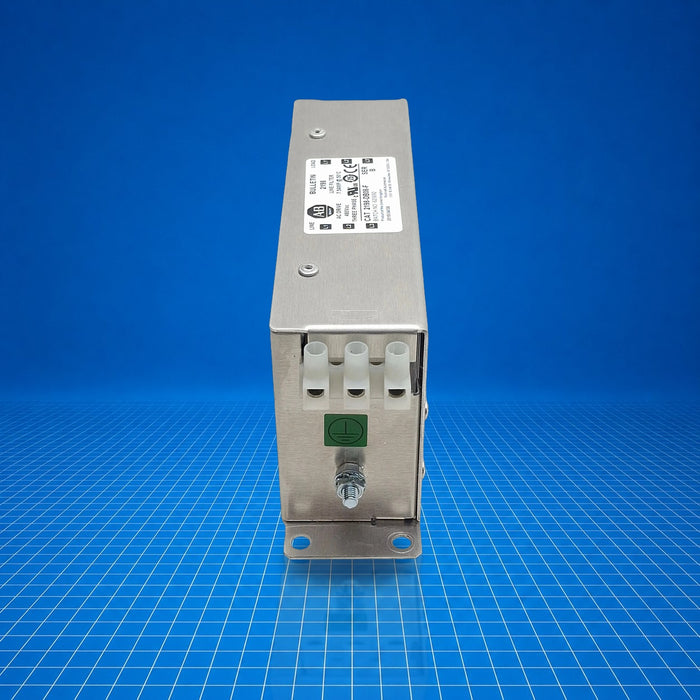

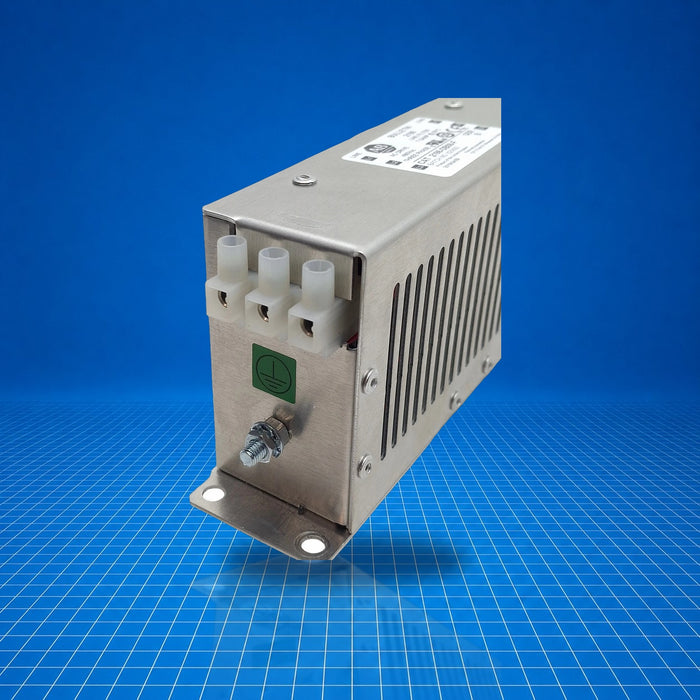

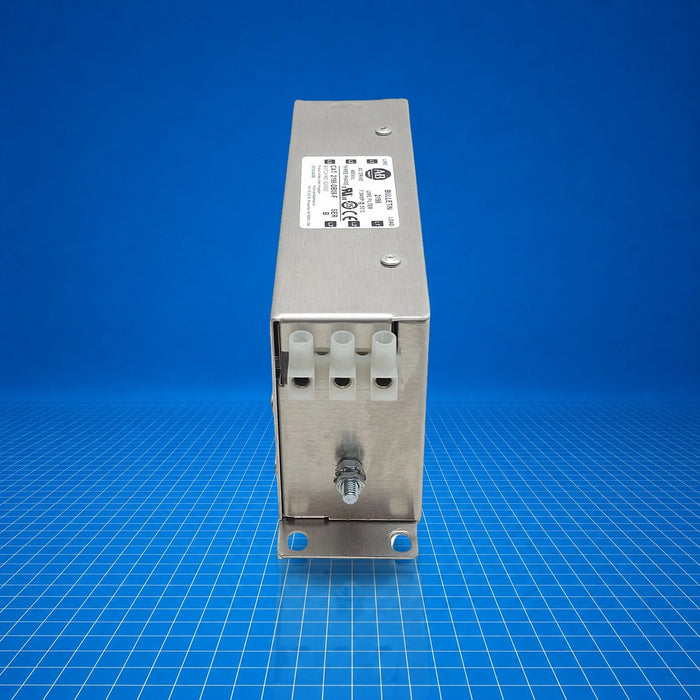

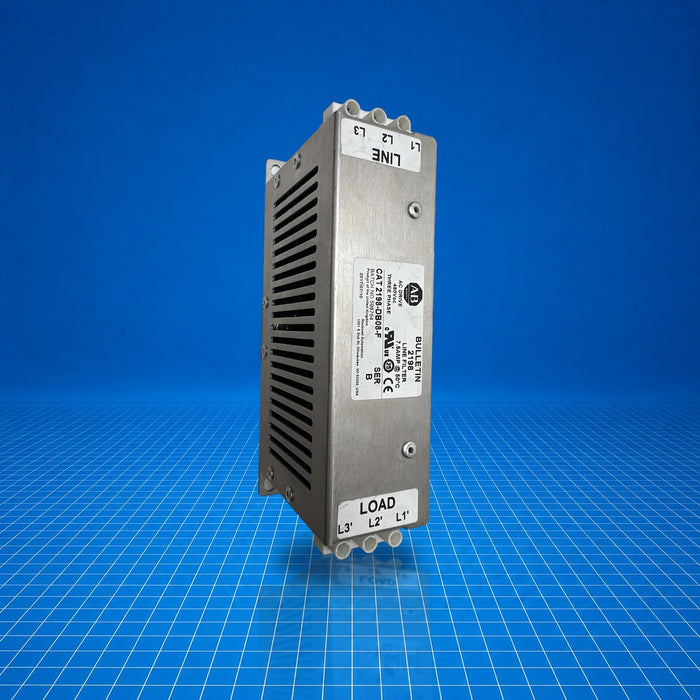

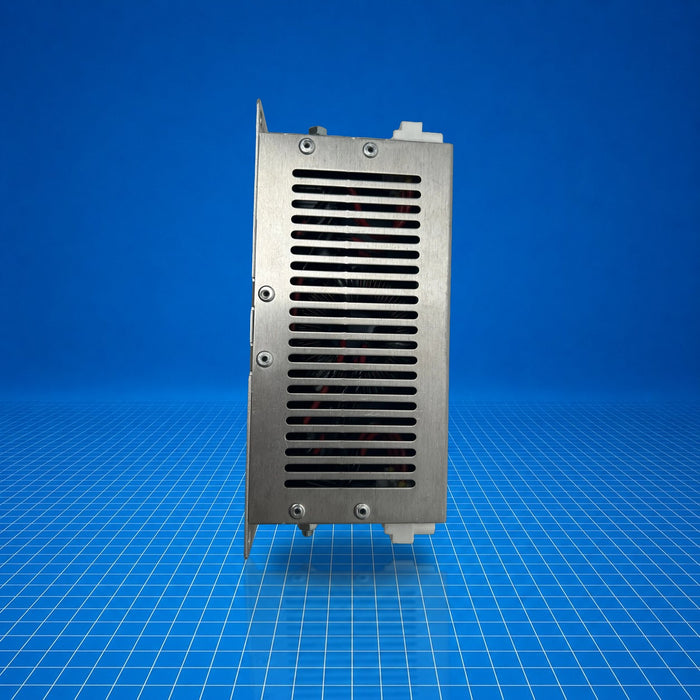

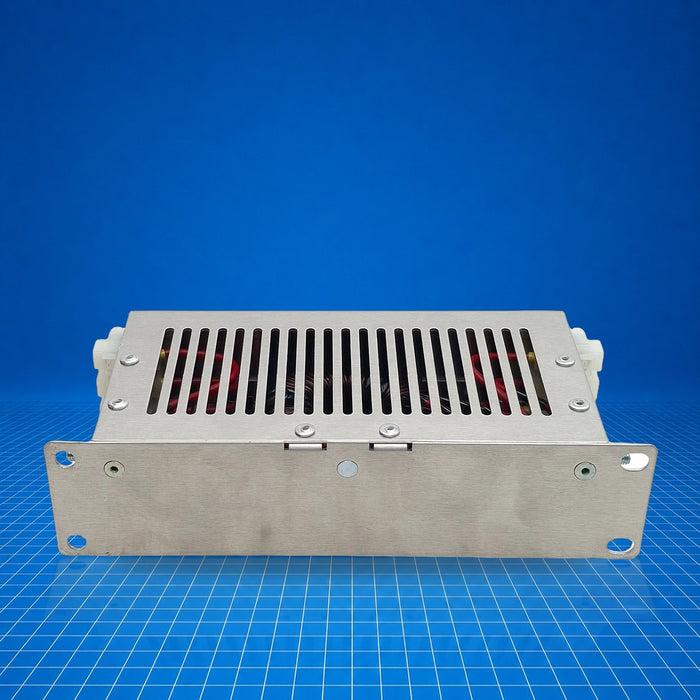

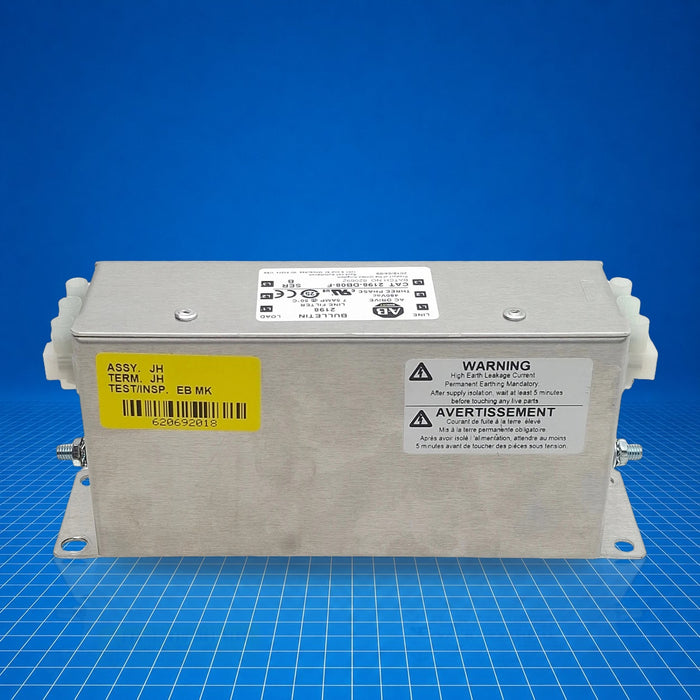

2198-DB08-F Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

2198-DB08-F Allen-Bradley

$375.00 - $400.00
$375.00
$375.00 - $400.00
$375.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$375.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$400.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2198-DB08-F is an 8 A single- or three-phase EMC (electromagnetic compatibility) AC line filter in the Kinetix 5500 servo drive accessory suite. It is deployed at the AC power input of Kinetix 5500 servo drives to meet CE (and UK) noise suppression requirements. Installed as close as possible to the drive, it supports both single-phase and three-phase configurations in grounded star (Y) supply systems as indicated for legacy installations.

Best Suited For

  • Kinetix 5500 servo systems (models 2198-H003-ERSx, 2198-H008-ERSx, 2198-H015-ERSx)
  • Use in legacy system replacements
  • CE/UK noise suppression compliance
  • Single- or three-phase face-mounted drive input filtering
Filter current rating
8 A
Compatibility
Kinetix 5500 servo drives (2198-H003/008/015-ERSx)
Phase support
Single-phase or three-phase
Application
EMC line filter, CE/UK compliance

Technical Specifications

I/O & Electrical

Current rating
8 A
Phase compatibility
Single-phase or three-phase

Physical & Environmental

Recommended conductor cross-section
0.5…6 mm² (AWG 20…10)
Strip length
7.5 mm (0.30 in)
Terminal torque
0.8 N·m (7.1 lb·in)
Mounting proximity
Install as close as possible to 2198-Hxxx-ERSx drive

Certifications

CE

CE (required for noise suppression directives in CE/UK installations).
