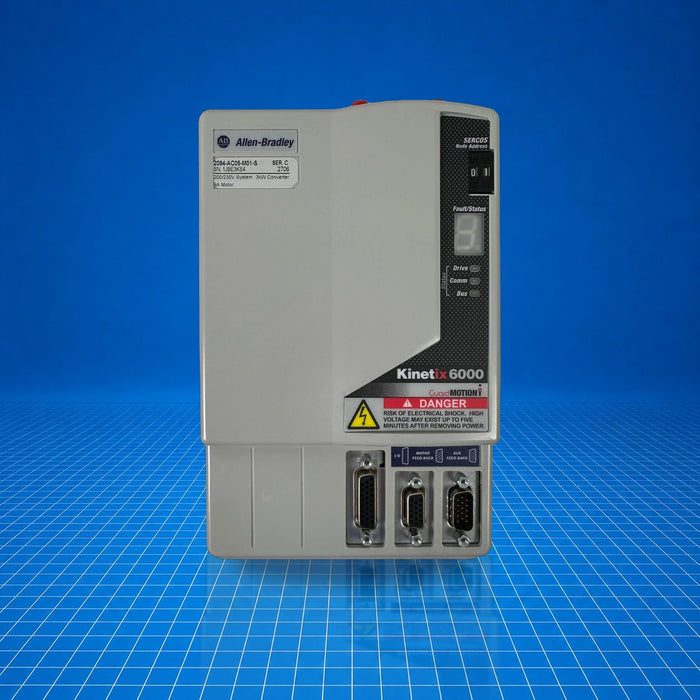

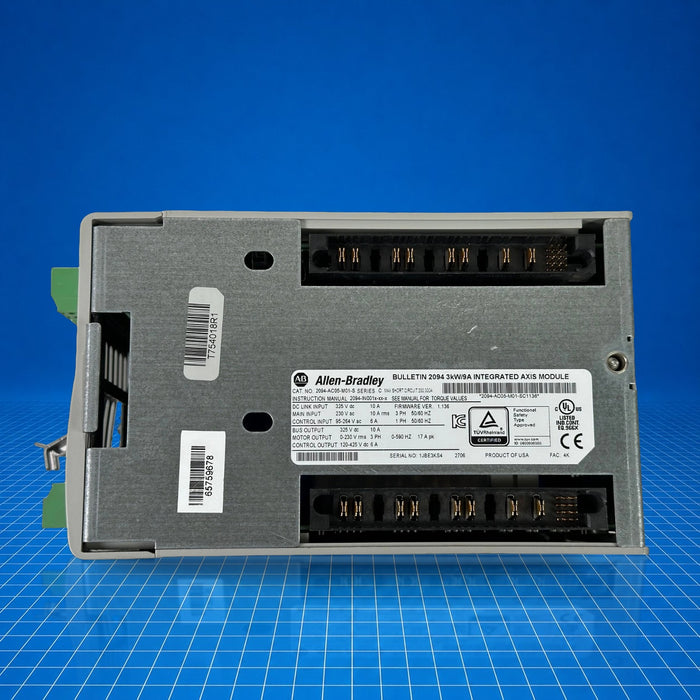

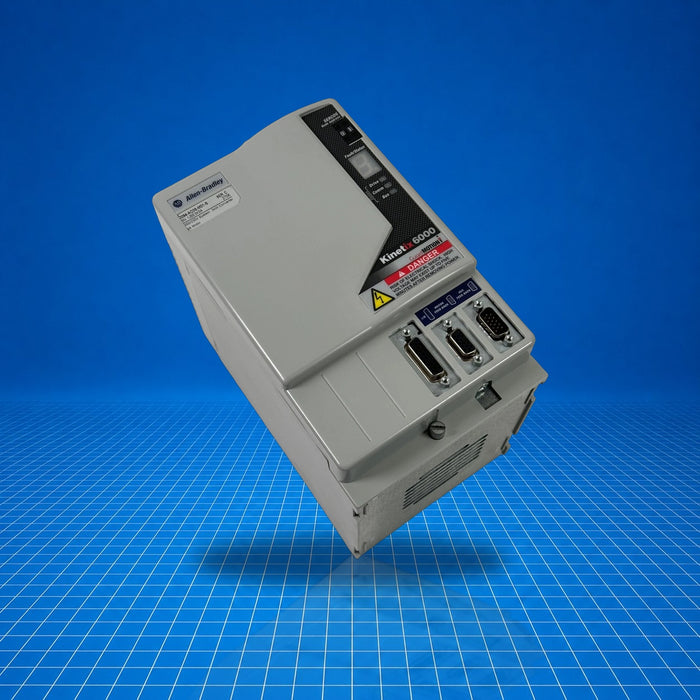

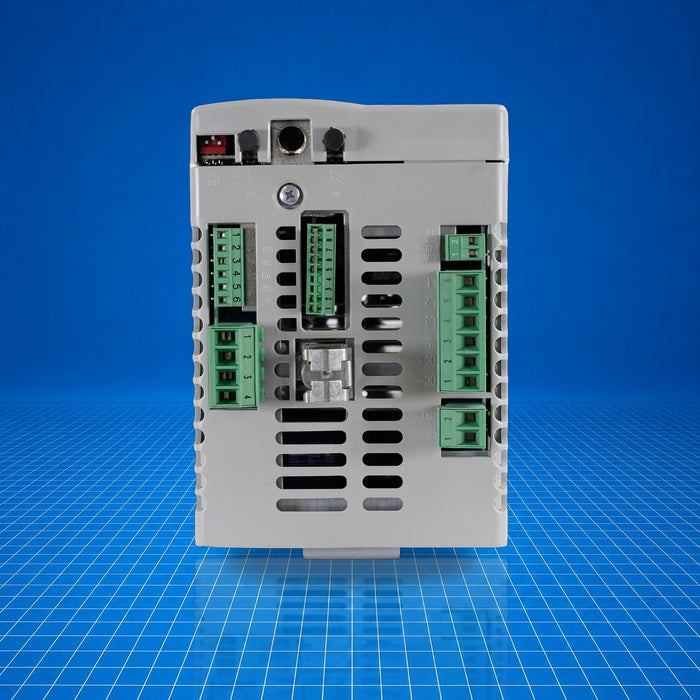

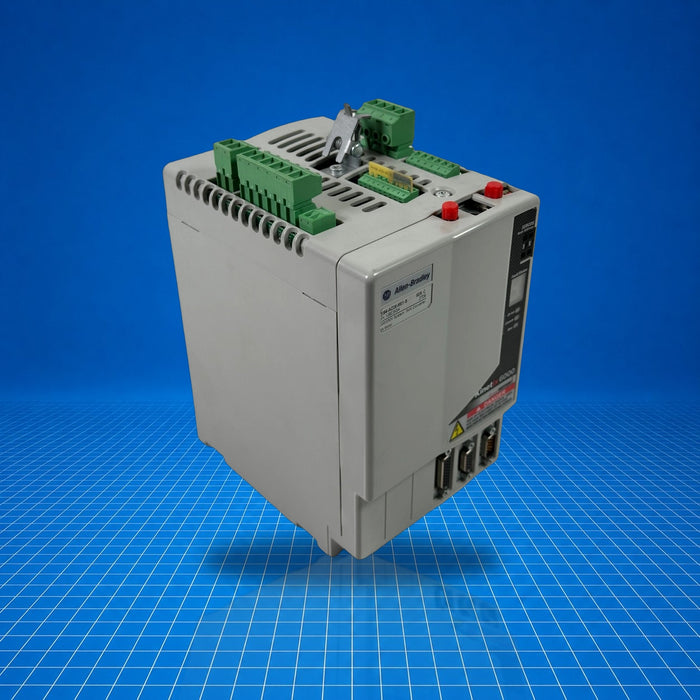

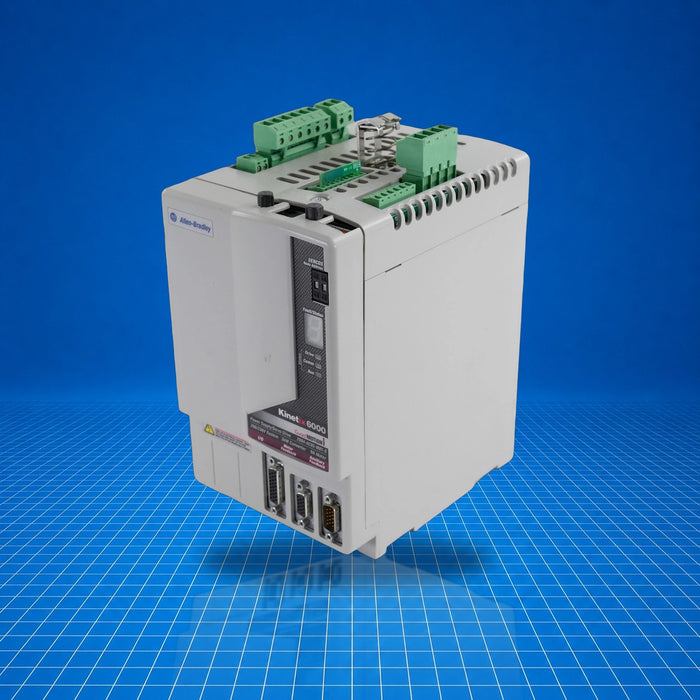

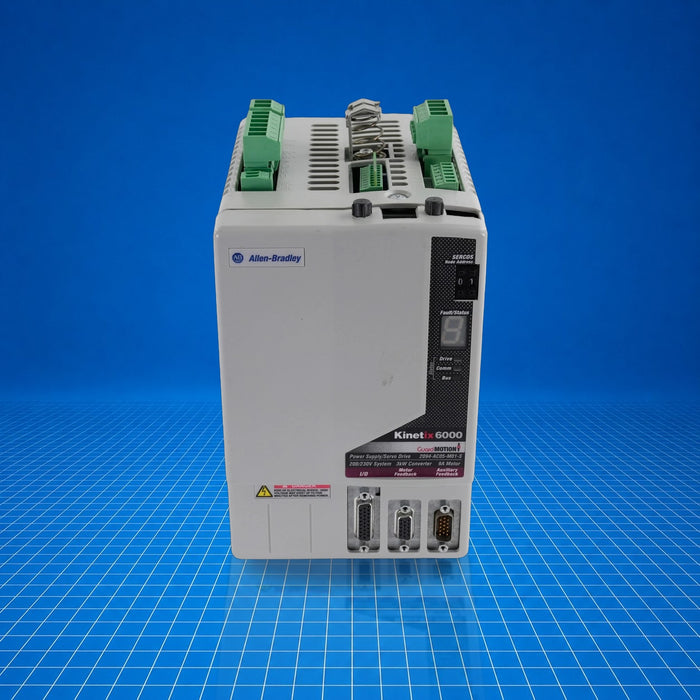

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

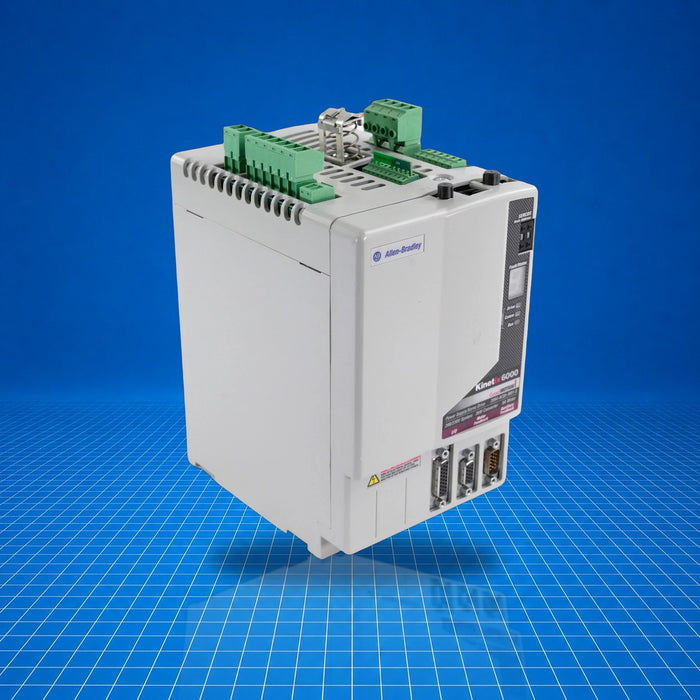

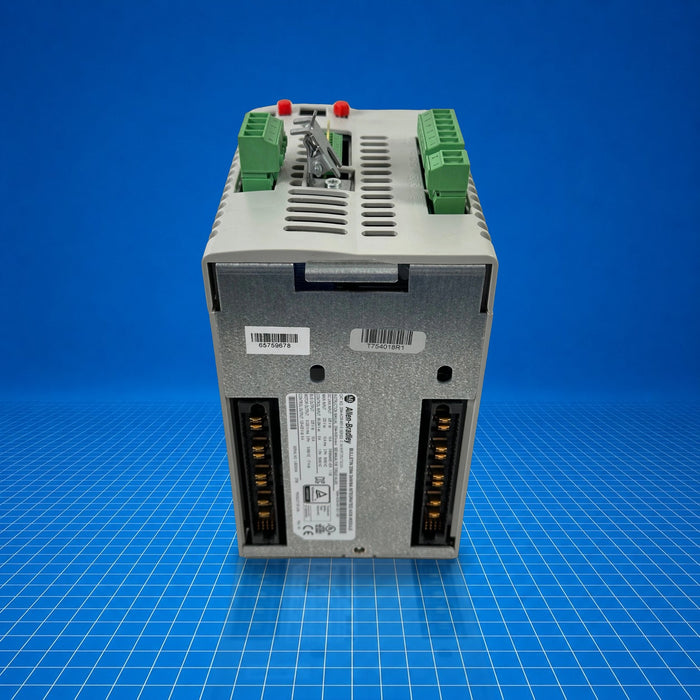

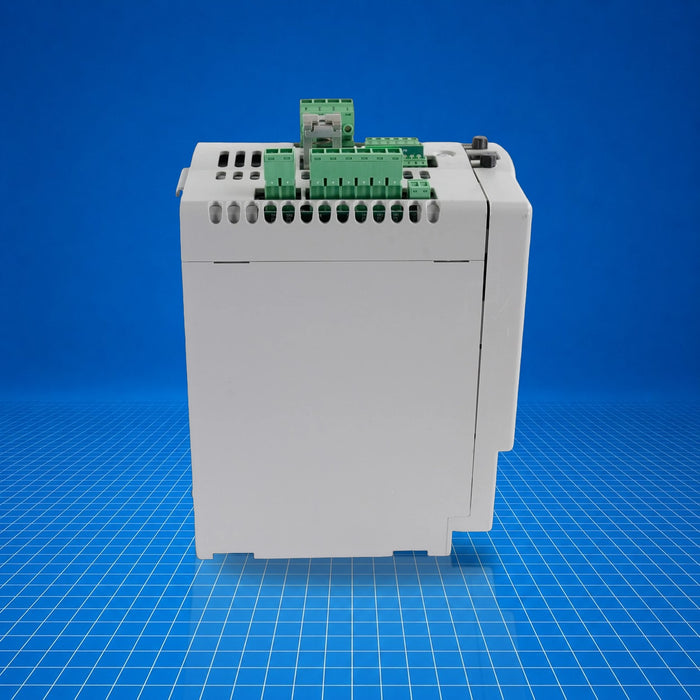

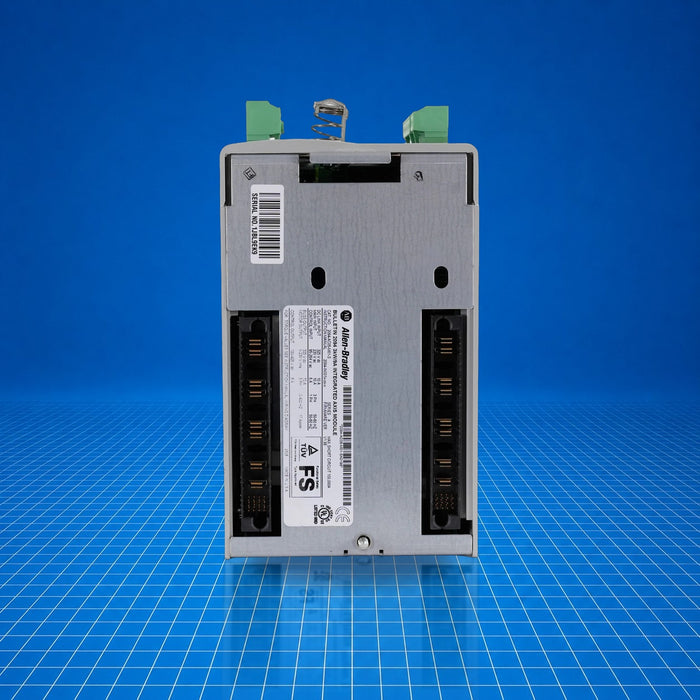

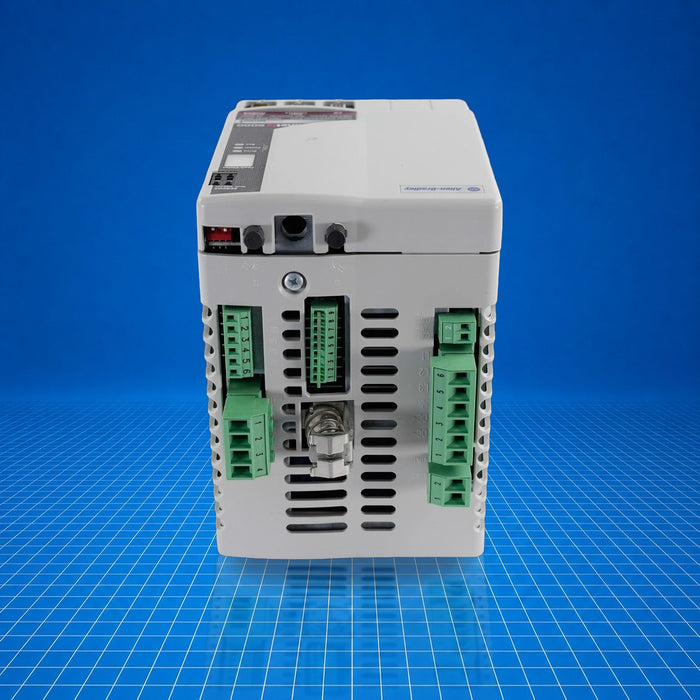

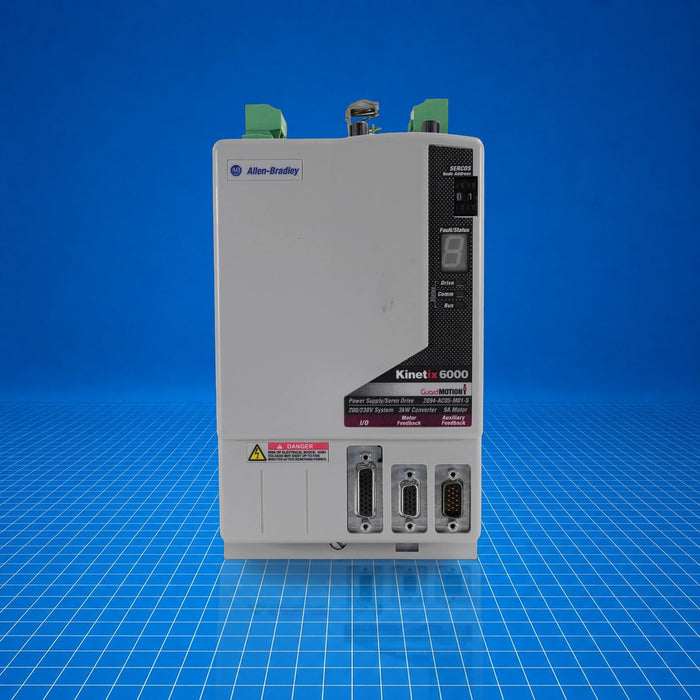

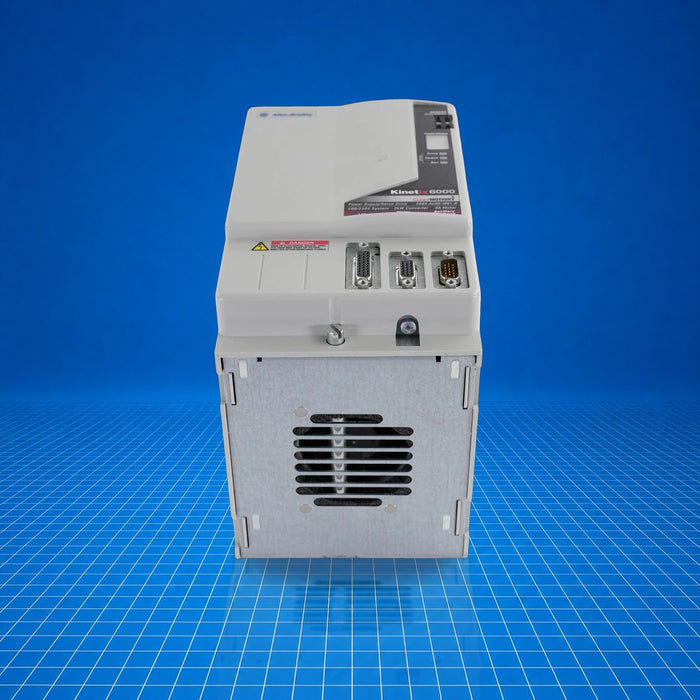

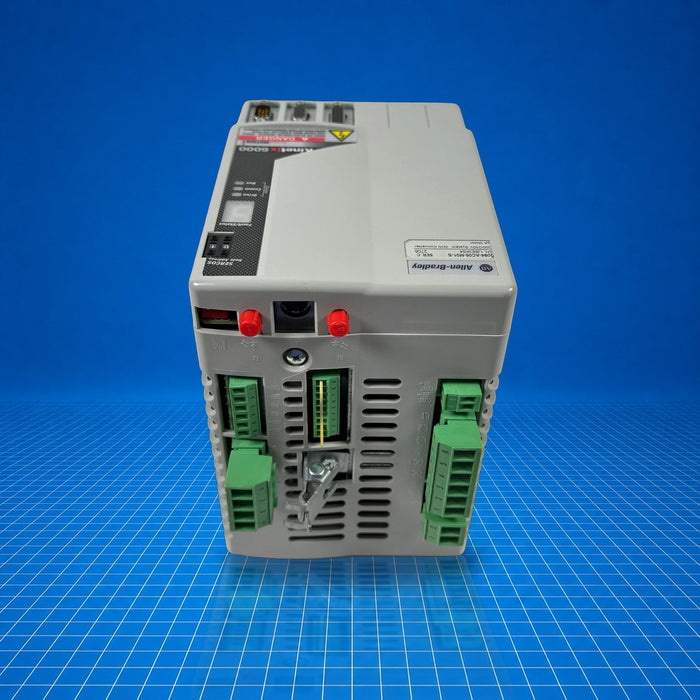

2094-AC05-M01 Allen-Bradley
Original price
$2,812.48
-
Original price
$5,248.50
Original price
$2,812.48
$2,812.48
-
$5,248.50
Current price
$2,812.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2094-AC05-M01 is an Integrated Axis Module (IAM) in the Kinetix 6000 servo drive family. It functions as the primary axis inverter providing drive power and control functions to a motor and integrates within a common bus, typically paired with AM modules. It is intended for use in mid-range motion control applications requiring 3 kW continuous output and a 9 A inverter in a 200 V-class system. The unit includes Safe Torque Off (STO) functionality and sits as the left-most module in a Kinetix 6000 rack. (2094-AC05-M01)
Best Suited For
- Mid-range 200 V-class motion control drives
- Integrated Axis Module in Kinetix 6000 systems
- Applications requiring 3 kW continuous power output
- Safe Torque Off (STO) safety integration
- Retrofitting or maintaining discontinued servo drive installations
Continuous output current (rms)
6.0 A
Continuous output current (0-peak)
8.5 A
AC input voltage range
195 to 264 V AC
Nominal continuous power output
3 kW
Weight
2.49 kg (5.50 lb)
Technical Specifications
I/O & Electrical
Continuous output current (rms)
6.0 A
Continuous output current (0-peak)
8.5 A
Bus overvoltage limit
425 V DC
AC input voltage range
195 to 264 V AC
Line-loss ride-through
20 ms
Communication & Power
Nominal continuous power output
3 kW
Control power input current (IAM + 0 AM)
0.36 A (220/230 V AC)
Physical & Environmental
Weight
2.49 kg (5.50 lb)
Operating temperature
0 °C to 50 °C
Storage temperature
-40 °C to 70 °C
Certifications
UL ListedCEKCRCMEAC
