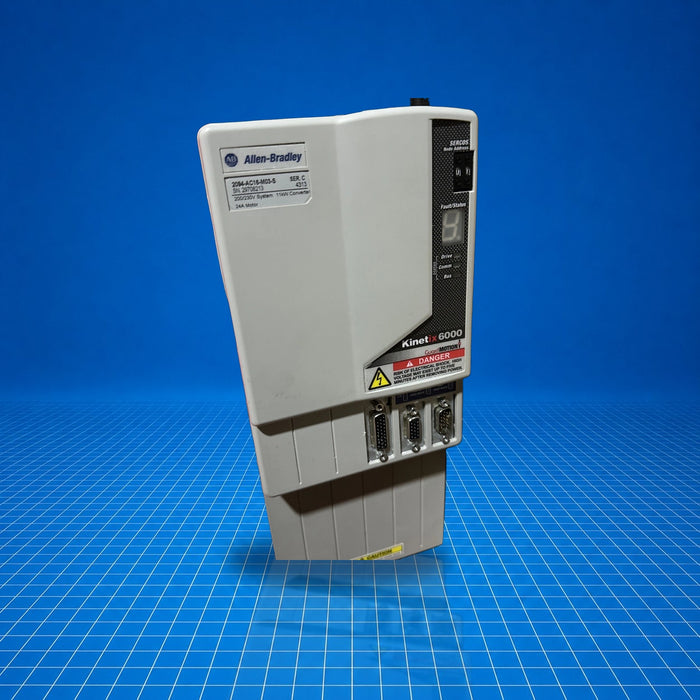

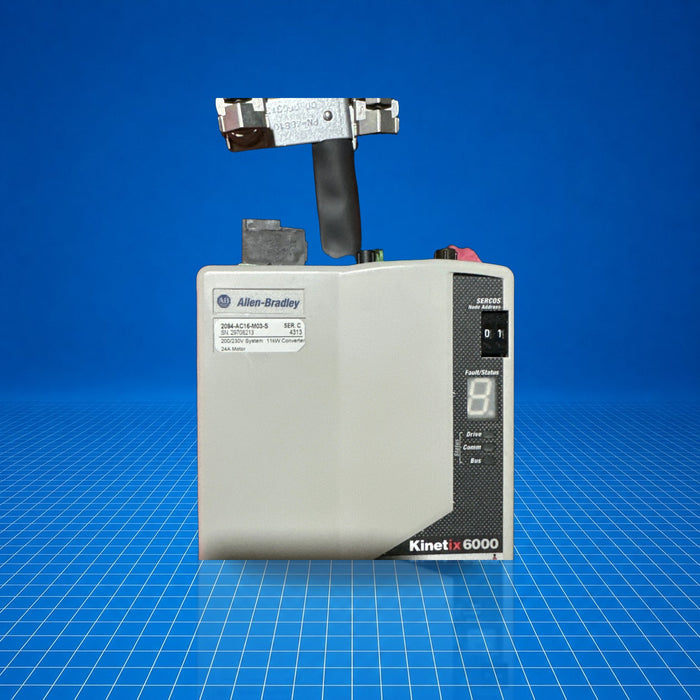

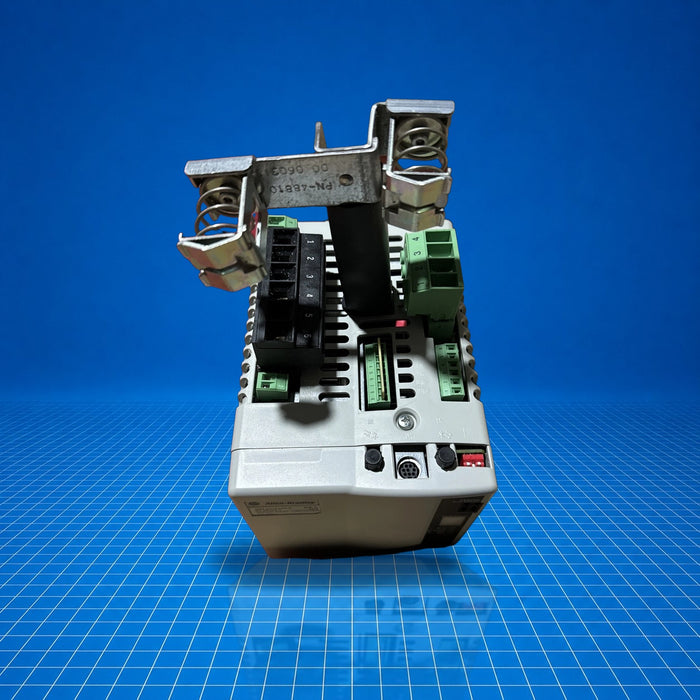

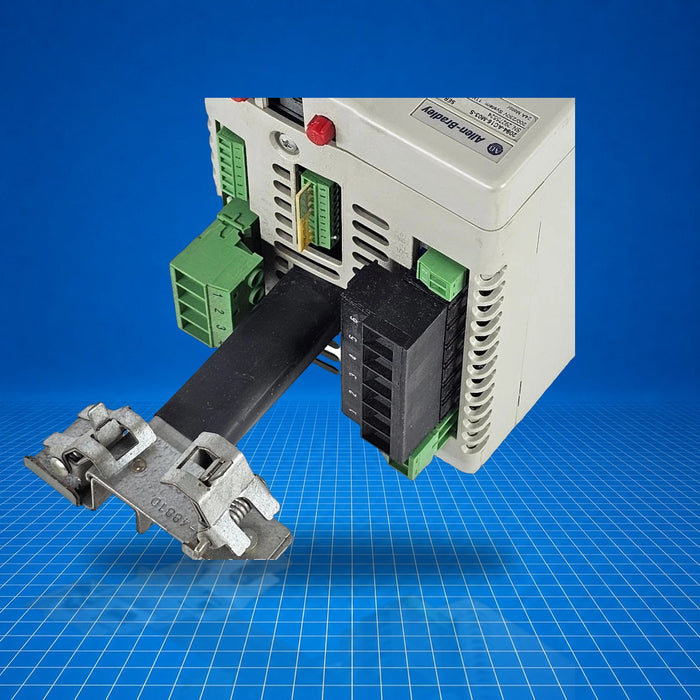

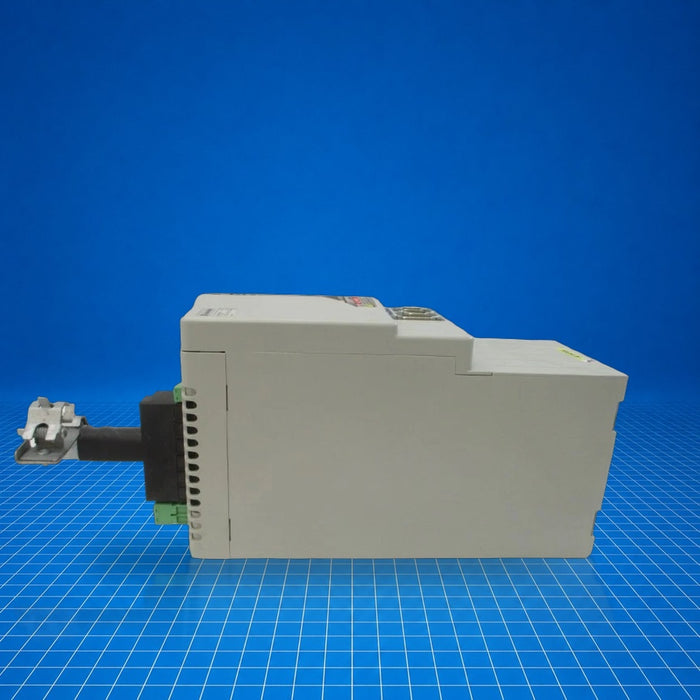

2094-AC16-M03-S Allen-Bradley
Original price
$5,015.00
-
Original price
$16,675.00
Original price
$5,015.00
$5,015.00
-
$16,675.00
Current price
$5,015.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2094-AC16-M03-S is an Allen-Bradley Kinetix 6000 Integrated Axis Module (IAM), providing both the inverter and converter in a single housing with Safe Torque Off (STO) functionality. It operates from a 200/230 V AC three-phase input and serves as a motion control drive within Logix-based systems. Typical applications include multi-axis servo control in packaging, machine tool, and material handling systems where integrated motion control and safety via STO are required.
Best Suited For
- Logix-based multi-axis servo systems
- Single-module integrated converter/inverter applications
- Applications requiring Safe Torque Off safety integration
- 200 V-class motion systems with 11 kW power level
- Replacement in discontinued Kinetix 6000 systems
AC input voltage
195-264 V AC 3-phase (230 V nominal)
Continuous converter output
11 kW
Continuous inverter current
24 A
Safe Torque Off included
Yes
Lifecycle status
Discontinued (as of Dec 31 2023)
Technical Specifications
I/O & Electrical
AC input voltage
195-264 V AC 3-phase (230 V nominal)
AC input frequency
47-63 Hz
AC input current (nominal RMS)
36 A
AC input current (peak inrush 0-pk)
73 A
DC common bus input voltage
275-375 V DC
DC input current (follower mode)
36 A
Internal shunt continuous power
200 W
Internal shunt peak power
5700 W
Communication & Power
Converter continuous power
11 kW
Inverter continuous current
24 A
Physical & Environmental
Weight
12.00 lbs (5.44 kg)
Country of origin
Mexico
Certifications
Discontinued
