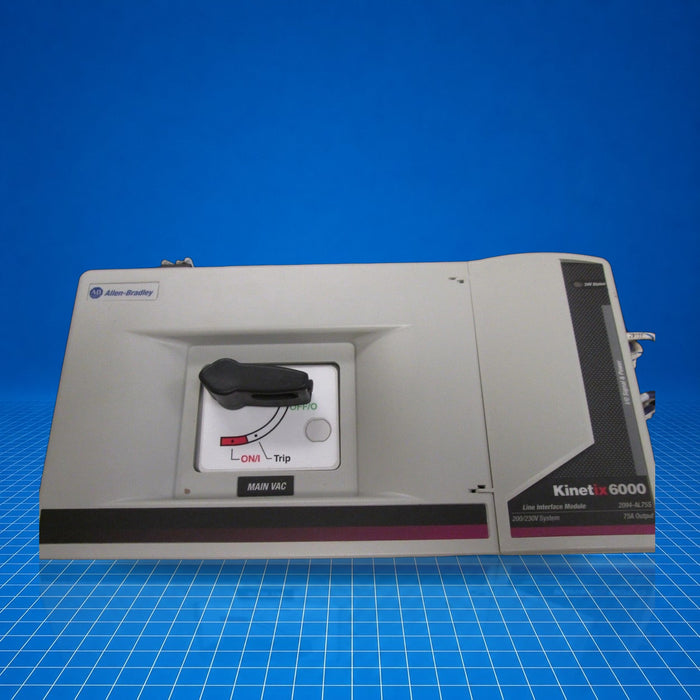

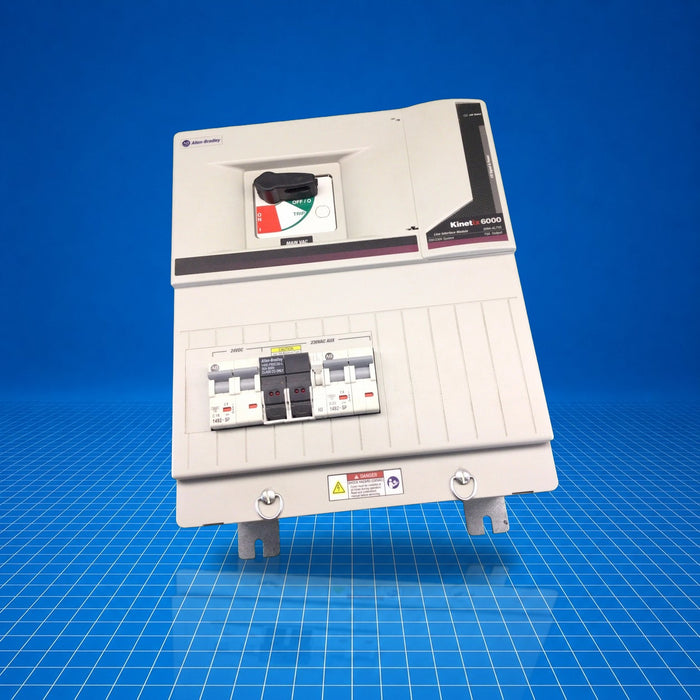

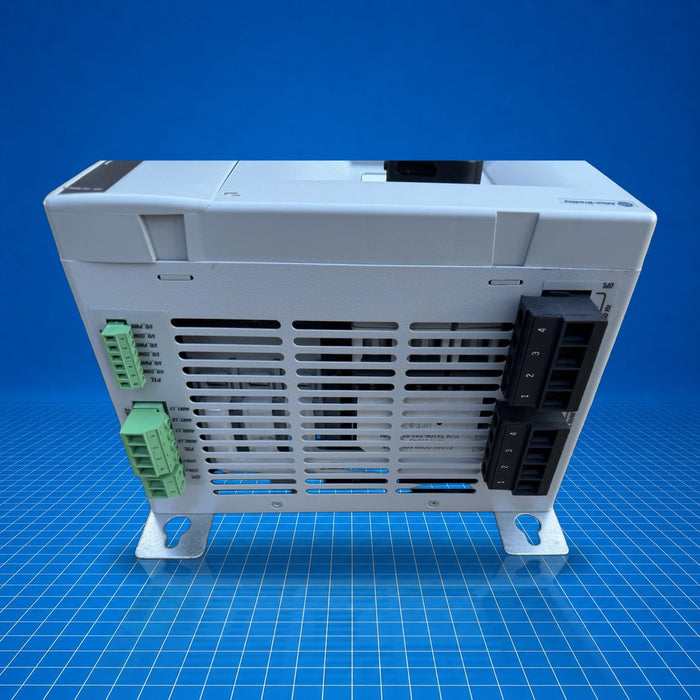

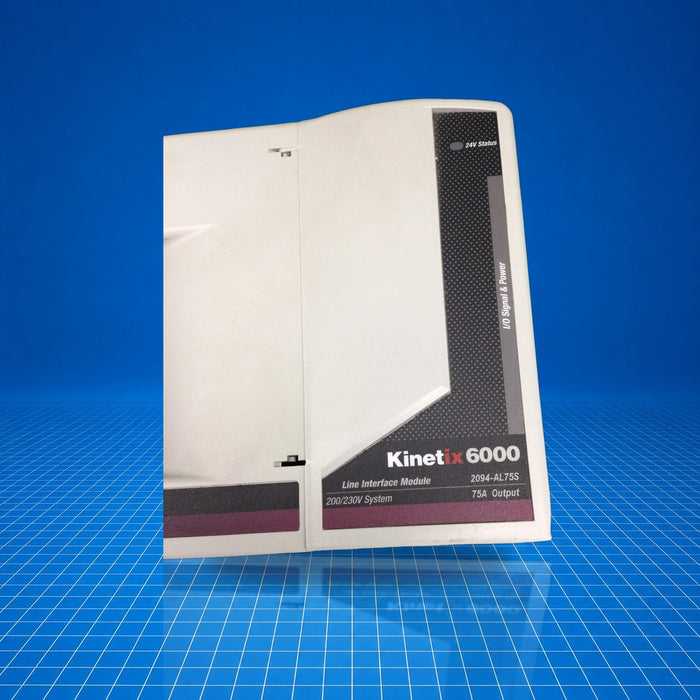

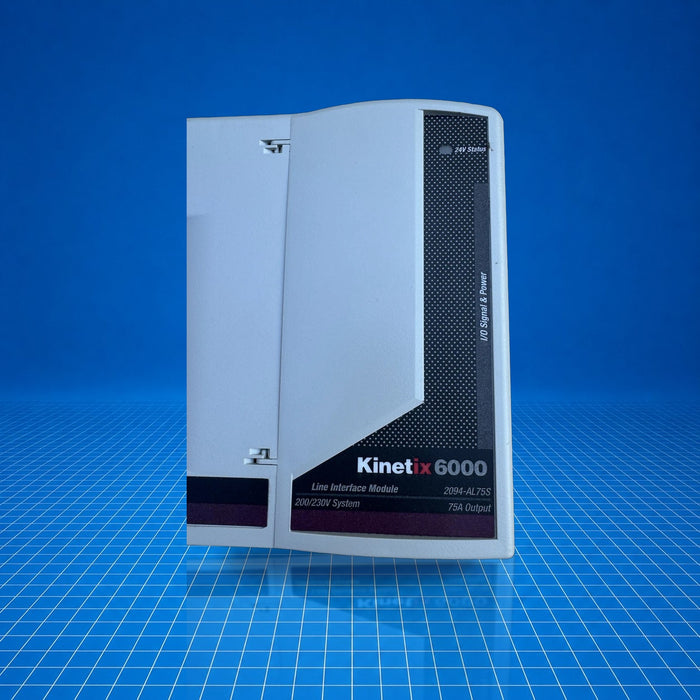

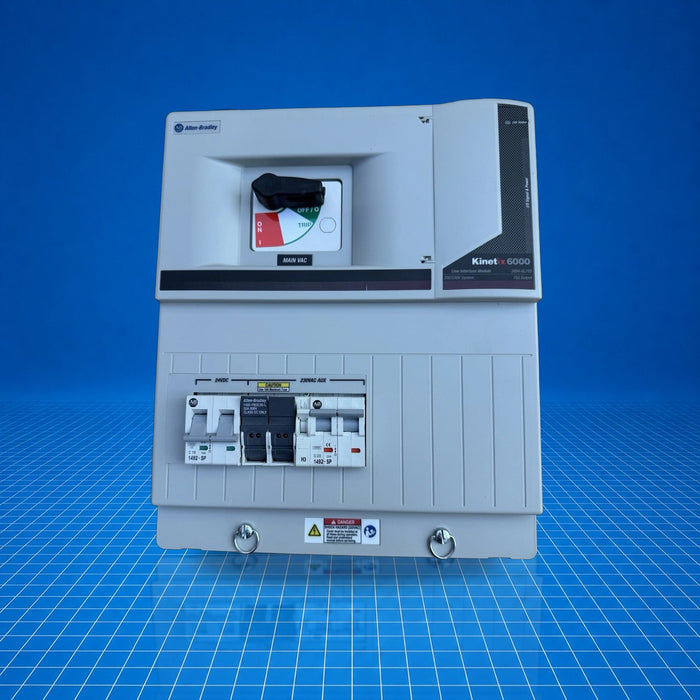

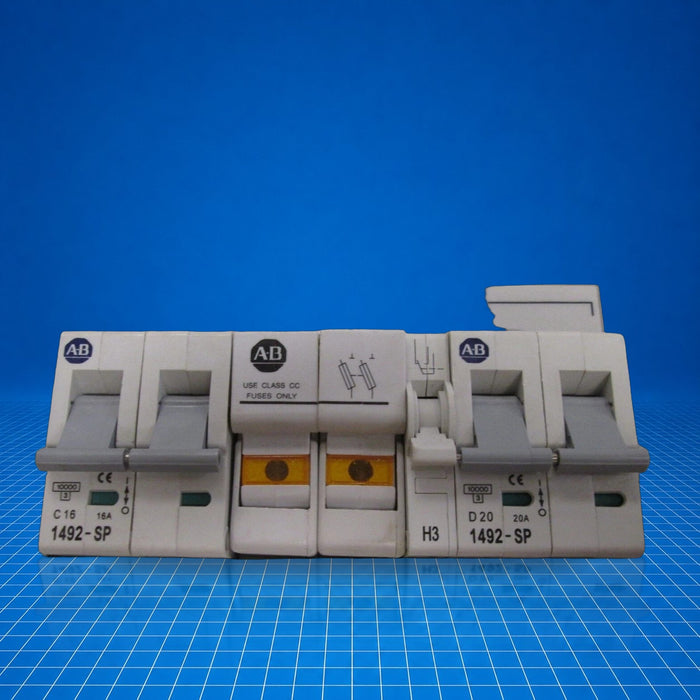

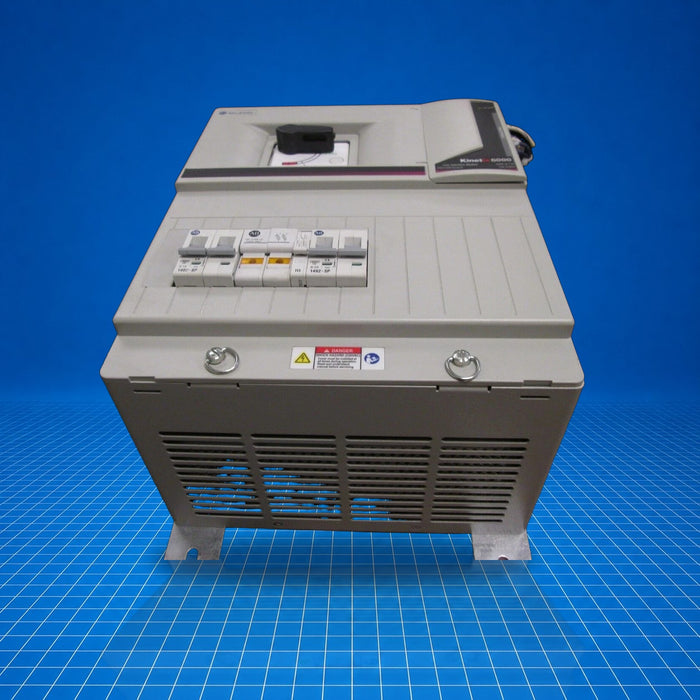

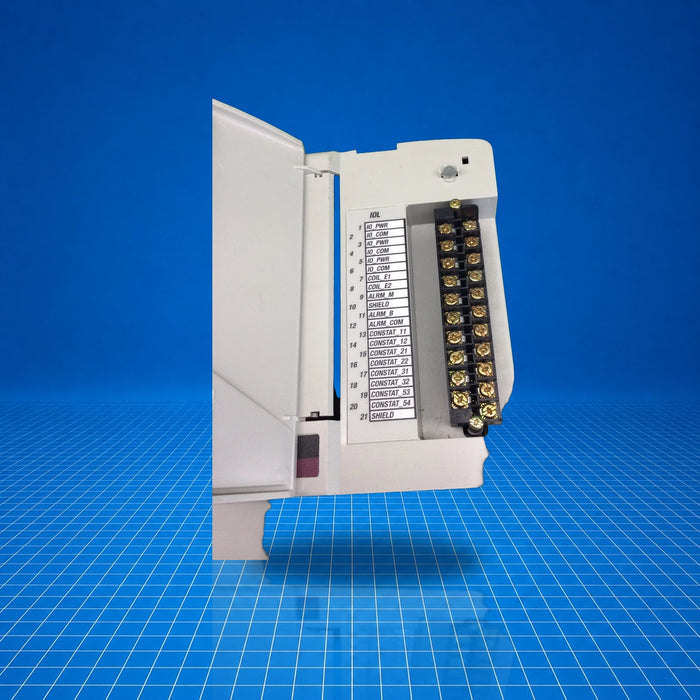

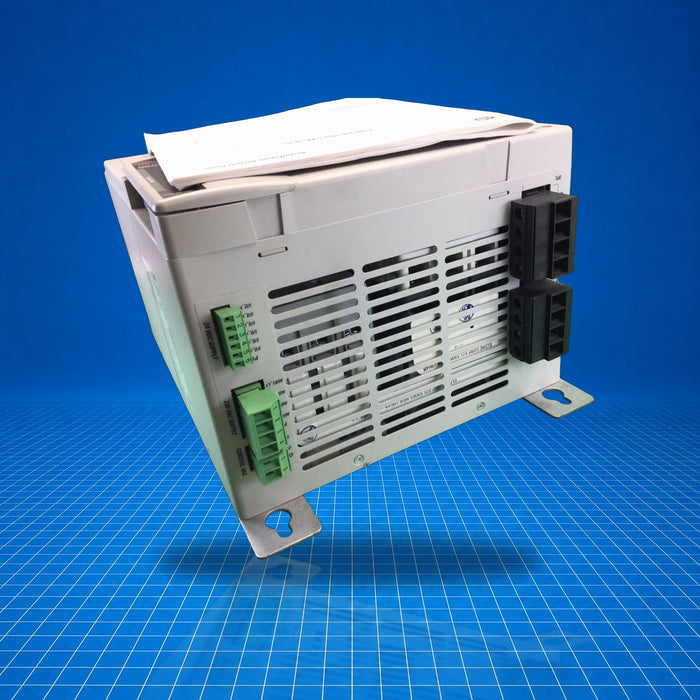

2094-AL75S Allen-Bradley
Original price
$1,487.50
-
Original price
$1,886.50
Original price
$1,487.50
$1,487.50
-
$1,886.50
Current price
$1,487.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2094-AL75S is an Allen-Bradley Kinetix line interface module (LIM) used within Kinetix 6000 drive systems to provide auxiliary and control power conditioning and distribution. It handles up to 75 A of 230 V AC auxiliary power and provides a 24 V DC auxiliary/control supply. It functions as a key power interface between incoming line power and servo drive modules, typical in multi-axis motion control applications such as packaging machines and assembly lines. The 2094-AL75S integrates configurable branch-circuit protection and supports up to eight drive axes.
Best Suited For
- Kinetix 6000 multi-axis servo systems
- Applications requiring 230 V AC 75 A auxiliary feed
- Systems needing 24 V DC auxiliary/control power (20 A)
- Multi-axis drive installations (up to 8 axes)
Auxiliary AC current capacity
75 A
Auxiliary/control DC output
24 V DC @ 20 A
Input voltage range (AC)
195-265 V AC, 47-63 Hz
Configurable branch-circuit protection
Yes
Technical Specifications
I/O & Electrical
Input voltage
195-265 V AC (nom. 230 V AC), 47-63 Hz
Auxiliary AC current capacity
75 A
24 V DC output current capacity
20 A
Certifications
Eurasion Economic CommunityKorean KCCEUL ListedAustralian RCMUKCA
