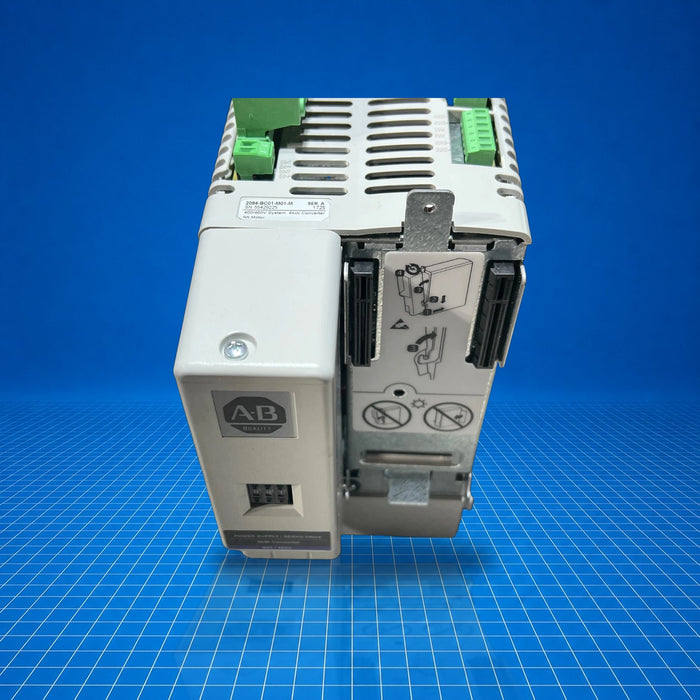

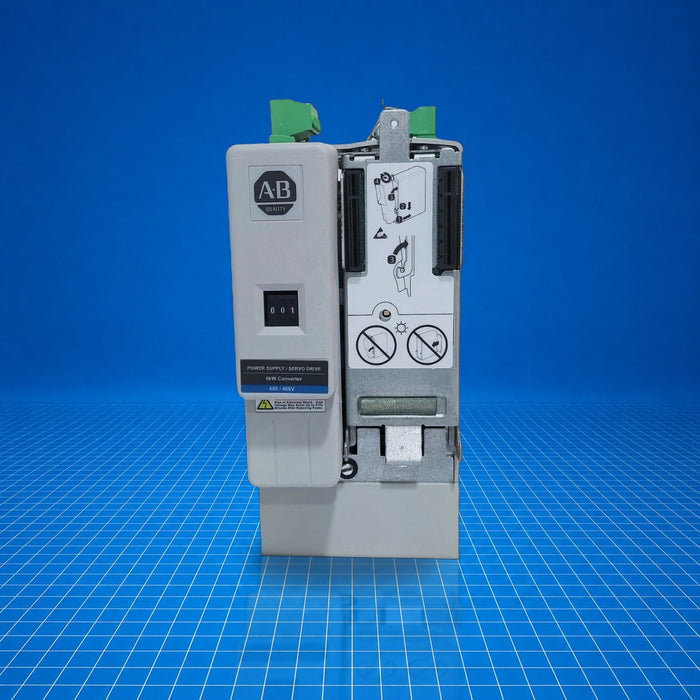

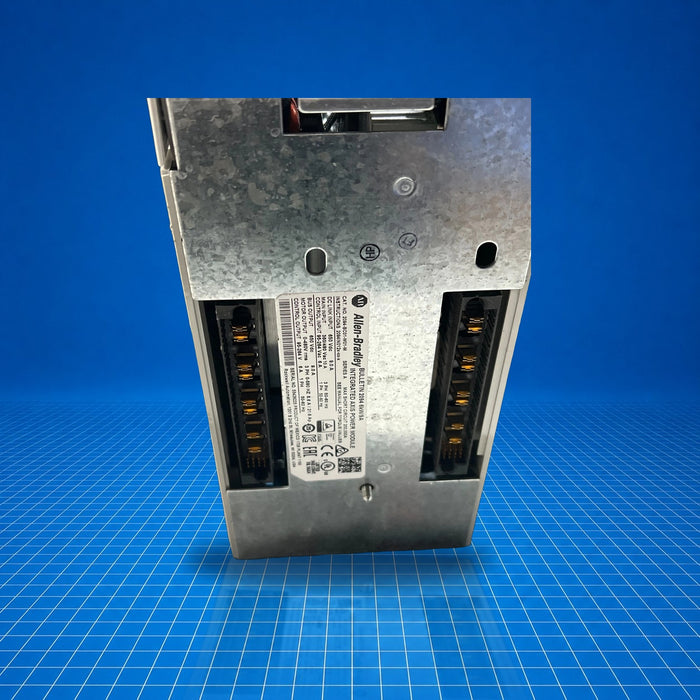

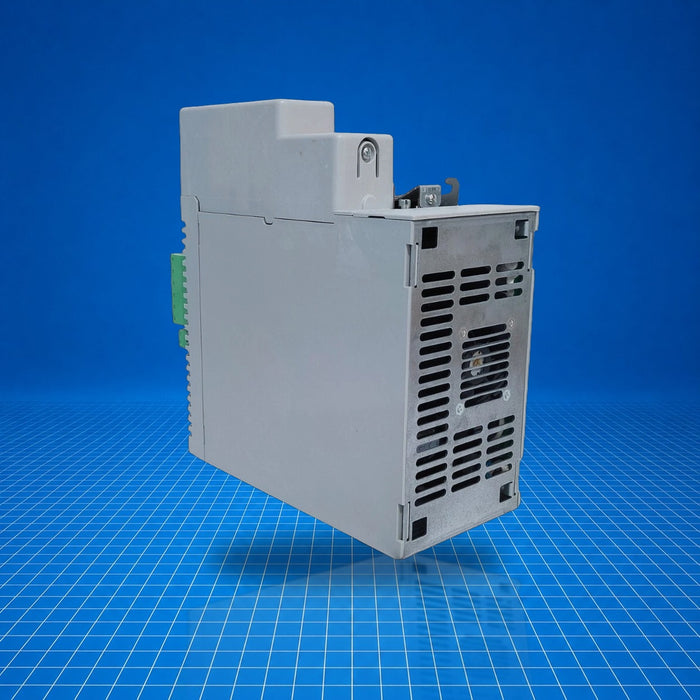

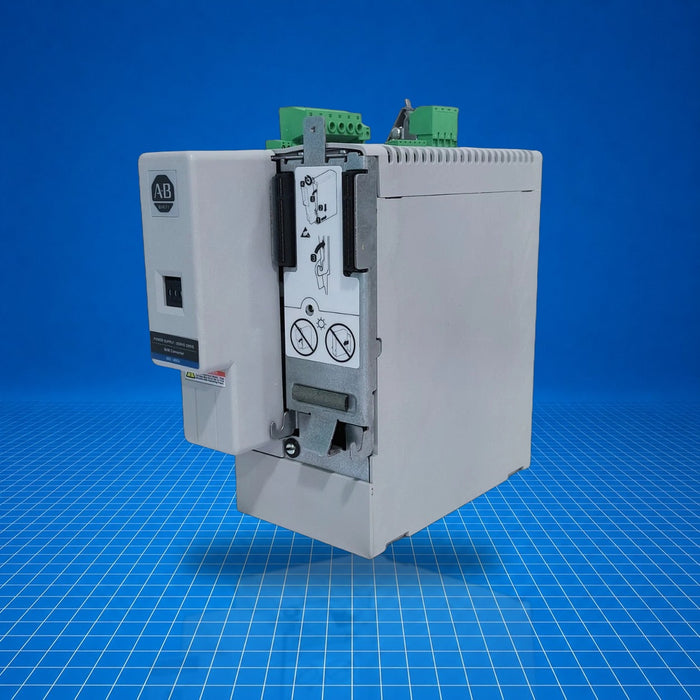

2094-BC01-M01-M Allen-Bradley
Original price
$2,464.79
-
Original price
$3,599.98
Original price
$2,464.79
$2,464.79
-
$3,599.98
Current price
$2,464.79
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Bulletin Number | 2094 |
| Input Voltage | 460 V AC, 50/60 Hz (3‑phase, nominal 360–480 V) |
| Converter Power Rating | 5 kW |
| Inverter/Output Current | 9 A continuous |
| Output Power (Wattage) | 3.9 kW |
| Max Bus Capacitance | 4585 µF |
| Operating Temperature | 32 – 122 °F (0 – 50 °C) |
| Weight | 12.5 lb (5.67 kg) |
| Dimensions (W × H × D) | 4.9 × 11.9 × 13.2 in (125 × 302 × 336 mm) |
| Module Type | Integrated Axis Module (IAM) |
The Allen‑Bradley 2094‑BC01‑M01‑M is an Integrated Axis Module (IAM) for the Kinetix 6200 multi‑axis servo drive platform, combining a 5 kW converter and 9 A inverter output in a compact, high‑performance package. Designed for 460 V three‑phase systems (nominal 360–480 V AC), it handles up to 3.9 kW of output power and supports demanding motion applications in packaging, assembly, and material handling. The 2094‑BC01‑M01‑M delivers seamless integration with Logix-based motion control architectures, simplifying installation and enhancing coordinated motion control performance.
