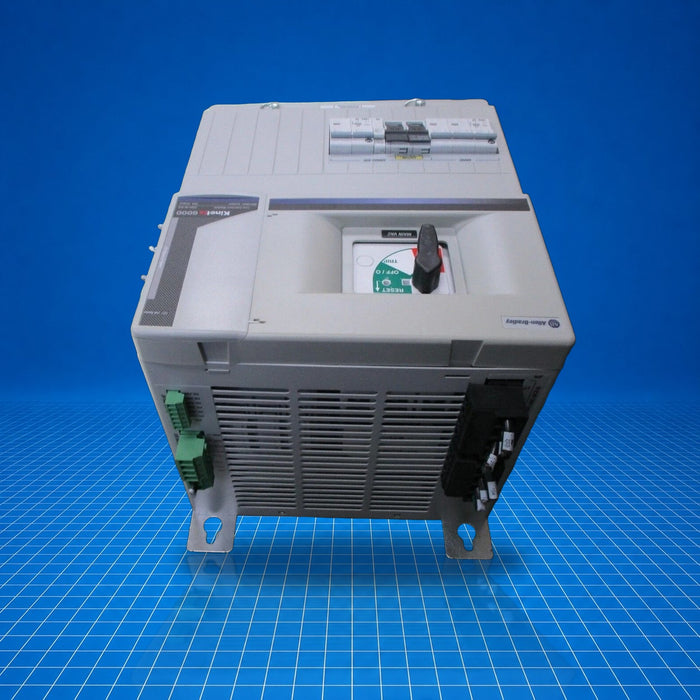

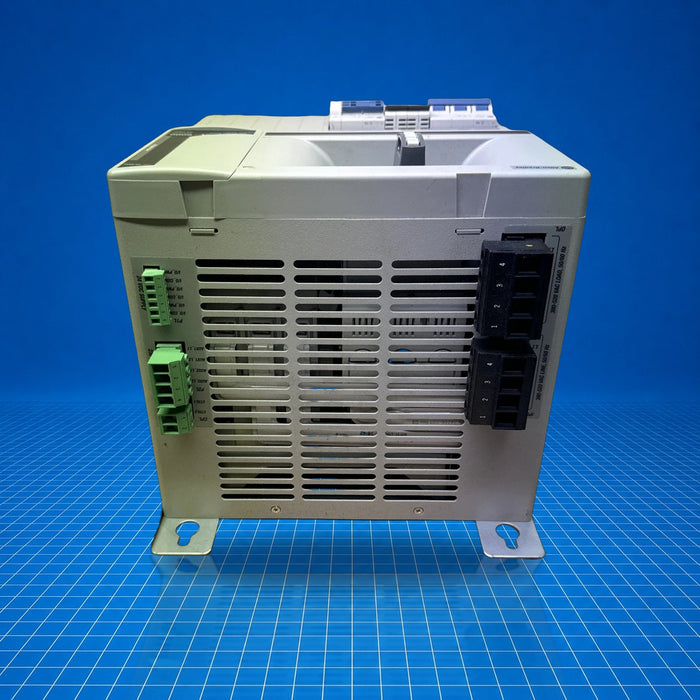

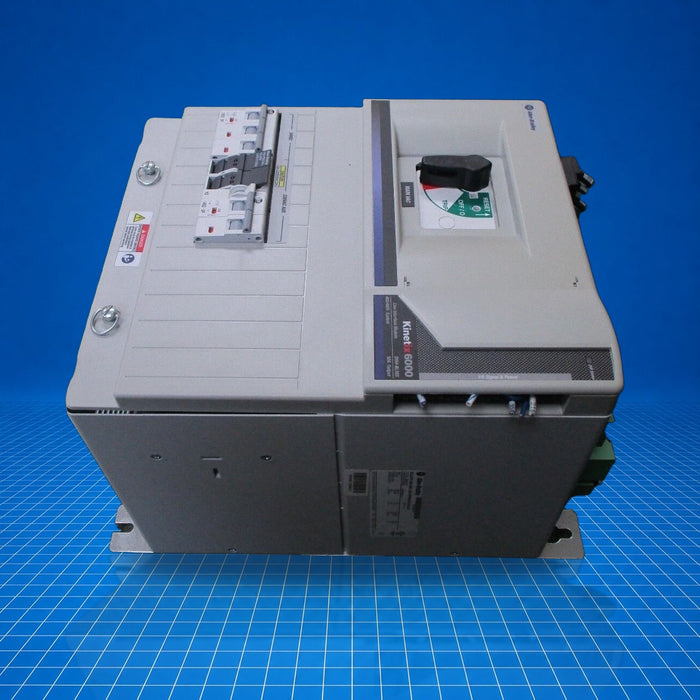

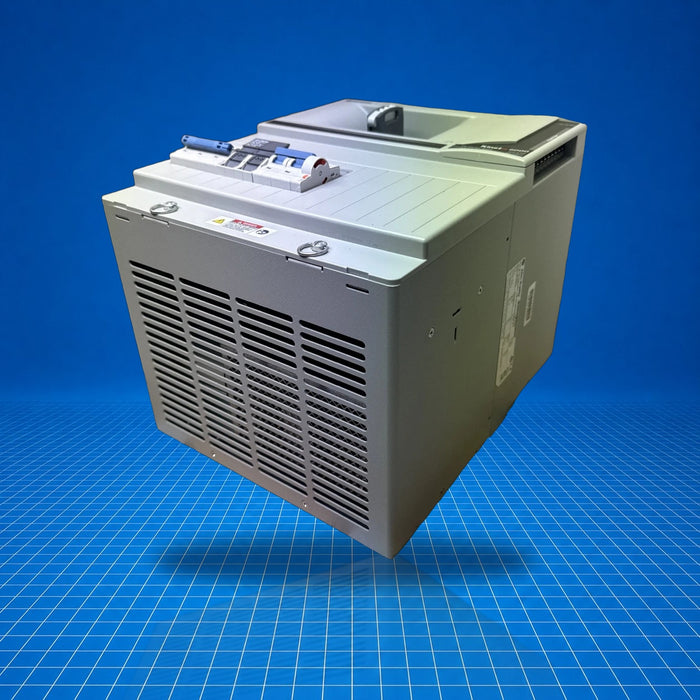

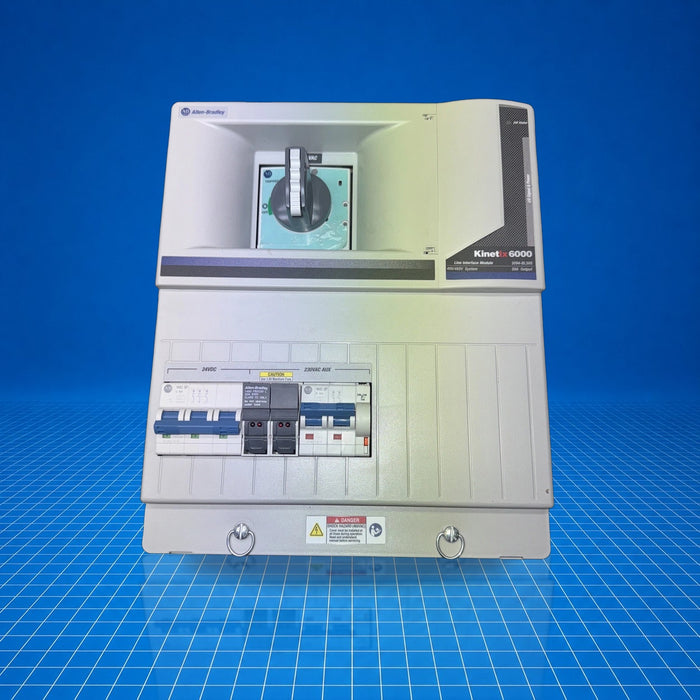

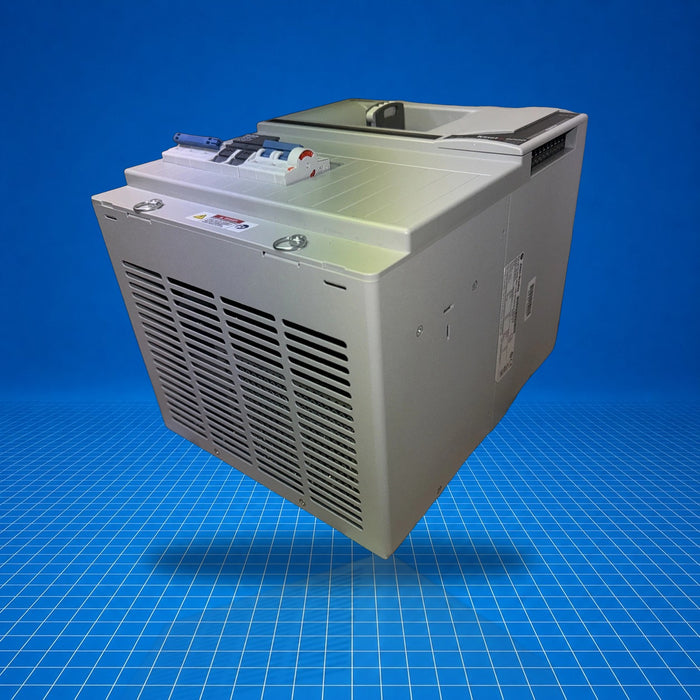

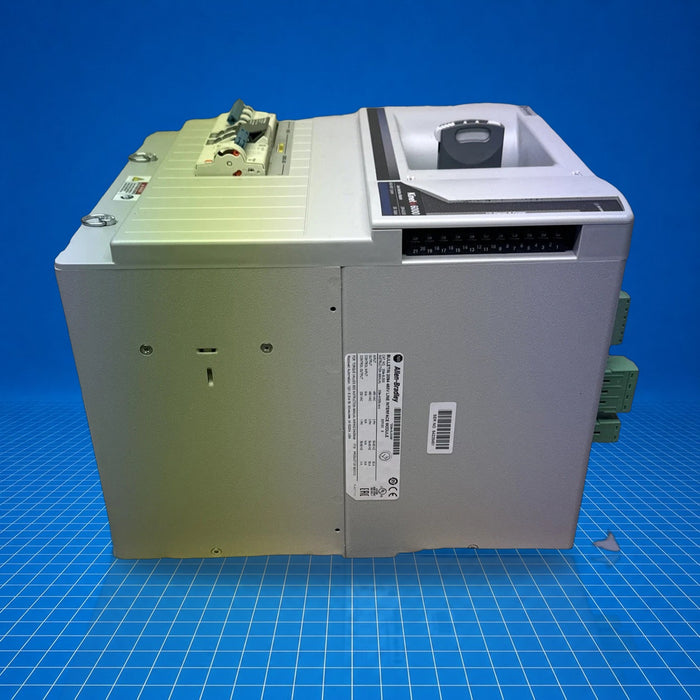

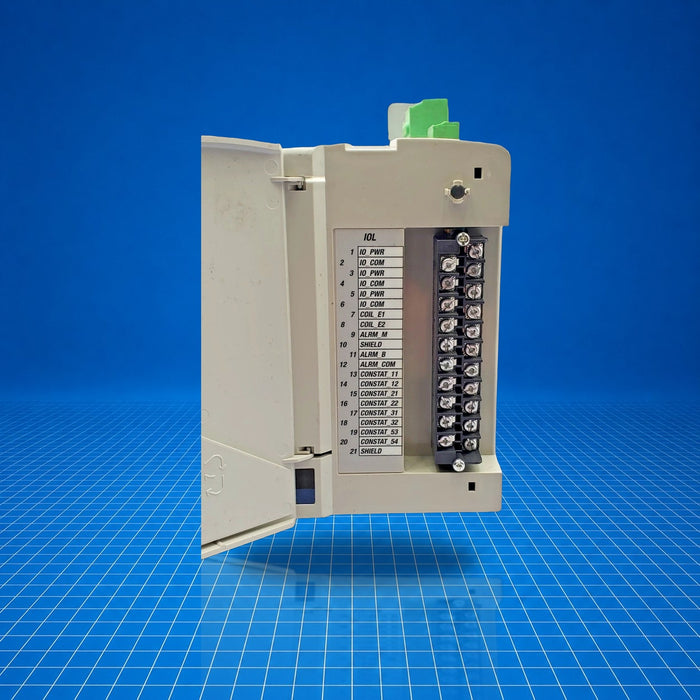

2094-BL50S Allen-Bradley
Original price
$1,750.00
-
Original price
$3,849.98
Original price
$1,750.00
$1,750.00
-
$3,849.98
Current price
$1,750.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

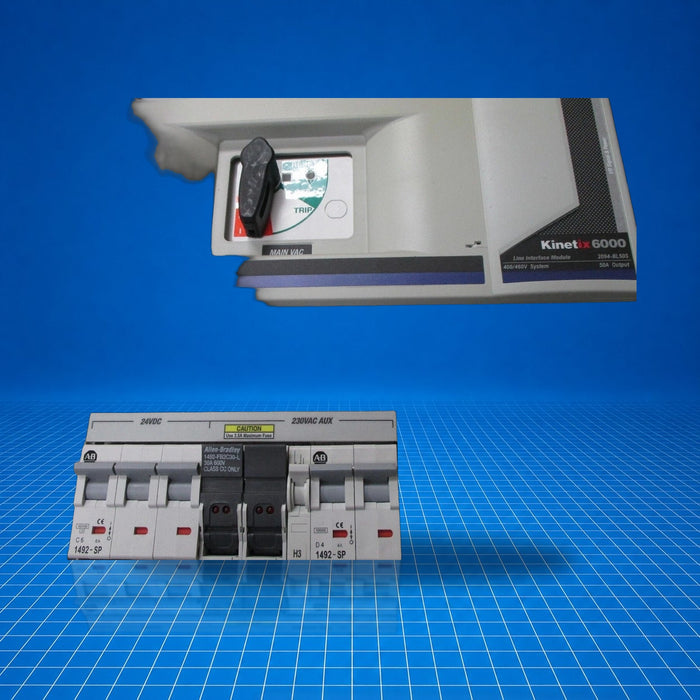

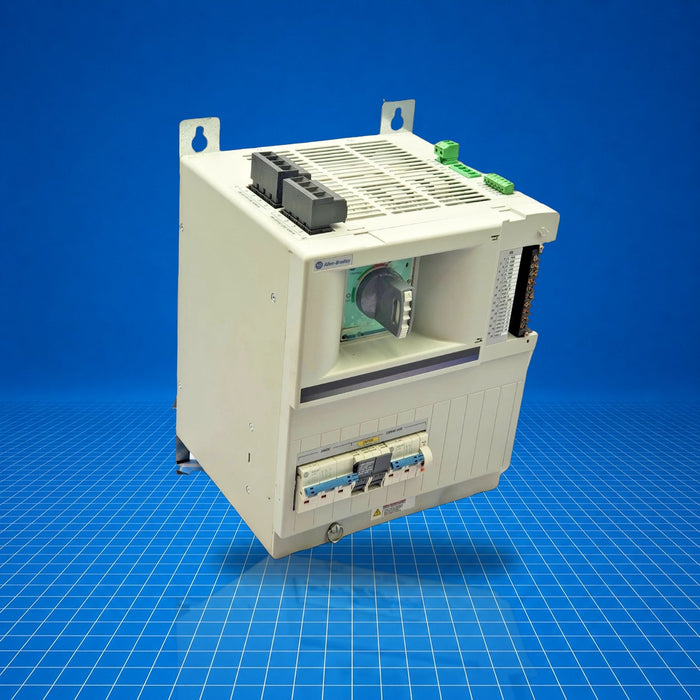

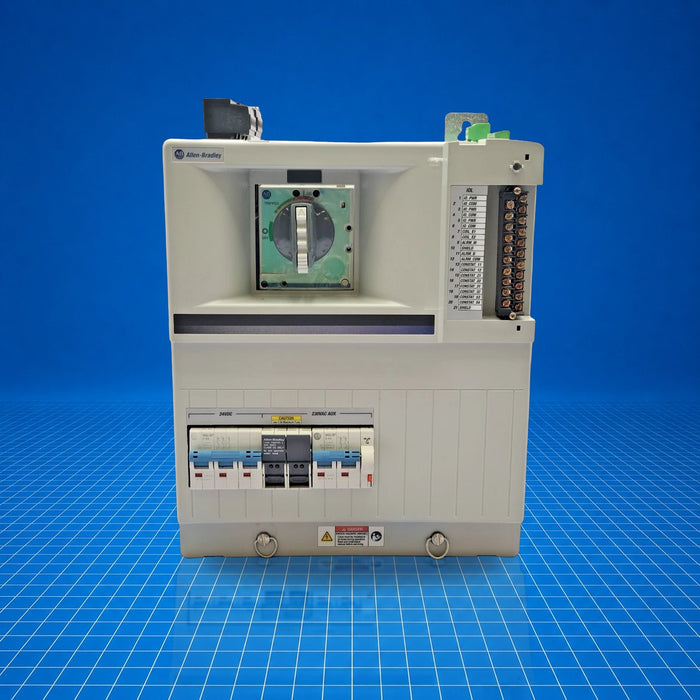

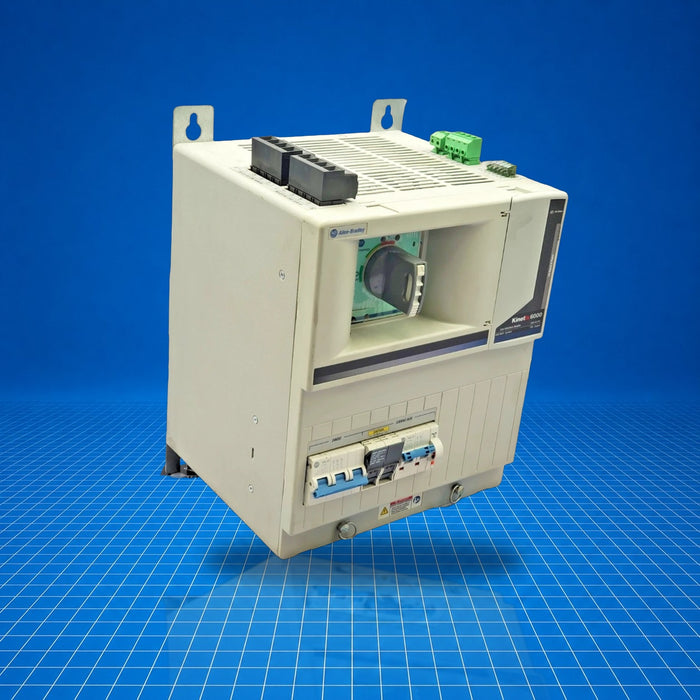

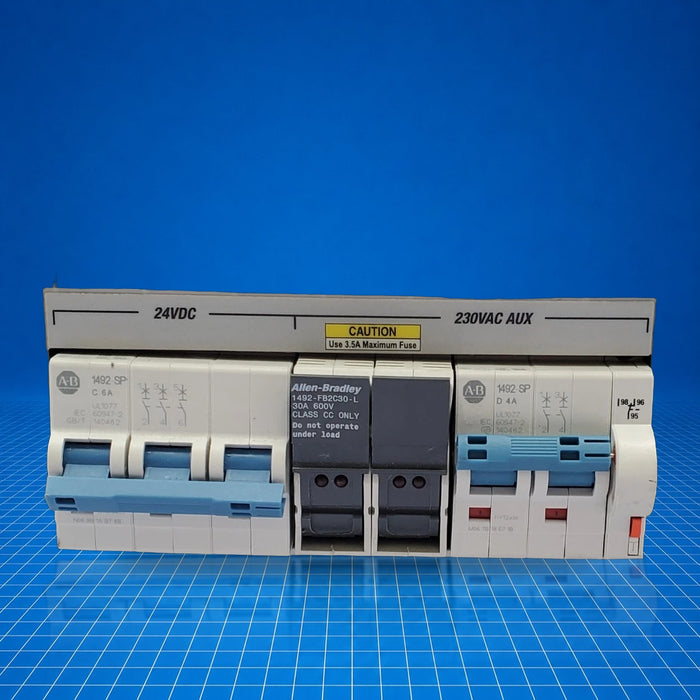

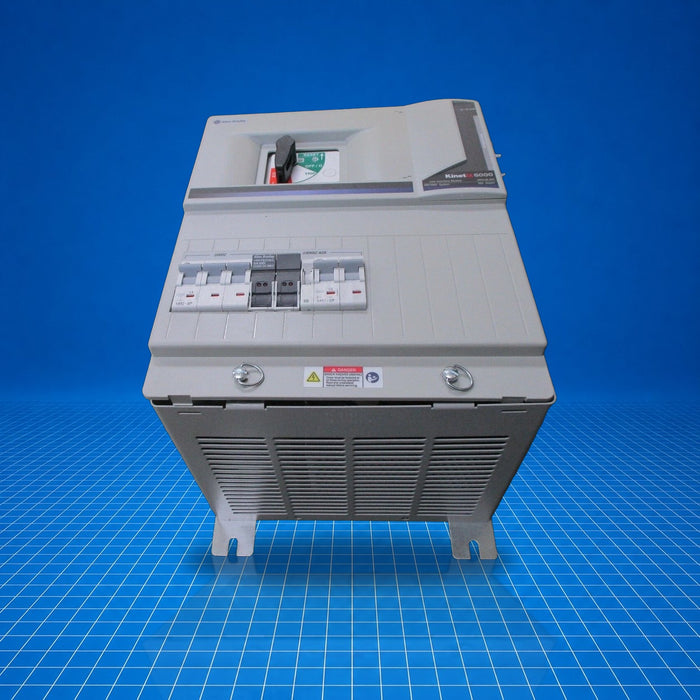

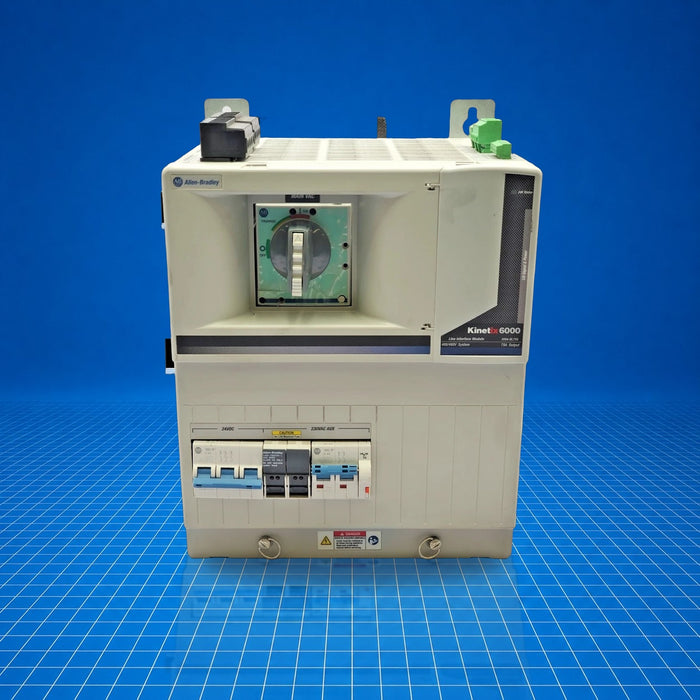

The 2094-BL50S is a Line Interface Module (LIM) in the Allen-Bradley 2094 Kinetix product family. It functions as a three-phase interface between incoming AC mains and Kinetix servo drive systems, providing main power output, auxiliary 24 V DC power, and configurable branch-circuit protection. It is typically used in mid-range industrial motion control installations where consolidation of input protection, filtering, and distribution improves panel space efficiency and simplifies wiring.
Best Suited For
- Kinetix 6000 and 7000 servo drive systems
- Systems requiring three-phase 460 V AC feed distribution
- Applications needing integrated branch-circuit protection
- Environments with limited panel space
- Installation scenarios requiring built-in AC and DC filtering
Input voltage range
380…520 V AC rms 3-phase
Main AC output current
50 A rms
Auxiliary DC output
24 V DC, 20 A
Weight
38.00 lbs (17.24 kg)
Dimensions (H × W × D)
259.8 × 248 × 375 mm
Technical Specifications
I/O & Electrical
AC input voltage
380…520 V AC rms 3-phase
AC input frequency
47…63 Hz
Main AC output current (rms)
50 A
AC output voltage (single-phase)
190…260 V AC rms
Auxiliary 24 V DC power supply
20 A
Physical & Environmental
Weight
38.00 lbs (17.24 kg)
Dimensions (H × W × D)
259.8 × 248 × 375 mm
Non-condensing humidity
5 to 95 percent
Certifications
CEUK-Compliant
Certified for CE, UK and Eurasian Economic Community as of September 1 2025. Discontinued as of August 5 2025.
