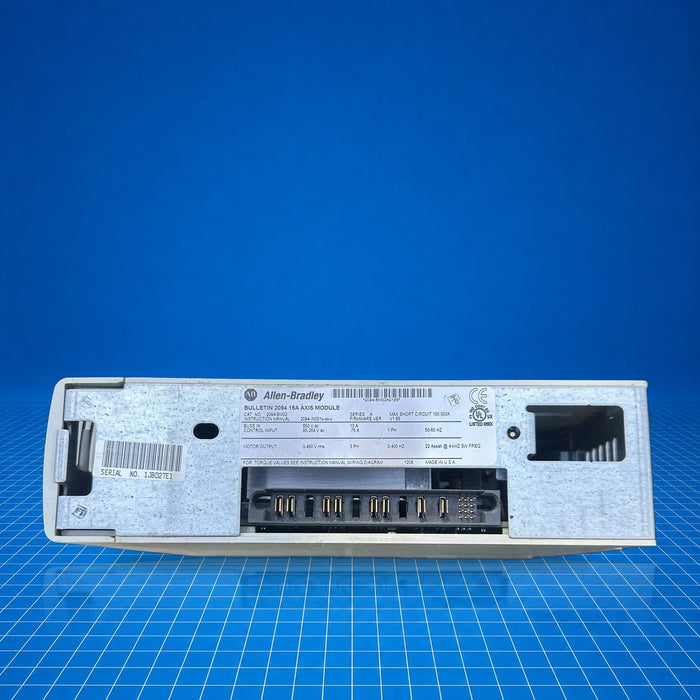

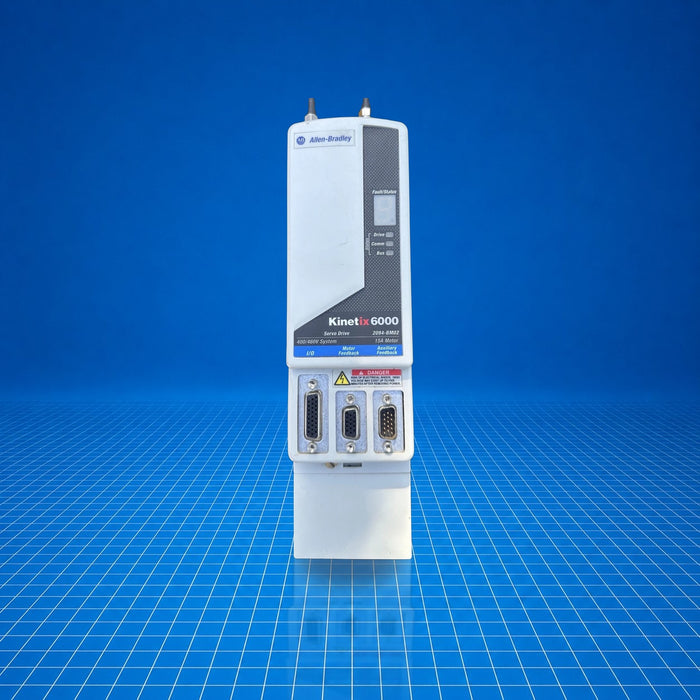

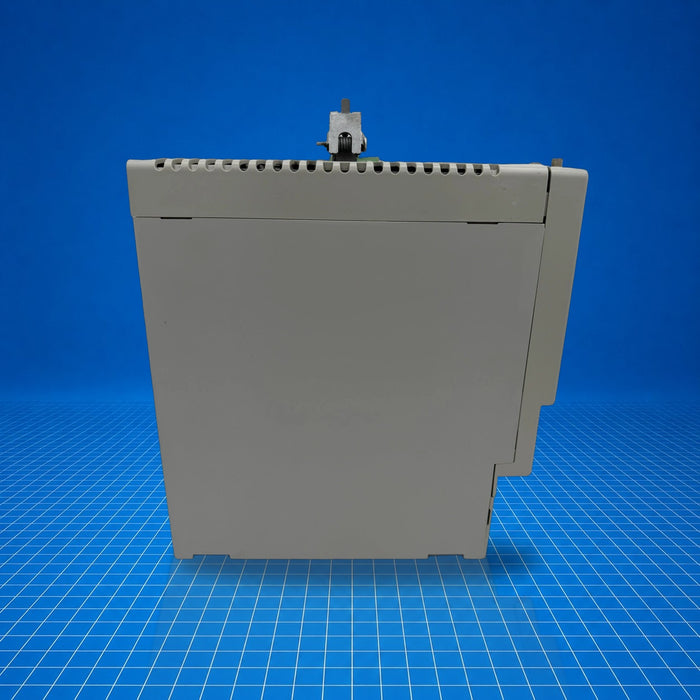

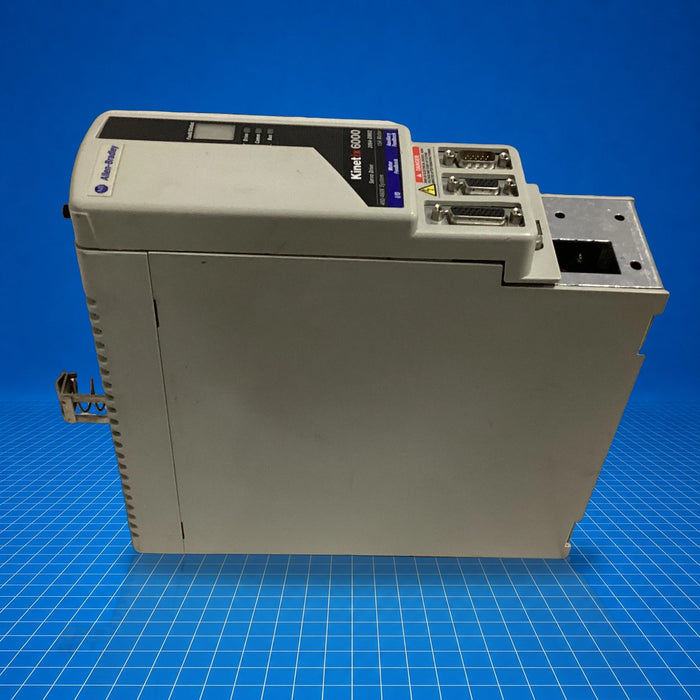

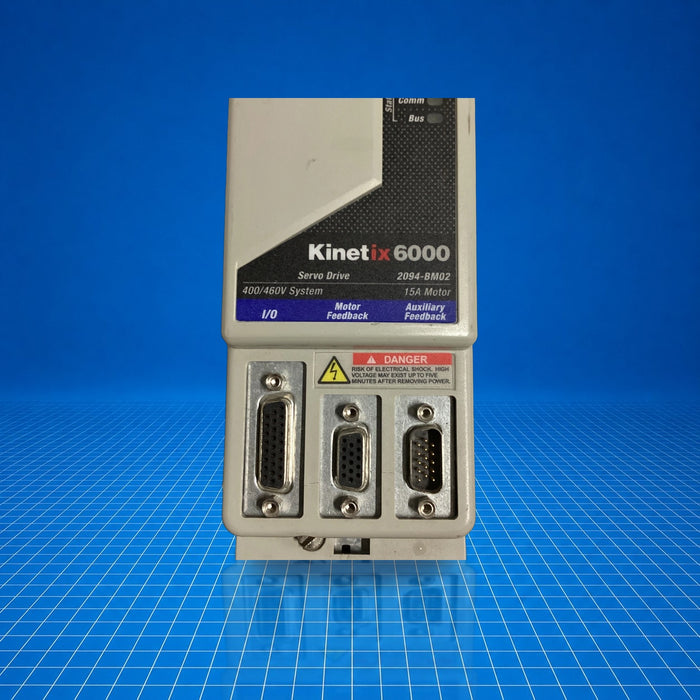

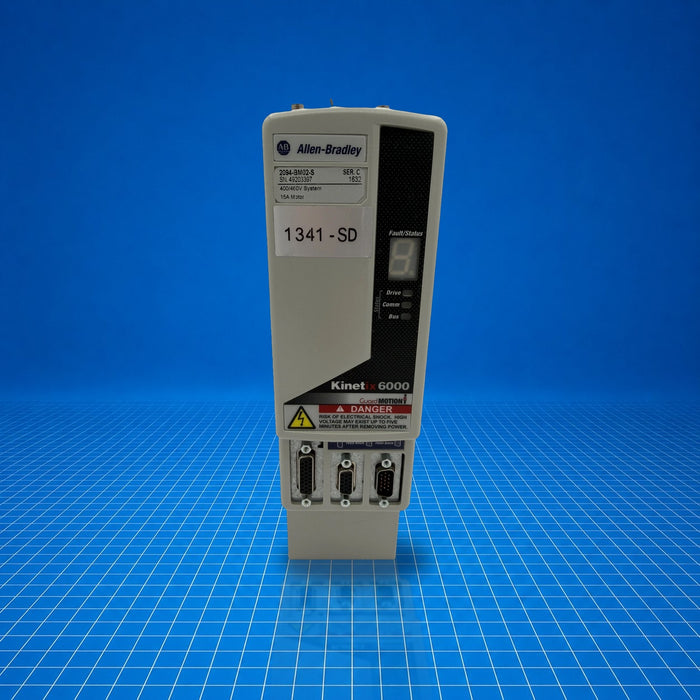

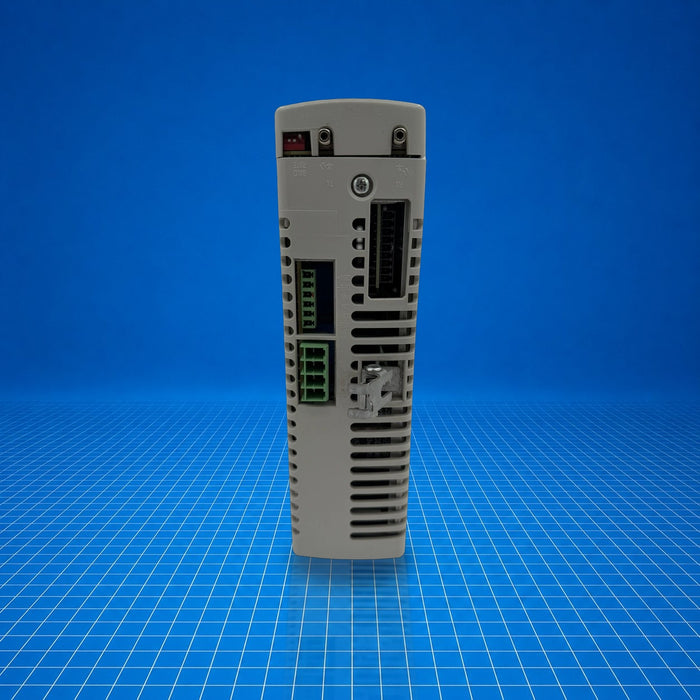

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

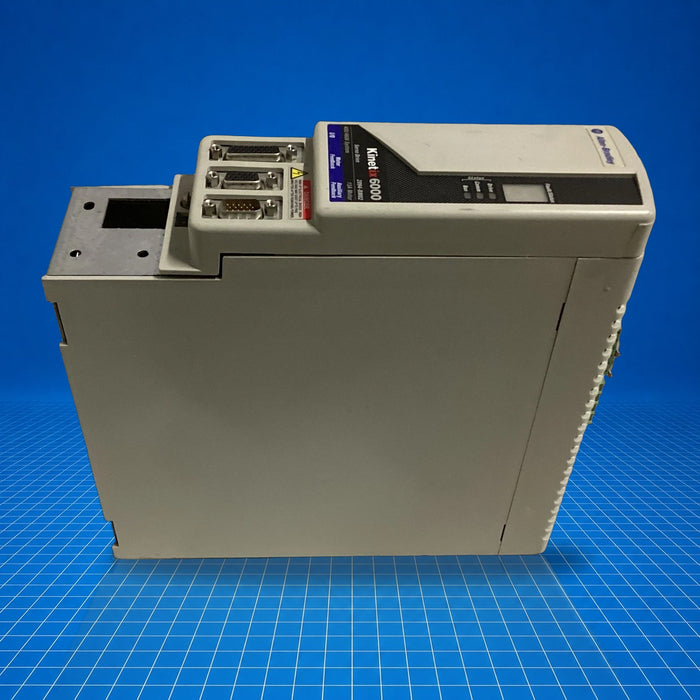

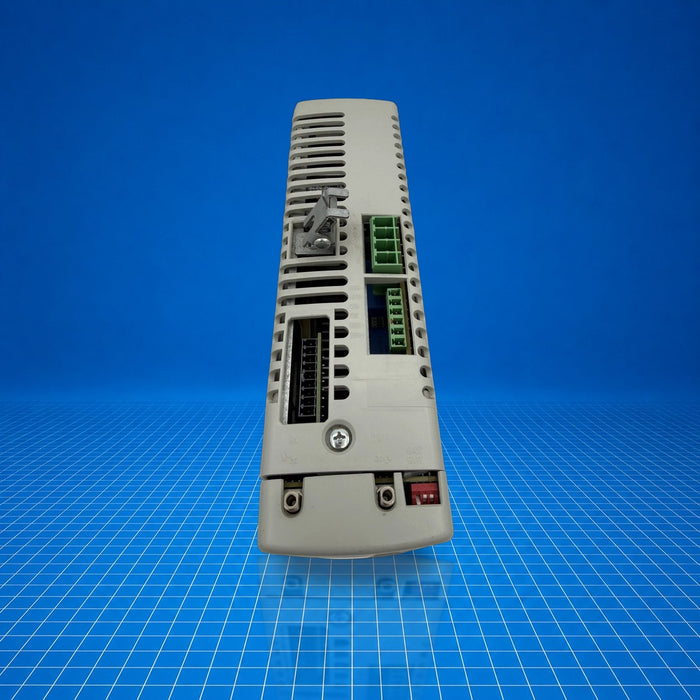

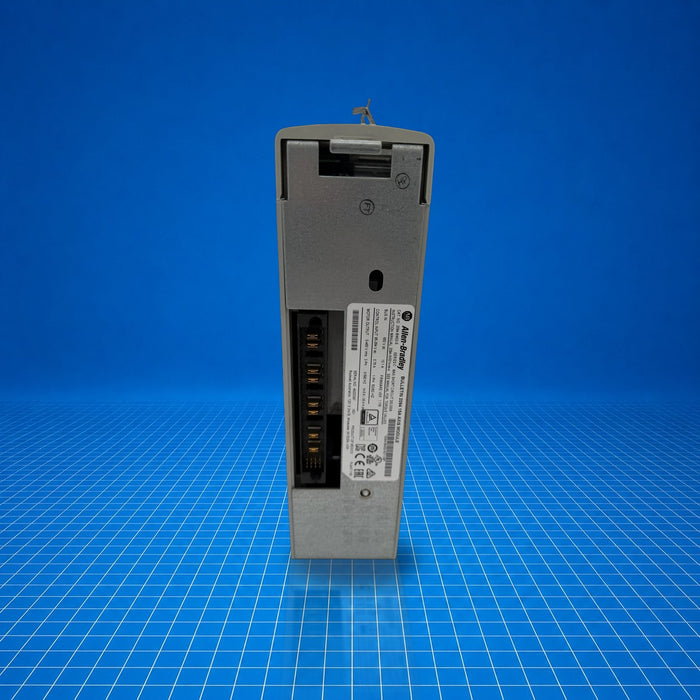

2094-BM02 Allen-Bradley
Original price
$525.00
-
Original price
$709.50
Original price
$525.00
$525.00
-
$709.50
Current price
$525.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2094-BM02 (also cataloged as 2094-BM02-M) is an Allen-Bradley Kinetix 6200/6500 series Axis (power) module-an integral inverter module that delivers controlled AC motor drive in distributed multi-axis systems. It accepts 460 V AC input and supplies up to 15 A continuous inverter output at 6.6 kW nominal power, enabling motion control in mid-range industrial applications such as machine tools, pick-and-place systems, and indexing systems. The part is discontinued (production ceased December 31, 2025) and is typically employed within modular servo systems where precise axis-level power regulation is required.
Best Suited For
- Integration within Kinetix 6200/6500 multi-axis servo systems
- Applications requiring ~6.6 kW per axis power delivery
- Retrofit or replacement in phased-out Kinetix 6200 setups
- Mid-power indexing or positioning operations
Input voltage
460 V AC, 50/60 Hz
Continuous output current
15 A
Nominal continuous power
6.6 kW
Internal shunt continuous power
50 W
Efficiency
98 % (typical)
Technical Specifications
I/O & Electrical
Input voltage
460 V AC, 50/60 Hz
Continuous output current
15 A
Nominal drive voltage range
360-480 V AC (3-phase)
Communication & Power
Nominal continuous power
6.6 kW
Efficiency
98 % (typical)
Power dissipation
53-142 W
Physical & Environmental
Weight
~5.00 lbs (2.27 kg)
Operating temperature
32-122 °F (0-50 °C)
Dimensions
2.76 × 11.9 × 13.2 in (70 × 302 × 336 mm)
Certifications
UL ListedCE
