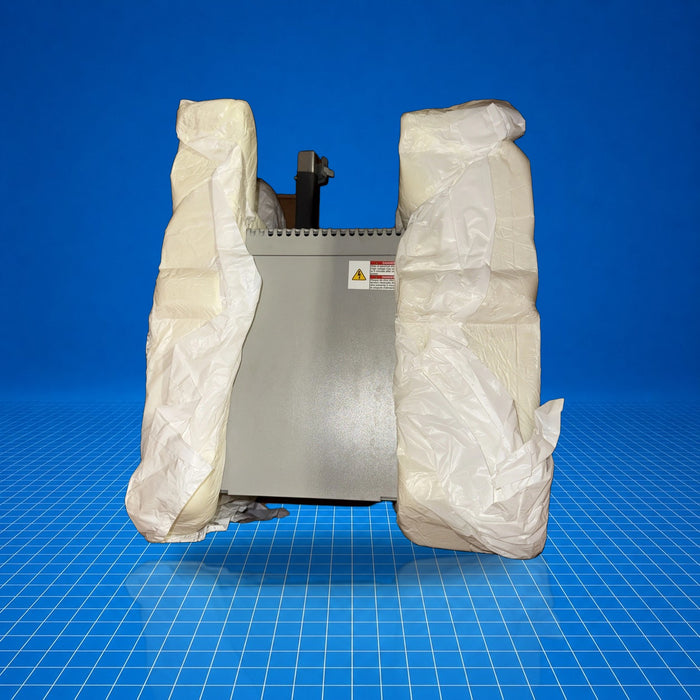

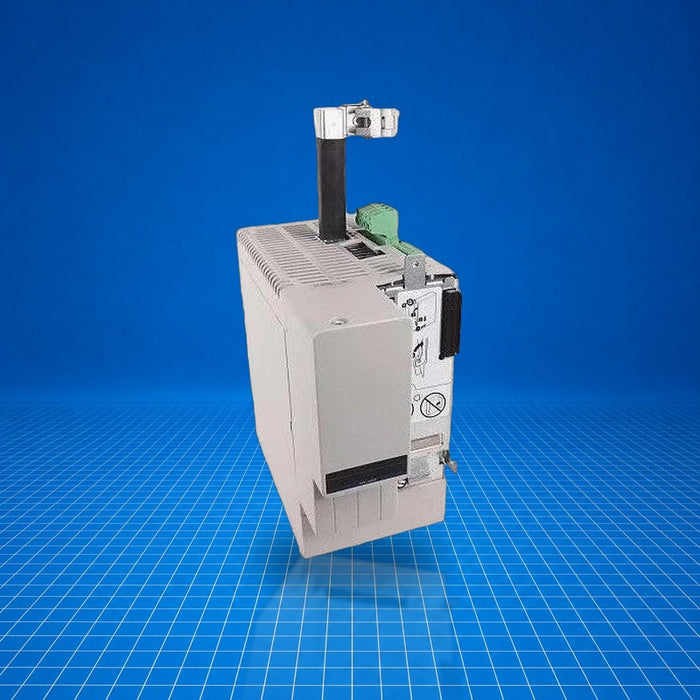

2094-BM03-M Allen-Bradley
Original price
$2,288.23
-
Original price
$4,112.50
Original price
$2,288.23
$2,288.23
-
$4,112.50
Current price
$2,288.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2094-BM03-M is a Bulletin 2094 Kinetix 6000 Axis Module (400 V-class inverter) used in multi-axis servo systems. It functions as a power/inverter module that connects to a shared DC bus, typically paired with an Integrated Axis Module (IAM) within Kinetix motion control. In a control system it serves to deliver controlled inverter current for servo motors in machine motion applications. 2094-BM03-M is commonly deployed in mid-power industrial automation tasks such as material handling, packaging, and machine tool positioning.
Best Suited For
- Mid-range 400 V-class servo axis control
- Kinetix 6000 multi-axis drive systems
- Shared DC bus configurations with IAM modules
- Installation in machine motion applications requiring 30 A range
Continuous Output Current
21.2 A
Peak Output Current
53.0 A
Nominal Power Output
13.5 kW
Voltage Class
400 V-class (360-480 V AC)
Efficiency
98%
Technical Specifications
I/O & Electrical
Nominal drive voltage
360-480 Volts (3 Phase) (400 V-class)
Continuous output current
21.2 A
Peak output current
53.0 A
Continuous power output
13.5 kW
Internal shunt continuous power
200 W
Internal shunt peak power
22 .5 kW
Communication & Power
Efficiency
98%
Power dissipation
94 W at 20% load; 255 W at 100% load
Physical & Environmental
Operating temperature
0-50 °C (32-122 °F)
Weight
10.06 lbs (4.56 kg)
