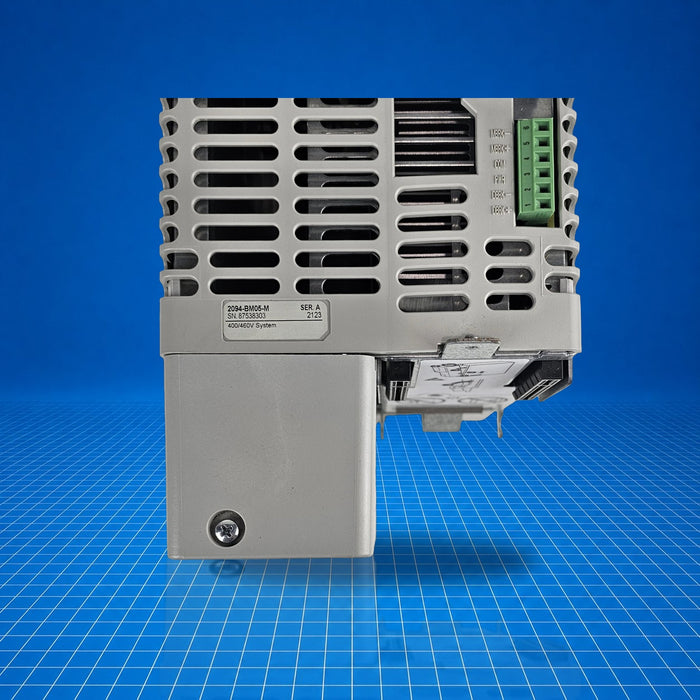

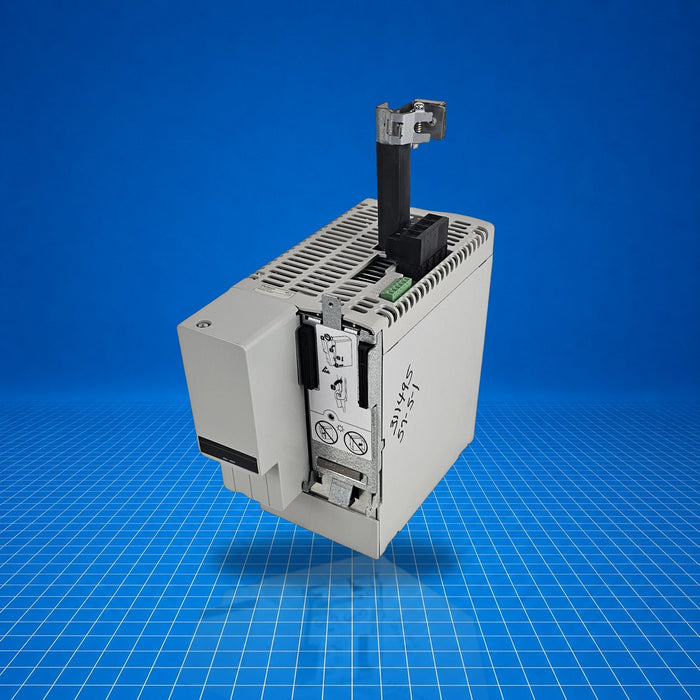

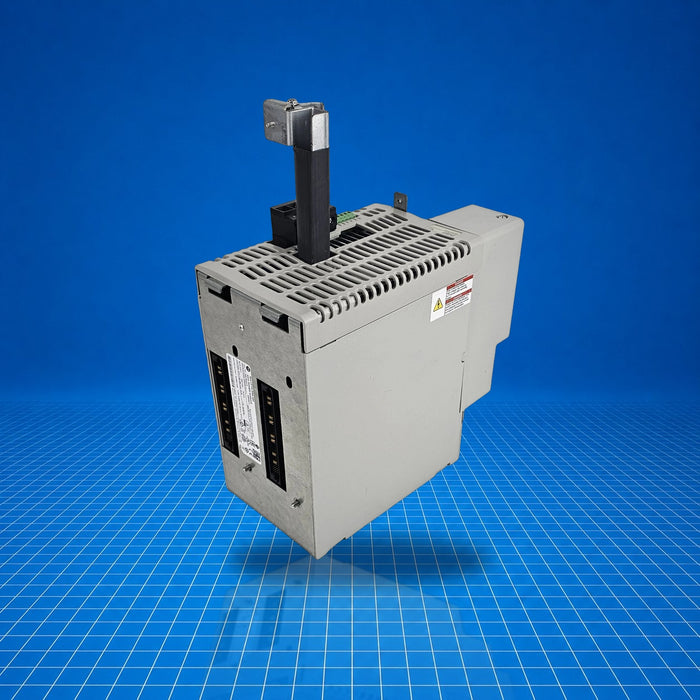

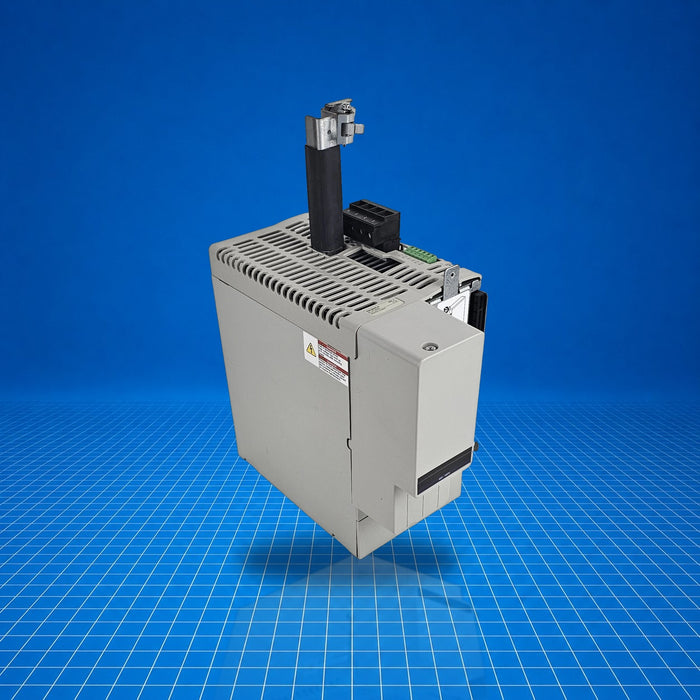

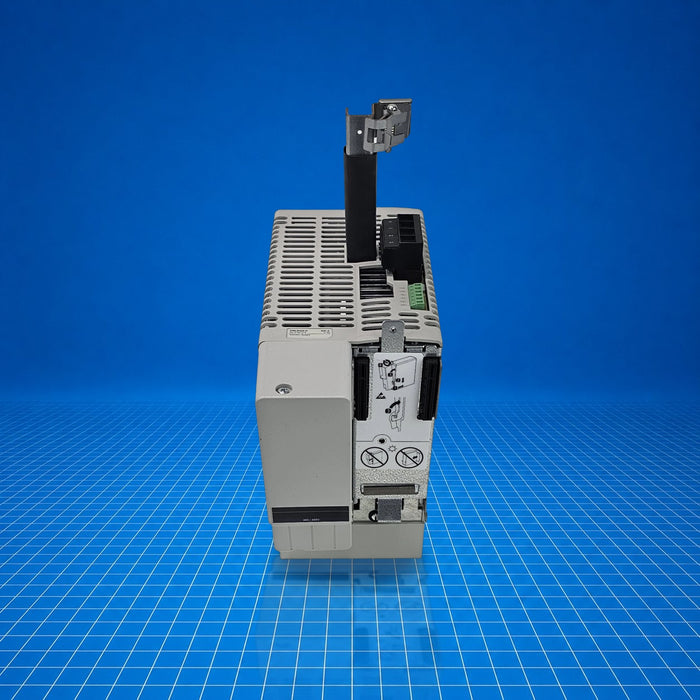

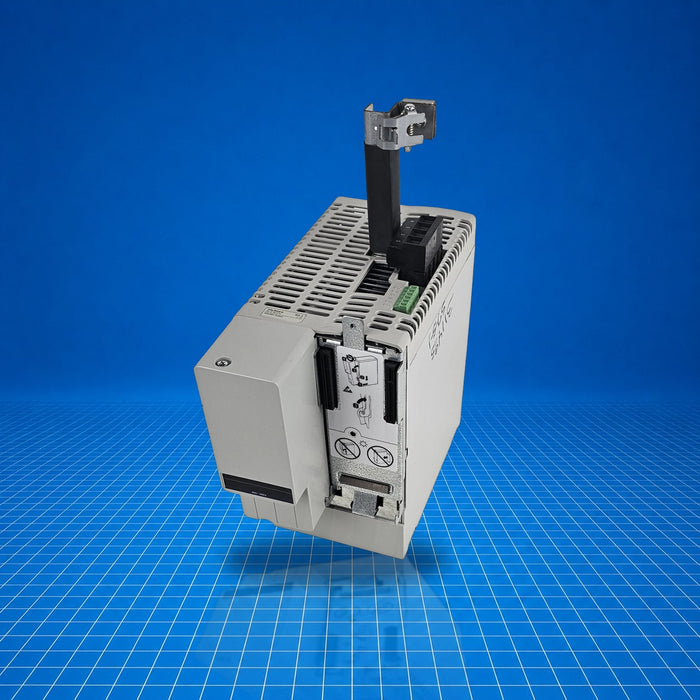

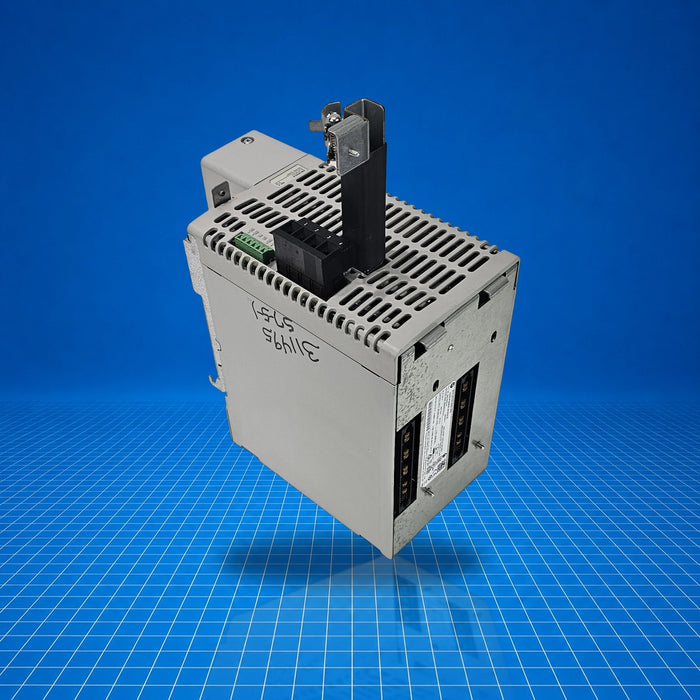

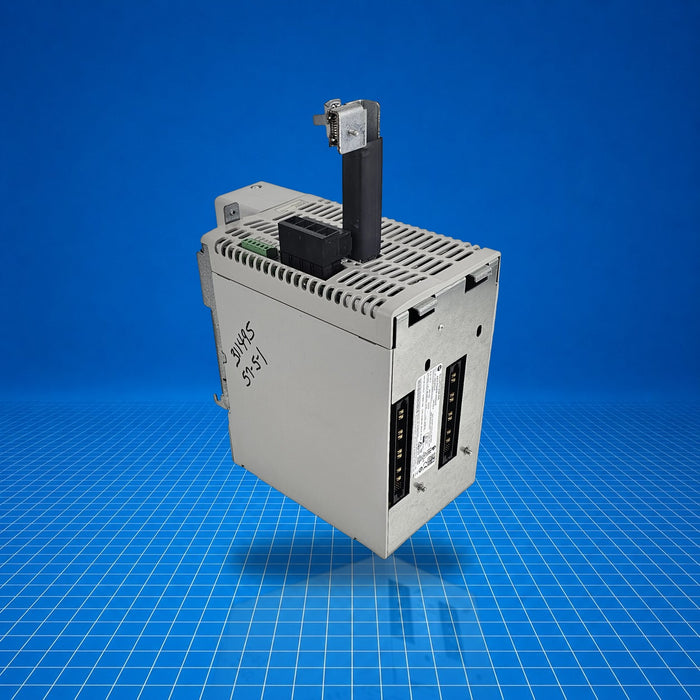

2094-BM05 Allen-Bradley
Original price
$3,150.00
-
Original price
$4,579.80
Original price
$3,150.00
$3,150.00
-
$4,579.80
Current price
$3,150.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2094-BM05 is an Allen-Bradley Kinetix AM series Axis (power) Module, part of the Kinetix 6000 multi-axis servo drive platform. It functions as a DC-bus inverter module, delivering inverter current to a servo motor within a distributed drive architecture. In a control system, the 2094-BM05 operates alongside a SERCOS control module and a shared power rail to drive one axis. It is typically used in industrial motion control applications such as packaging, robotics, or material handling where modular axis integration is required.
Best Suited For
- Kinetix 6000 multi-axis servo systems
- Single-axis inverter in modular motion setups
- Applications requiring 22 kW continuous inverter power
- Servo installations with shared DC-bus architecture
Continuous inverter power
22.0 kW
Continuous sine current (0-pk)
48.9 A
Continuous RMS current
34.6 A
Inverter current rating
45 A
Nominal input voltage
650 V DC
Technical Specifications
I/O & Electrical
Nominal input voltage
650 V DC
Continuous RMS current
34.6 A
Continuous sine current (0-pk)
48.9 A
Inverter current rating
45 A
Continuous inverter power
22.0 kW
Communication & Power
Velocity loop bandwidth
500 Hz
Current loop bandwidth
1300 Hz
Physical & Environmental
Weight
11.0 lbs (4.98 kg)
Certifications
CERoHS
