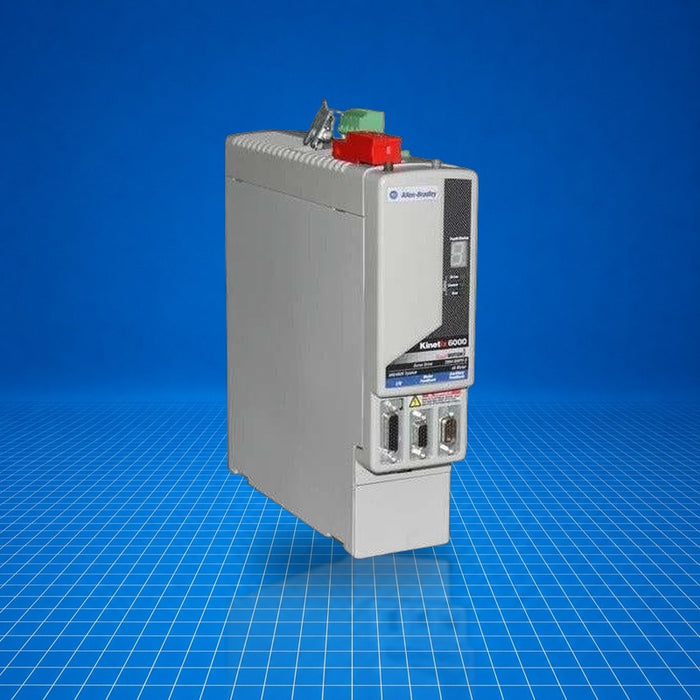

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2094-BMP5-S Allen-Bradley
Original price
$632.50
-
Original price
$2,700.00
Original price
$632.50
$632.50
-
$2,700.00
Current price
$632.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2094-BMP5-S is an Allen-Bradley Kinetix 6000 series axis inverter module with integrated Safe Torque Off (STO). Designed for 400 V-class servo systems, it accepts a 650 V DC nominal input and drives a motor with up to 1.8 kW continuous output. It performs velocity and current regulation for motion control applications, such as OEM machine axes, conveyor systems, and packaging lines where torque control and dynamic response are required. The 2094-BMP5-S supports loop bandwidths of 500 Hz (velocity) and 1300 Hz (current) and includes an internal shunt resistor assembly.
Best Suited For
- Single-axis servo control in Kinetix 6000 systems
- Applications requiring Safe Torque Off functionality
- 400 V-class servo drive installations
- Upgrading or replacing discontinued Kinetix 6000 modules
- Machines requiring fine motion control with defined current/velocity loops
Nominal input voltage
650 V DC
Continuous current (rms)
2.8 A
Continuous output power
1.8 kW
Velocity / current loop bandwidth
500 Hz / 1300 Hz
Efficiency
98 %
Technical Specifications
I/O & Electrical
Nominal input voltage
650 V DC
Continuous current (rms)
2.8 A
Continuous current (sine, 0-pk)
4.0 A
Continuous output power
1.8 kW
Internal shunt resistor
115 Ω
Internal shunt continuous power
50 W
Internal shunt peak power
5.6 kW
Short-circuit current rating
200 000 A (rms) symmetrical
Certifications
UL ListedCEEurasian Economic CommunityAustralian RCMKorean KC
