Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

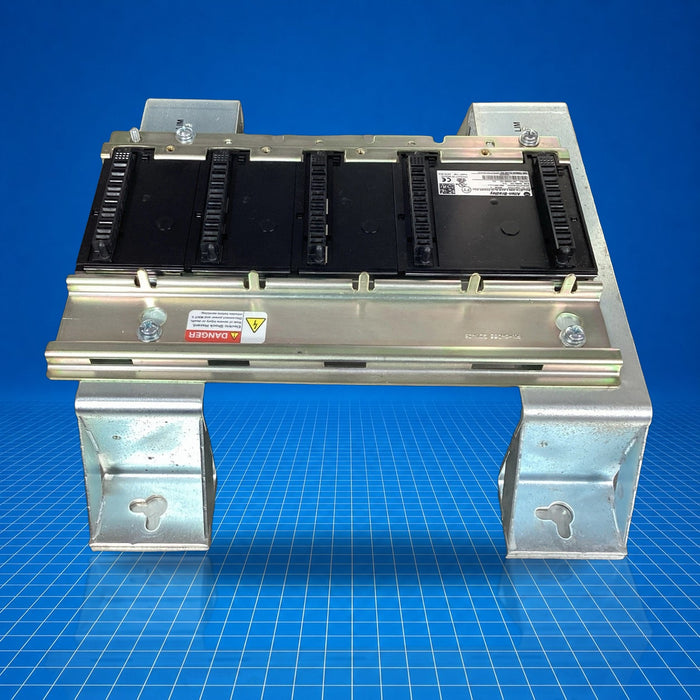

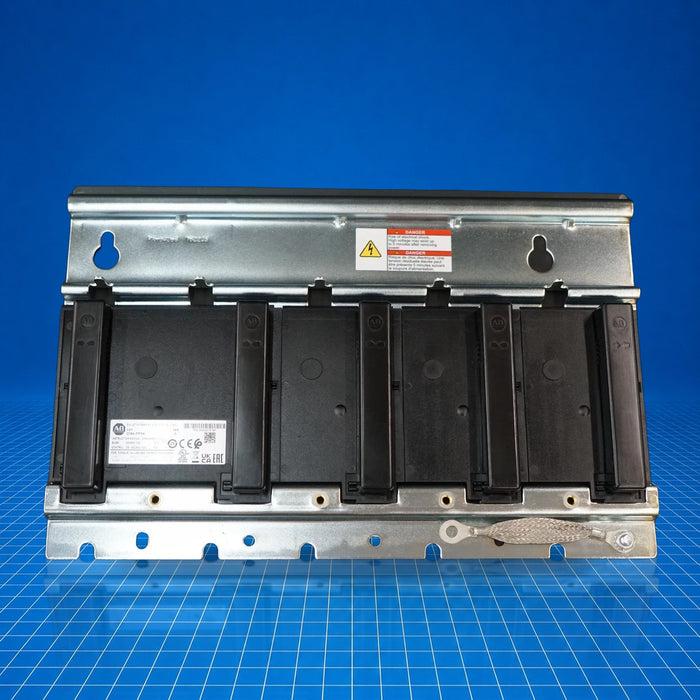

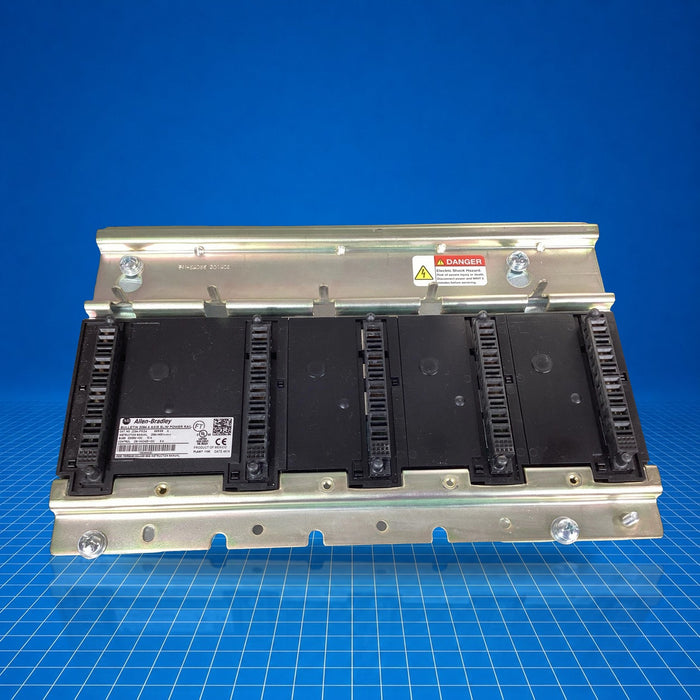

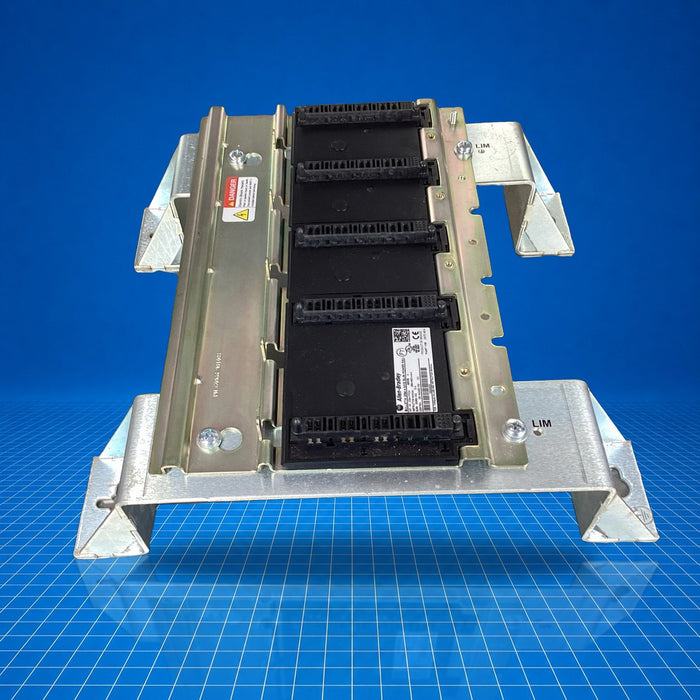

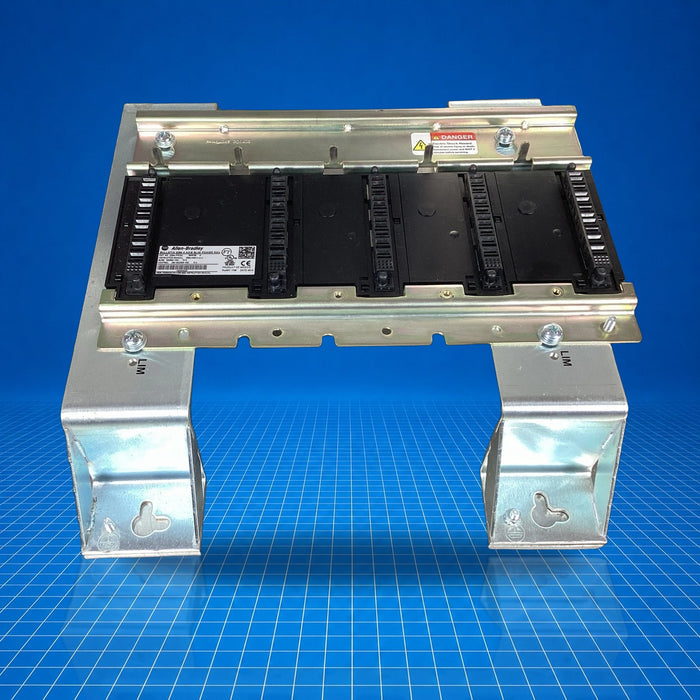

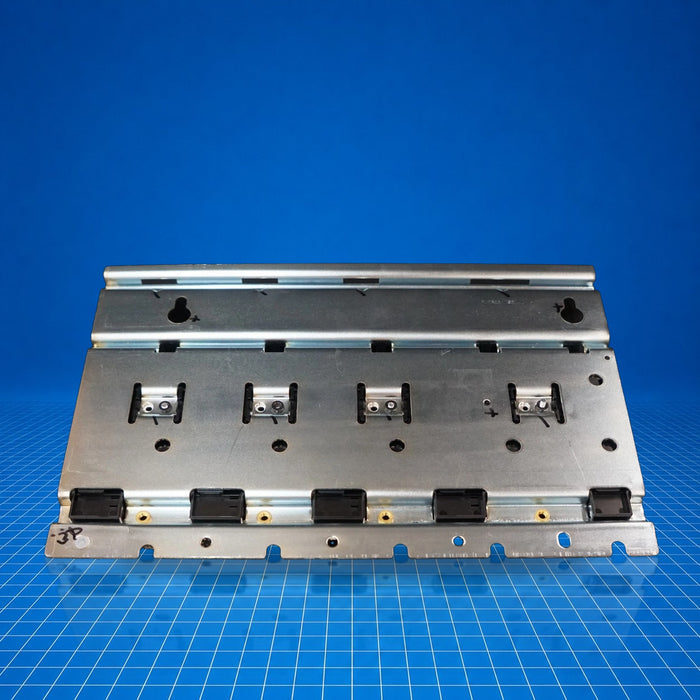

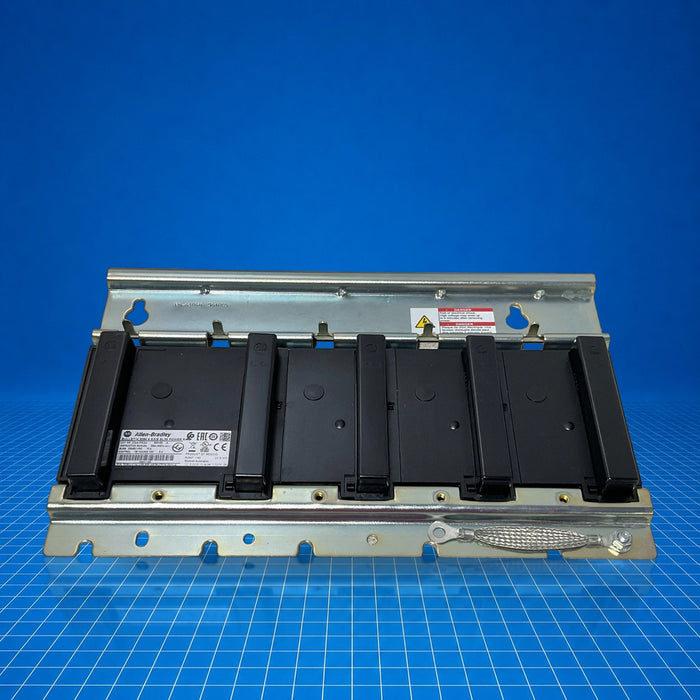

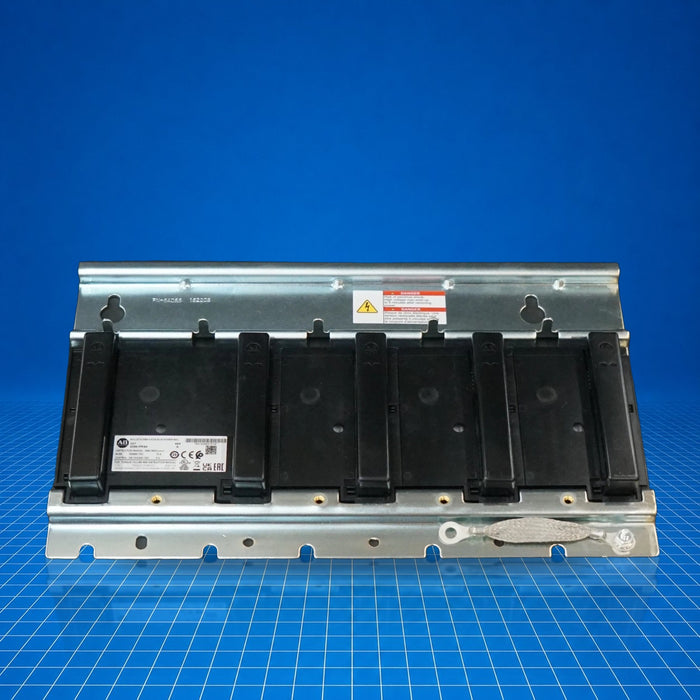

The 2094-PRS4 is a slim-style Power Rail from Allen-Bradley's Kinetix 6000 series, designed for multi-axis motion control systems. It supports a 230 VAC or 460 VAC three-phase input and accommodates one Integrated Axis Module (IAM) plus up to three additional axis modules. It distributes DC bus power (up to ≈650 VDC nominal at 460 V) to modular servo components and is typically used in industrial motion applications such as assembly stations, machine tools, and robotics where modular drive configuration and compact rail mounting are required.
Best Suited For
- Kinetix 6000 multi-axis motion control layouts
- Applications requiring a slim form-factor power rail
- Systems using one IAM plus up to three axis modules
- Installations with up to 460 VAC supply needing common DC bus rail
Voltage rating
230 VAC or 460 VAC (3-phase)
Axes supported
4-axis (1 IAM + 3 modules)
Nominal DC bus voltage
≈650 VDC at 460 VAC
Weight
5.25 lbs (2.38 kg)
Operating temperature
0 °C to +55 °C
Technical Specifications
I/O & Electrical
Voltage rating (input)
230 VAC or 460 VAC (3-phase)
Number of axes supported
4 (1 IAM + up to 3 axis modules)
Nominal DC bus voltage
≈650 VDC (at 460 VAC)
Short-circuit current rating
200 kA (rms)
Physical & Environmental
Weight
5.25 lbs (2.38 kg)
Operating temperature
0 °C to +55 °C
Shock resistance
15 G
Vibration
2 G, 5-55 Hz
Operating humidity
5 % to 95 % non-condensing
Operating altitude
≤ 1000 m
Dimensions (length × width)
≈348.0 mm × 266.7 mm (13.70 in × 10.50 in)
