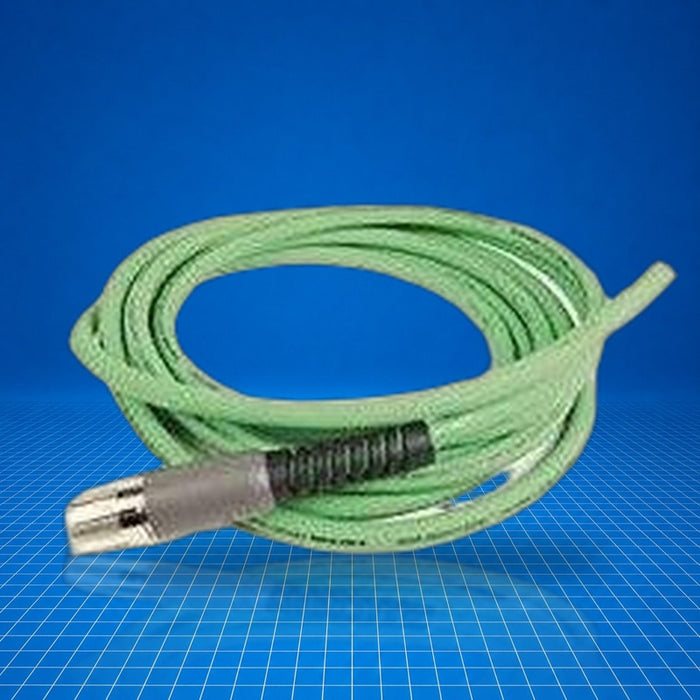

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2090-CFBM7DF-CDAF05 Allen-Bradley
Original price
$0.00
-
Original price
$1,003.61
Original price
$1,003.61
$0.00
-
$1,003.61
Current price
$1,003.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CFBM7DF-CDAF05 is an Allen-Bradley MP-Series continuous-flex feedback cable (SpeedTec DIN connector, flying-lead, incremental encoder type) used to transmit feedback signals between servo motors and drives in industrial motion control systems. It belongs to the Bulletin 2090 feedback cable family for Kinetix motors/PowerFlex drives. Typical applications include industrial robotics, packaging machinery, and material handling where flexible rotary motion is present. This part provides a 5 m continuous-flex cable solution.
Best Suited For
- Continuous-flex motor feedback in motion systems
- Kinetix motors with PowerFlex 750-Series drives
- Applications requiring incremental encoder feedback over flexible routing
- Machines with dynamic axis movement or cable flexing requirements
Cable length
5 m
Voltage rating
600 V
Connector type
SpeedTec DIN, flying-lead
Flex rating
Continuous-flex
Technical Specifications
I/O & Electrical
Voltage rating
600 V
Communication & Power
Feedback type
Incremental/SIN-COS (continuous-flex, flying-lead)
Pinout and conductor data
See pinouts: SIN+, SIN-, COS+, COS-, DATA+, DATA-, EPWR 5 V, ECOM, EPWR 9 V, TS+, TS-, S1-S3, Spare - conductor gauge varies (26 AWG, 22 AWG, 16 AWG)
Physical & Environmental
Flex rating
Continuous-flex
Typical bend radius
≈ 124 mm (4.9 in)
